Digital Oscilloscope | 100MHz 2 Channel 1GSa/s 7 Inch | SDS1102

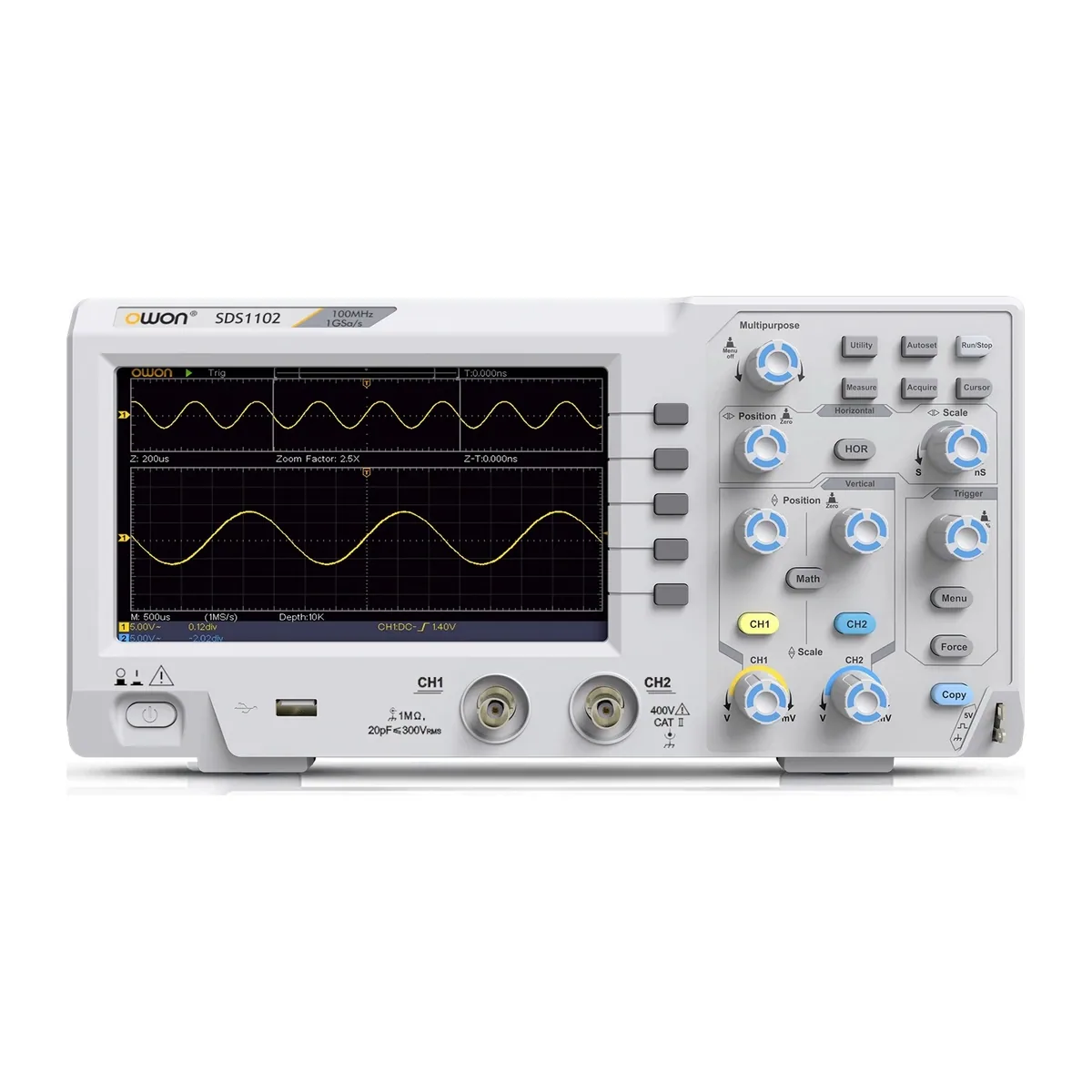

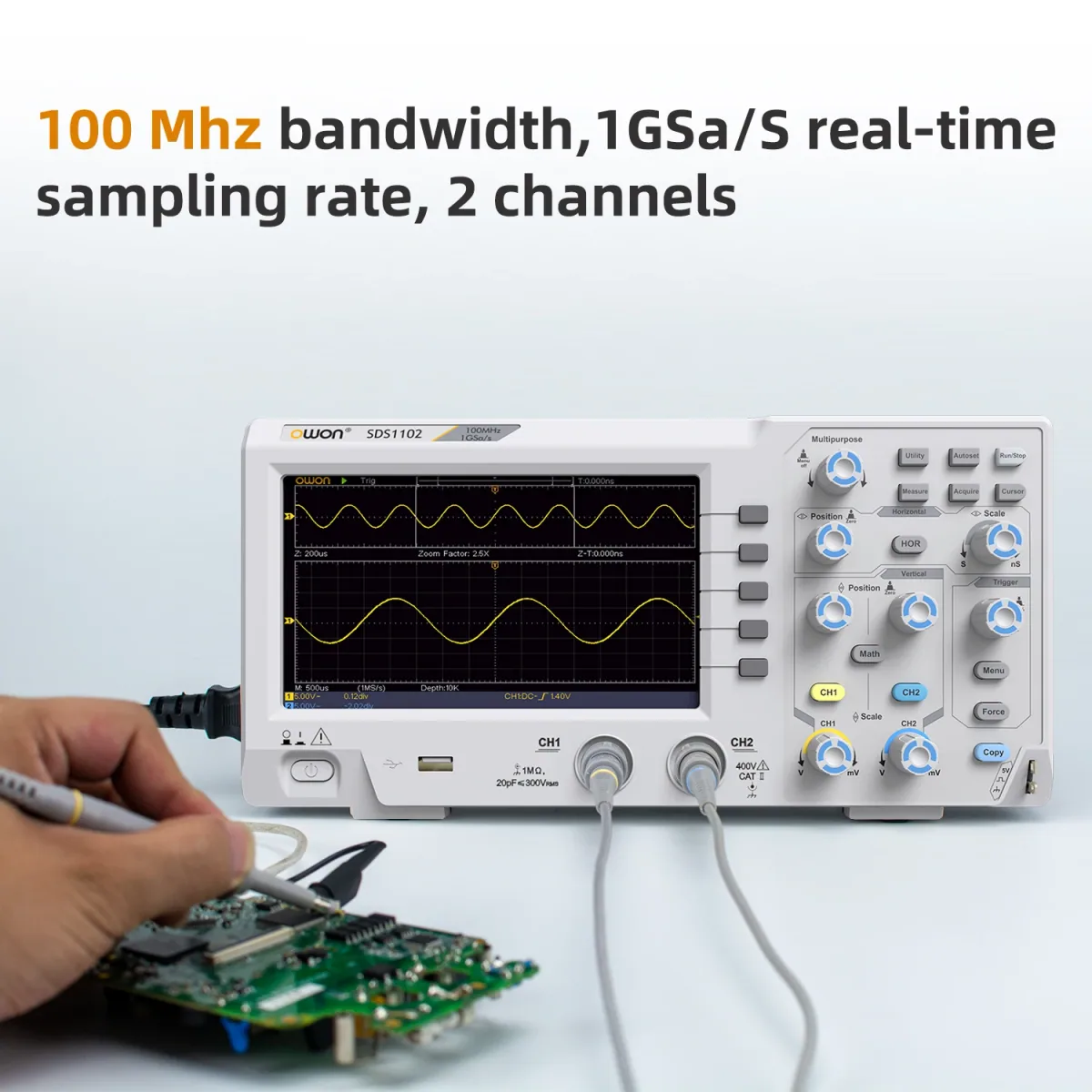

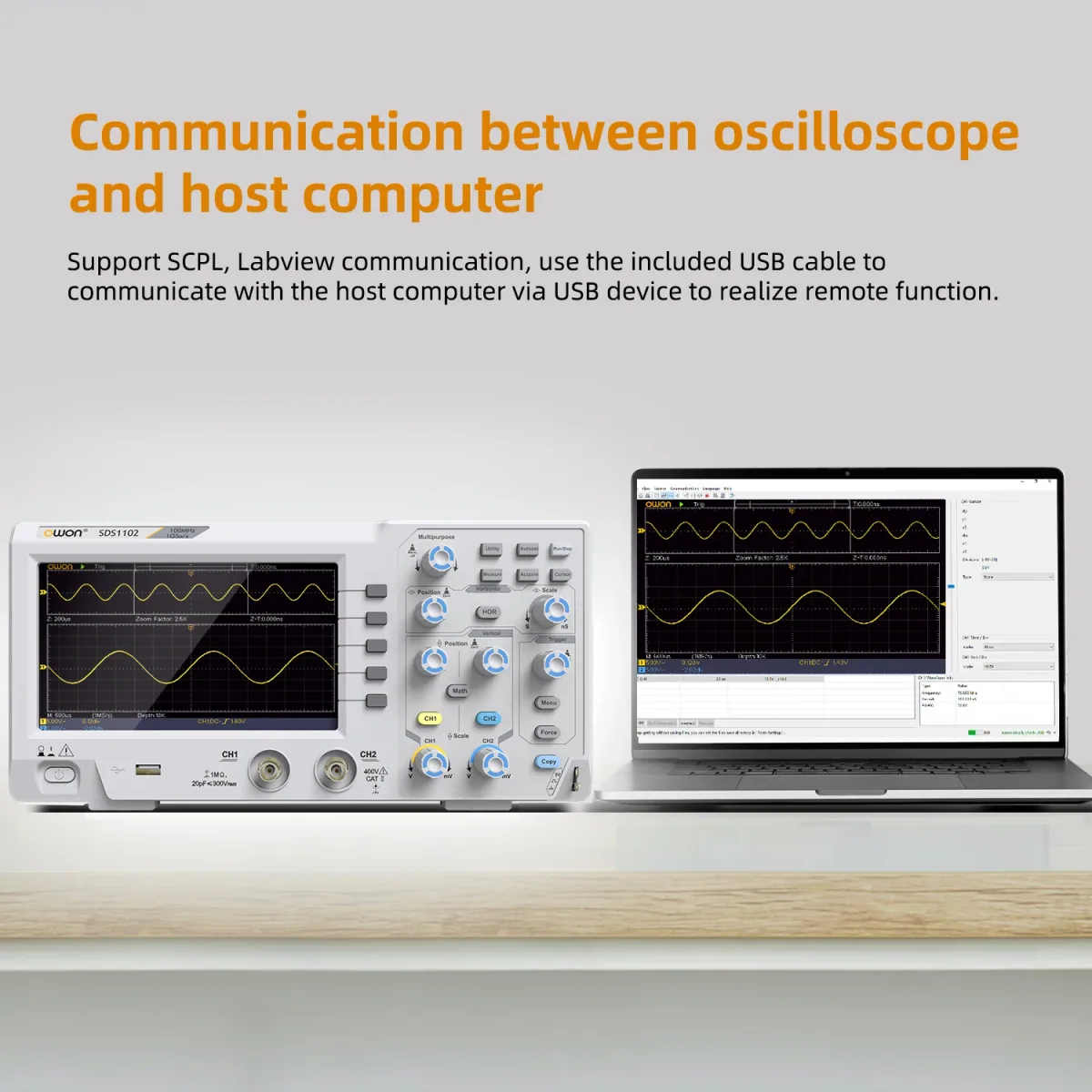

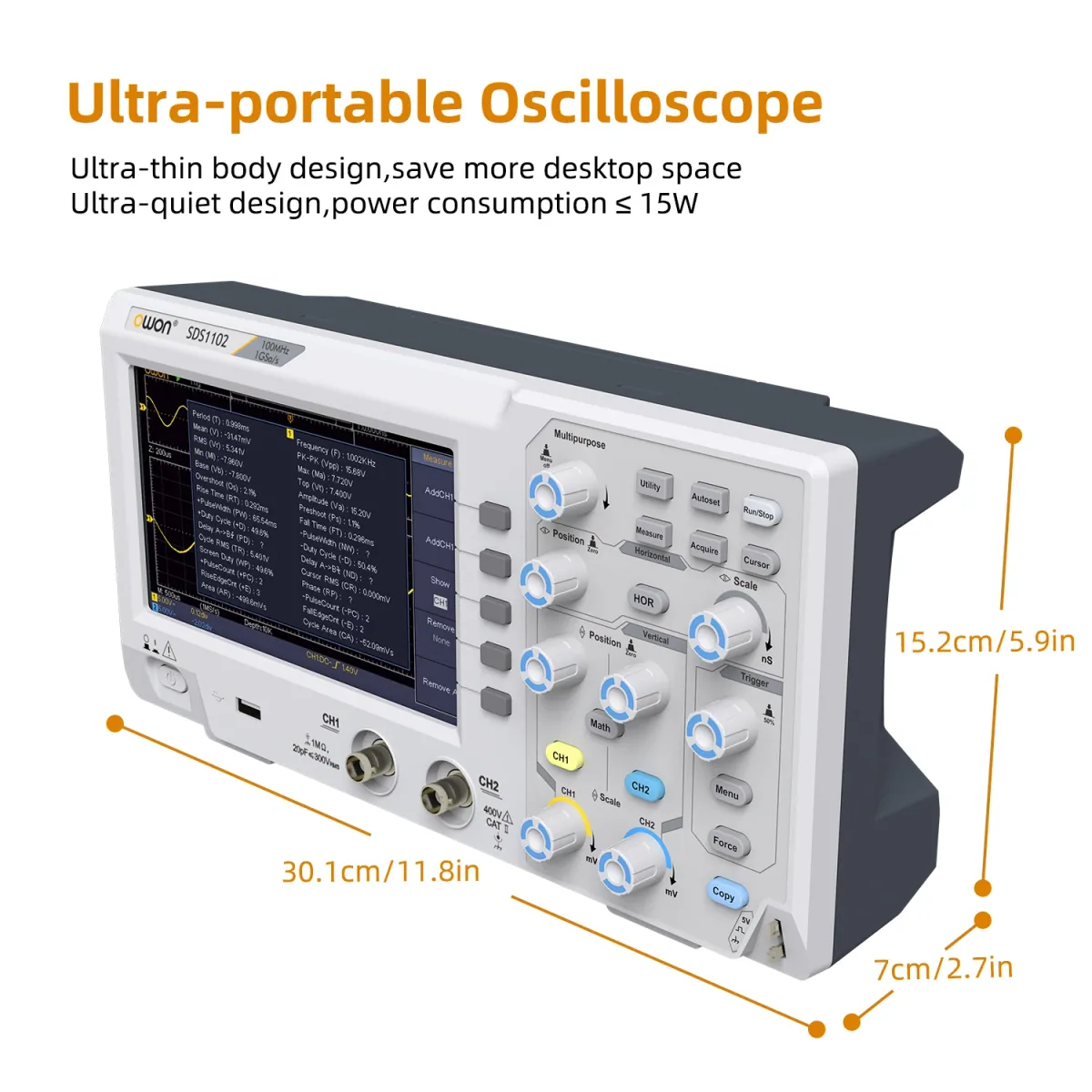

The SDS1102 is a slim two channel benchtop digital oscilloscope with 100MHz bandwidth, 1GSa/s real-time sampling, a 10K record length and a 7 inch 800 x 480 colour LCD. It runs from 100V to 240V AC and draws under 15W, and its USB device port supports SCPI and LabVIEW remote control from a PC. Features and Benefits - 100MHz bandwidth and 1GSa/s sampling on both channels - enough for most repair, audio, power and microcontroller work. - 5mV/div to 5V/div sensitivity with 8 bit vertical resolution - small ripple and large logic levels on the same instrument. - 2ns/div to 1000s/div horizontal scale - from fast edges to slow drifts. - Edge and video triggering (NTSC, PAL, SECAM) with auto, normal and single modes - stable traces and one-off captures. - Over 20 automatic measurements plus cursors, waveform maths and FFT - rise time, overshoot, duty and phase delay without manual counting. - Frequency counter and Lissajous X-Y display - check frequency and phase difference between two signals. - USB host and device ports - save screens and waveforms to a USB stick or control the scope from a computer. Applications - Electronics repair and fault finding on switch mode supplies and amplifiers. - Teaching labs and student benches. - Embedded and hobby projects that need a second channel for comparison. - Production checks where a slim bench footprint helps. In the box Oscilloscope, 2 probes with accessories (ground springs, colour rings, insulating tips and adjustment tool), USB cable, mains lead, quick guide and software disc, as pictured. Note: Maximum input is 400V peak to peak (DC+AC). Use the 10X probe setting for higher signals and connect the probe ground only to the circuit ground reference. This page sells the UK plug version.
