Touchscreen Oscilloscope Multimeter 2C53P | 2CH 50MHz 250MSa/s | 3 in 1

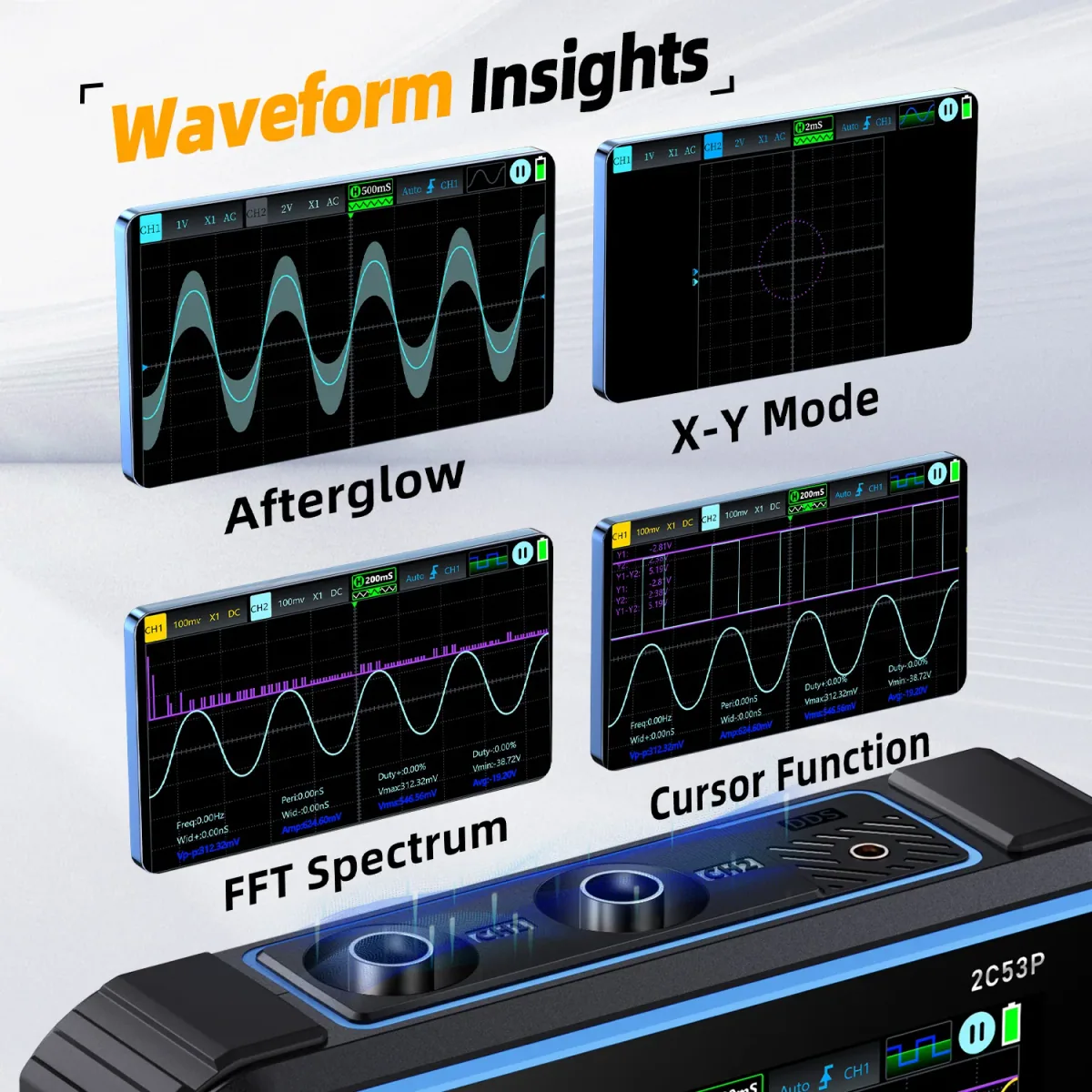

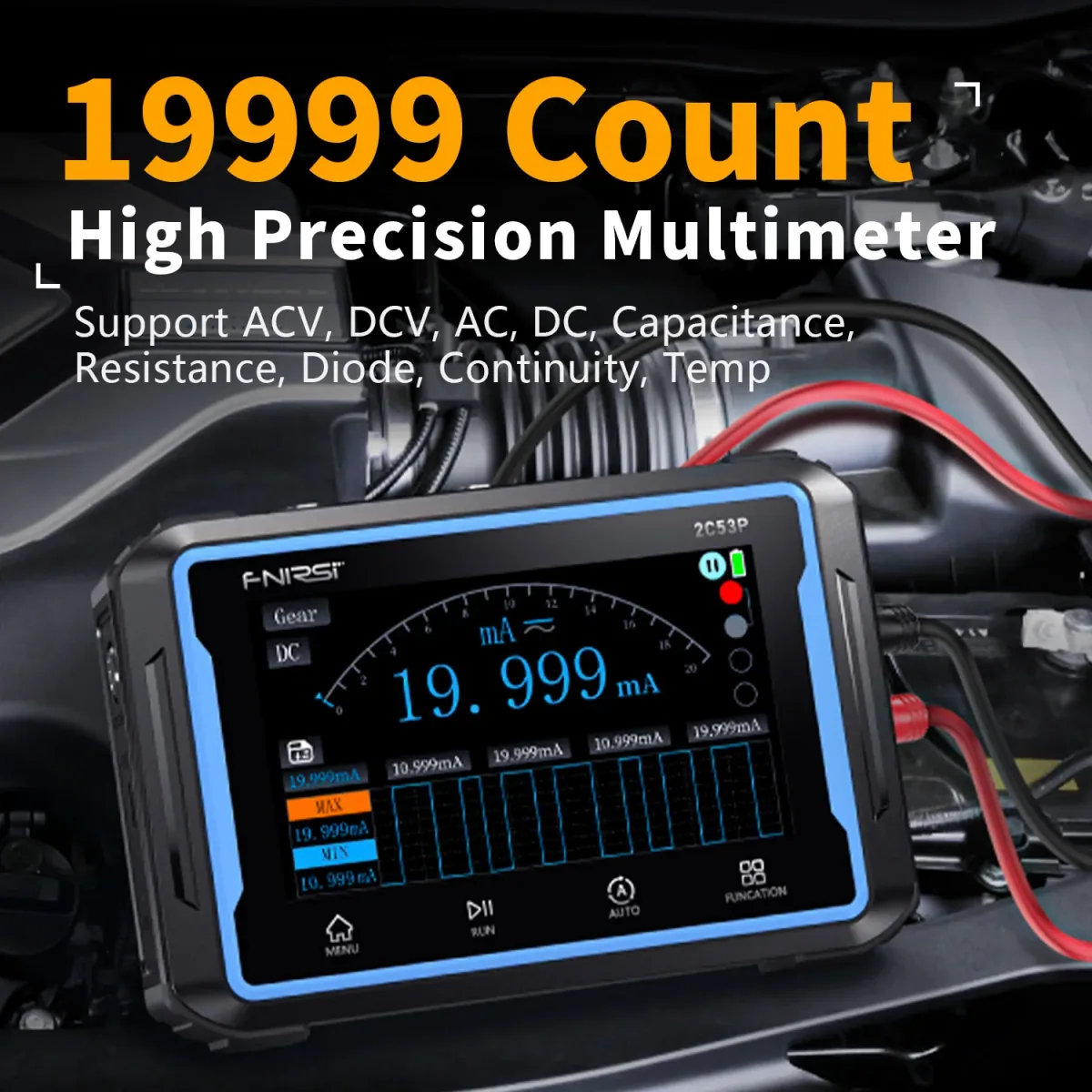

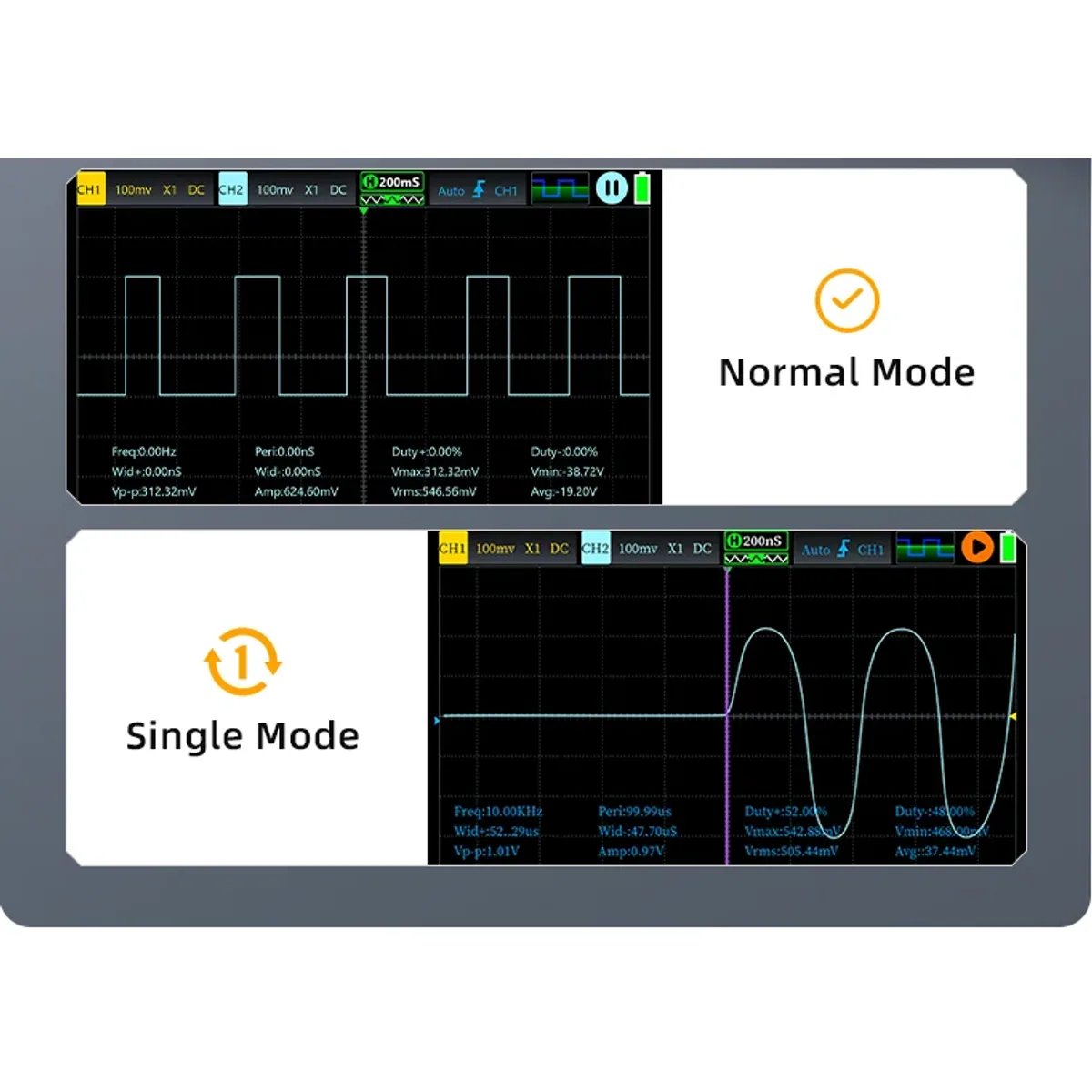

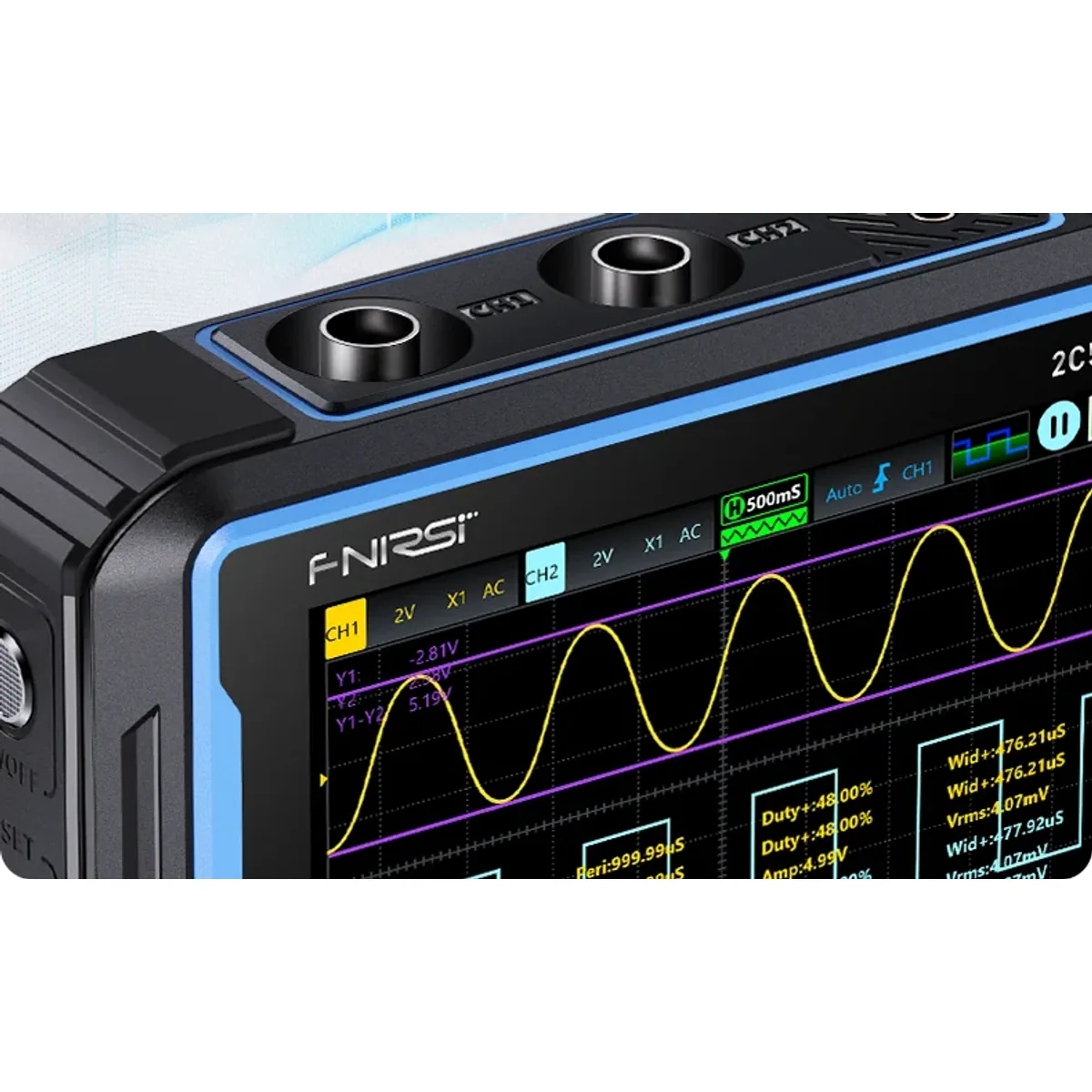

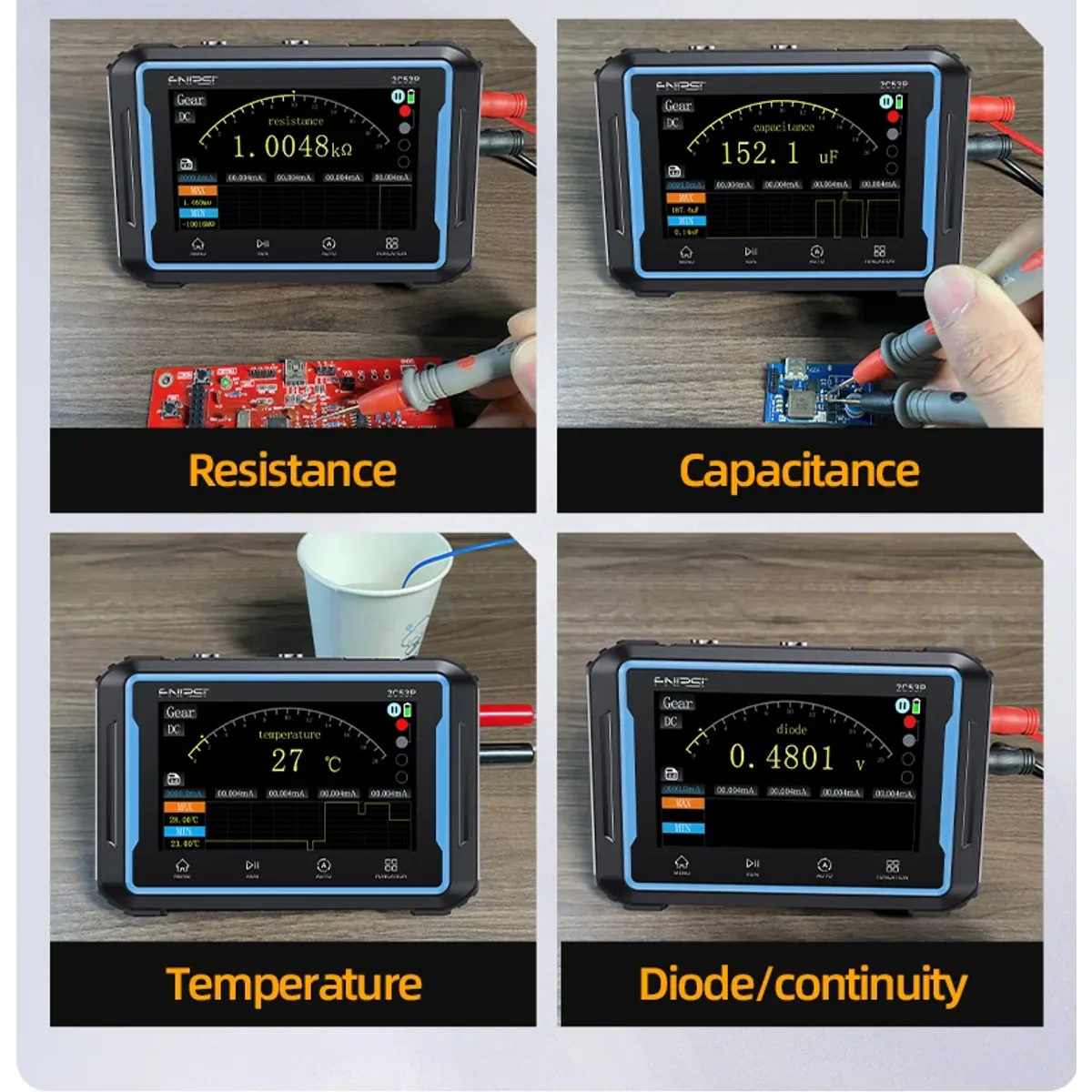

The 2C53P is a tablet-style 3 in 1 oscilloscope multimeter with a dual channel 50MHz, 250MSa/s digital oscilloscope, a 19999-count (4.5 digit) true RMS multimeter and a DDS signal generator up to 10MHz, all run from a 4.3 inch 480 x 272 IPS touchscreen. An FPGA, MCU and ADC architecture, ±400V peak input protection and a 4000mAh battery make it a portable bench for repair and development work. Features and Benefits - Two 50MHz channels at 250MSa/s with up to 64kByte storage depth: compare input and output, or clock and data, on one screen. - Touch control to move and zoom waveforms, plus on-screen MENU, RUN, AUTO and FUNCTION keys. - 12 automatic measurements, cursors, 9 maths operations including FFT, X-Y mode and infinite afterglow: deeper analysis without a PC. - 20MHz bandwidth limit: cleaner millivolt-level power supply ripple readings. - 19999-count true RMS multimeter with a recording mode that keeps up to 5 readings and shows max and min trends. - DDS generator with 12 waveforms, sine up to 10MHz and other waveforms up to 5MHz, 0.1 to 3.0V, 1Hz steps and 0 to 100% square duty. - Dual ceramic fuses with intelligent anti-burn protection on the meter current inputs. Applications - Electronics repair and R&D: switching supplies, audio stages, sensors and microcontroller signals. - Automotive diagnostics with the multimeter and scope on one battery-powered unit. - Maintenance teams who want one portable instrument in the tool bag. - Schools, colleges and home workshops. In the box - 2C53P unit, 2 x P6100 probes, multimeter test leads, alligator clip probe, data cable, product manual. Note: the scope inputs are rated for ±400V peak with the probe on 10x. Match the on-screen probe setting (1x or 10x) to the probe switch, and use the meter jacks for mains voltage and current.
