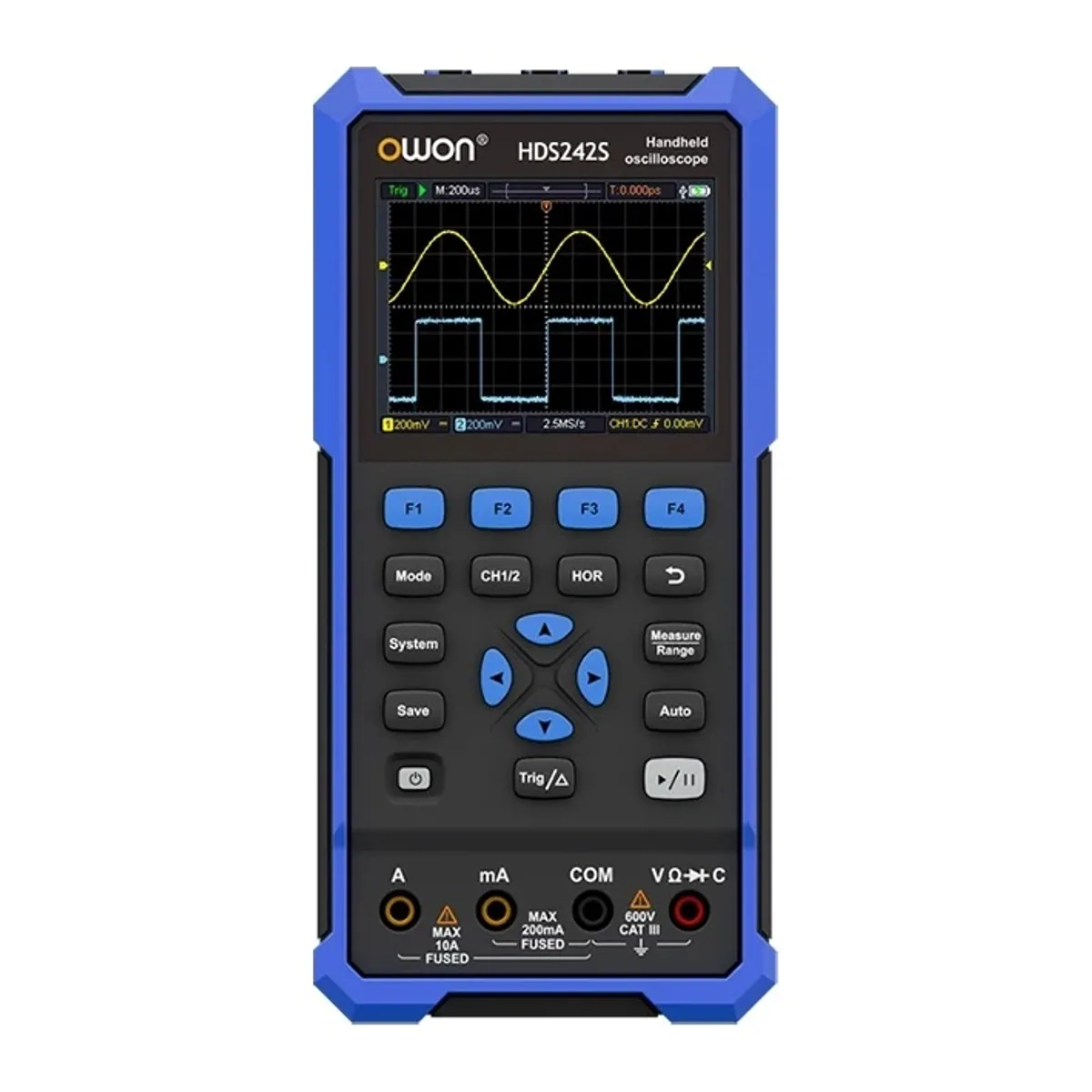

Handheld Digital Oscilloscope HDS200 | 2CH 40MHz to 200MHz | 25MHz Generator

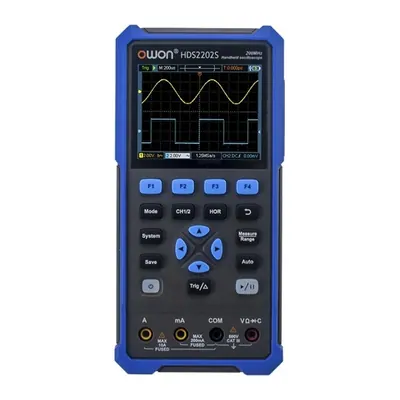

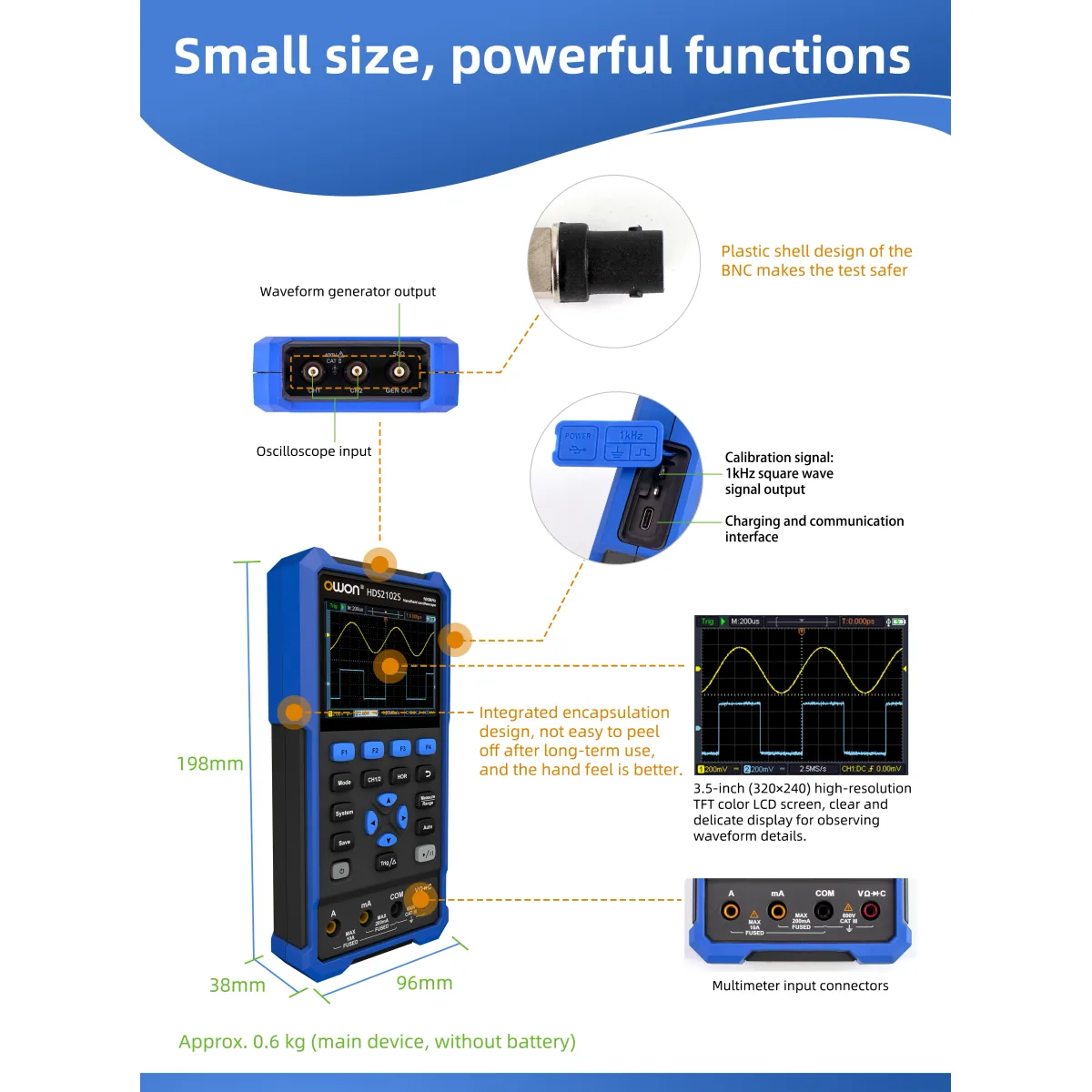

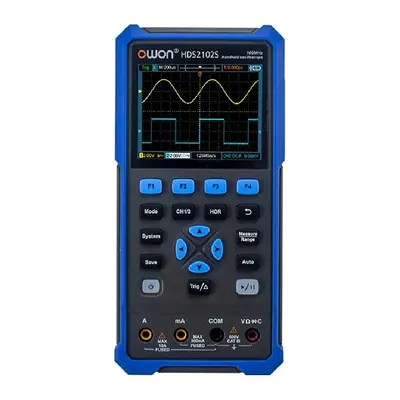

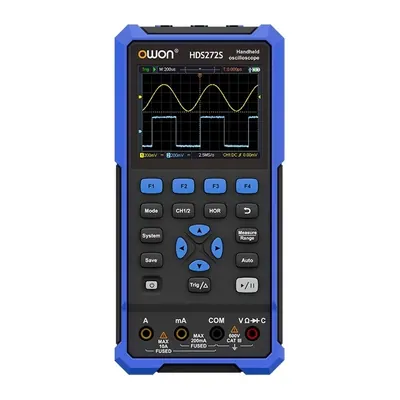

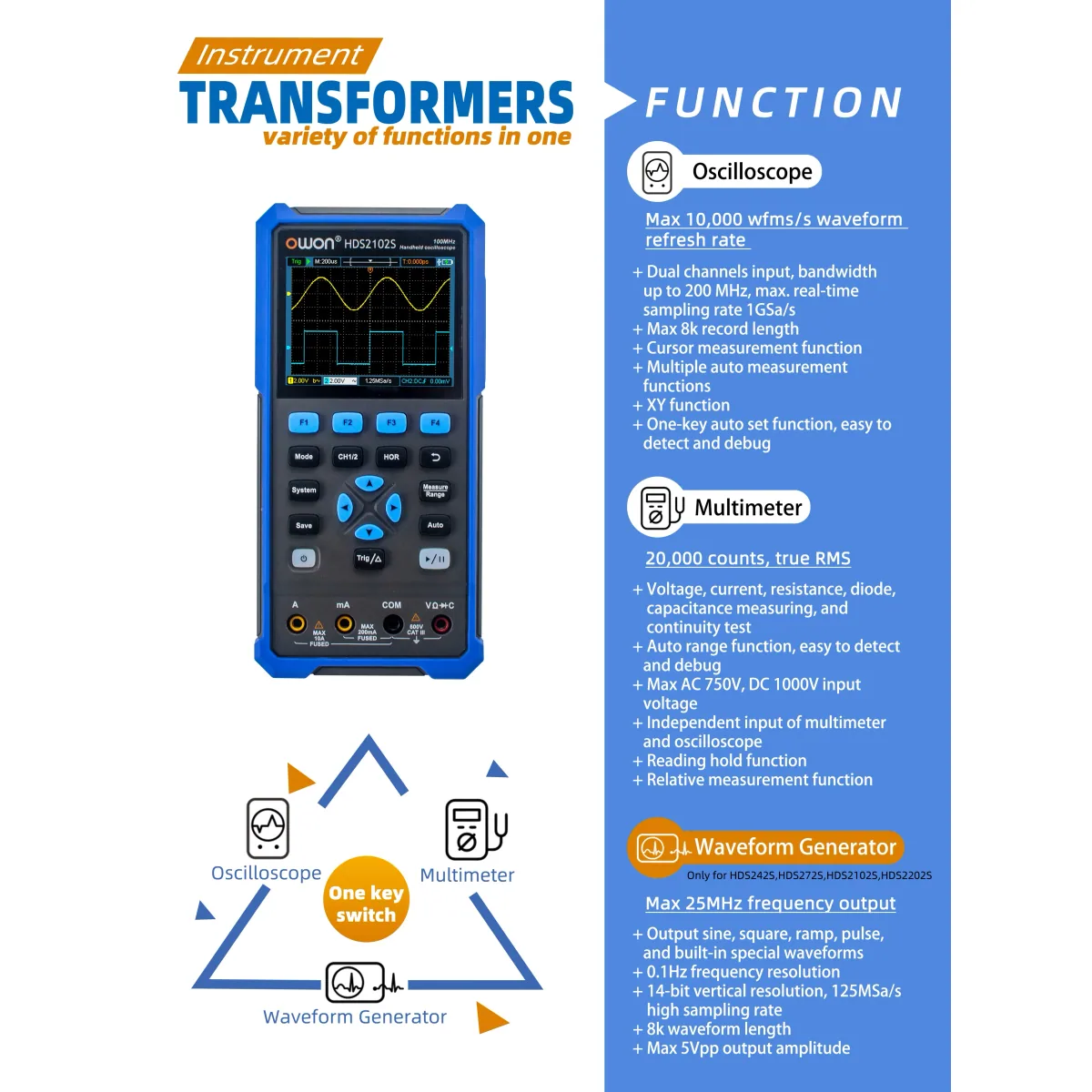

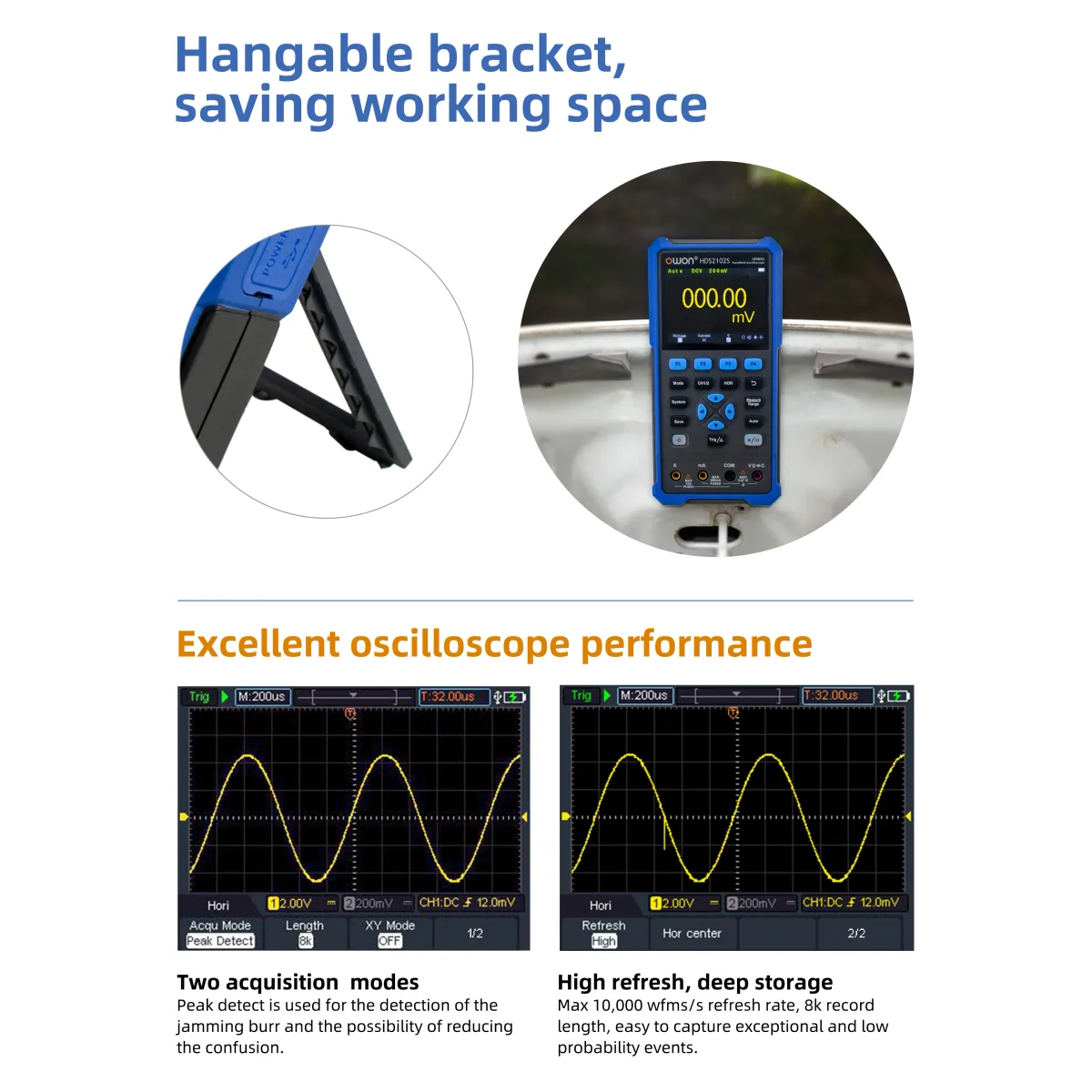

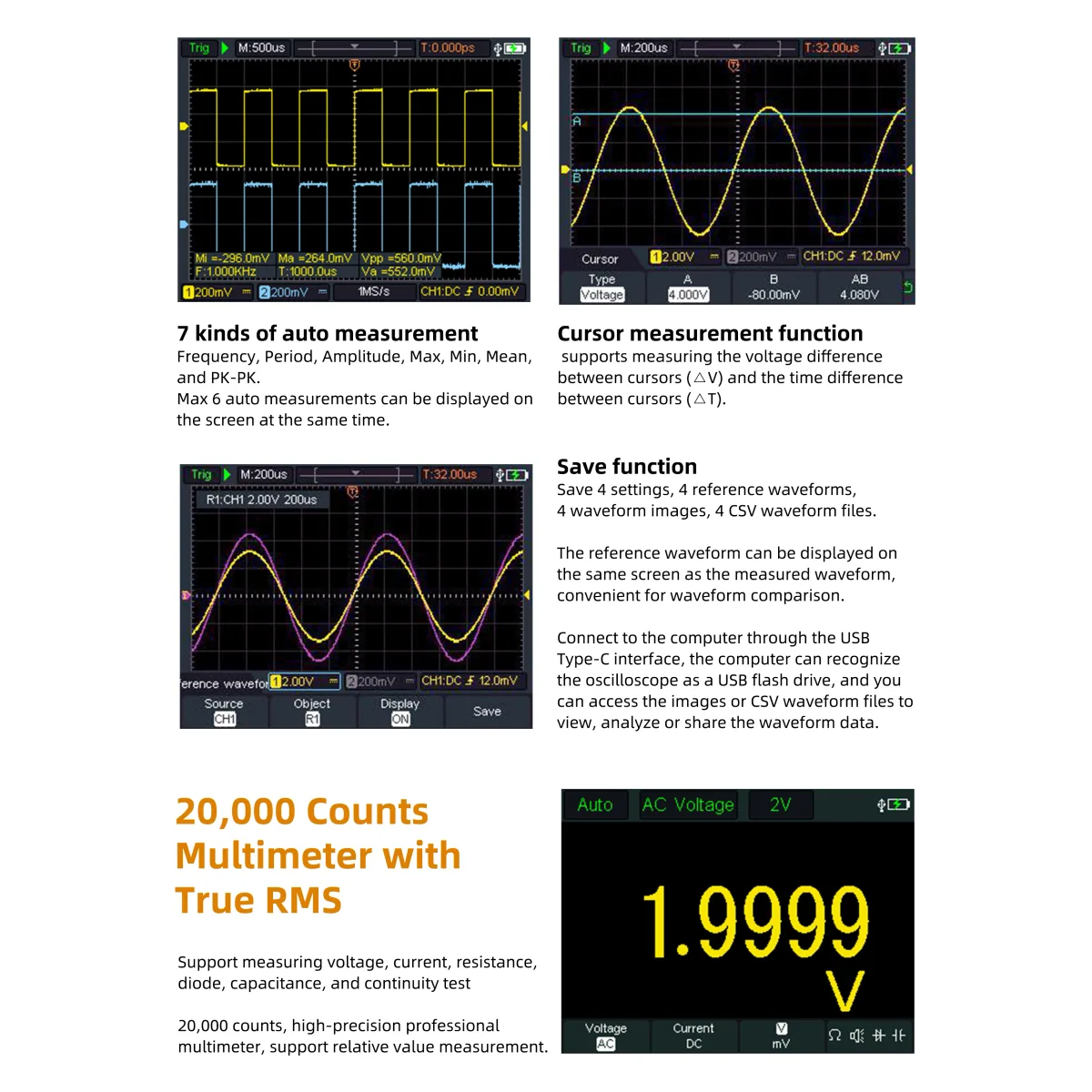

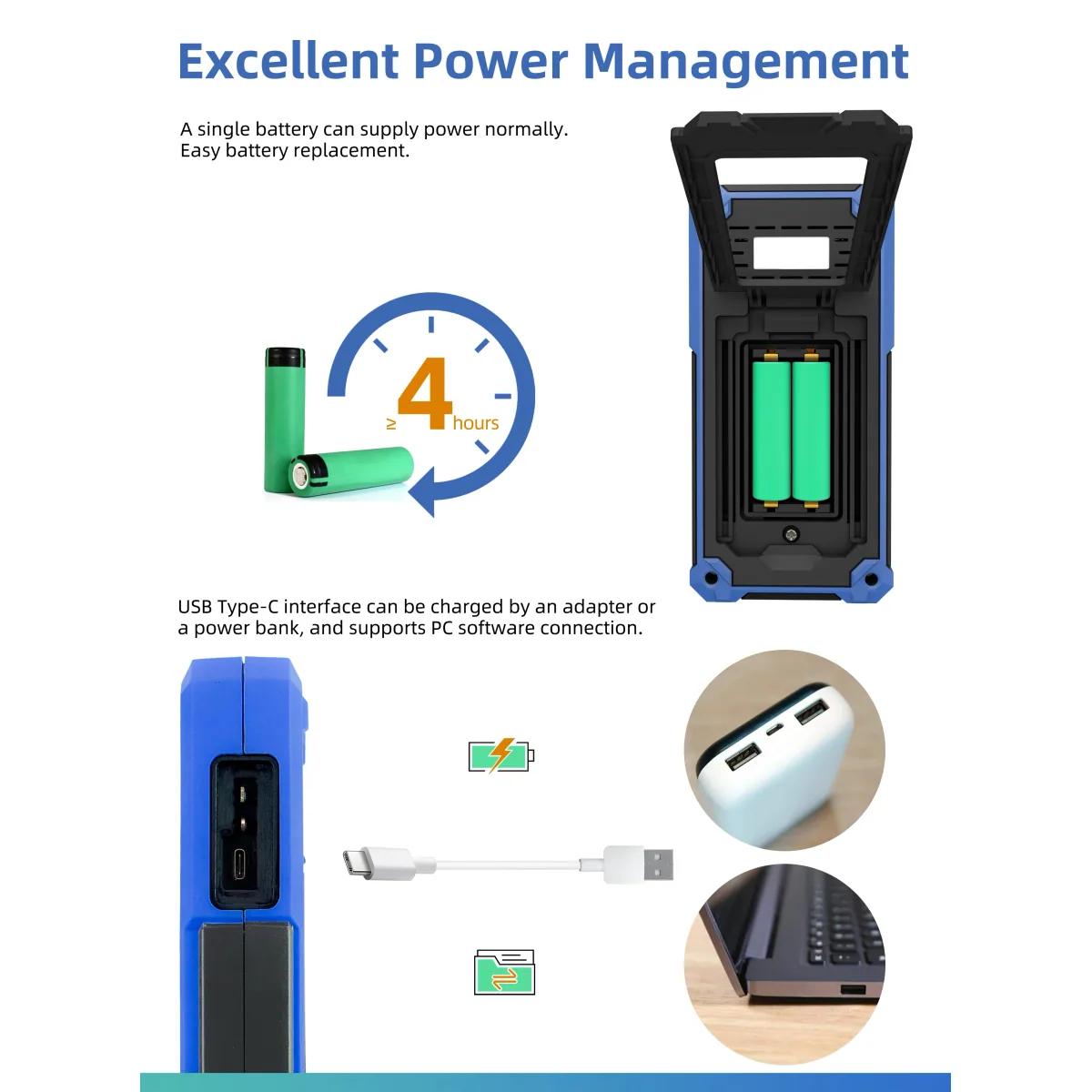

The HDS200 series is a 3 in 1 handheld digital oscilloscope with two scope channels, a 20,000 count True RMS multimeter and a 1-channel waveform generator up to 25MHz, offered as HDS242S (40MHz, 250MSa/s), HDS272S (70MHz, 250MSa/s), HDS2102S (100MHz, 500MSa/s) or HDS2202S (200MHz, 1GSa/s) on a 3.5 inch colour screen. Features and Benefits - 2 scope channels with 10,000 wfrms/s refresh and 8K record length - catch intermittent glitches and compare two signals side by side - Normal and peak detect acquisition, edge trigger with Auto, Normal and Single modes - spot narrow spikes and freeze one-off events - 7 automatic measurements and cursor readings - frequency, period, amplitude, max, min, mean and PK-PK, plus ΔV and ΔT between cursors - Built-in waveform generator - sine to 25MHz, square and pulse to 5MHz, ramp to 1MHz and 8 built-in special waveforms, 14 bit, 20mVpp to 5Vpp - 20,000 count True RMS multimeter on separate inputs - DC to 1000V, AC to 750V and current to 10A, with relative and hold functions - 18650 lithium battery and USB Type-C - charge from an adapter or power bank, and copy screenshots and CSV files to a computer, which sees the scope as a USB drive - Hangable bracket - hook it in a cabinet or stand it on the bench to keep hands free Applications - Outdoor and on-site maintenance - Automotive maintenance and power detection - Electronics repair, design and debugging - Education and labs that need a scope, meter and signal source in one In the box Main device, soft carry bag, oscilloscope probe, probe adjust tool, USB cable, multimeter leads, quick guide, BNC to alligator clip cable and power adapter (UK plug). Note: the oscilloscope input is rated 400V (DC plus AC, peak to peak) at 1MΩ with a 10:1 probe. Keep multimeter inputs within 1000V DC, 750V AC and 10A.
