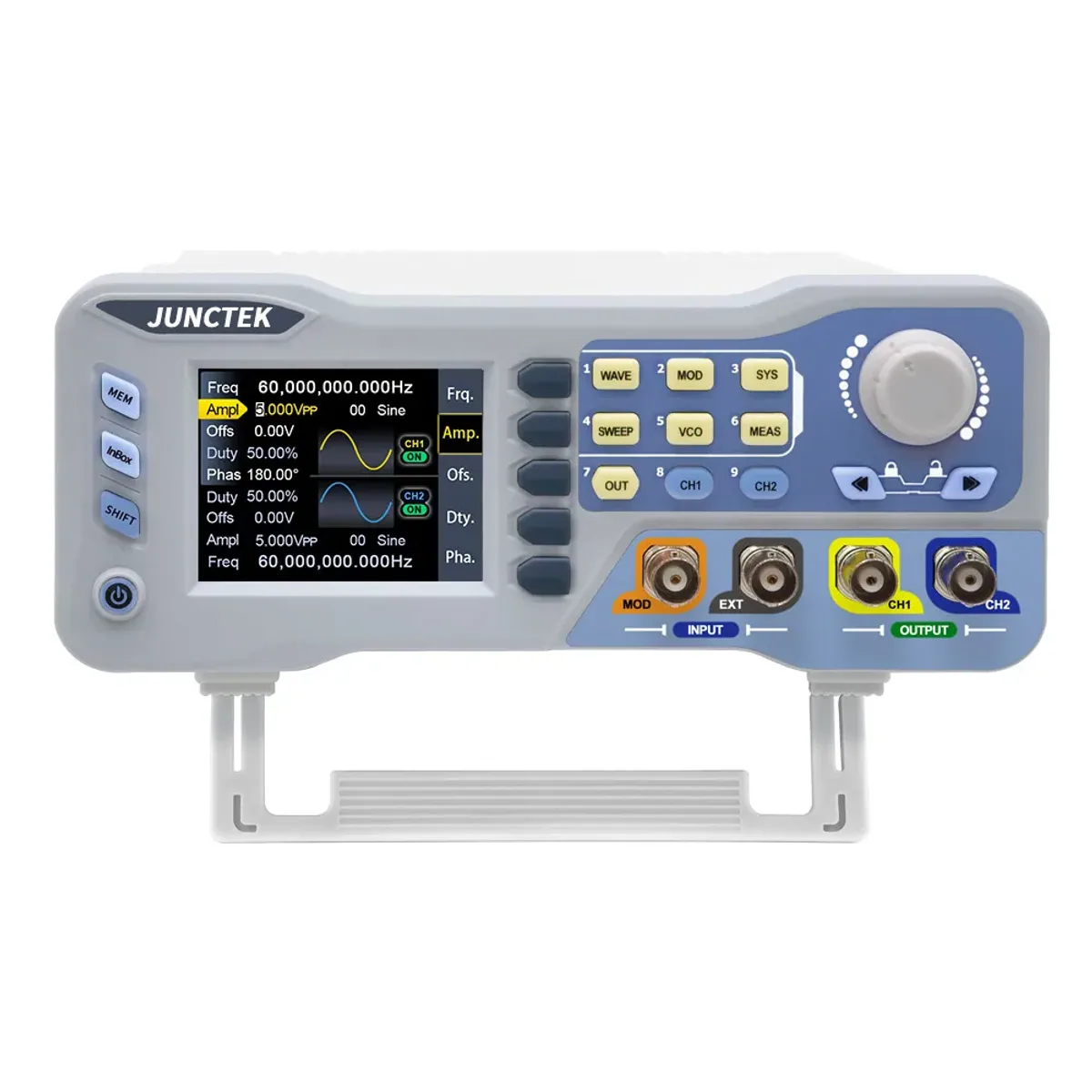

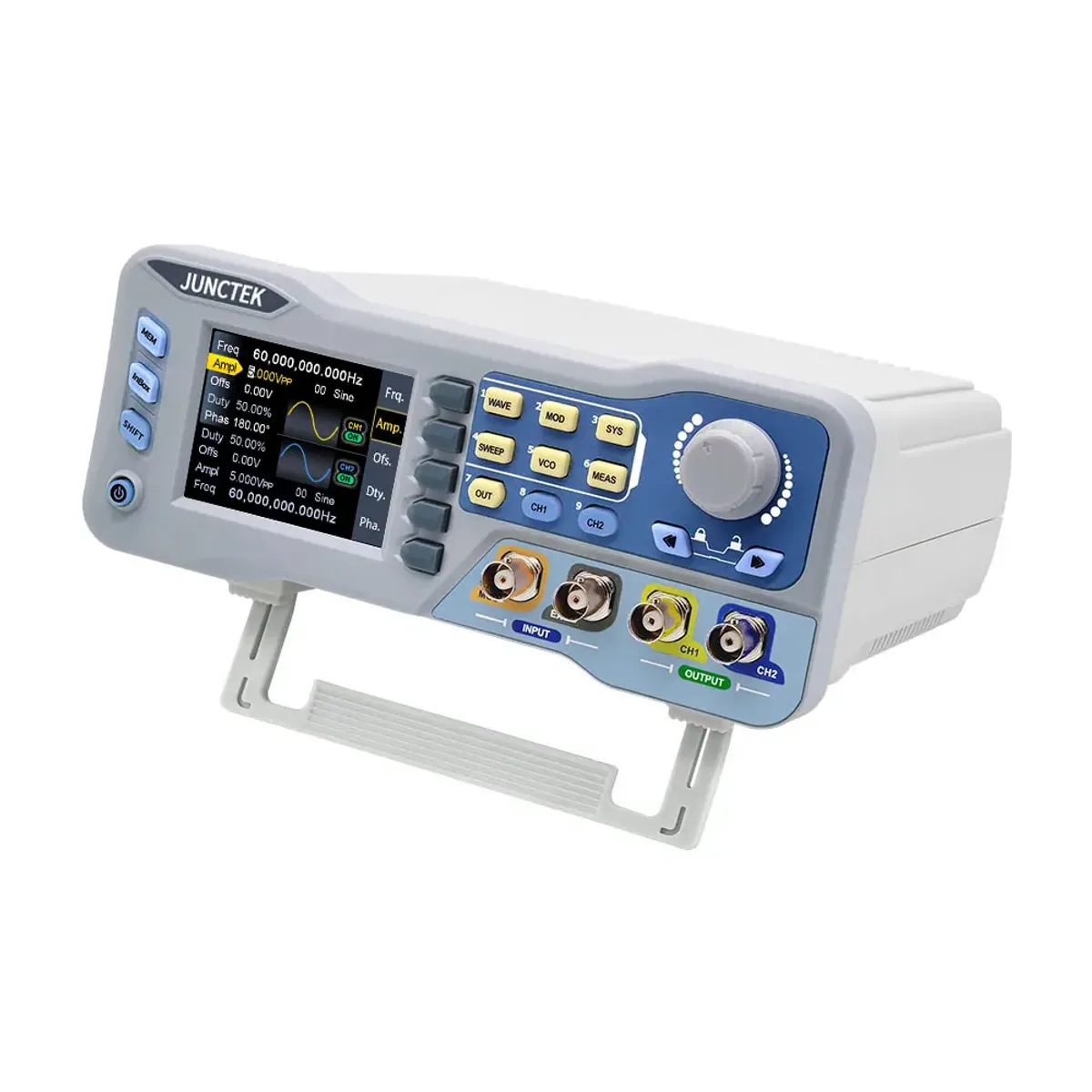

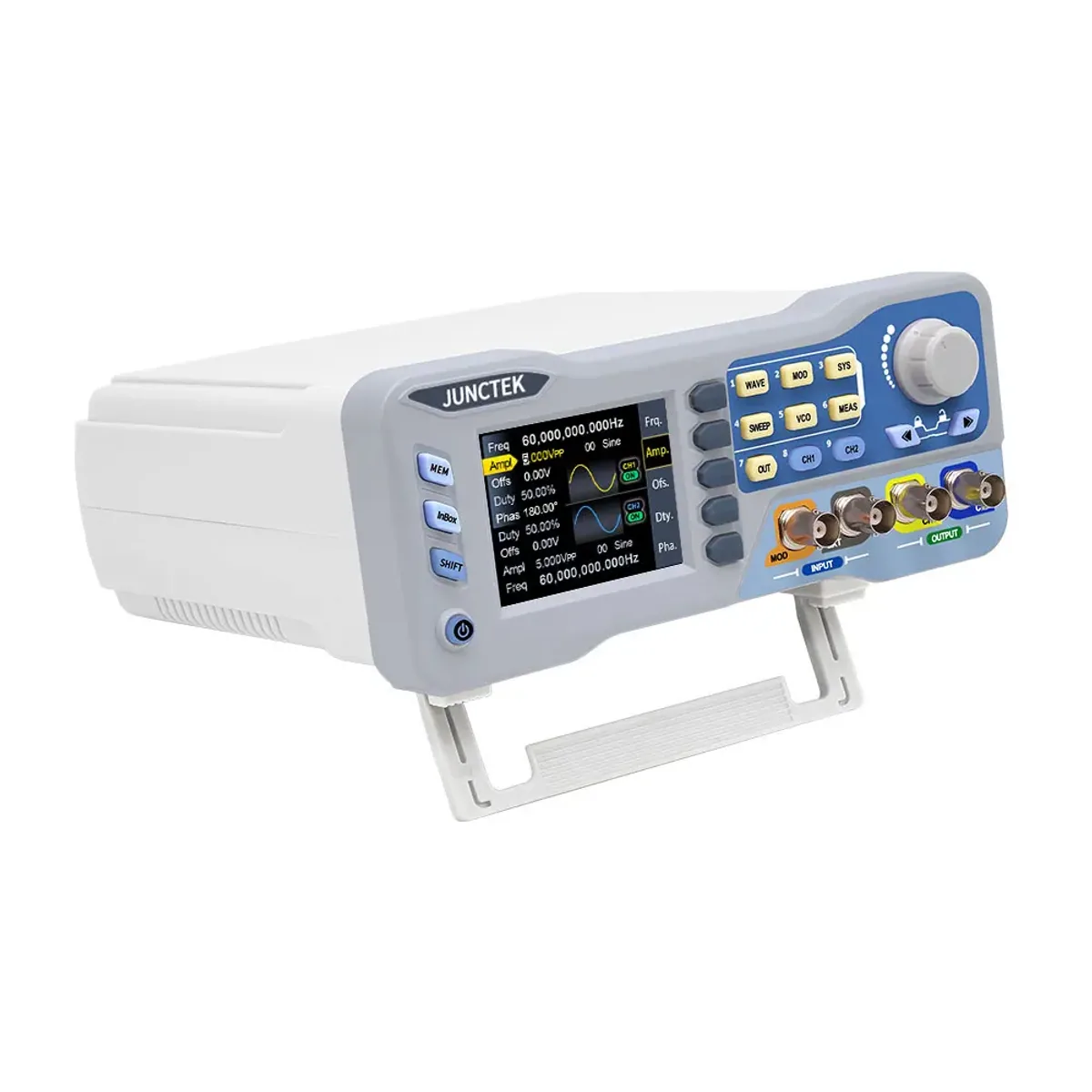

Arbitrary Waveform Generator JDS8060 or JDS8080 | 60 or 80MHz | 275MSa/s

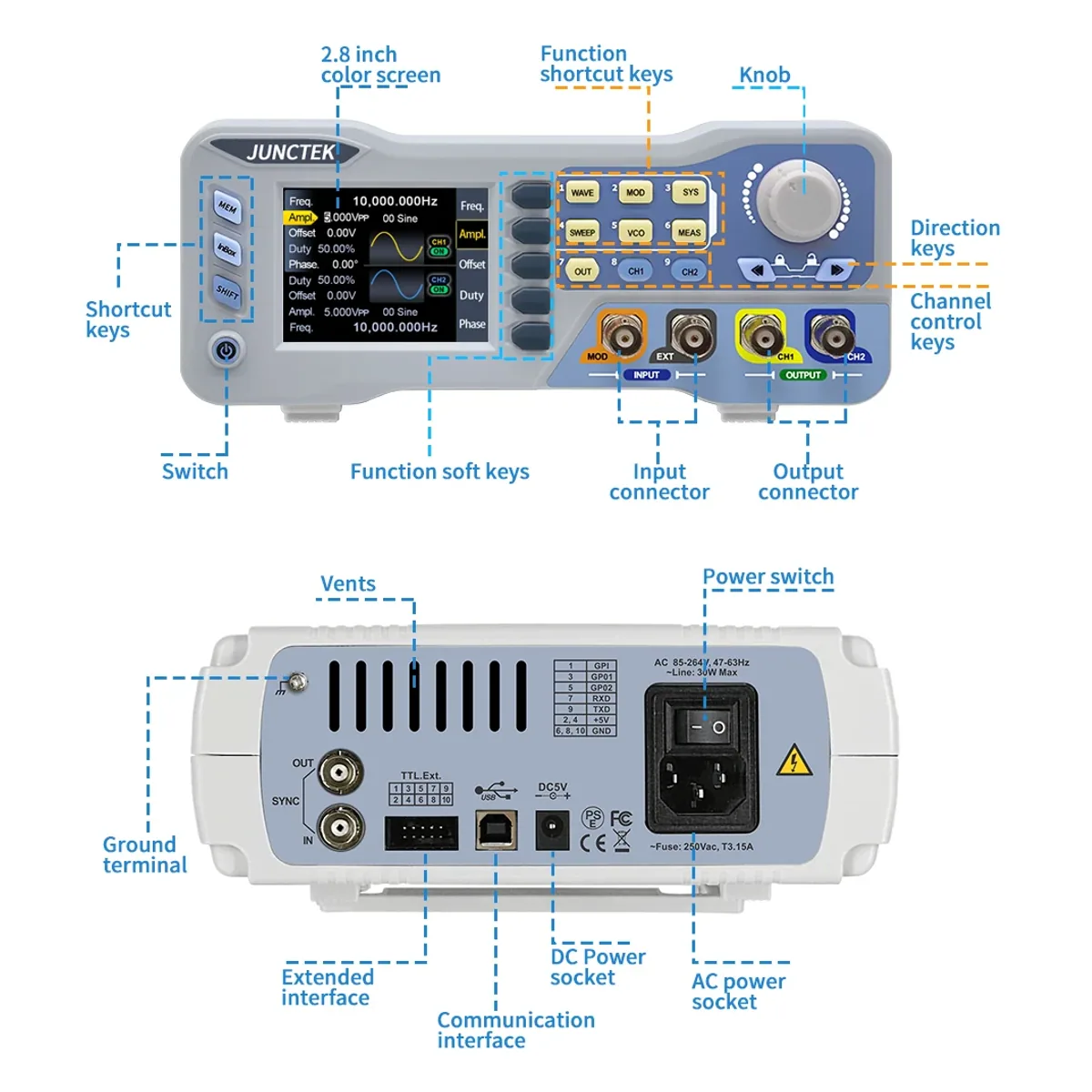

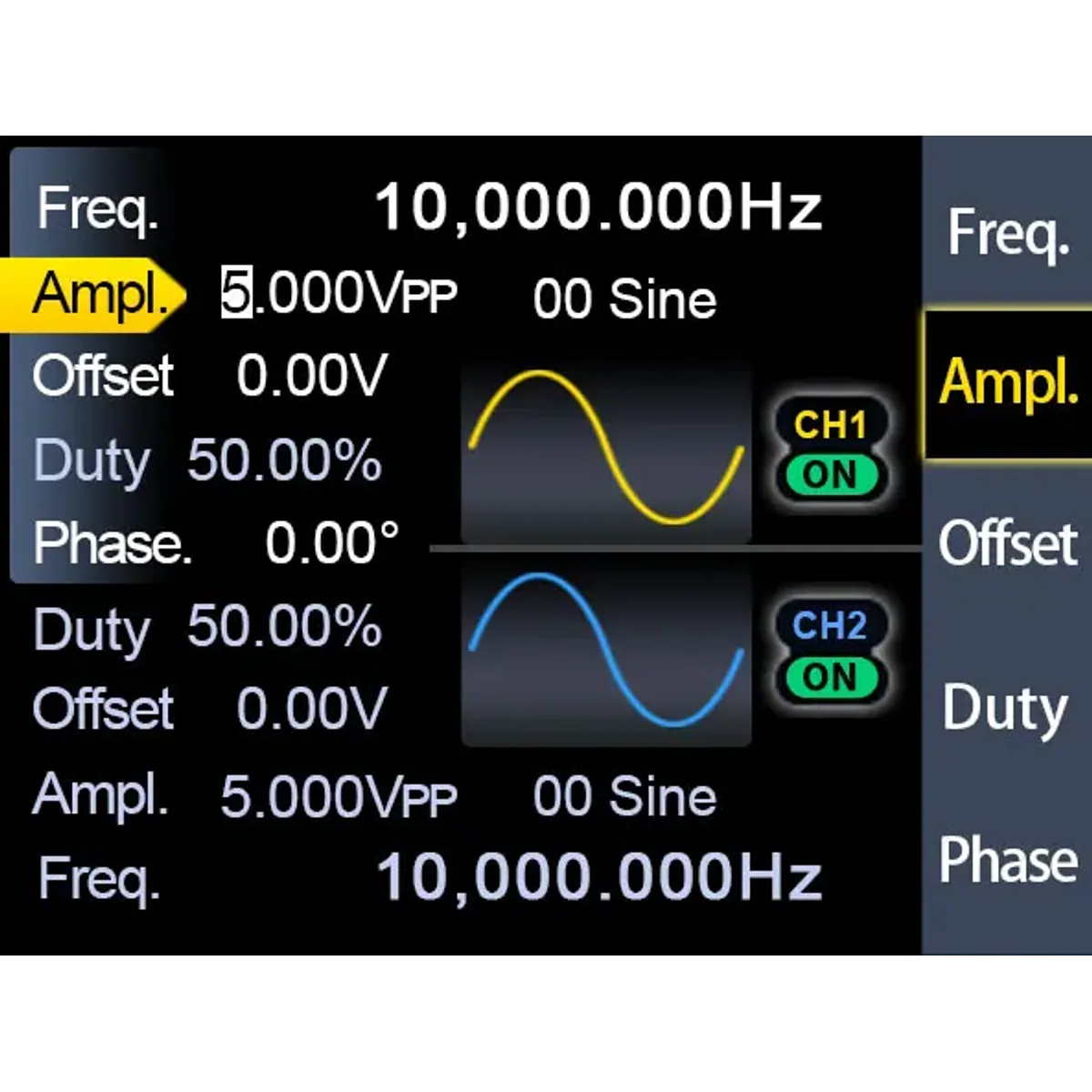

The JDS8060 and JDS8080 are dual channel function and arbitrary waveform generators with sine output from 1nHz to 60MHz (JDS8060) or 80MHz (JDS8080), a 275MSa/s sampling rate, 14 bit vertical resolution and 8192 points per channel, plus a built-in frequency meter and counter. Features and Benefits - Two equal channels - output the same or different waveforms at once, with the phase difference adjustable from 0 to 359.99° in 0.01° steps. - High output level - 2mVpp to 25Vpp below 1MHz, 2mVpp to 10Vpp to 11MHz, 2mVpp to 5Vpp to 60MHz and 2mVpp to 3.6Vpp to 80MHz. - Full modulation set - AM, FM, PM, ASK, FSK, PSK and PWM on both channels, plus burst output of 1 to 1048575 cycles. - Sweep and VCO - sweep frequency, amplitude or duty cycle in linear or logarithmic mode, or steer them from an external control voltage. - Arbitrary waveforms - 99 user-defined sets on the unit, and PC software with more than 160 built-in shapes to edit and download in one click. - Measurement and counter - 1Hz to 100MHz frequency meter and counter with AC or DC coupling, reading frequency, pulse width, period and duty cycle. - Flexible power and sync - mains input or DC 5V socket, and SYNC in and out sockets for linking two or more units into more channels. Applications - Circuit design, prototype and production testing - Electronics teaching labs and training benches - Modulated and swept signals for communication circuit work - Multi-channel setups by linking several generators In the box - 1 x JDS8060 or JDS8080 generator - 1 x mains power cord (UK plug) - 1 x BNC to BNC cable - 1 x USB cable - BNC to crocodile clip leads - 1 x quick guide Note: The mains input is rated AC 85 to 264V, 47 to 63Hz, 30W max, with a T3.15A fuse. The phone app connects over Bluetooth and can import waveforms but cannot draw them; use the PC software to edit arbitrary waves.
