Selecting Tool Material and Hardness

Choosing the right cutter material depends on your workpiece hardness and machine rigidity. High-speed steel (HSS) offers excellent toughness and works well for general milling of aluminum and softer metals on less rigid setups. For high-speed production and hardened steels, solid carbide is essential to maintain a clean cutting edge.

Pay close attention to the Rockwell hardness (HRC) rating of your tooling. Standard alloy carbide steel tools rated at HRC50 work well for tool steels and alloy steels. For demanding materials like stainless steel, upgrade to high-performance cutters rated at HRC65 to prevent premature thermal breakdown.

• High-Speed Steel (HSS): Best for general metalworking, cost-effective, and highly forgiving of vibration.
• HRC50 Carbide Alloy: Suitable for hardened steel, alloy steel, and tool steel under standard conditions.

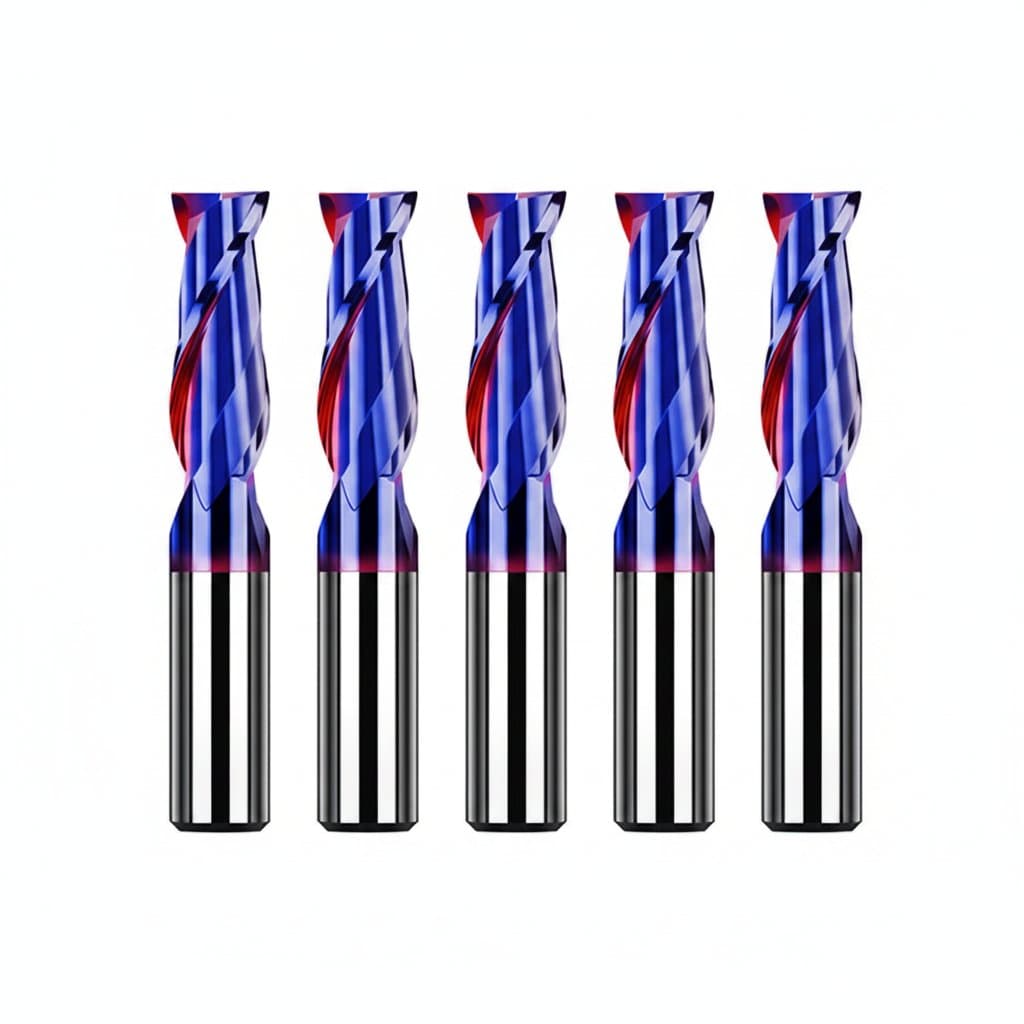

• HRC65 Carbide: Required for stainless steel and high-speed CNC milling where heat buildup is severe.

Matching Flute Count to Your Substrate

The number of flutes on a cutter determines chip clearance capacity and the quality of the surface finish. Single-flute and two-flute tools provide large chip pockets. These pockets are critical when cutting gummy materials like aluminum, acrylics, and soft plastics that melt easily.

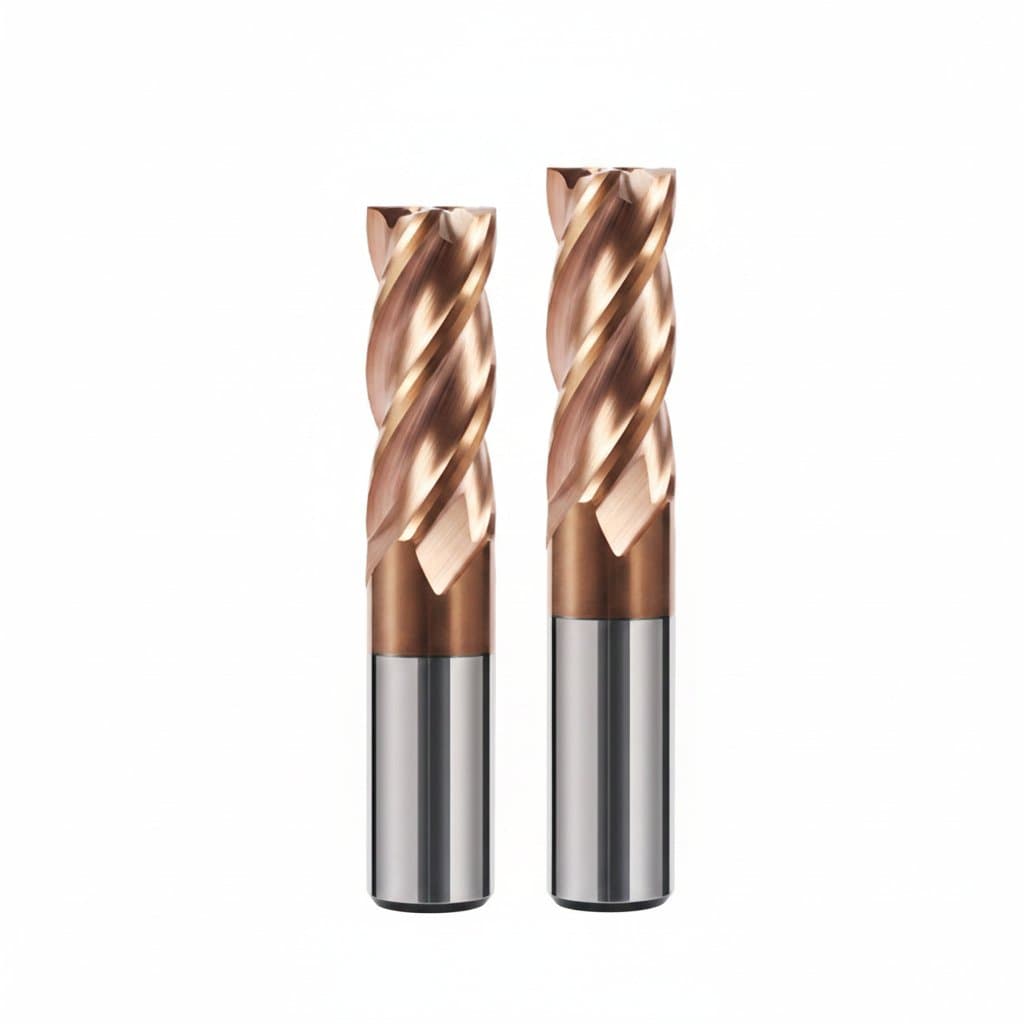

Four-flute configurations offer higher tool core strength and allow faster feed rates. Use them for peripheral milling and finishing cuts in hard steels. The narrower chip valleys of four-flute cutters will clog quickly if used on soft, gummy materials.

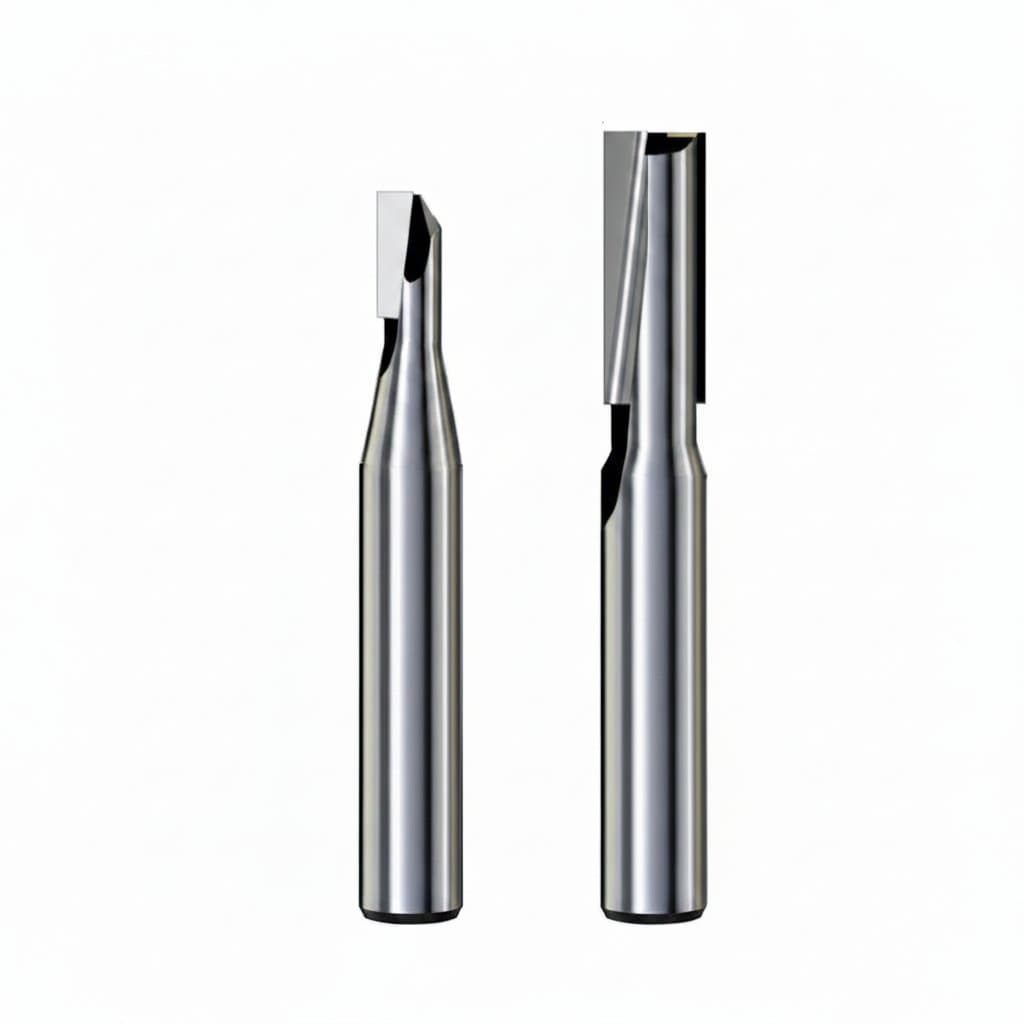

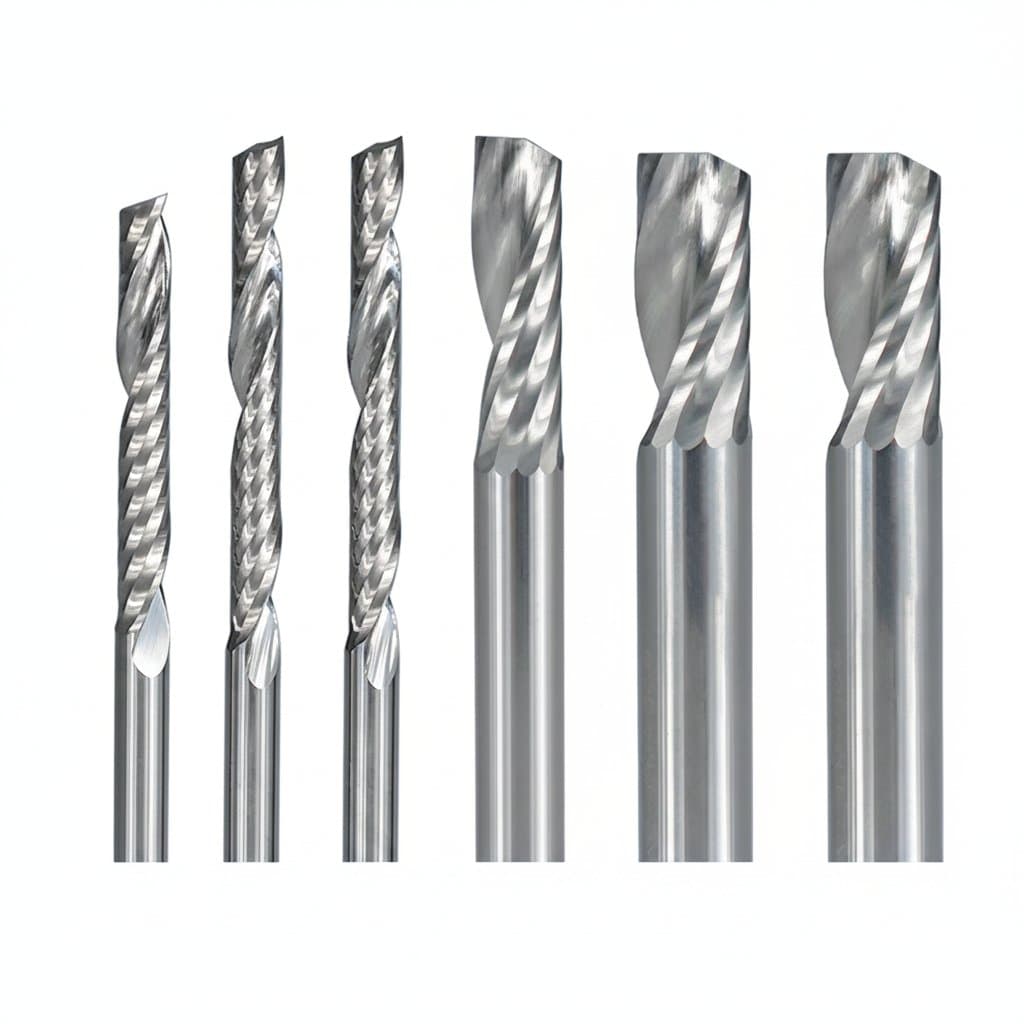

• 1-Flute: Maximum chip clearance for aluminum, acrylic, and plastics.

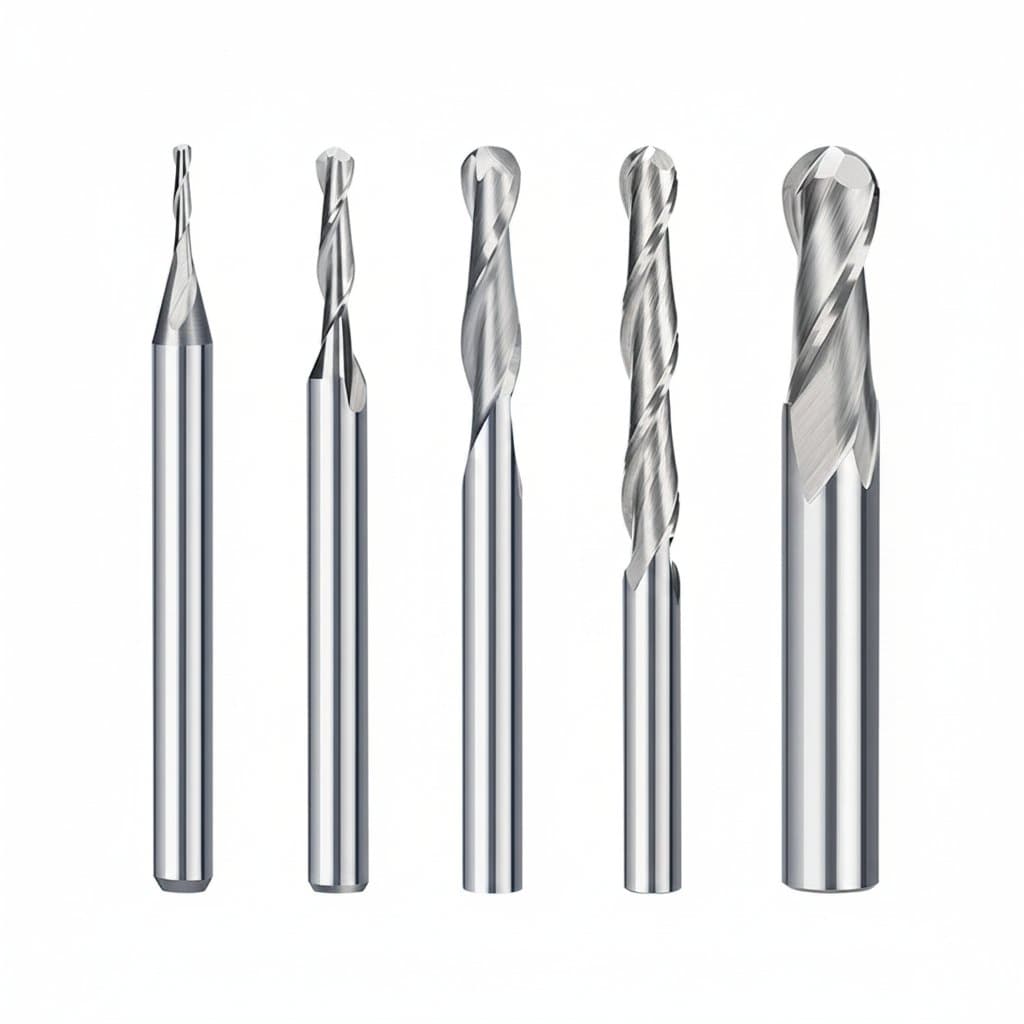

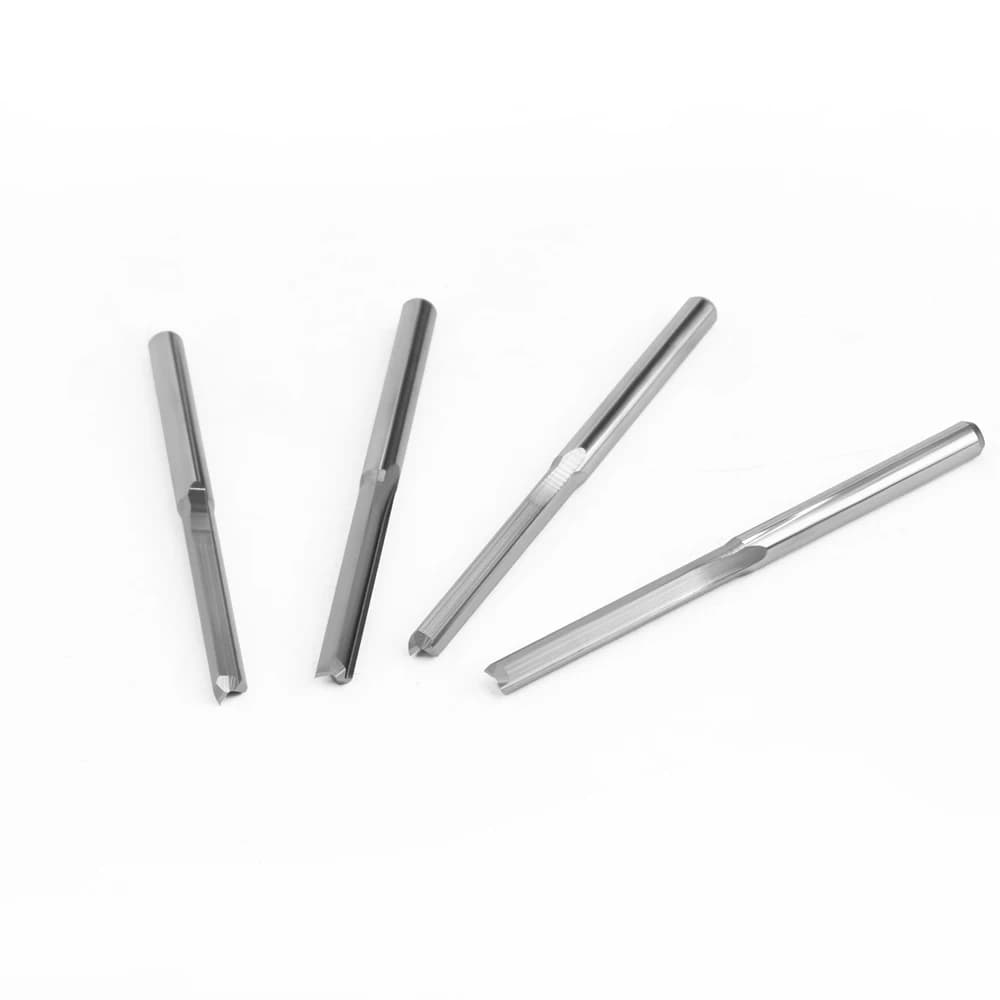

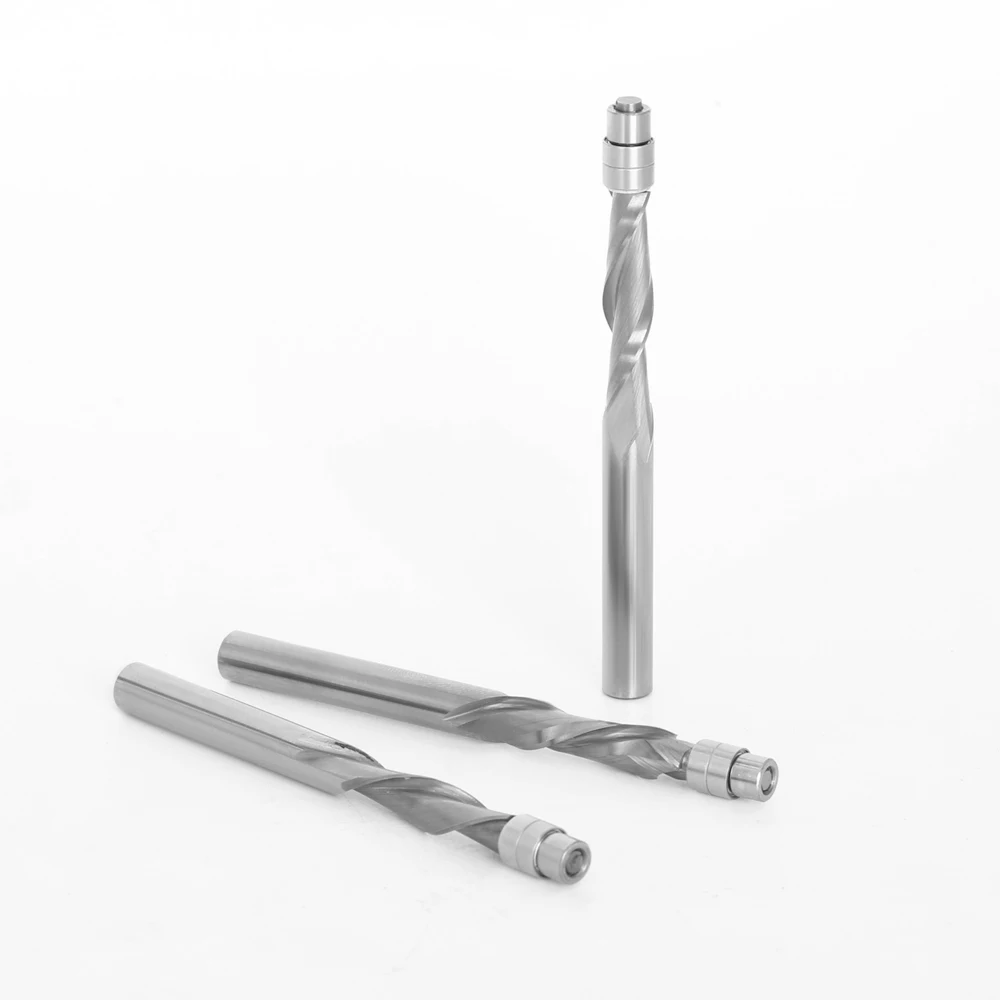

• 2-Flute: Ideal for slotting, engraving, and general routing of wood and softer metals.

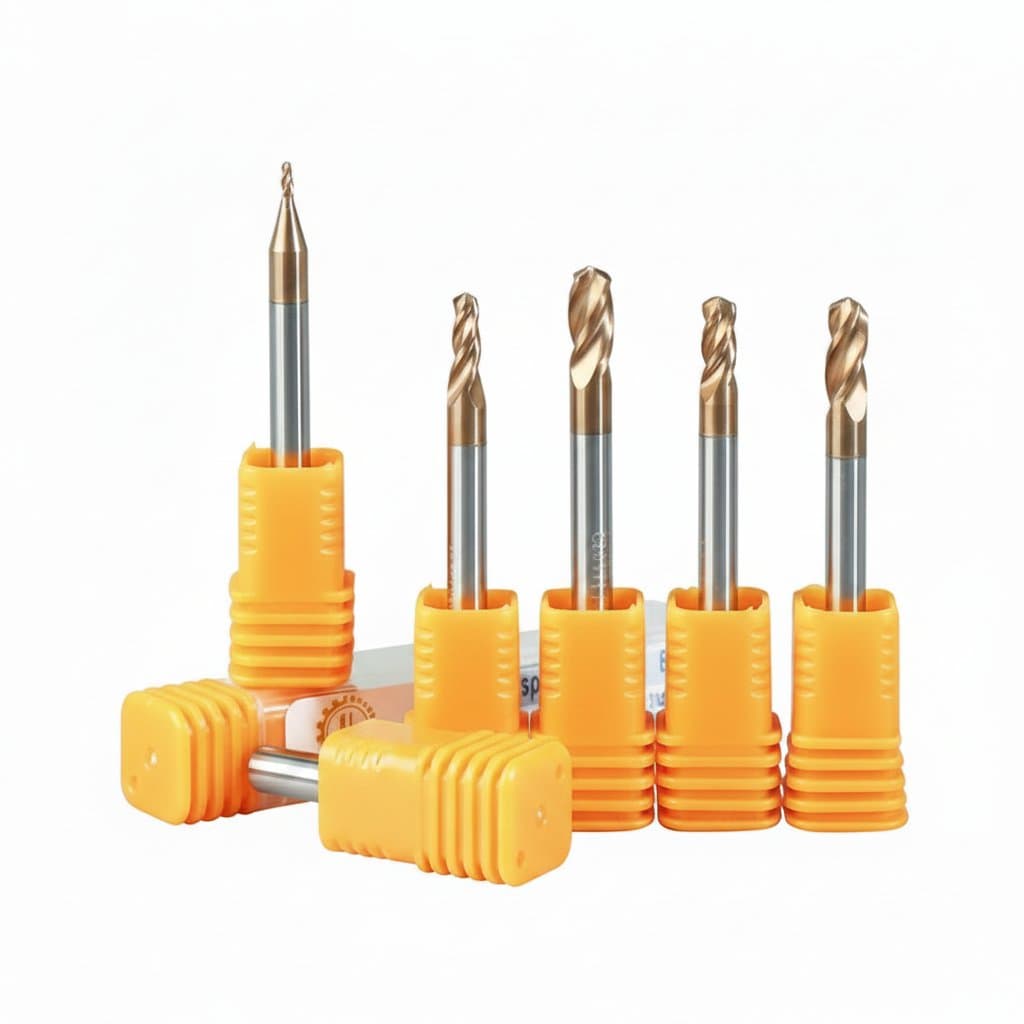

• 4-Flute: Designed for high feed rates and fine finishes in carbon steels and alloy steels.

Understanding Specialized Tool Geometries and Coatings

Standard cutting edges often struggle with specialized materials. For instance, processing aluminum and acrylic benefits from a Diamond-Like Carbon (DLC) coating. This coating reduces friction and prevents material from welding to the tool edge.

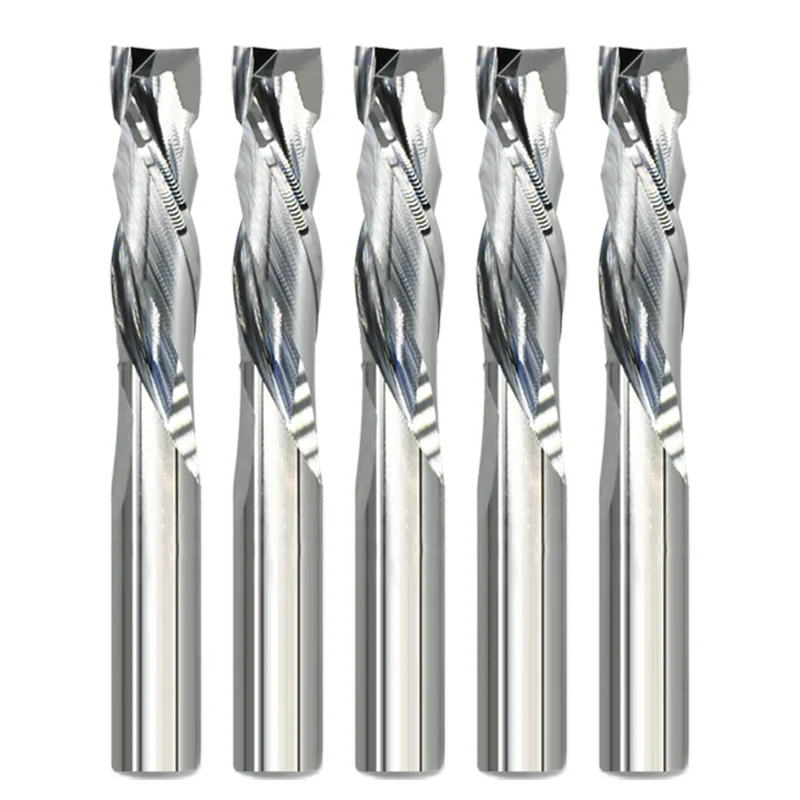

For wood composites, plywood, and MDF, standard spiral cutters can cause surface fraying. Compression geometries, which feature both up-cut and down-cut spirals on a single tool, compress the fibers inward. This design delivers clean edges on both the top and bottom faces of the sheet.

• DLC Coating: Significantly reduces friction and heat when milling non-ferrous metals and plastics.
• Compression Cut: Combines up-cut and down-cut action to eliminate splintering on laminated panels.

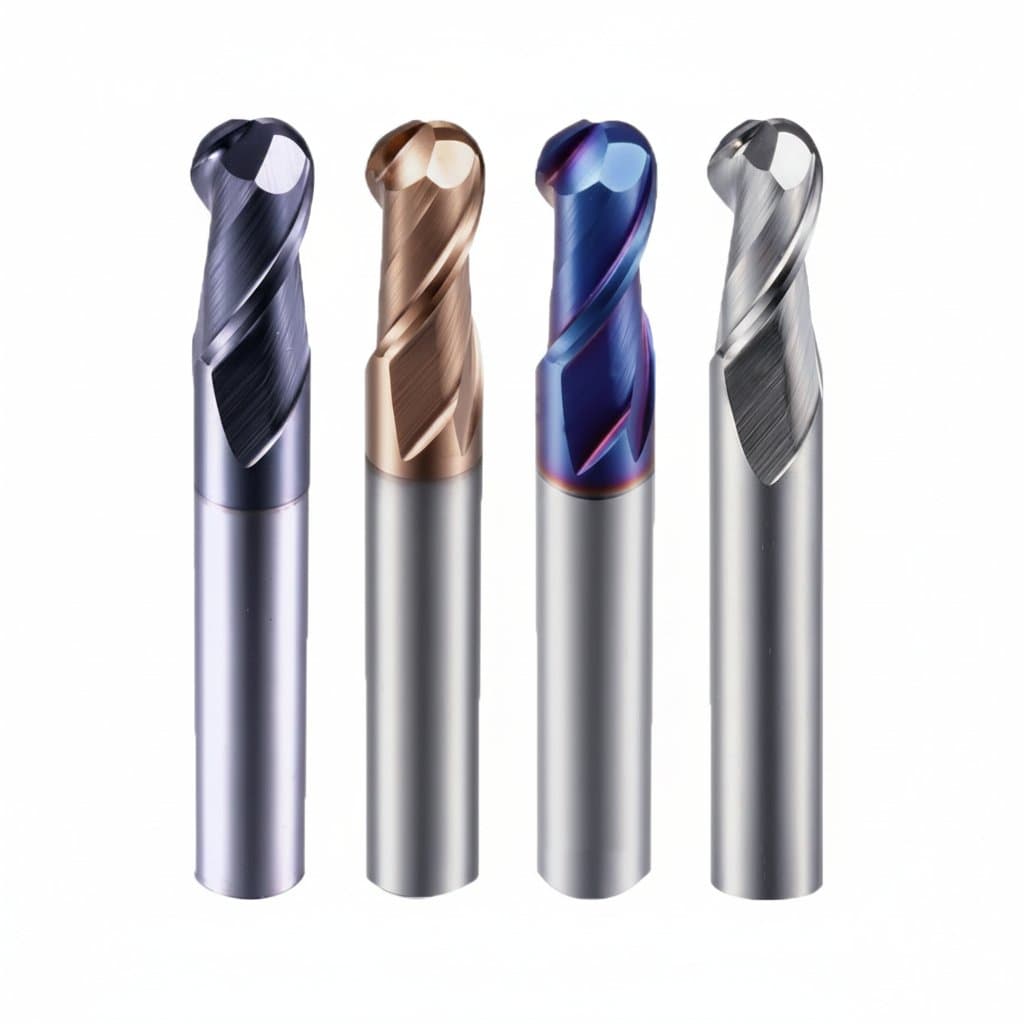

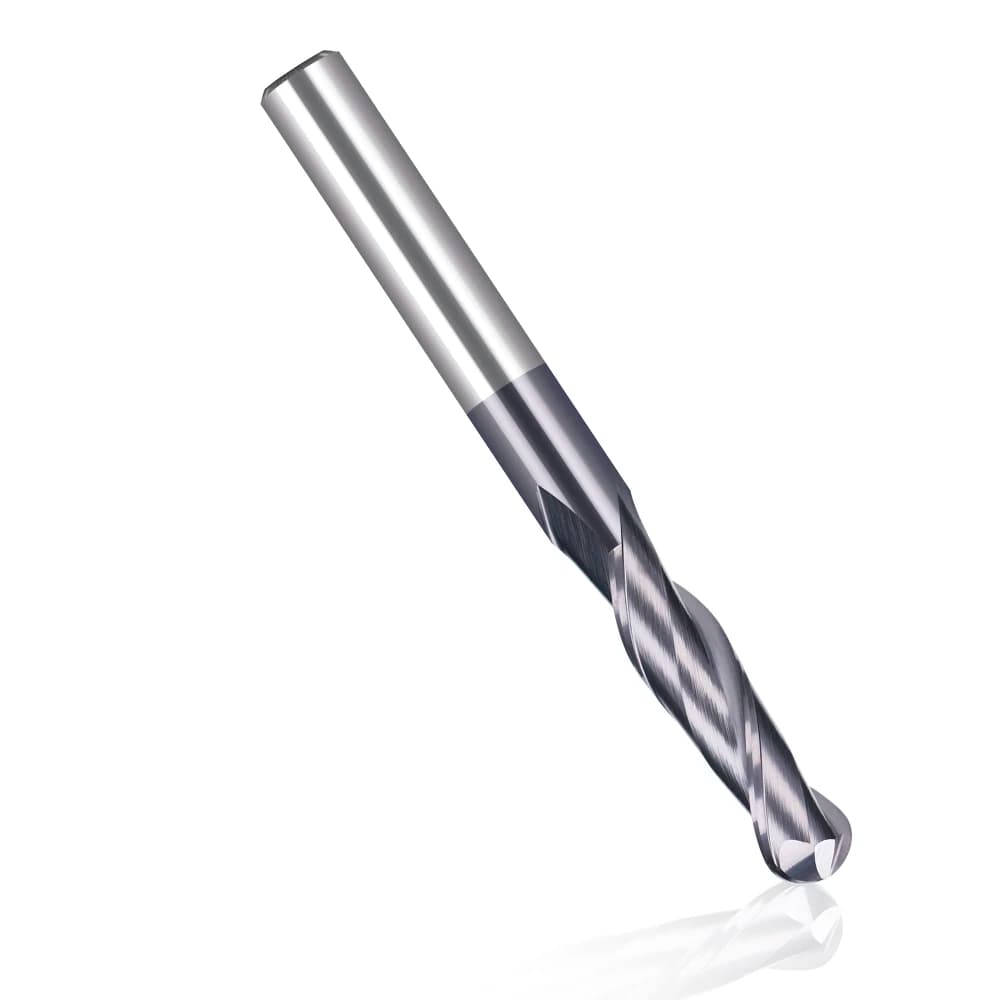

• Taper Ball Nose: Provides the rigidity and reach needed for complex 3D profiling and deep pocketing.
