Handheld Oscilloscope Multimeter 2C53T/2C23T | 2CH up to 50MHz | 3 in 1

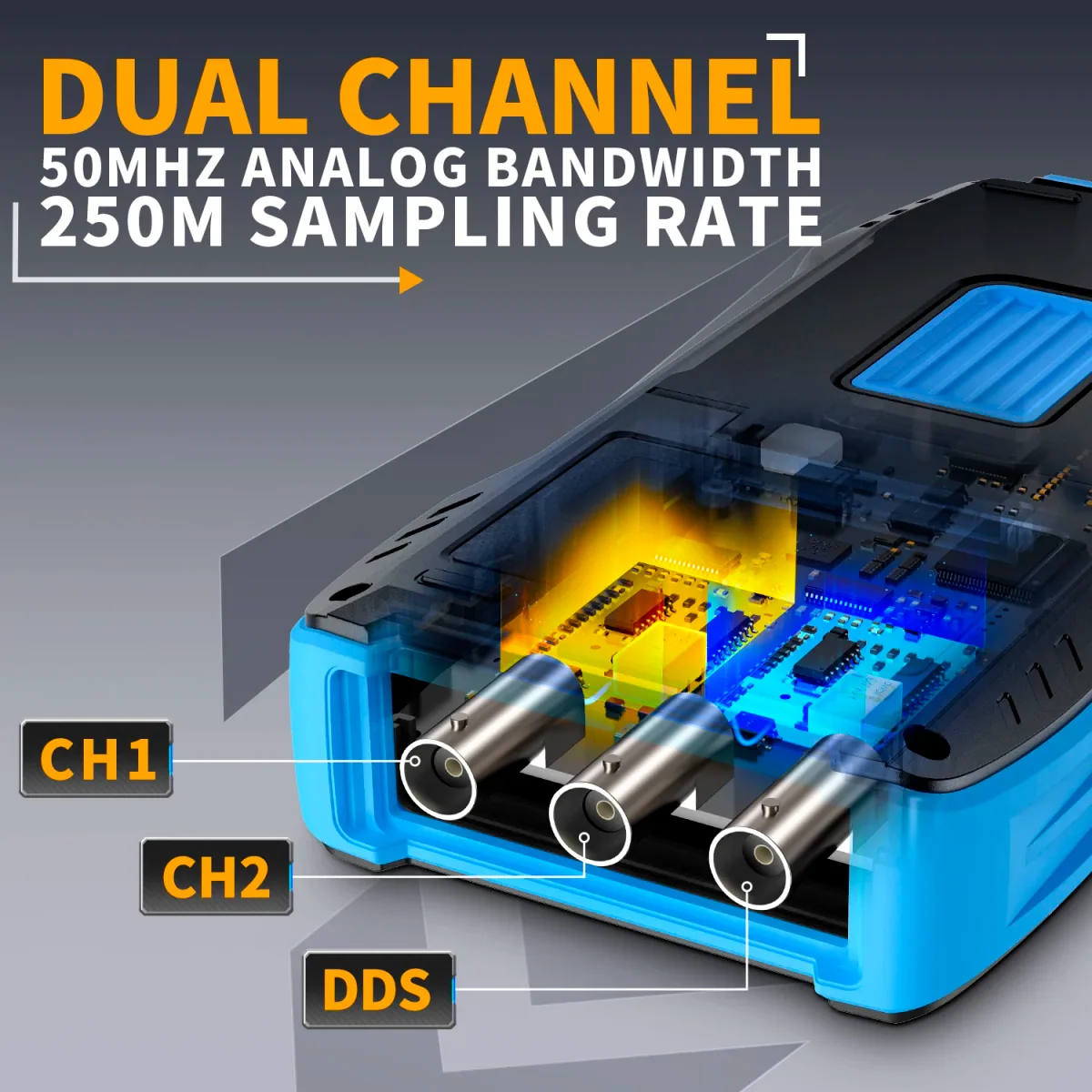

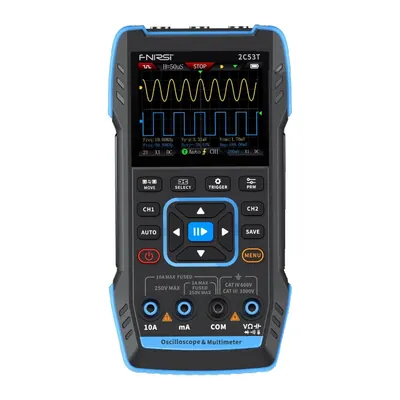

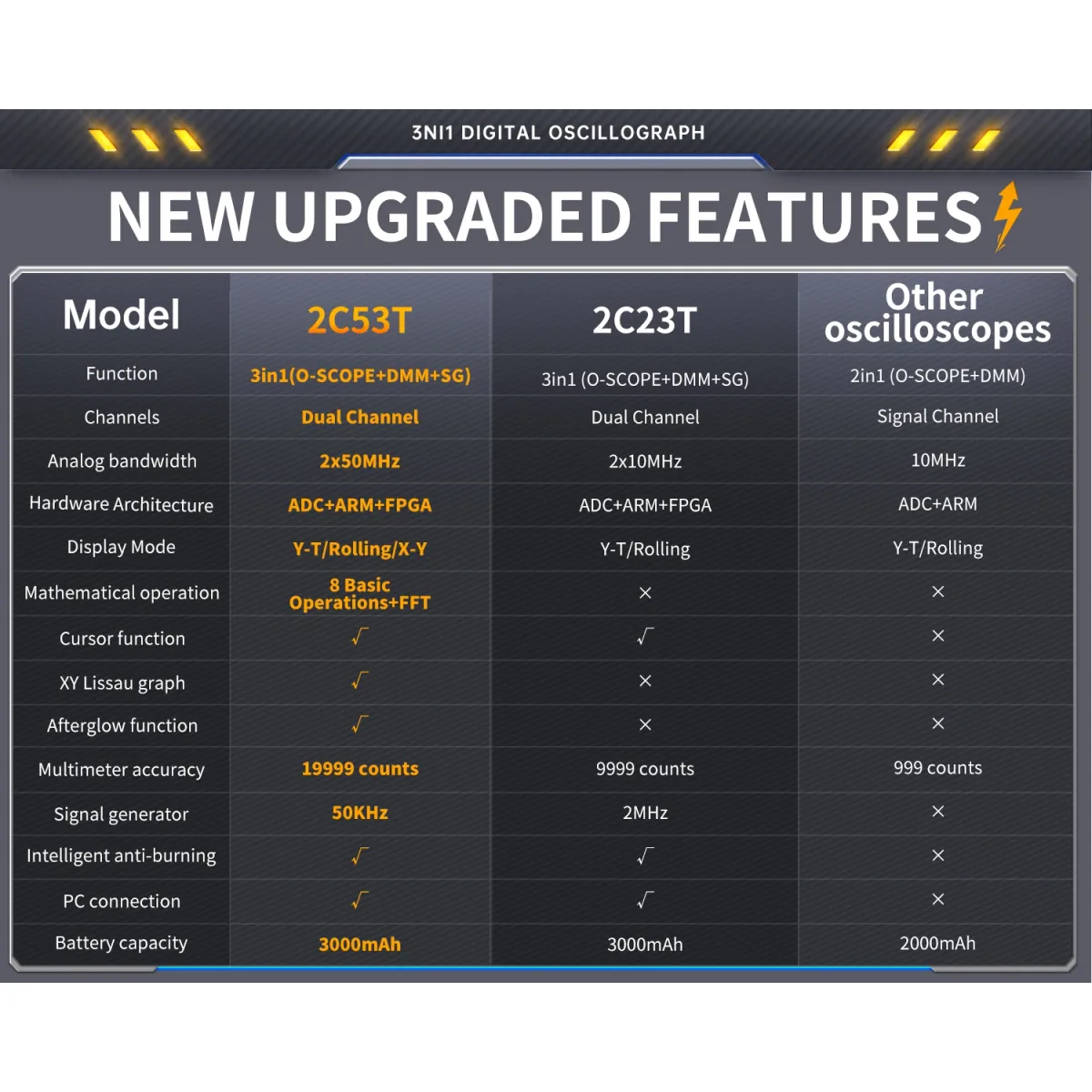

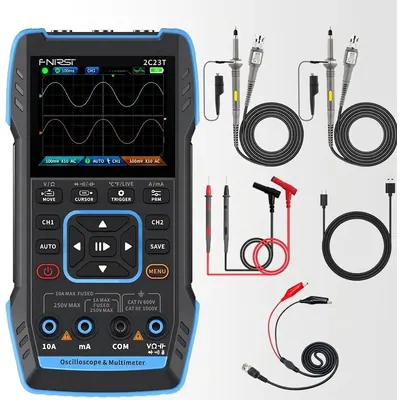

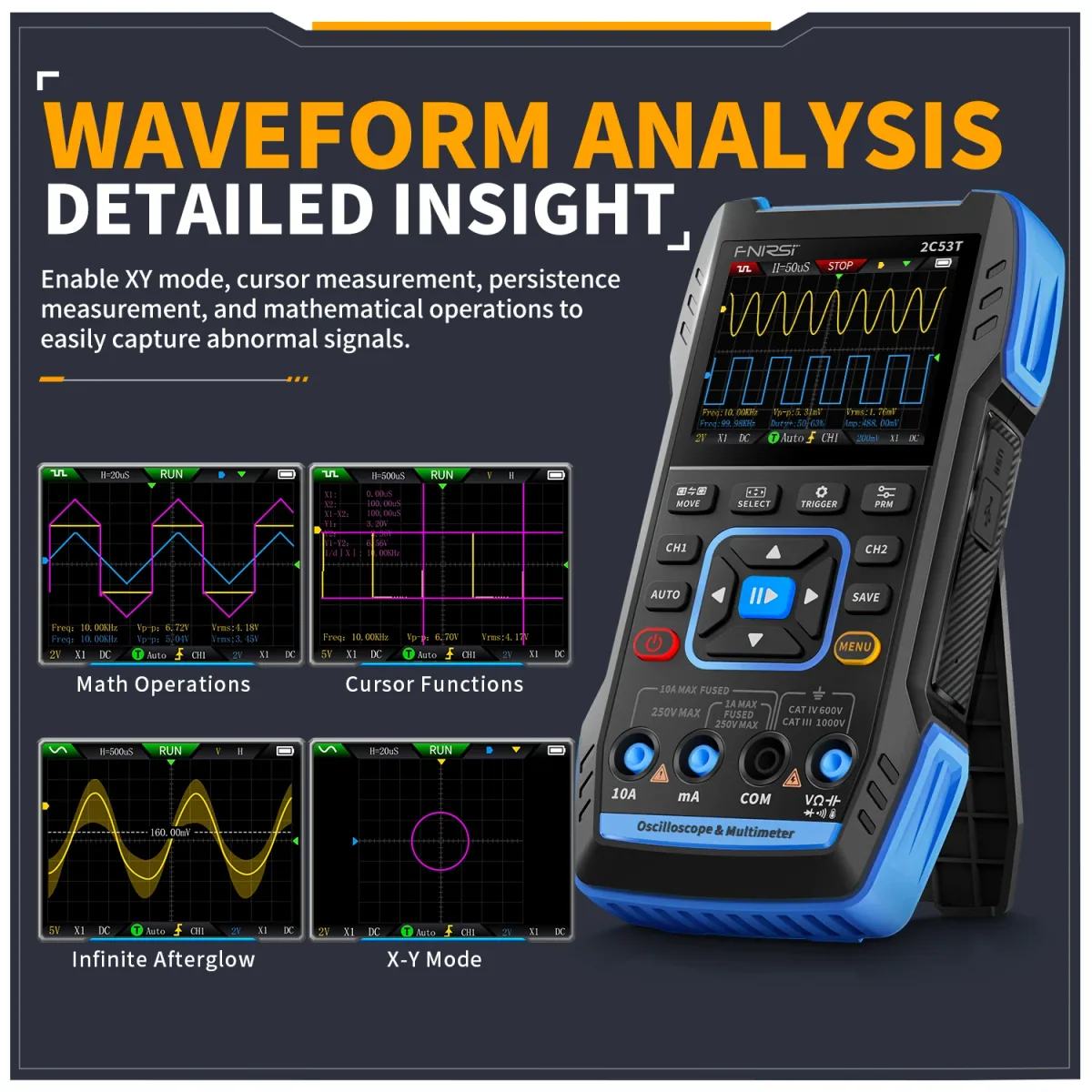

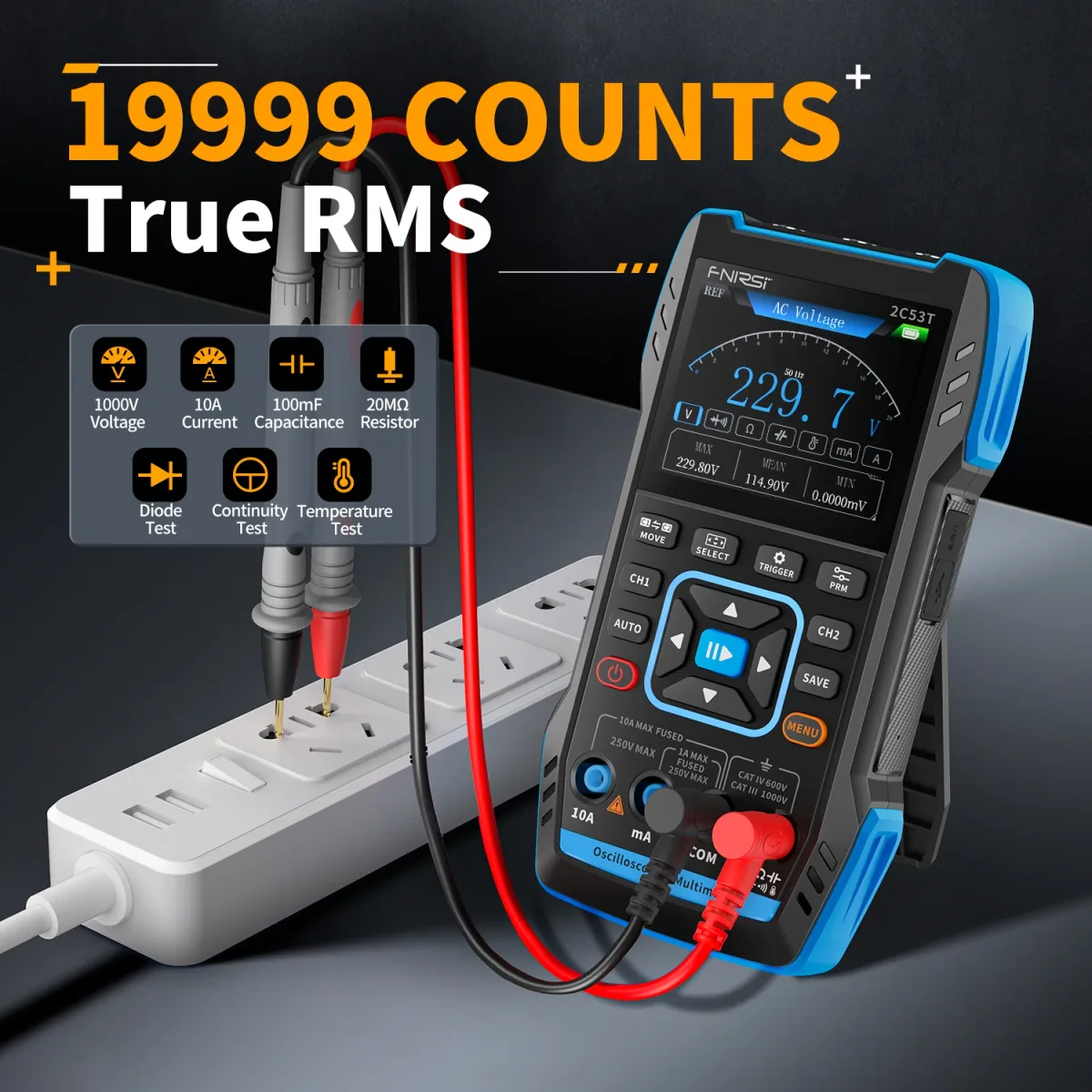

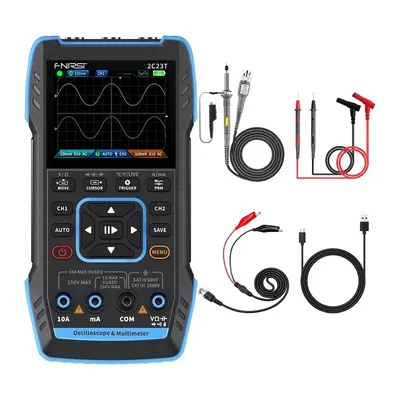

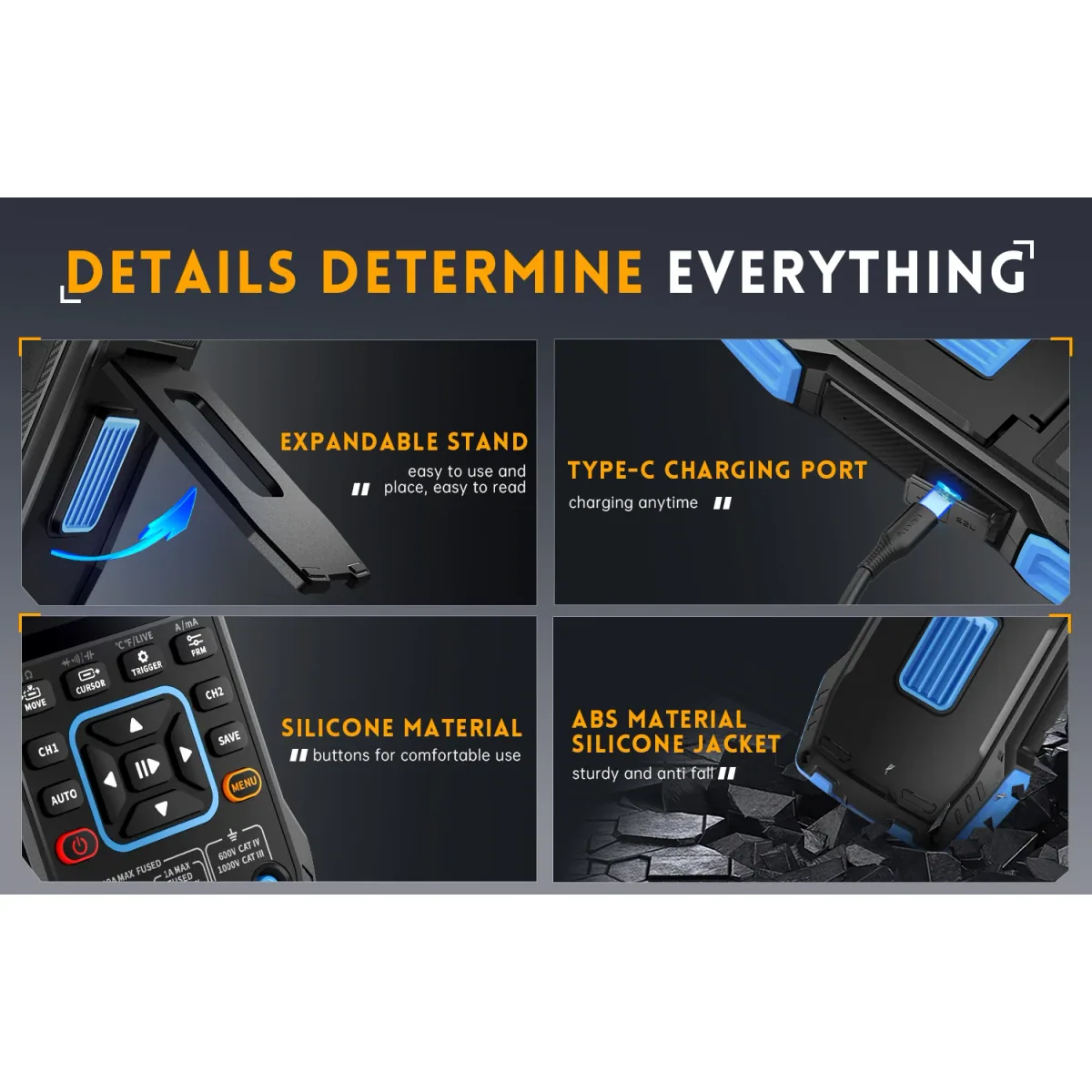

The 2C53T and 2C23T are handheld 3 in 1 instruments that combine a dual channel digital oscilloscope, a true RMS multimeter and a DDS signal generator, with 50MHz bandwidth and 250MS/s sampling on the 2C53T, or 10MHz and 50MS/s on the 2C23T. Both use an FPGA, MCU/ARM and ADC architecture, show traces on a 2.8 inch 320 x 240 colour screen and run from a built-in 3000mAh battery charged over USB Type-C. Features and Benefits - Two independent scope channels: compare an input and an output, or two control signals, on one screen. - ±400V maximum measured voltage on the scope inputs: suits power supply and mains-side fault finding. - 2C53T adds X-Y mode, persistence, cursor measurement and 8 maths operations plus FFT: deeper analysis of switching and audio signals. - True RMS multimeter, 19999 counts on the 2C53T and 9999 counts on the 2C23T: voltage, current, resistance, capacitance, diode, continuity, temperature and live line detection without a second meter. - Built-in DDS generator, 13 waveforms up to 50kHz on the 2C53T or 7 waveforms from 1Hz to 2MHz on the 2C23T: inject a test signal and watch the response on the same unit. - AUTO set-up, AUTO/Normal/Single triggering and one-press waveform screenshots that export to a computer: quick captures for job reports. - Fold-out stand, ABS shell with silicone jacket and a dual ceramic fuse protection circuit: built for bench and field use. Applications - Switching power supply repair: switching waveform and ripple checks. - Mains and power electronics: mains waveform measurement within the ±400V scope input limit. - Electronics development, maintenance and teaching: crystal oscillator, pulse and audio signal measurement. - Automotive and site work: one battery-powered tool for voltage checks and signal capture. In the box - 2C23T Standard: 2C23T unit, 1 x P6100 probe, crocodile clip probe, multimeter test leads, Type-C charging cable, user manual, box. - 2C23T with 2 probes: as above with 2 x P6100 probes. - 2C53T Standard: 2C53T unit, 1 x 10X P6100 probe, crocodile clip probe, multimeter test leads, Type-C charging cable, storage bag, user manual, box. - 2C53T with 2 probes: as above with 2 x 10X P6100 probes. Note: the scope inputs are limited to ±400V and the multimeter to 1000V DC and 750V AC. Check the probe attenuation setting and the selected input jack before connecting to a live circuit.
