USB Oscilloscope | 4 Channel 70 or 250MHz 1GSa/s | 6074BE Series

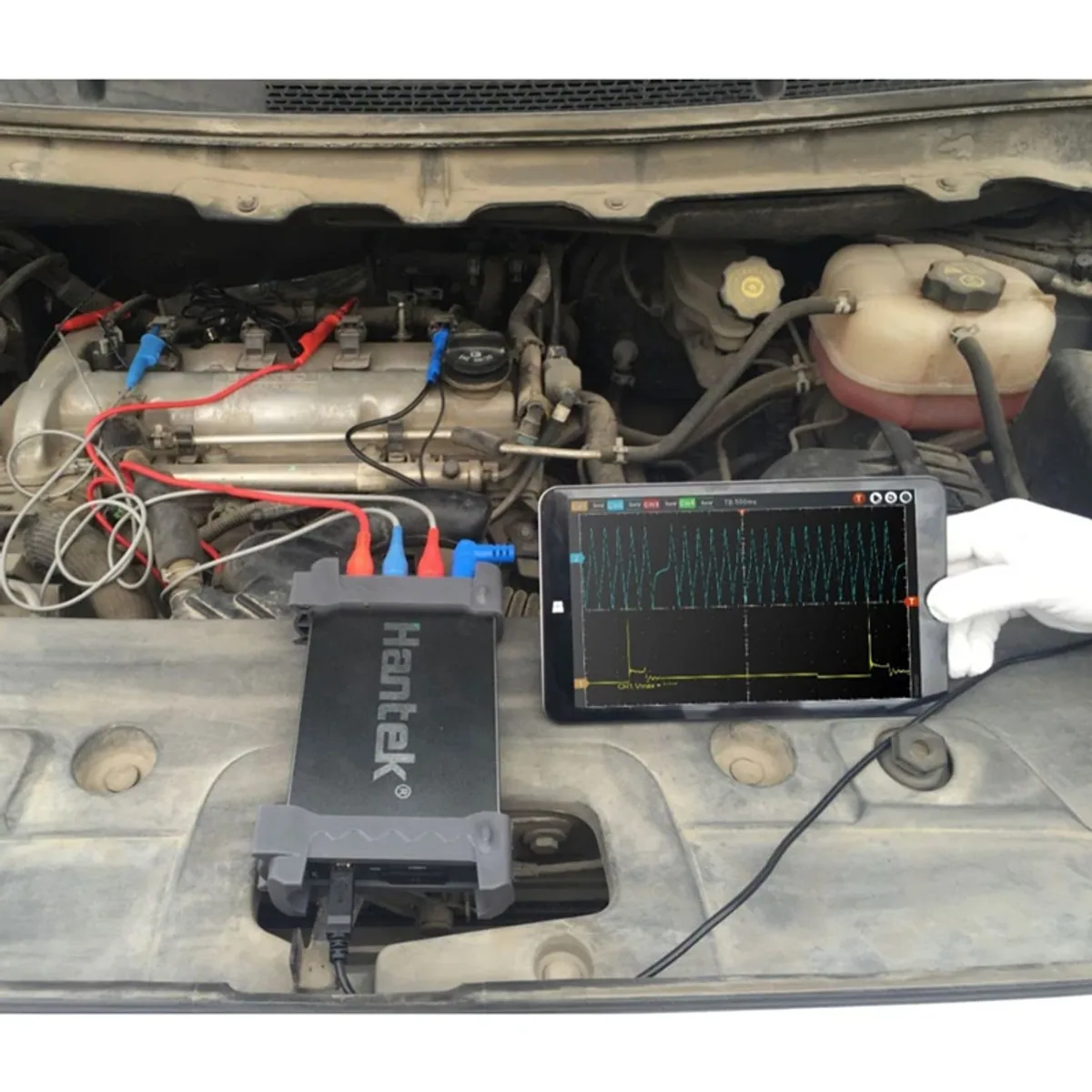

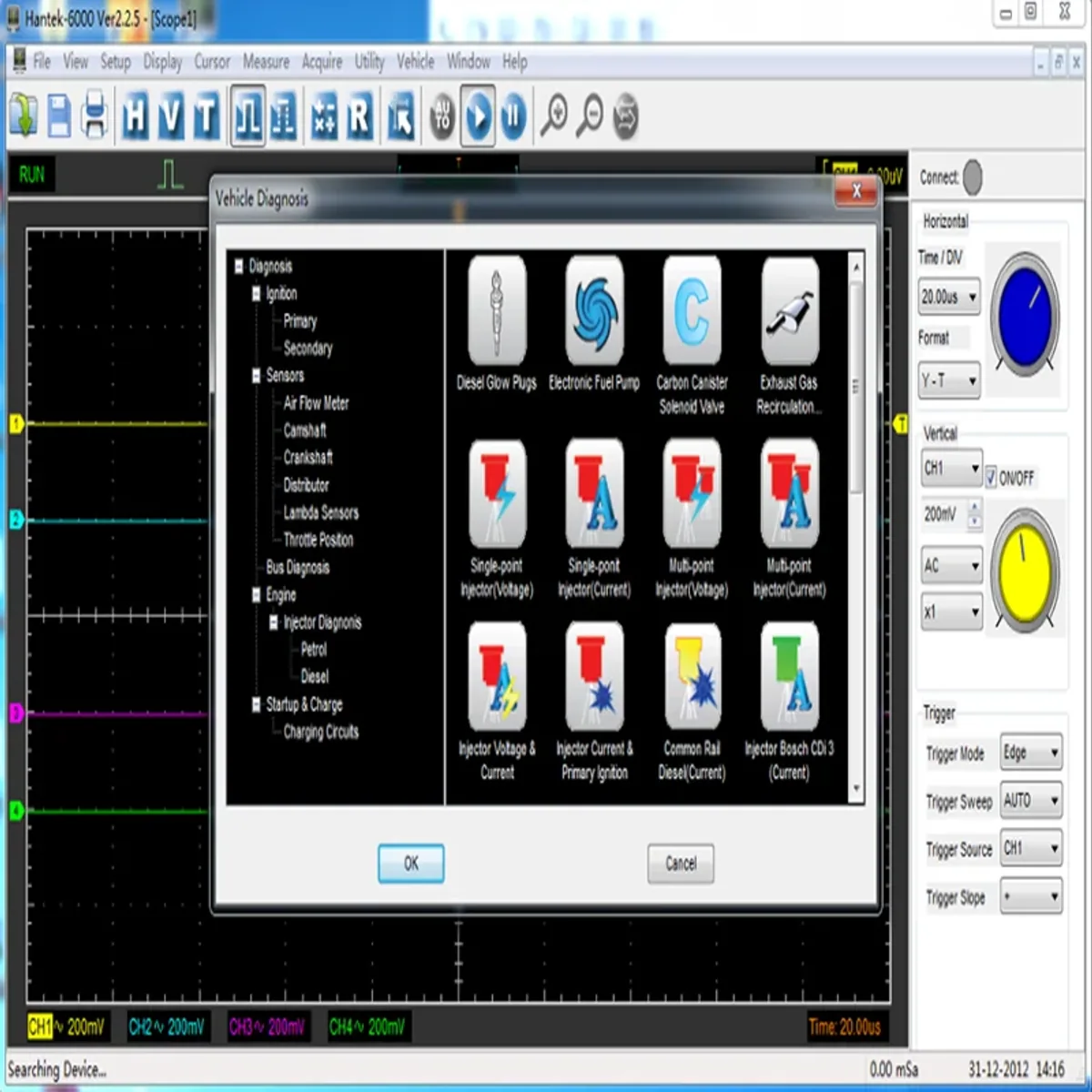

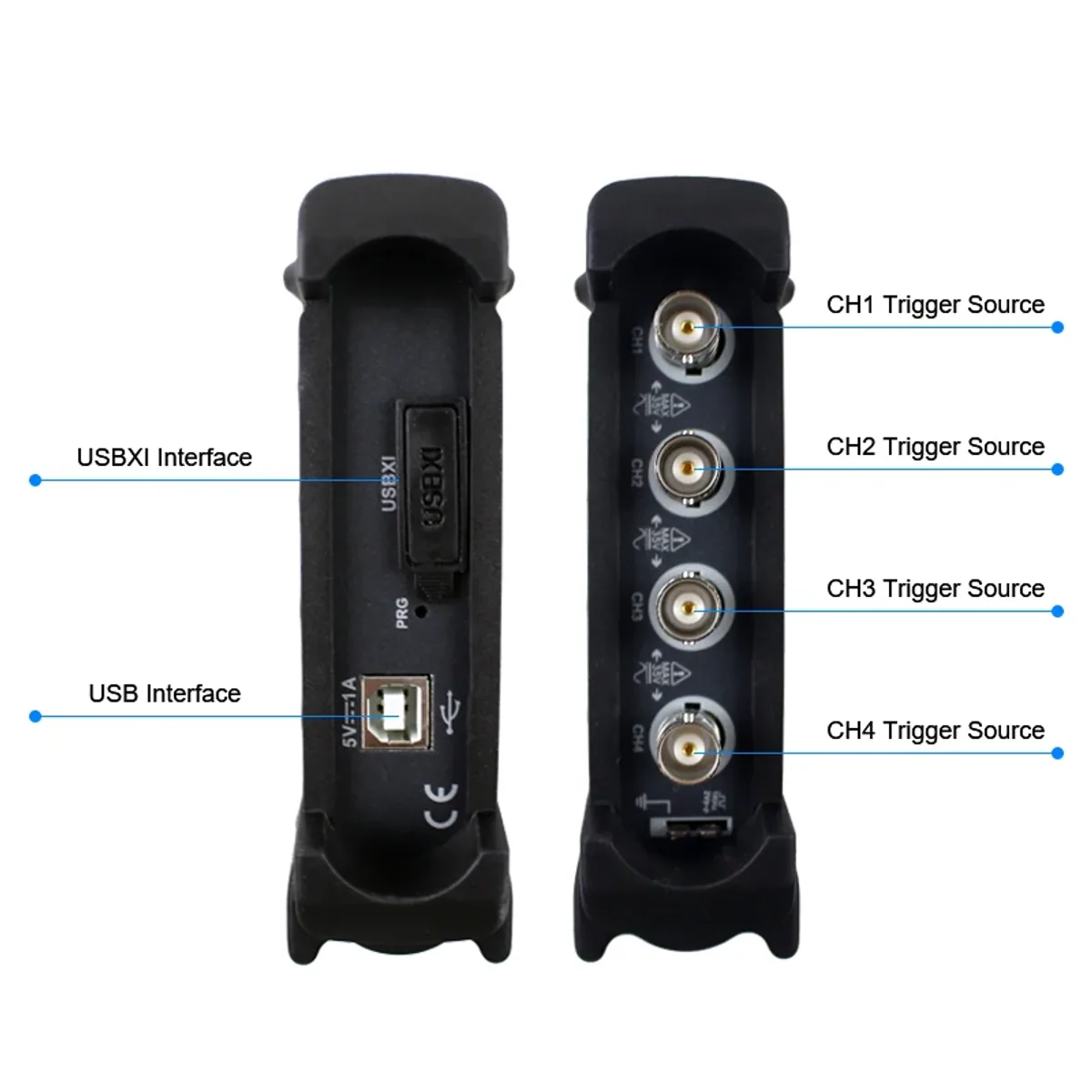

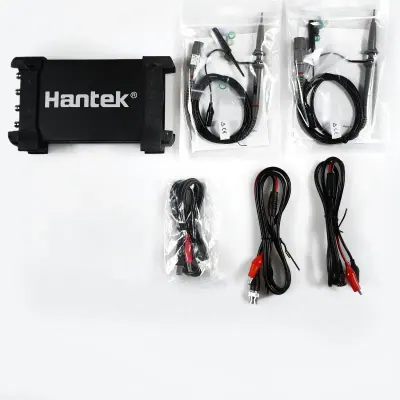

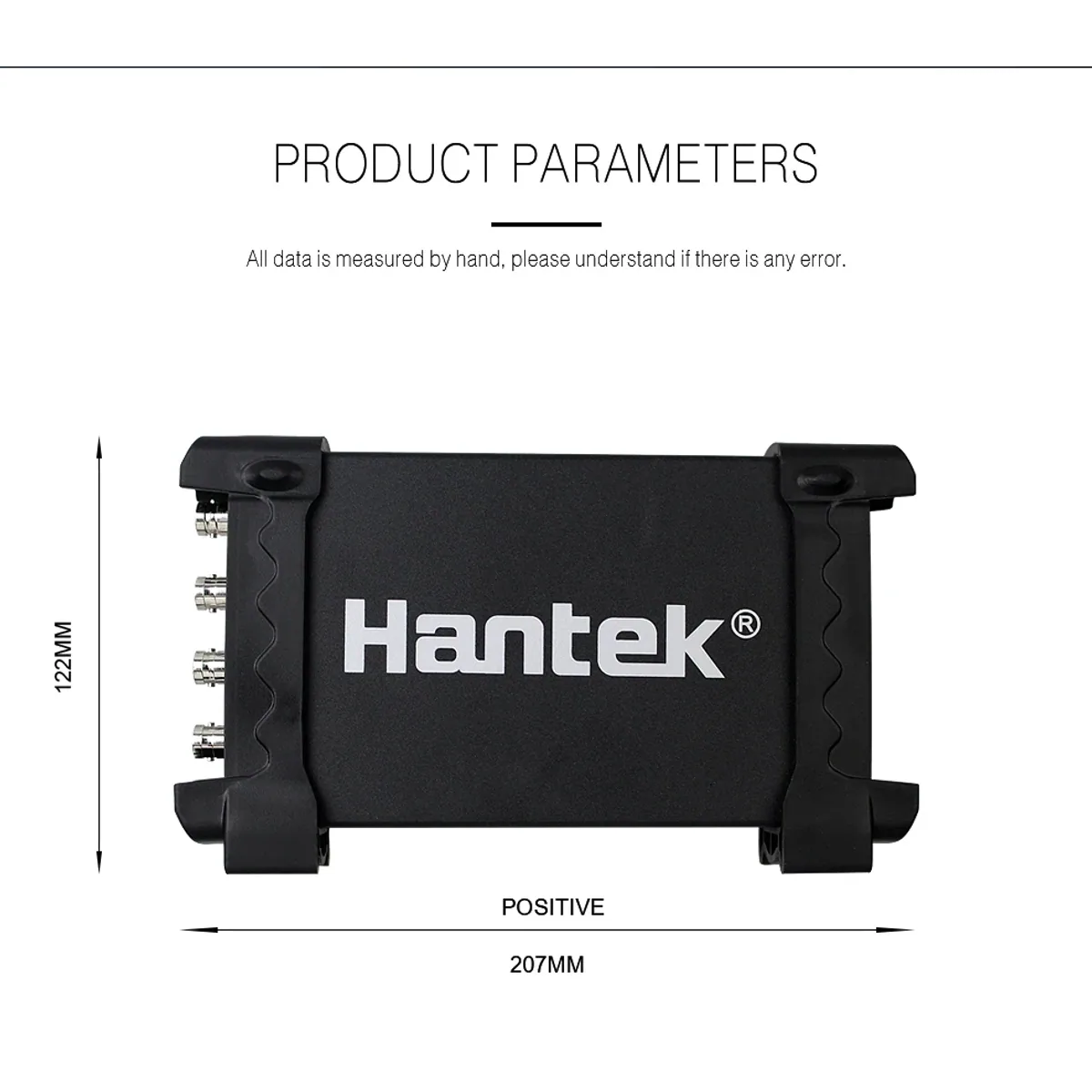

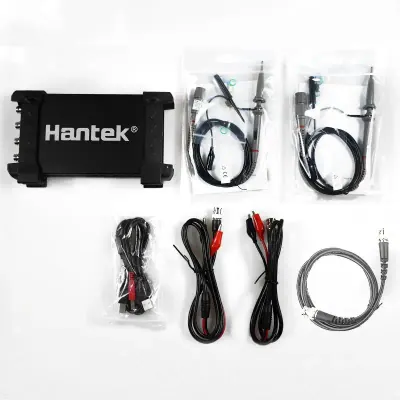

The 6074BE is a four channel USB oscilloscope for a laptop, tablet PC or desktop, with 70MHz bandwidth, 1GSa/s real-time sampling, 64K memory depth and 2mV/div to 10V/div input sensitivity, powered from USB 2.0 with no extra supply. The BE models add more than 80 automotive measurement functions; the BD models add a 1 channel signal generator, the BC is the plain oscilloscope, and the 6254 versions raise bandwidth to 250MHz. Features and Benefits - 4 independent channels at 1GSa/s - compare crank, cam, injector and ignition signals, or four points on a circuit board, at once. - More than 80 automotive tests on BE models - guided ignition, sensor, bus, actuator and start and charge checks. - 2mV/div to 10V/div sensitivity, up to 10000V/div with a x1000 probe - small sensor signals and high voltages on one unit. - Edge, pulse, video and alternative triggering - stable display of repetitive and one-off events. - Over 20 automatic measurements with PASS/FAIL check, dynamic cursor tracking and waveform record and replay. - FFT spectrum analysis, maths, X-Y display, averaging and persistence - deeper analysis in the PC software. - USB 2.0 plug and play with no extra power - runs from a laptop or tablet PC in the workshop or on the road. Applications - Vehicle diagnosis: ignition, sensors, CAN and LIN bus, injectors, starting and charging (BE models). - General electronics repair and development on the BC and BD models. - Teaching and laptop based benches where space is short. In the box 6074BE: oscilloscope, HT307, HT19, HT18A, HT30A, 3 crocodile clip leads, HT25 ignition probe, USB cable, CD and manual. 6074BC: oscilloscope, 2 probes, 2 BNC to clip cables, USB cable, CD. 6074BD: 2 passive probes and 2 crocodile clip leads with the oscilloscope. HT201 options add two HT201 attenuators; BAG options add a carry case. Note: The manual is supplied in electronic form only. Use the probe or attenuator that matches the voltage you are measuring and clip the ground lead only to vehicle or circuit ground.
