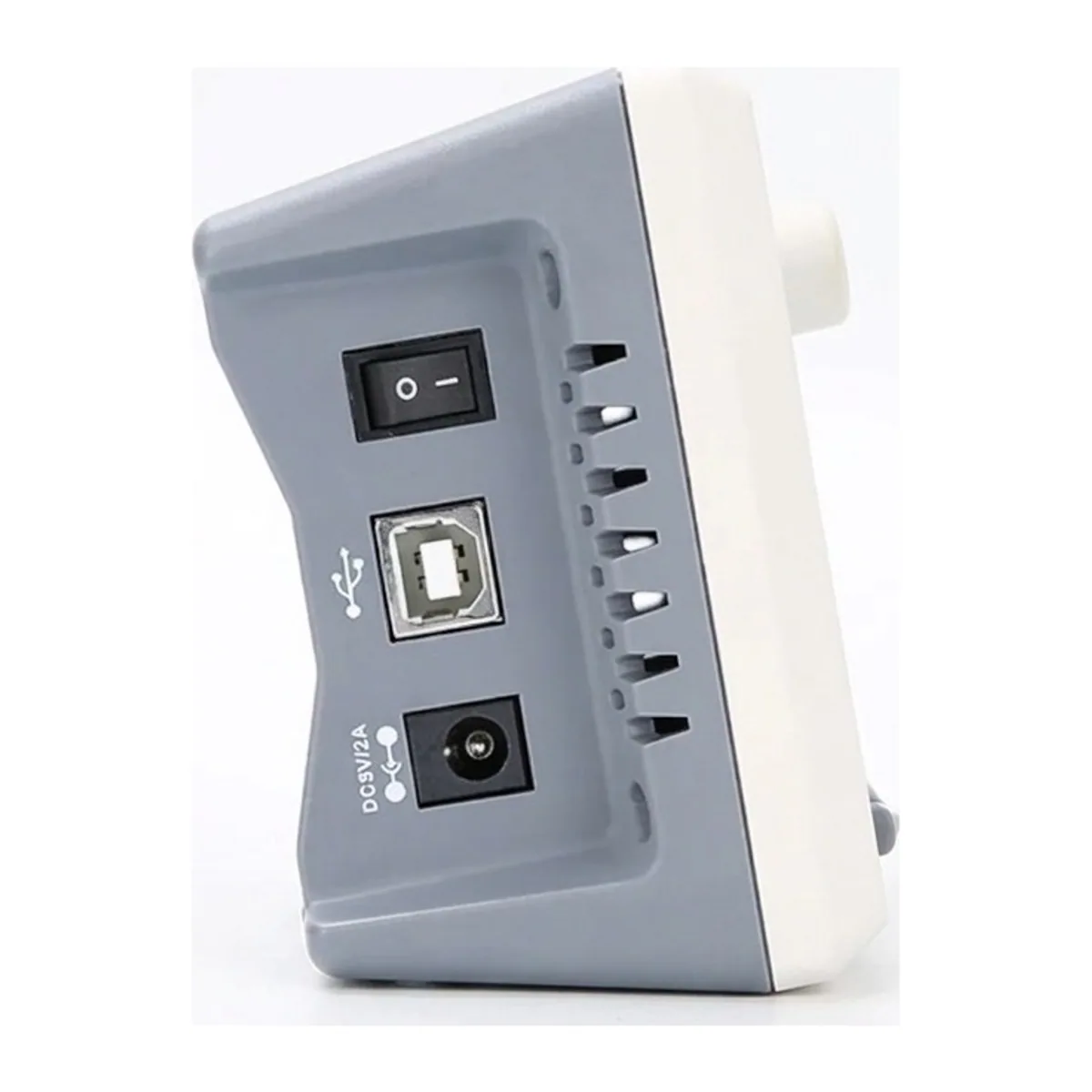

Function Generator UTG932E or UTG962E | 30MHz or 60MHz | Dual Channel

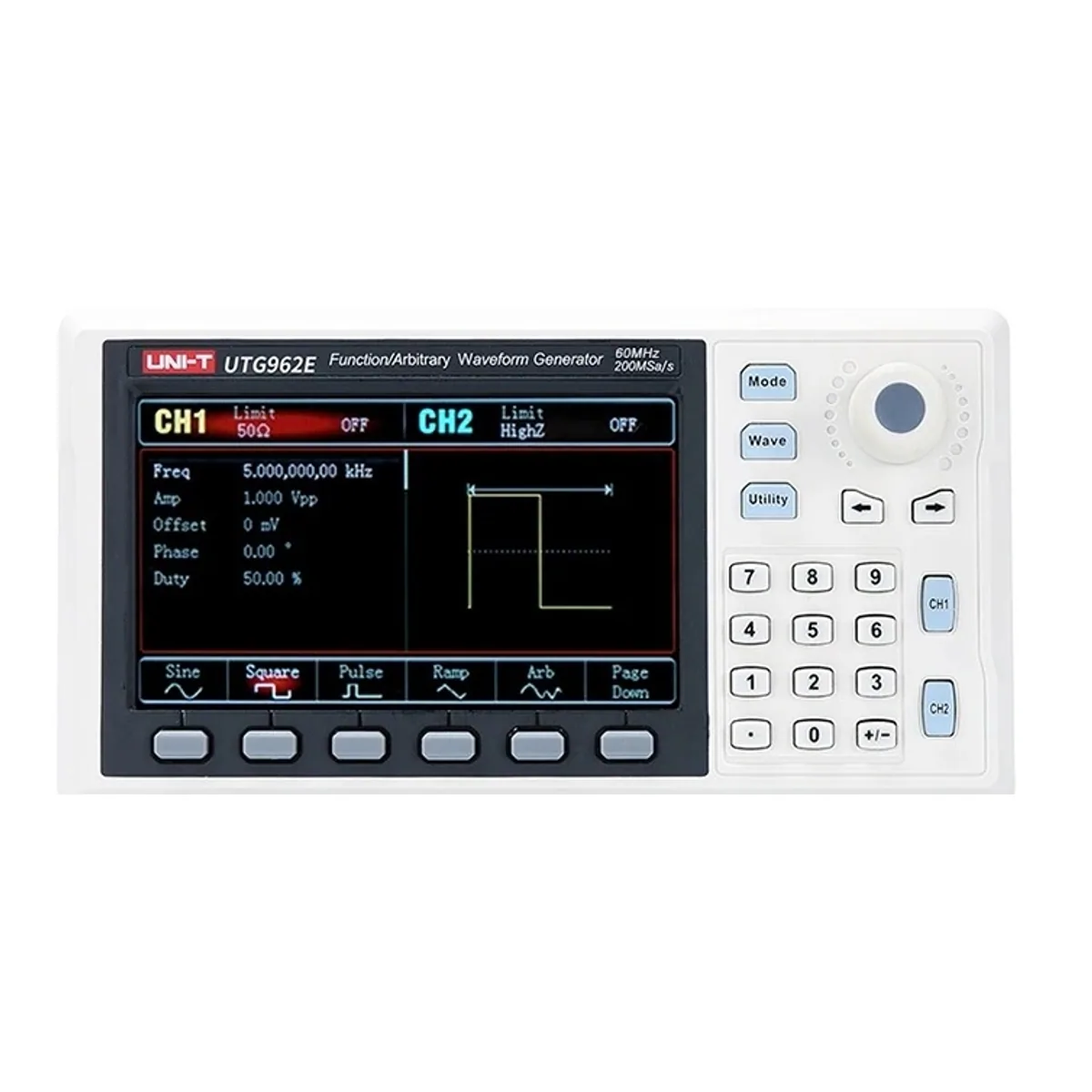

The UTG932E and UTG962E are compact dual channel function generators and arbitrary waveform generators that output sine waves to 30MHz (UTG932E) or 60MHz (UTG962E), using direct digital synthesis at a 200MSa/s sampling rate with 14 bit vertical resolution and 1µHz frequency resolution. Features and Benefits - Two equal channels - both outputs have the same performance, and each can be set for a 50Ω or high impedance load. - Seven waveform types - sine, square, pulse, ramp, noise, DC and arbitrary, with 26 built-in arbitrary waves and 24 non-volatile arbitrary memories. - Modulation and sweep - AM, FM, PM and FSK modulation plus linear or logarithmic sweep for response and communication tests. - Wide output swing - 1mVpp to 10Vpp into 50Ω or 2mVpp to 20Vpp into high impedance, with 1mV resolution and DC offset of ±5V or ±10V. - Stable frequency - ±50ppm accuracy within 90 days and ±100ppm within 1 year. - Built-in frequency counter - 100mHz to 100MHz range for checking external signals. - 4.3 inch colour screen - the 480 x 272 TFT shows both channels in different colours, with a numeric keypad, knob and multi-language menu. Applications - Electronics teaching labs and student benches - Testing amplifiers, filters and audio stages - Modulated test signals for communication circuit work - Clock and pulse signals for digital and microcontroller circuits In the box - 1 x UTG932E or UTG962E function generator - 1 x USB interface cable - 1 x power adapter and lead - 1 x BNC cable with crocodile clips - The box photo also shows a BNC to BNC cable and an EU plug converter Note: The generator runs on DC 5V/2A from a 100 to 240V AC, 50/60Hz adapter. No UK plug is listed and the box photo shows a flat pin adapter with an EU converter, so use a UK adapter. Do not connect an external voltage source to the outputs.
