Digital Oscilloscope | 12-bit 70 or 100MHz 25Mpts | DHO800 Series

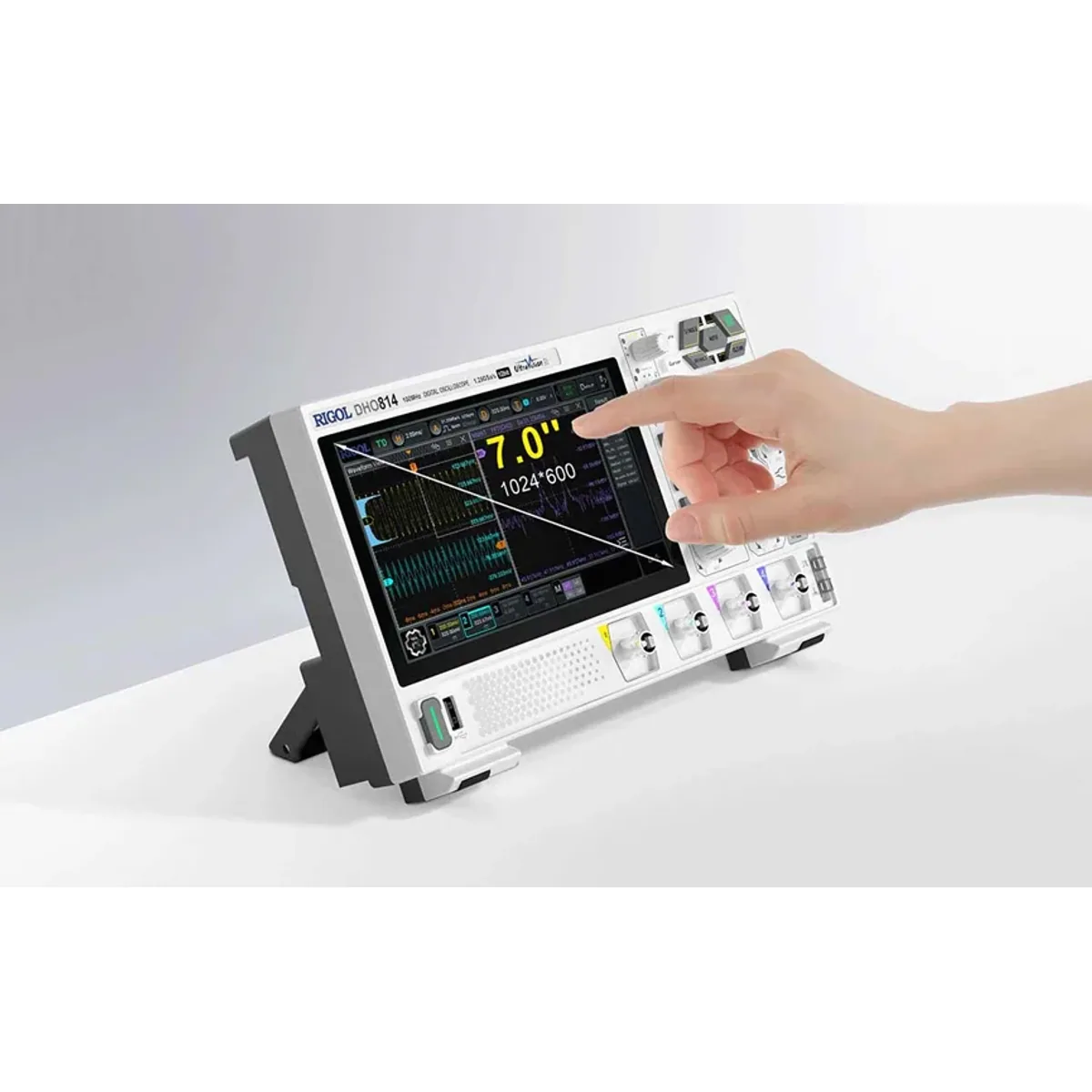

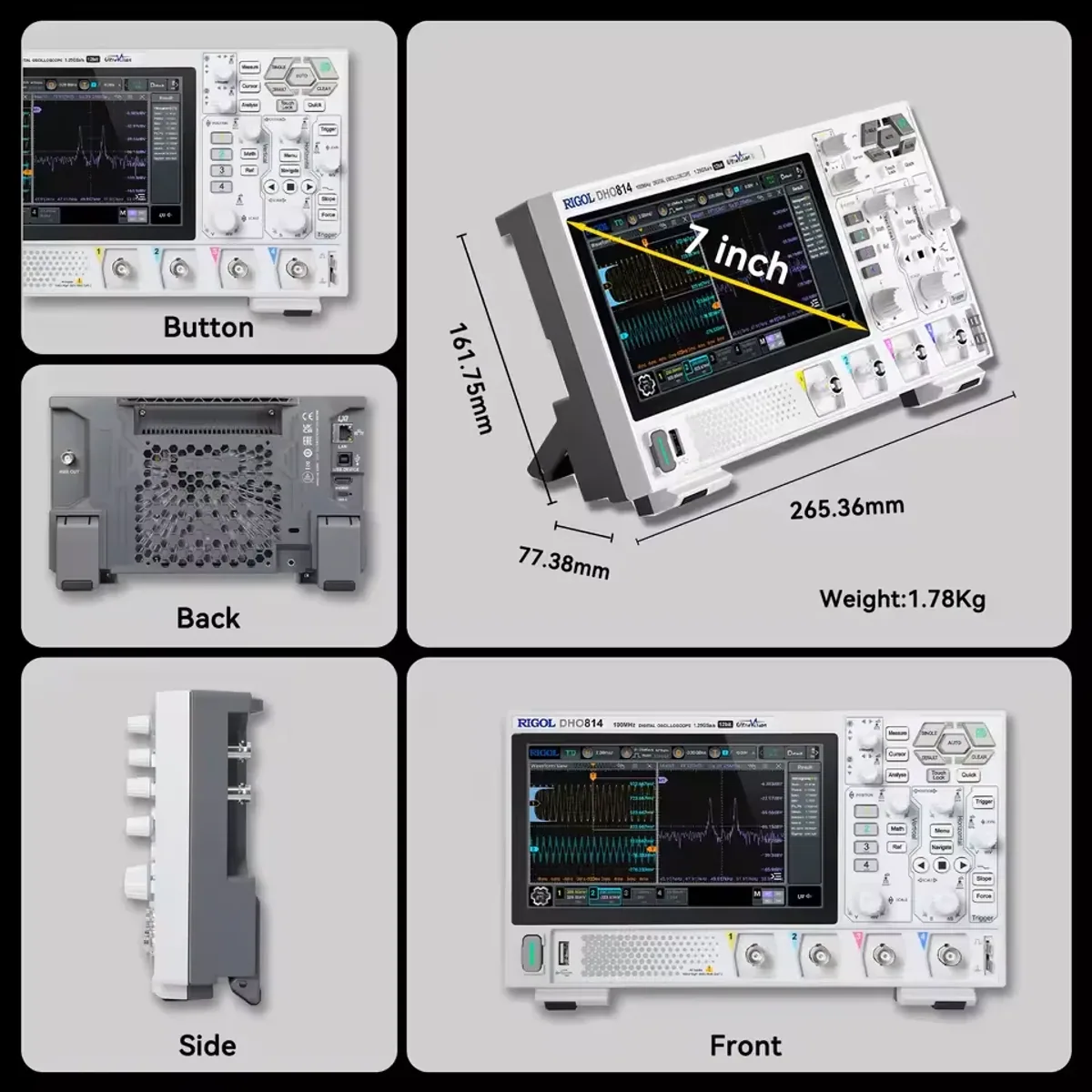

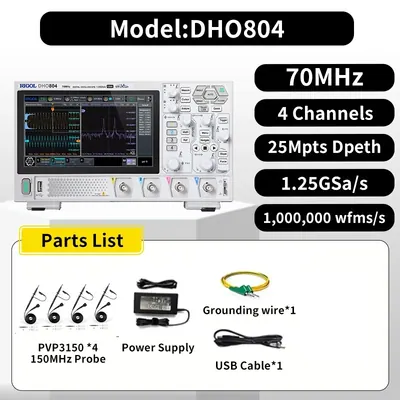

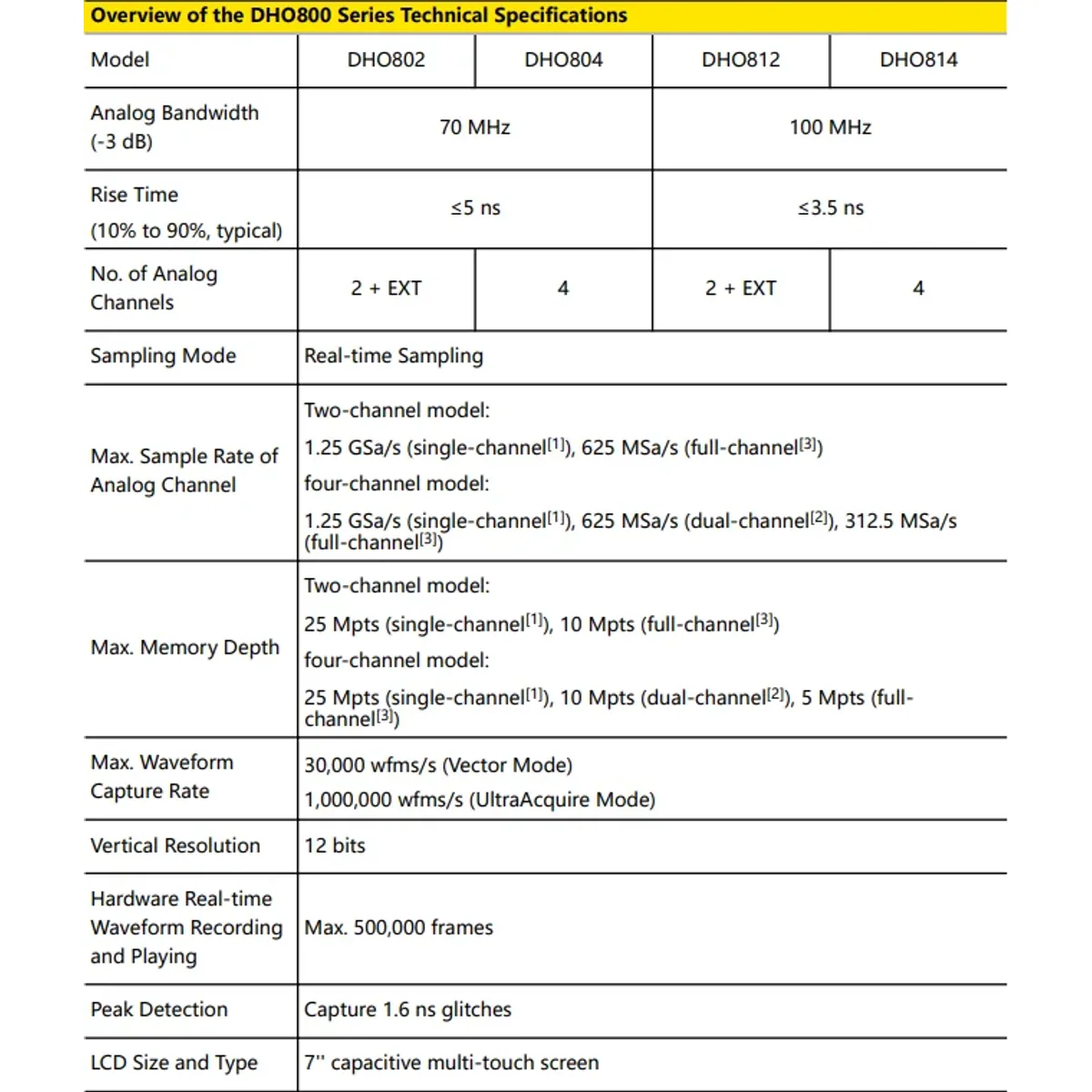

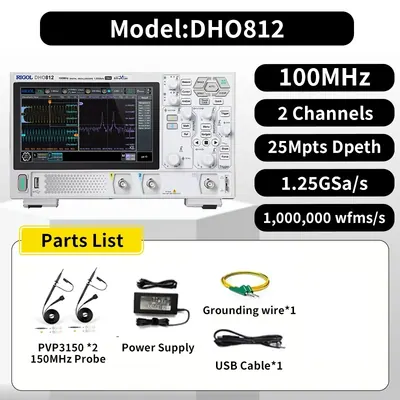

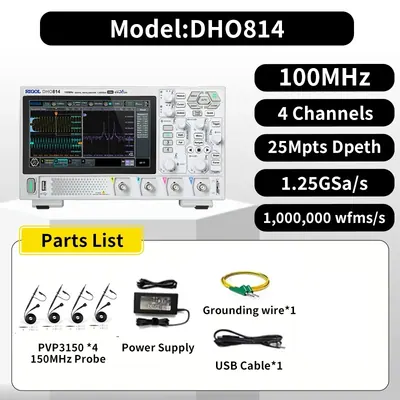

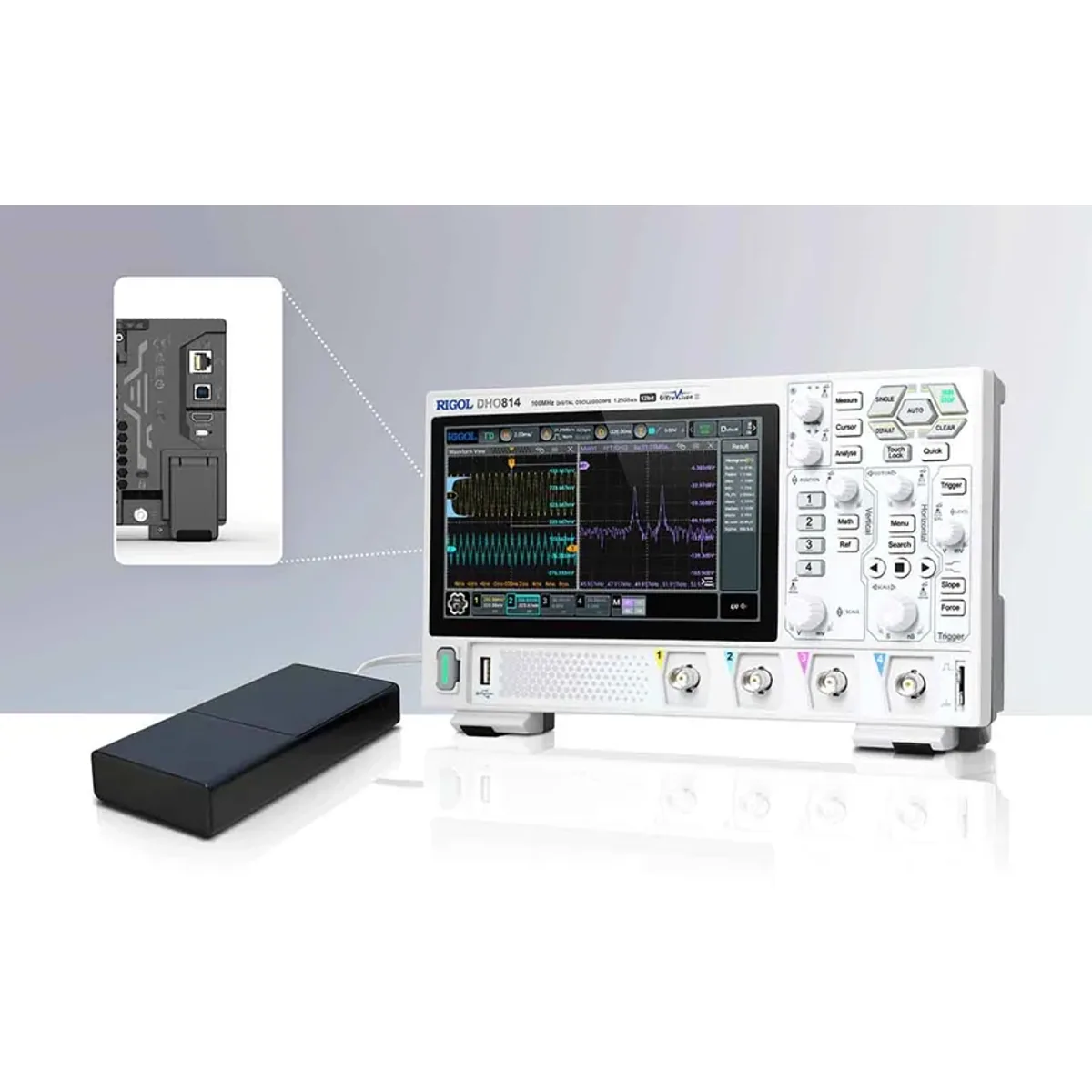

The DHO800 series is a 12-bit digital oscilloscope with 70MHz or 100MHz bandwidth, 2 or 4 analogue channels, up to 1.25GSa/s real-time sampling and 25Mpts memory, operated from a 7 inch 1024 x 600 capacitive multi-touch screen. Choose the DHO802, DHO804, DHO812 or DHO814; all four share the same compact case, USB Type-C power input and USB, LAN and HDMI ports. Features and Benefits - 12-bit vertical resolution on every model - finer voltage detail than an 8-bit scope when looking at ripple and small signals. - 500μV/div to 10V/div sensitivity - small sensor outputs and logic levels on the same instrument. - Up to 1,000,000 wfms/s capture rate in the high speed acquisition mode (30,000 wfms/s in vector mode) - rare glitches show up quickly. - 25Mpts memory and hardware waveform recording of up to 500,000 frames - long captures you can scroll, search and replay. - Peak detection that captures 1.6 ns glitches, plus 256-level intensity grading - see how often an event occurs. - I2C, SPI, CAN, RS232/UART and parallel decoding - read bus traffic directly on screen. - USB Type-C power input - runs from a portable power bank for on-site work. - HDMI output and LAN - show the display on a monitor or control the scope from a web browser. Applications - Embedded and microcontroller design and debugging. - Power electronics and switch mode supply work where 12-bit resolution helps. - Field service and on-site chip testing powered from a power bank. - Teaching and presentations using the HDMI output. In the box Oscilloscope, PVP3150 150MHz probes (4 with the 4 channel models, 2 with the 2 channel models), power supply, grounding wire, USB cable and printed document. Note: The rear panel fits VESA-standard monitor mounts. This page sells the UK plug version of the power supply.
