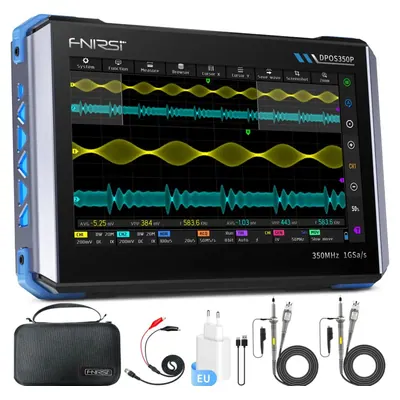

Digital Oscilloscope DPOS350P | 2CH 350MHz 1GSa/s | 7in Touchscreen

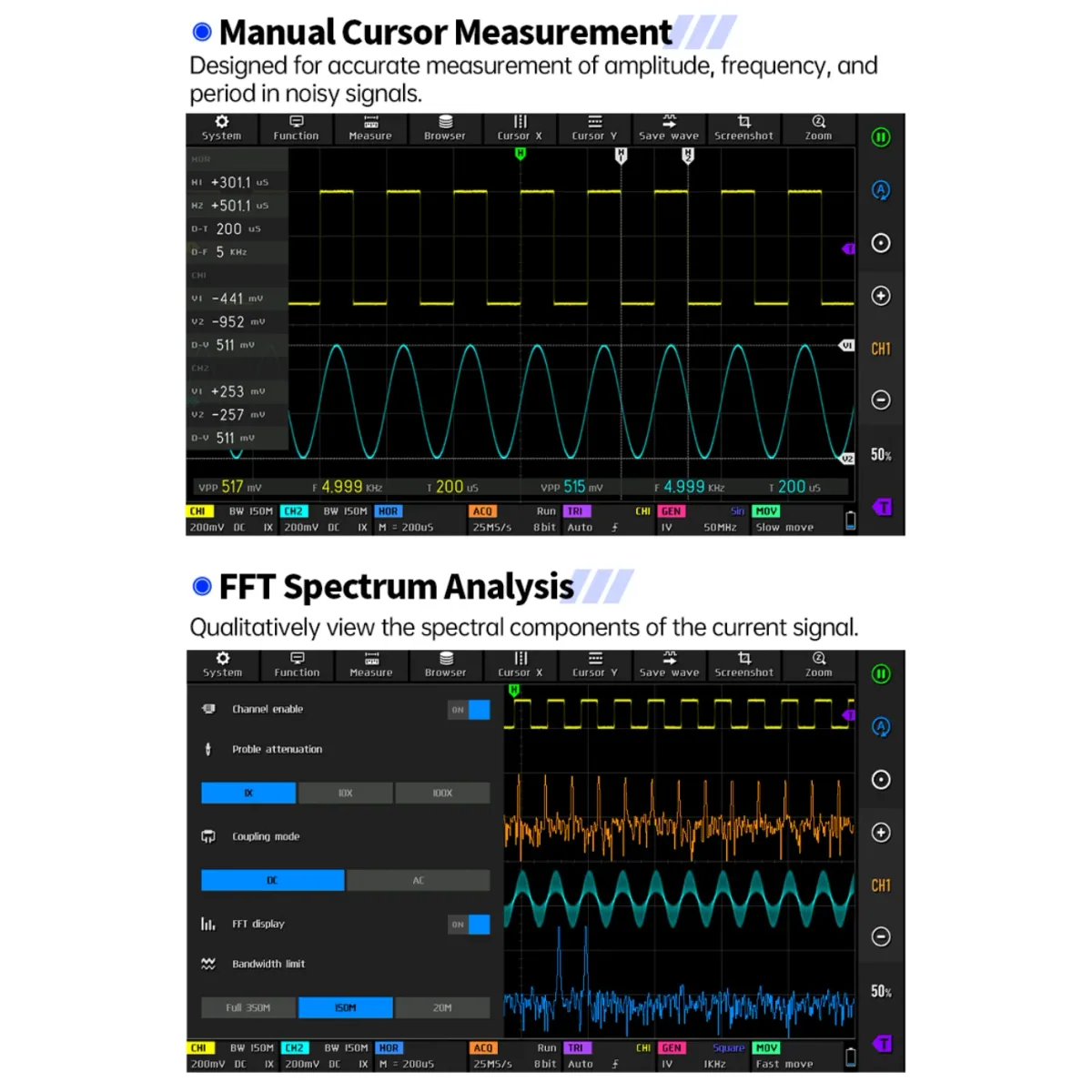

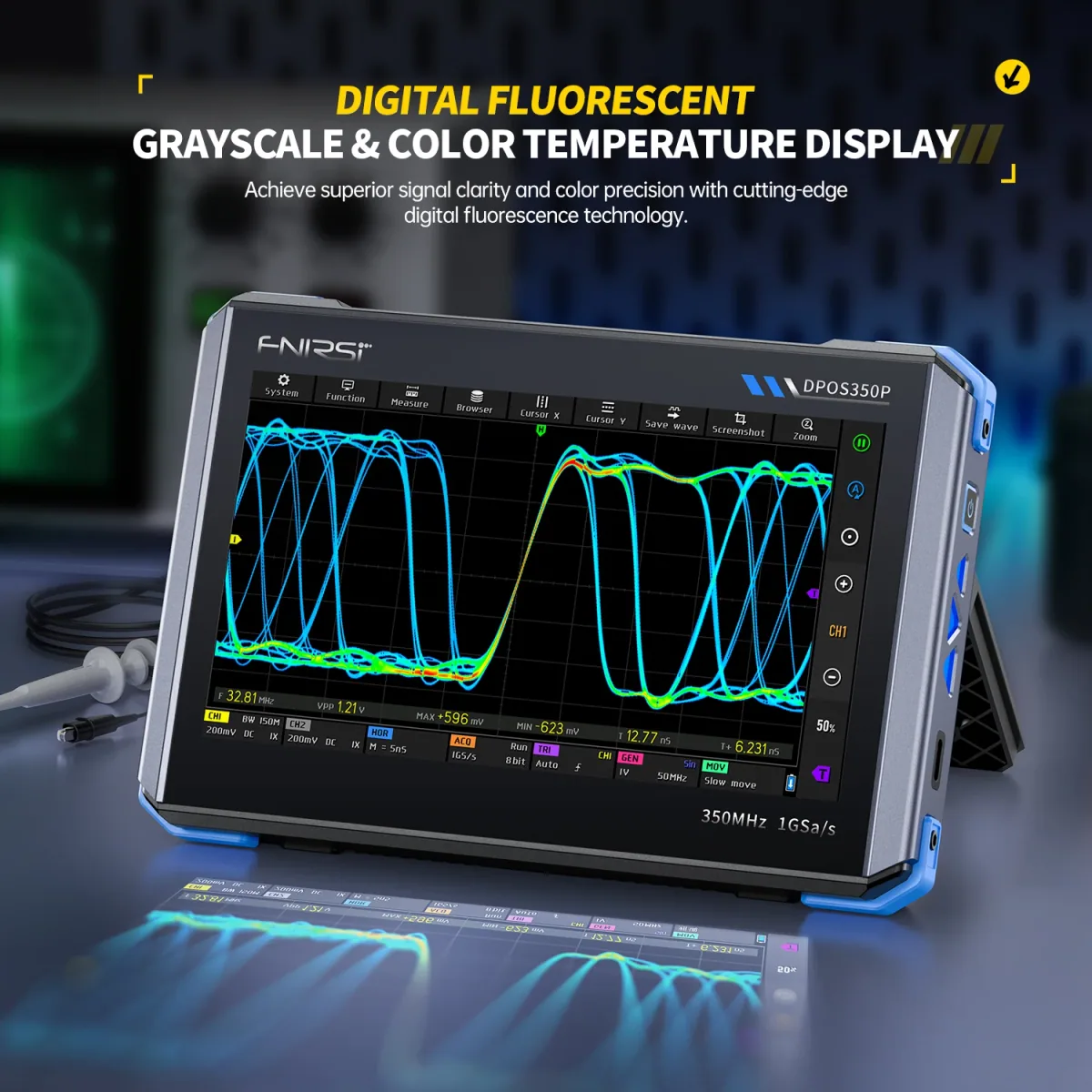

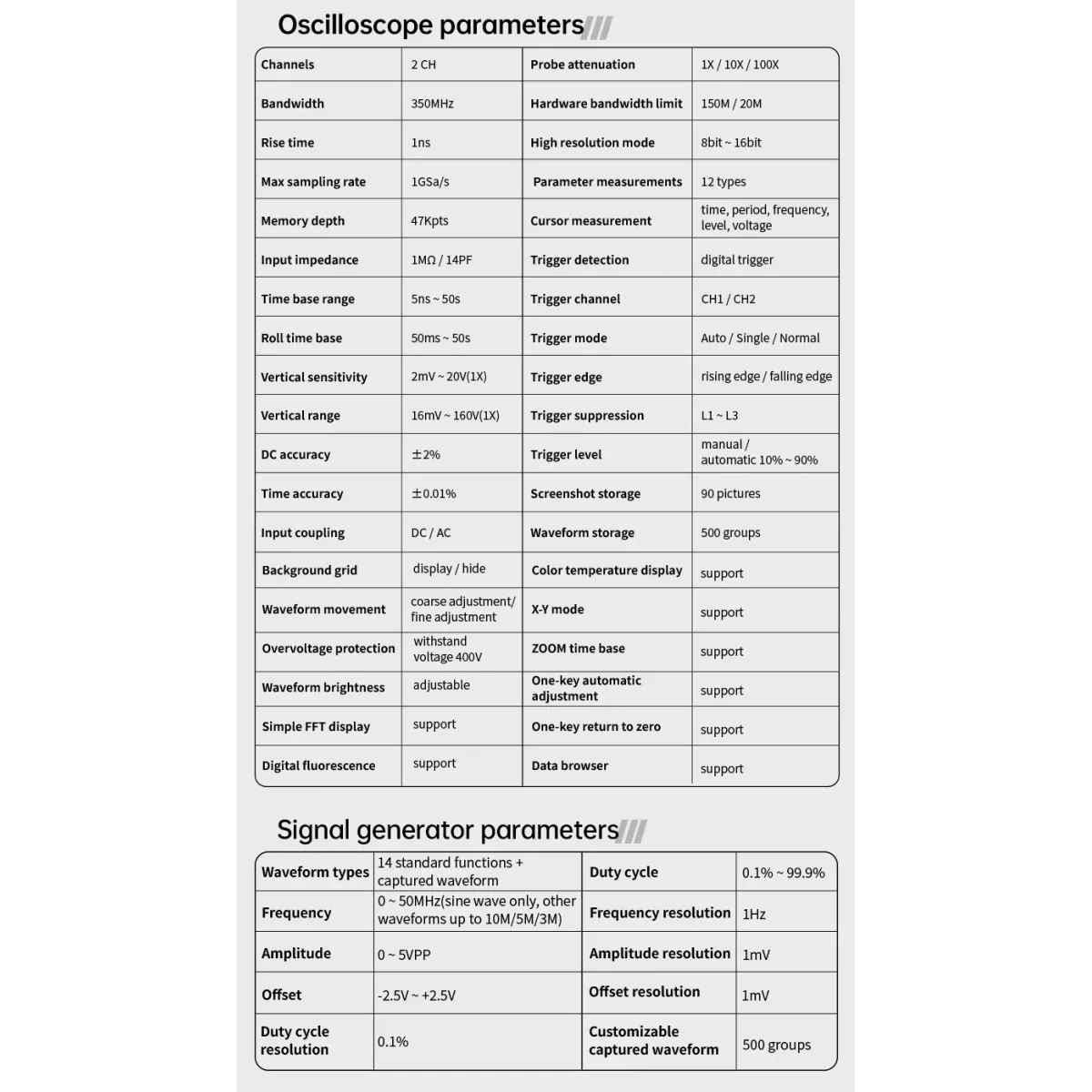

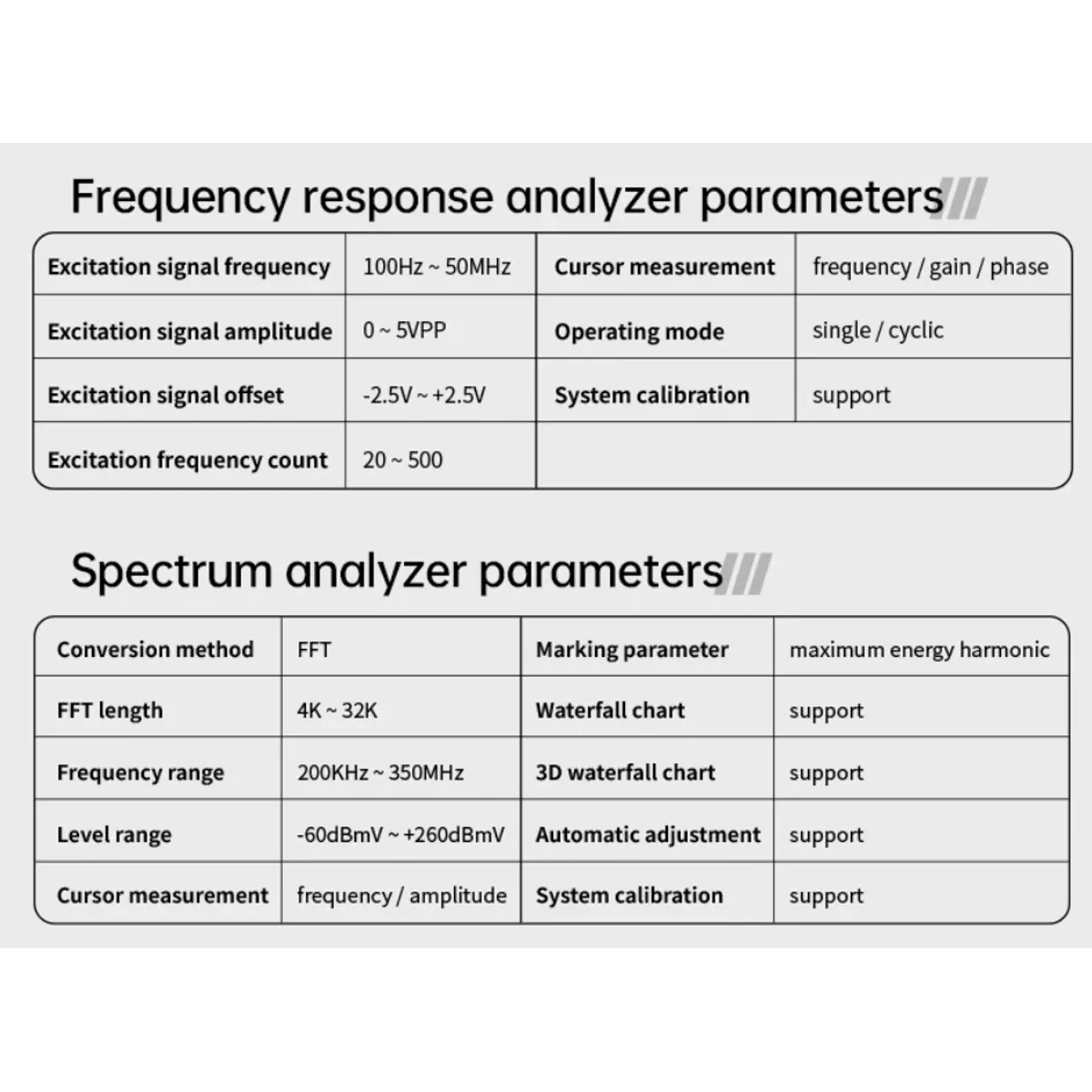

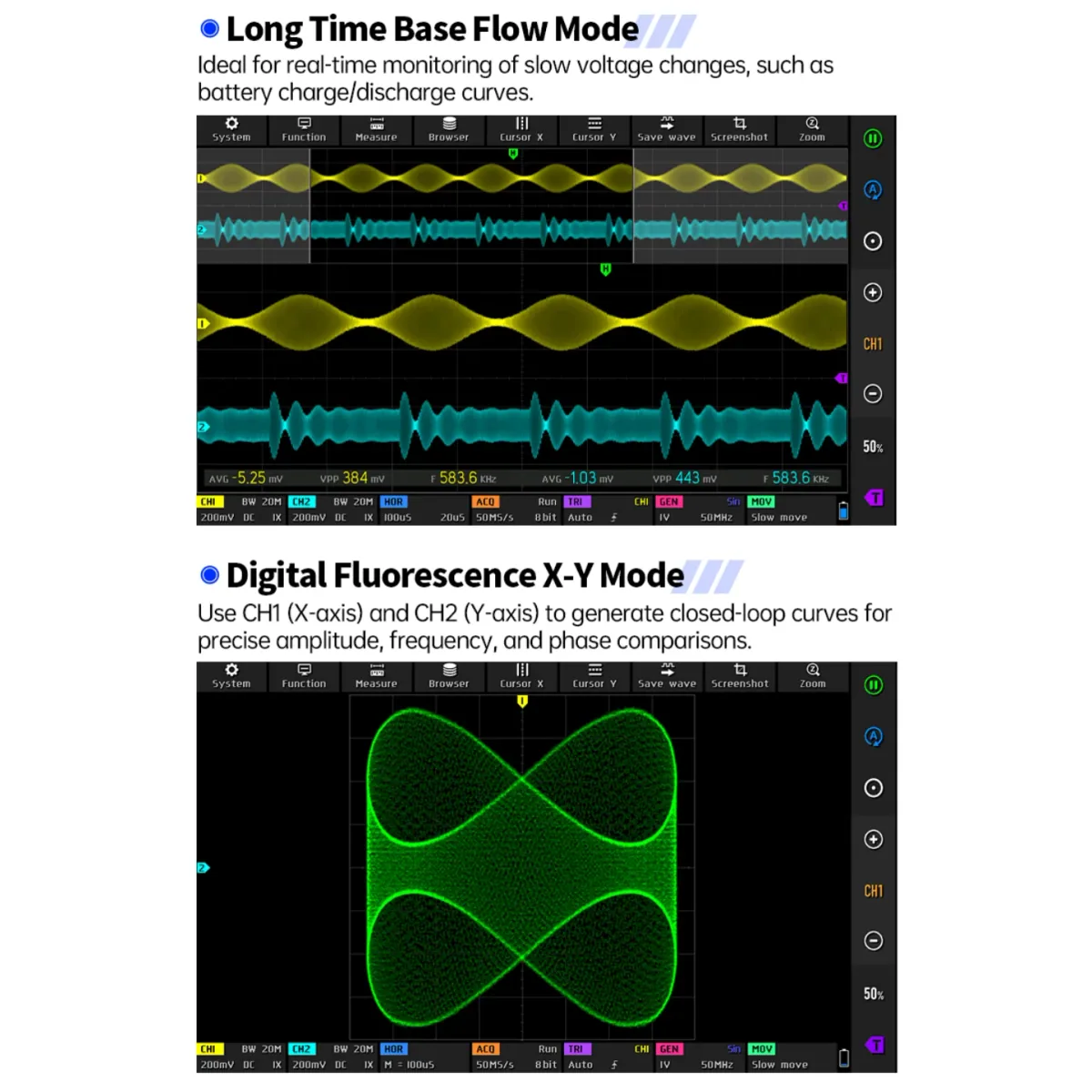

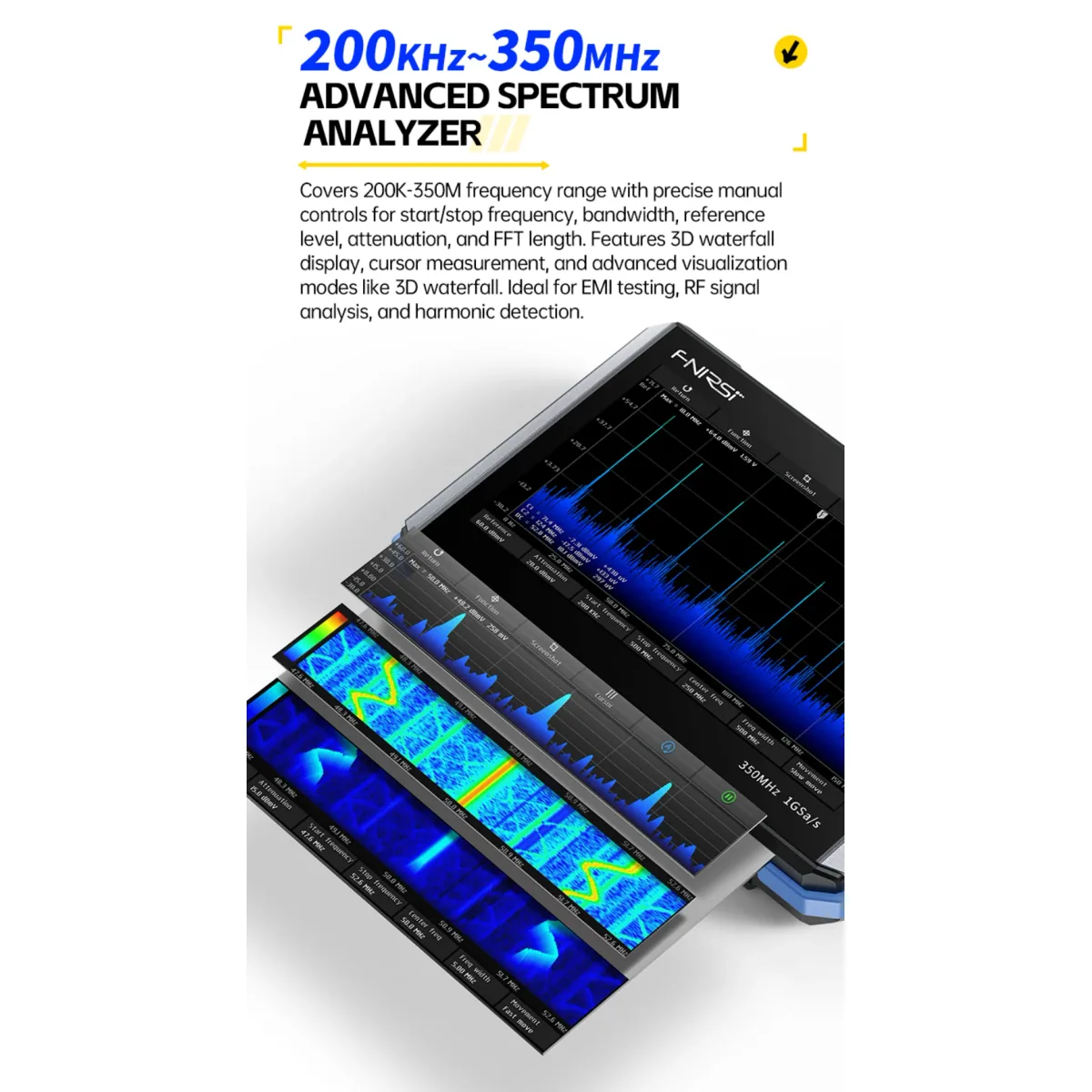

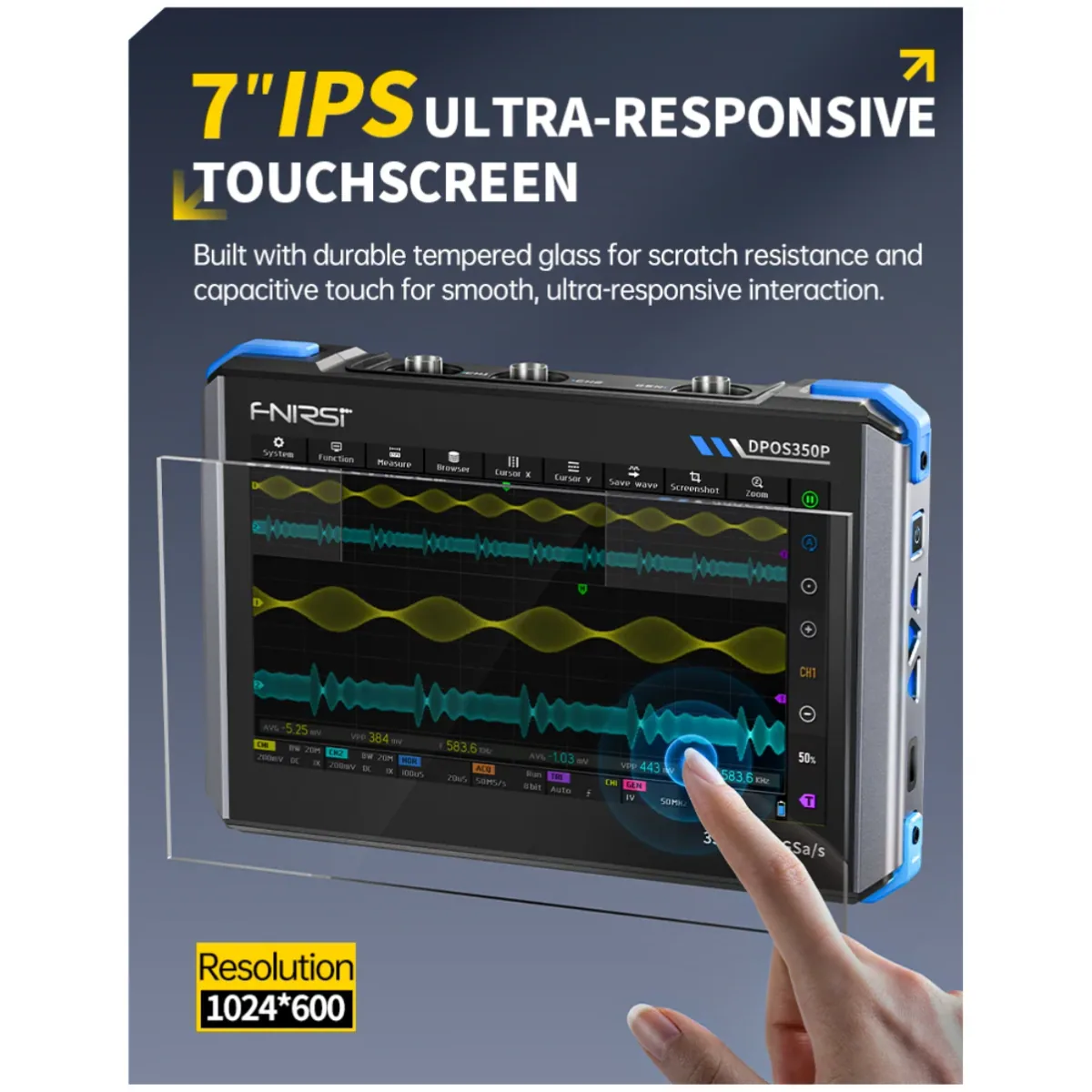

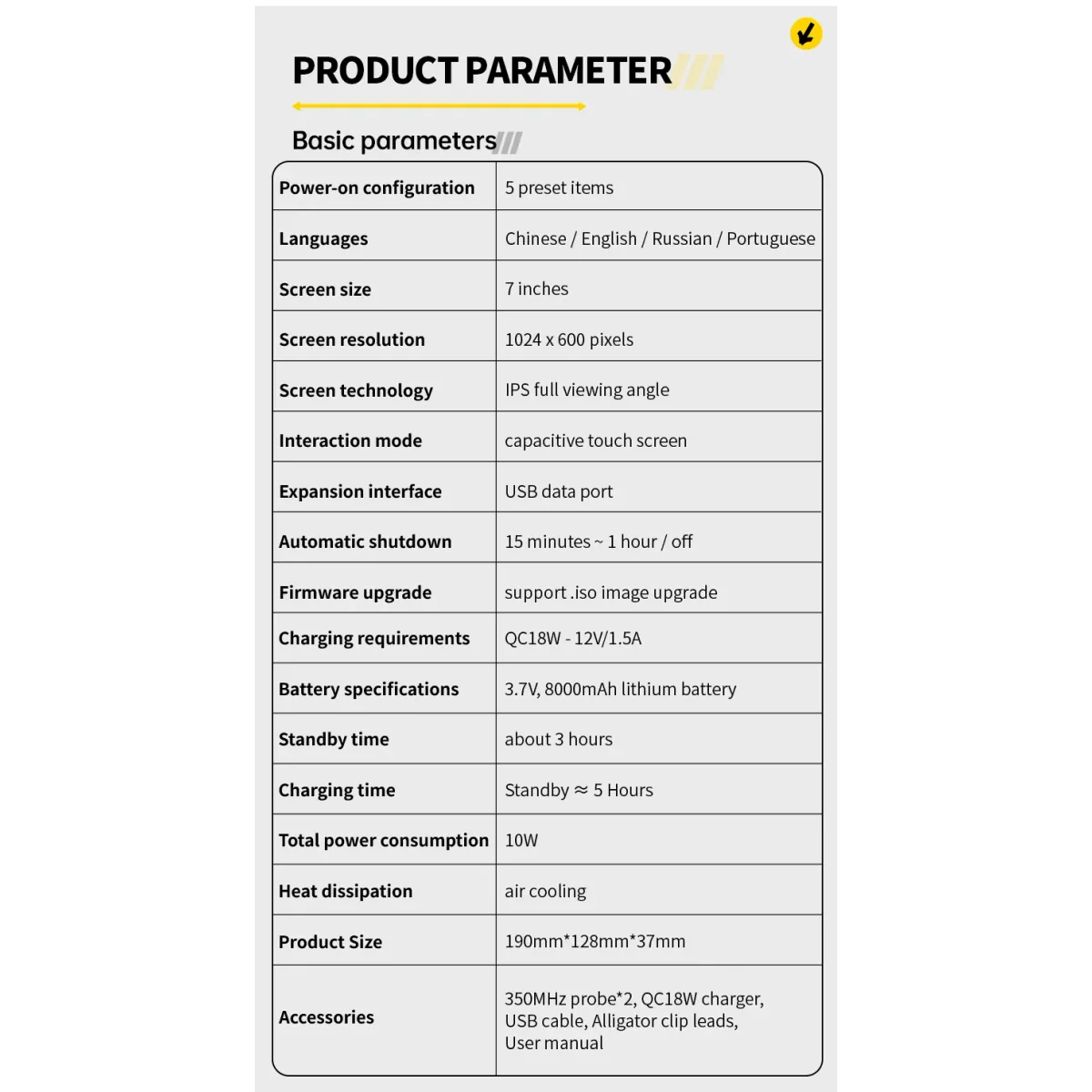

The DPOS350P is a 4 in 1 tablet digital oscilloscope: a 2 channel, 350MHz, 1GSa/s digital phosphor scope with a 50MHz signal generator, a 200kHz to 350MHz FFT spectrum analyser and a 100Hz to 50MHz frequency response (Bode plot) analyser, all driven from a 7 inch 1024 x 600 IPS capacitive touchscreen. It runs from a built-in 3.7V 8000mAh battery with 18W QC charging, so it works on the bench and in the field. Features and Benefits - 350MHz bandwidth, 1ns rise time and up to 50,000 waveforms per second: fast edges, ringing and intermittent glitches stay visible. - Digital fluorescence with greyscale and colour temperature display, plus 8 to 16 bit high resolution mode: see how often a trace takes each path and pull small signals out of noise. - 2mV/div sensitivity, 150M and 20M hardware bandwidth limits and L1 to L3 high-frequency trigger suppression for low-level and ripple work. - 12 parameter measurements, manual cursors, ZOOM time base, X-Y mode, simple FFT and a roll time base for slow changes such as battery charge curves. - Signal generator with 14 standard waveforms plus captured waveforms: sine to 50MHz, 0 to 5Vpp, ±2.5V offset, 0.1% to 99.9% duty, 500 custom signals stored. - Spectrum analyser with FFT length 4K to 32K, waterfall and 3D waterfall views for EMI checks, RF signal analysis and harmonics. - 1GB storage for 90 screenshots or 500 waveforms, USB export to a PC and .iso firmware upgrades. Applications - Electronics R&D: amplifier, filter and power loop response testing with the Bode plot analyser. - Repair and maintenance of switching supplies, digital logic and RF circuits. - EMI pre-checks and harmonic detection. - Field service and teaching labs on battery power. In the box - DPOS350P, 2 x 350MHz probes, QC 18W charger (EU plug), USB cable, alligator clip leads, user manual. Note: the input stage withstands up to 400V. Use the probes on 10X for higher voltages and match the probe attenuation setting (1X, 10X or 100X) on screen. The charger has an EU plug; use a UK plug adapter.
