Handheld LCR Meter 1833C / 1832C | 100Hz to 100kHz | 0.3% Basic Accuracy

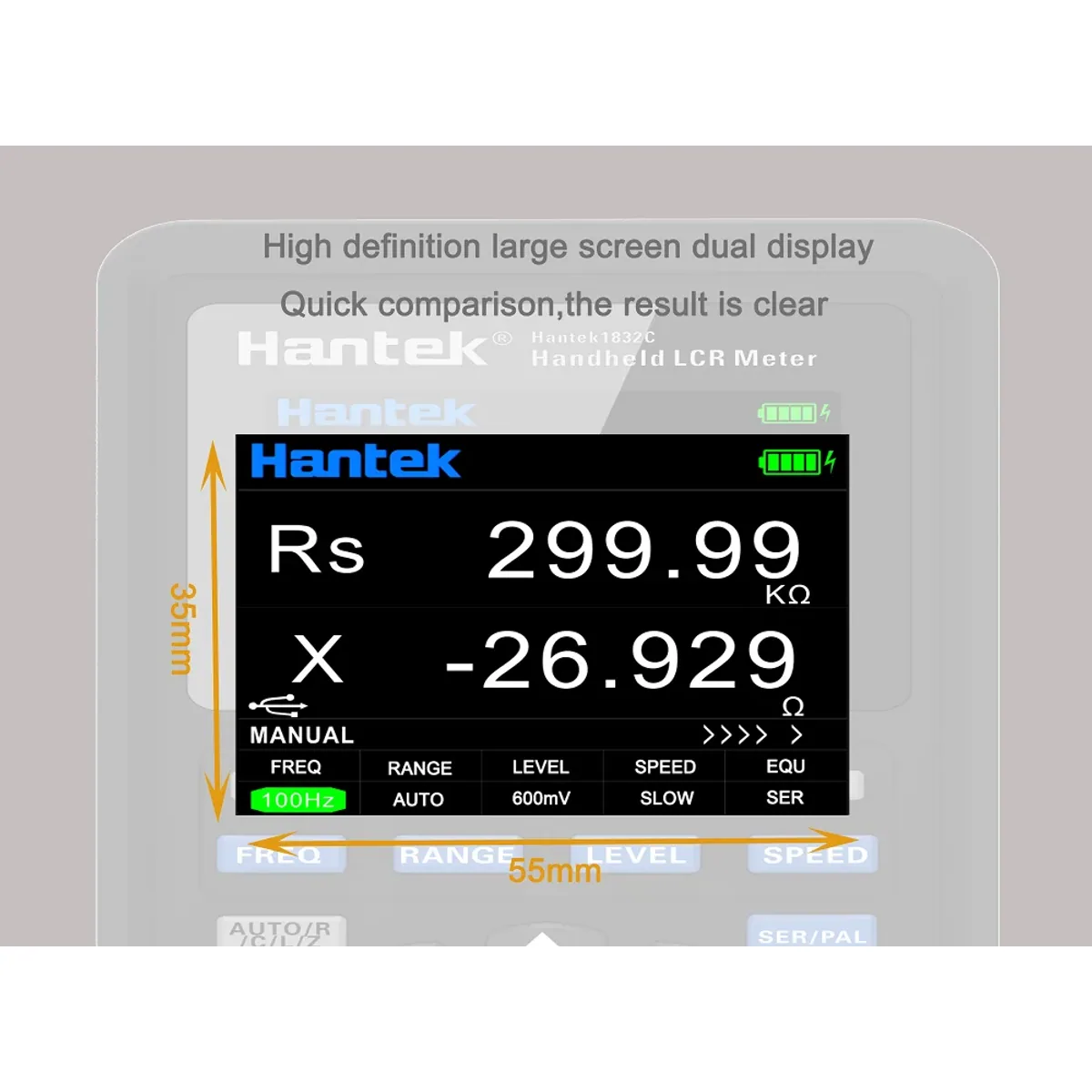

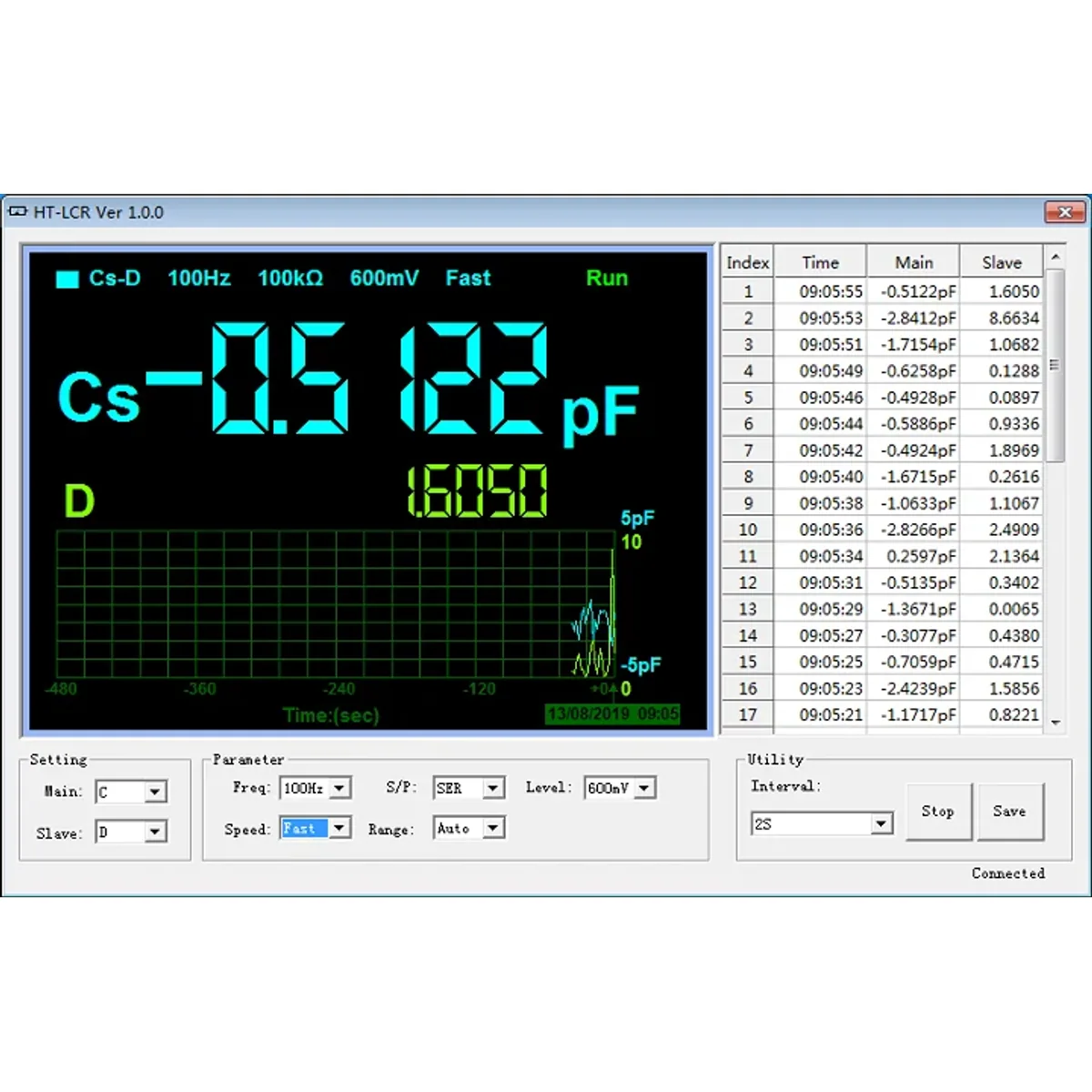

The 1833C and 1832C are handheld LCR meters (digital bridges) that measure inductance, capacitance, resistance and impedance, with X, D, Q, θ and ESR as secondary readings, at 0.3% basic accuracy. The 1833C tests at 10 frequencies from 100Hz to 100kHz and the 1832C at 7 frequencies from 100Hz to 40kHz, with results on a 2.8 inch dual readout screen. Features and Benefits - Up to 10 test frequencies on the 1833C - check capacitors and inductors at the frequency they work at in the circuit - Primary L, C, R, Z and secondary X, D, Q, θ, ESR on one screen - read capacitance with ESR or dissipation in a single test - Ranges to 2000H, 20mF and 20MΩ with auto or manual ranging - one meter for small SMD parts and large electrolytics - 3-terminal jacks and a 5-terminal slot, series or parallel equivalent circuit - four wire style connection for low value parts - Fast, medium and slow speeds (4, 2 or 1 readings per second) - trade speed for stable readings - Hold, record, relative (REL) and compare keys, plus open and short circuit correction - sort parts and cancel lead effects - PC software over USB Type-C, rechargeable lithium batteries and a folding stand - log data on the bench or use it handheld Applications - Incoming inspection and sorting of capacitors, inductors and resistors - Capacitor ESR and dissipation checks in electronics repair - Coil, choke and transformer winding measurements - Teaching component behaviour against frequency In the box 1 x LCR meter, 1 x storage bag, 1 x short-circuit plate, 1 x red and black alligator clip test lead, 1 x charger (Type-C cable and power adapter), 1 x certificate card. The Kelvin test clip and SMD patch clip come only with the matching options. Note: Discharge capacitors before testing, as printed on the meter. The charger is supplied with an EU plug by default; use a UK adapter.
