Digital Oscilloscope 2D15P | 2CH 100MHz 500MSa/s | Multimeter and DDS

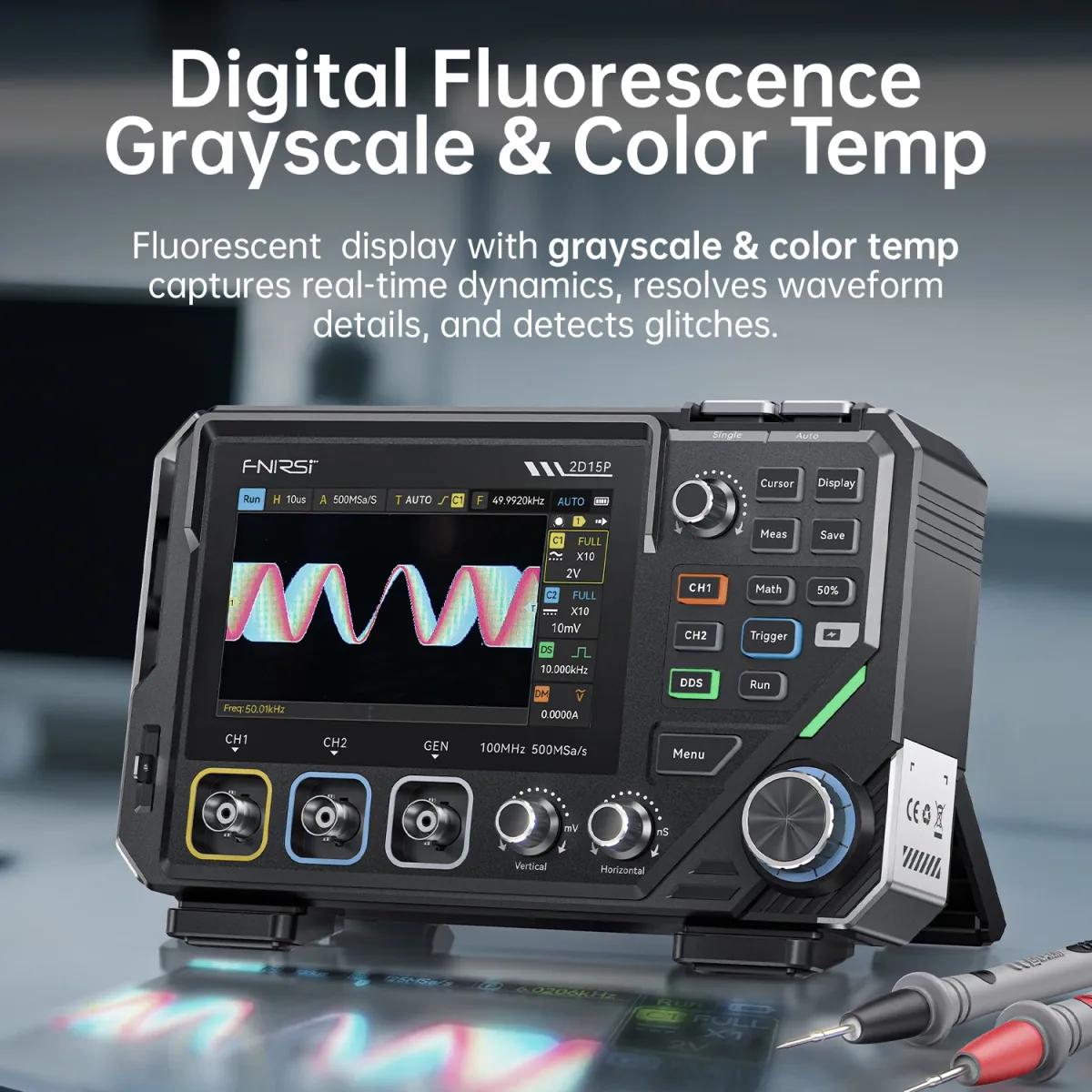

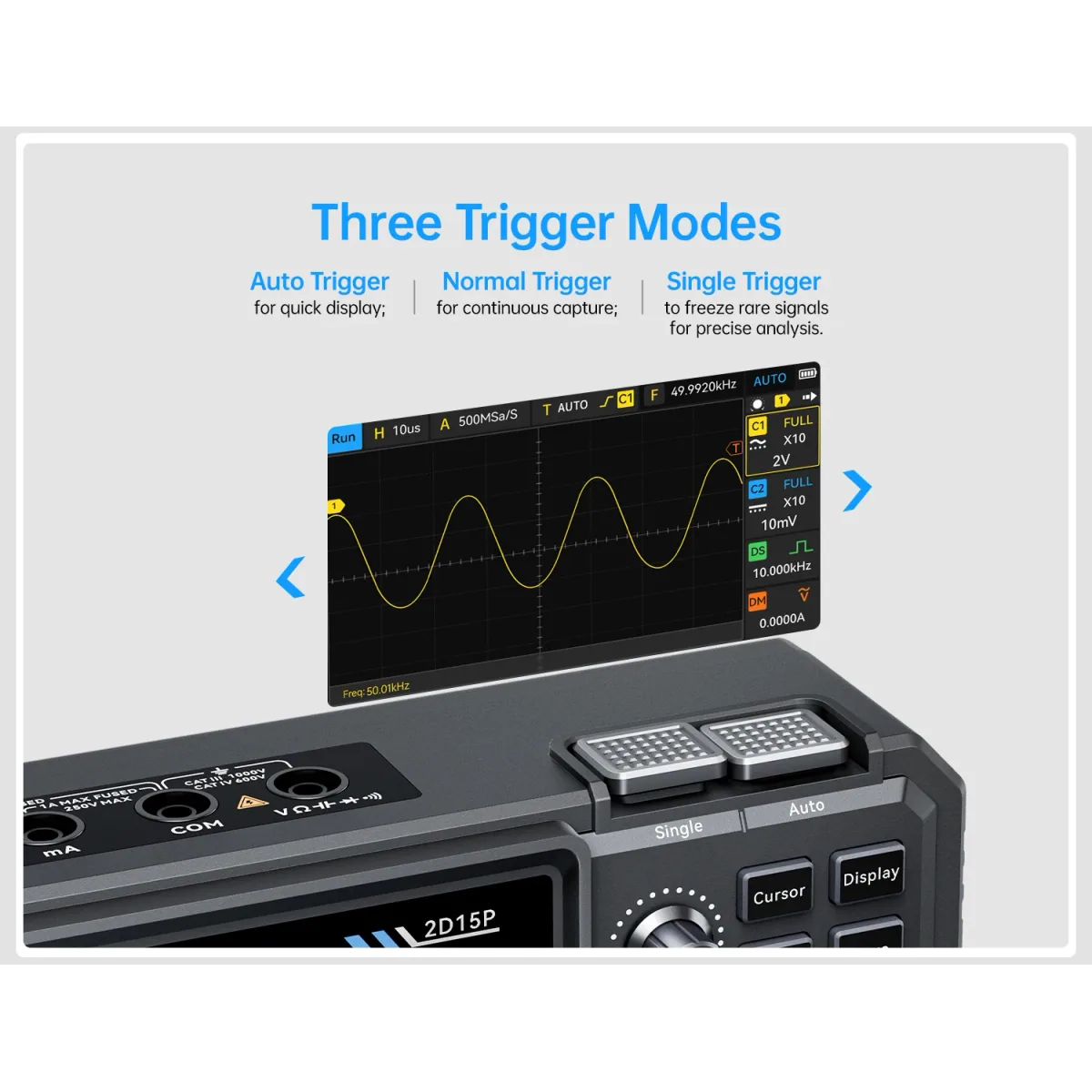

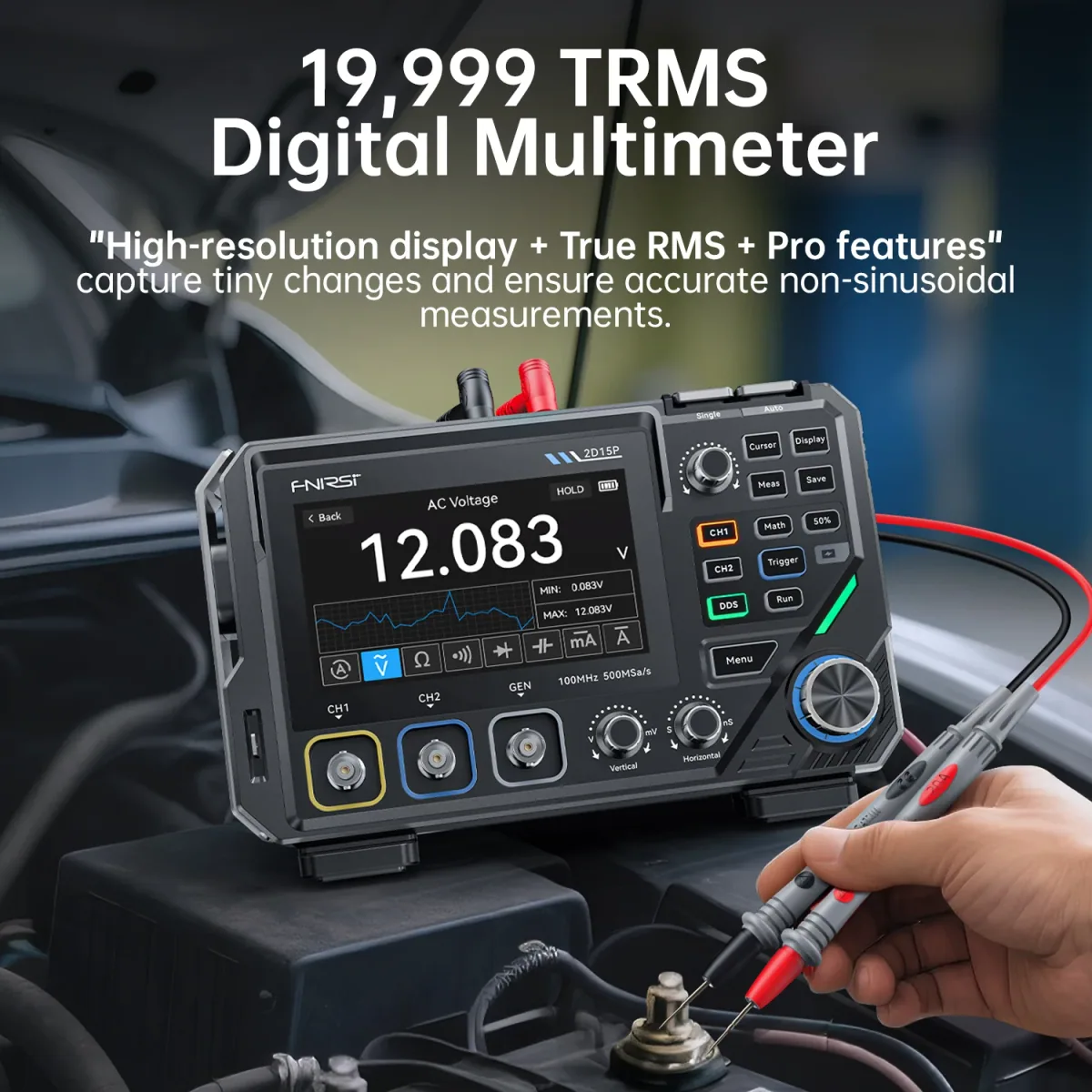

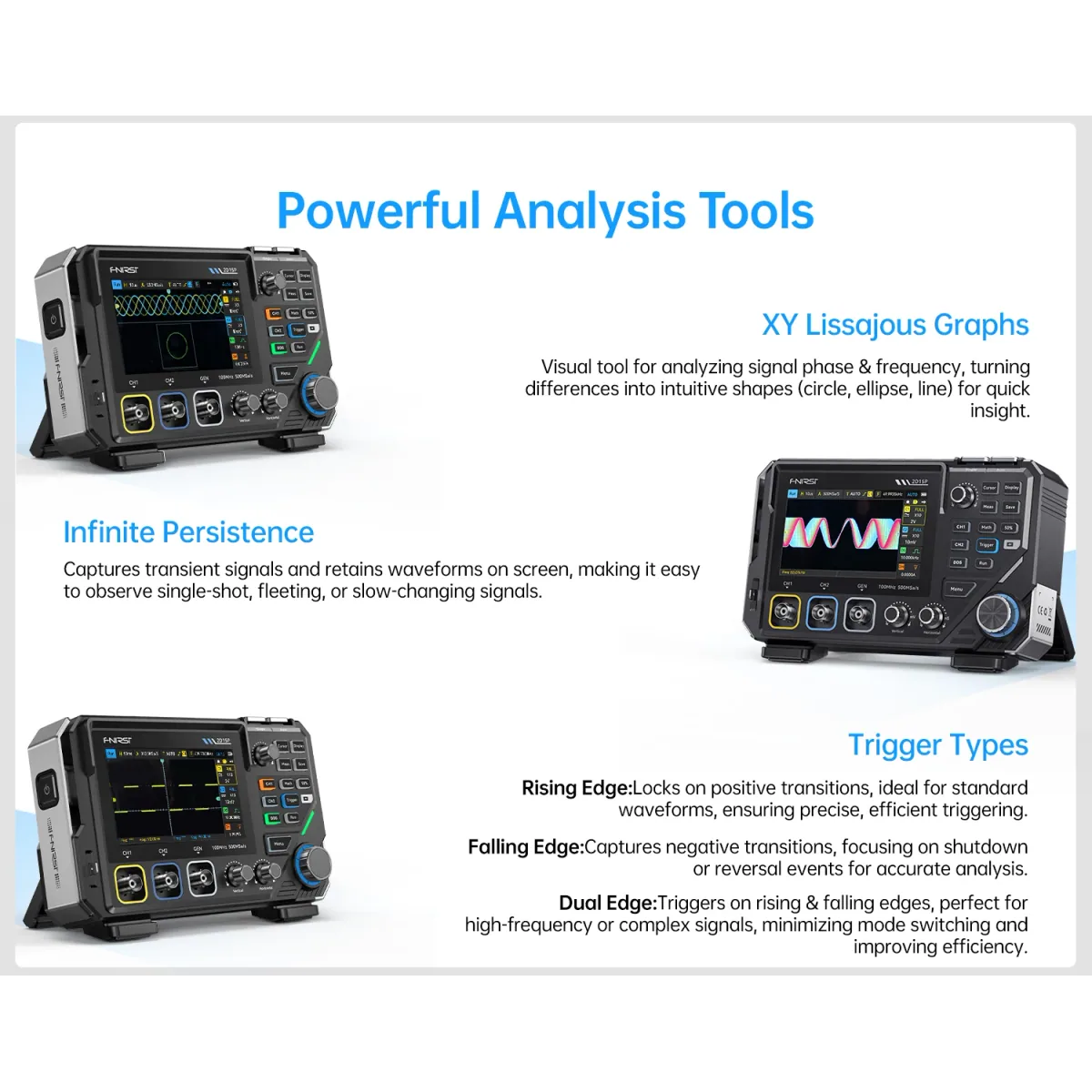

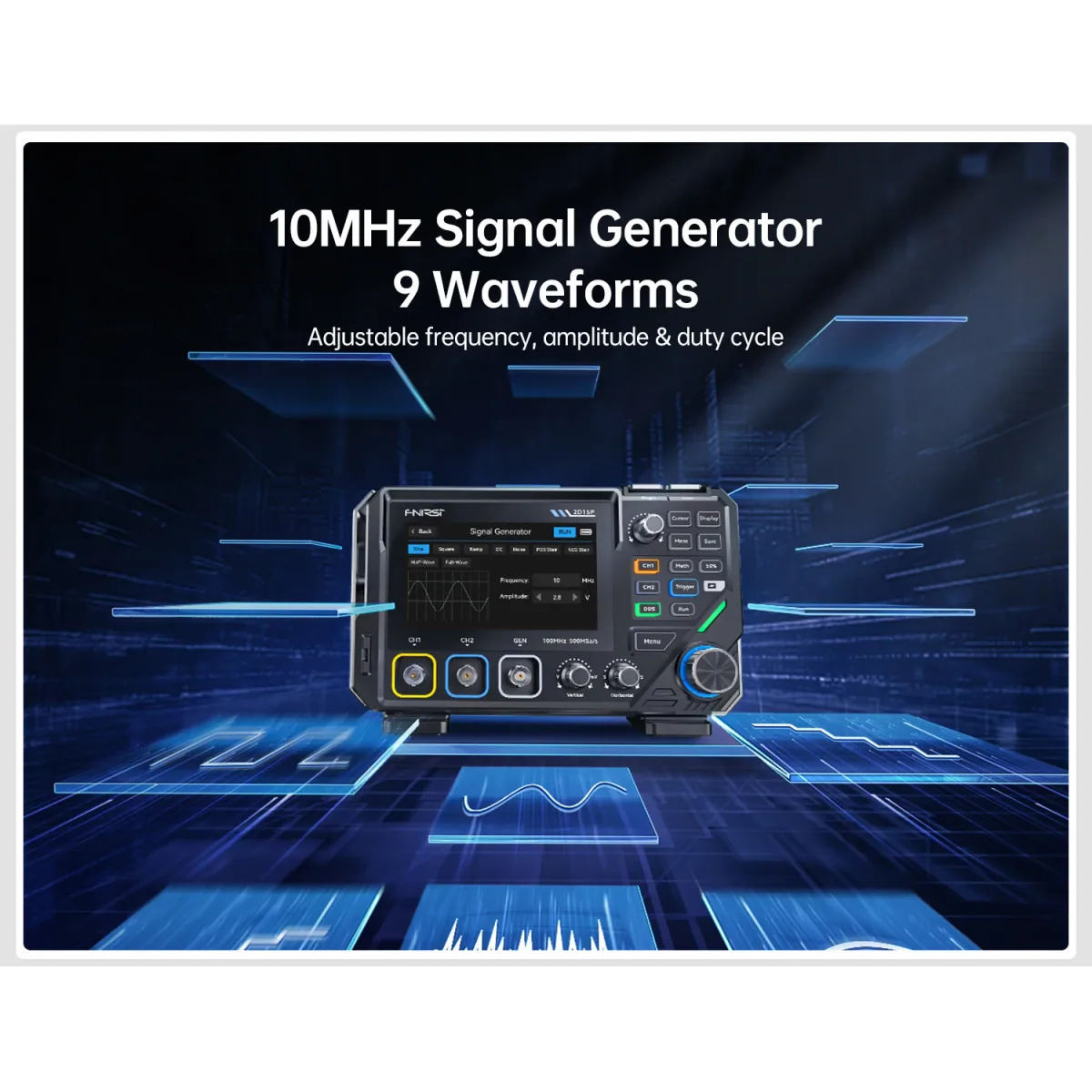

The 2D15P is a compact desktop digital oscilloscope with two channels, 100MHz analogue bandwidth on a single channel (50MHz per channel with both active) and 500MSa/s sampling, combined with a 20000-count true RMS multimeter and a 10MHz DDS signal generator. It is run from a 4.3 inch capacitive touchscreen plus knobs and buttons, and powered by a built-in 5000mAh battery charged over Type-C, so it works on the bench or away from mains. Features and Benefits - Memory depth of 10K, 100K or 1M and a waveform capture rate of about 1,200 frames per second: catches occasional glitches that a slow refresh misses. - 128-level greyscale with colour temperature and persistence from min to infinity: shows how often a waveform takes each path, useful for jitter and noise. - 13 automatic measurements, cursors, 6 maths operations and X-Y mode: phase, timing and amplitude analysis without a PC. - Rising, falling and both-edge triggering in Auto, Normal and Single modes, with dedicated Single and Auto keys. - 20MHz bandwidth limit: cleaner power supply ripple readings. - Built-in 20000-count (4.5 digit) true RMS multimeter with trend graph: voltage, current, resistance, capacitance, diode and continuity on the same screen. - One-channel DDS generator, 0 to 10MHz, 0.1 to 3.0Vpp, duty 0 to 100%, 9 waveforms: stimulus and measurement from one instrument. Applications - Electronics development and repair: switching supplies, audio stages and microcontroller signals. - Automotive diagnostics such as LIN bus signals, sensor outputs and battery voltage. - Equipment maintenance and field testing on battery power. - Research, teaching and student labs. In the box - 2D15P unit, 2 x P6100 scope probes, multimeter test leads, alligator clip probe, USB-A to Type-C cable, user manual. Note: maximum input is 800V with a x10 probe. Set the probe and channel attenuation to match, and use the multimeter jacks, not the BNC inputs, for meter readings.
