Multimeter with Oscilloscope TMP-610S | 60000 Count TRMS | 10MHz Scope

Name: Multimeter with Oscilloscope TMP-610S | 60000 Count TRMS | 10MHz Scope
Brand: Compel Group
SKU: TEST-00352
Price: 580.99 GBP
Availability: InStock

Stock Nr:

SKU:

1 / 8

£580.99inc VAT

ModelTMP-610S 3 in 1 (meter, scope, generator)

Quantity

Secure checkout
All major cards
Tracked delivery

Multimeter with Oscilloscope TMP-610S | 60000 Count TRMS | 10MHz Scope

£580.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How precise is the multimeter?: The seller publishes DC voltage accuracy of ±(0.03%+5d) on 600mV to 1000V ranges and AC voltage accuracy of ±(0.3%+15d), with a 60000-count true RMS display.
What are the input limits?: The meter jacks take up to 1000V DC, 750V AC and 10A on the fused current jack. The scope input is ±40V with a 1:1 probe and ±400V with a 10:1 probe.

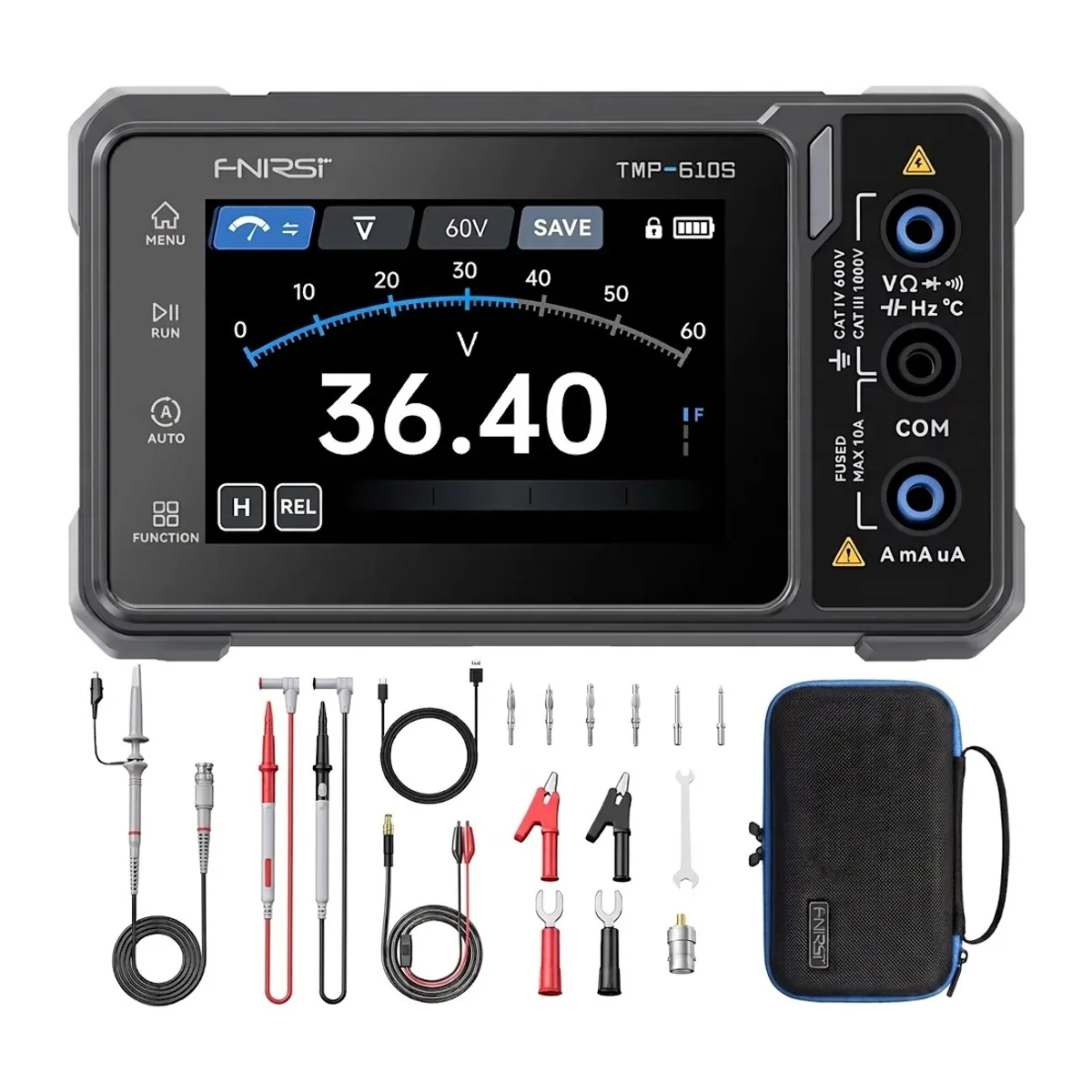

What comes in the box?: The TMP-610S, a P6100 scope probe, an adapter, alligator clips, multimeter probes, probe accessories, a storage case, a Type-C charging cable and the user guide.

Oscilloscopes & Bench Test Equipment spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £580.99

This product

Touchscreen multimeter oscilloscope showing a dial voltage reading above scope probe, test leads, adapters and case

Multimeter with Oscilloscope TMP-610S | 60000 Count TRMS | 10MHz Scope

Price: £580.99
Rating: Not rated
Sold: -
Stock: In stock

You're viewing this

Alternative

Handheld oscilloscope multimeter with two traces on screen beside a carry case, scope probe, test leads and cables

Handheld Oscilloscope Multimeter 2C53T/2C23T | 2CH up to 50MHz | 3 in 1

Price: £278.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Touchscreen oscilloscope multimeter showing two traces with readouts above two scope probes, test leads and clip lead

Touchscreen Oscilloscope Multimeter 2C53P | 2CH 50MHz 250MSa/s | 3 in 1

Price: £418.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

ZOYI ZT703S 3in1 Digital Multimeter 50MHz Bandwidth 280MS Ra - Premium Electronics & Components > Test & Measurement with professional quality and features

3-in-1 Digital Multimeter & Oscilloscope | 50MHz Bandwidth | PC Data Storage & Signal Generator

Price: £306.99
Rating: 5.0
Sold: 187+
Stock: In stock

View

Compare options

More Oscilloscopes & Bench Test Equipment

All Oscilloscopes & Bench Test Equipment

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

UGREEN CAT 8 Ethernet Cable | 40Gbps 2000MHz Shielded | Router PC PS5 Xbox

4.9(2.8K)

£35.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

USB-C Hub 8-in-1 Adapter | 4K HDMI, RJ45 & PD | SD/TF Card Reader

4.9(4.2K)

£44.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

SD Card 256GB | A2 Rated for Faster Apps | Android Phone Game Storage

4.8(11.1K)

£29.99

M.2 SSD NVMe PCIe 3.0 Drive | 3500MB/s Read Speed | 2280 Internal Form Factor

4.8(3.1K)

£145.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

Bay 2.5 to 3.5 Bracket | Includes SATA Cable Set | Metal SSD Mount

4.9(327)

£47.99

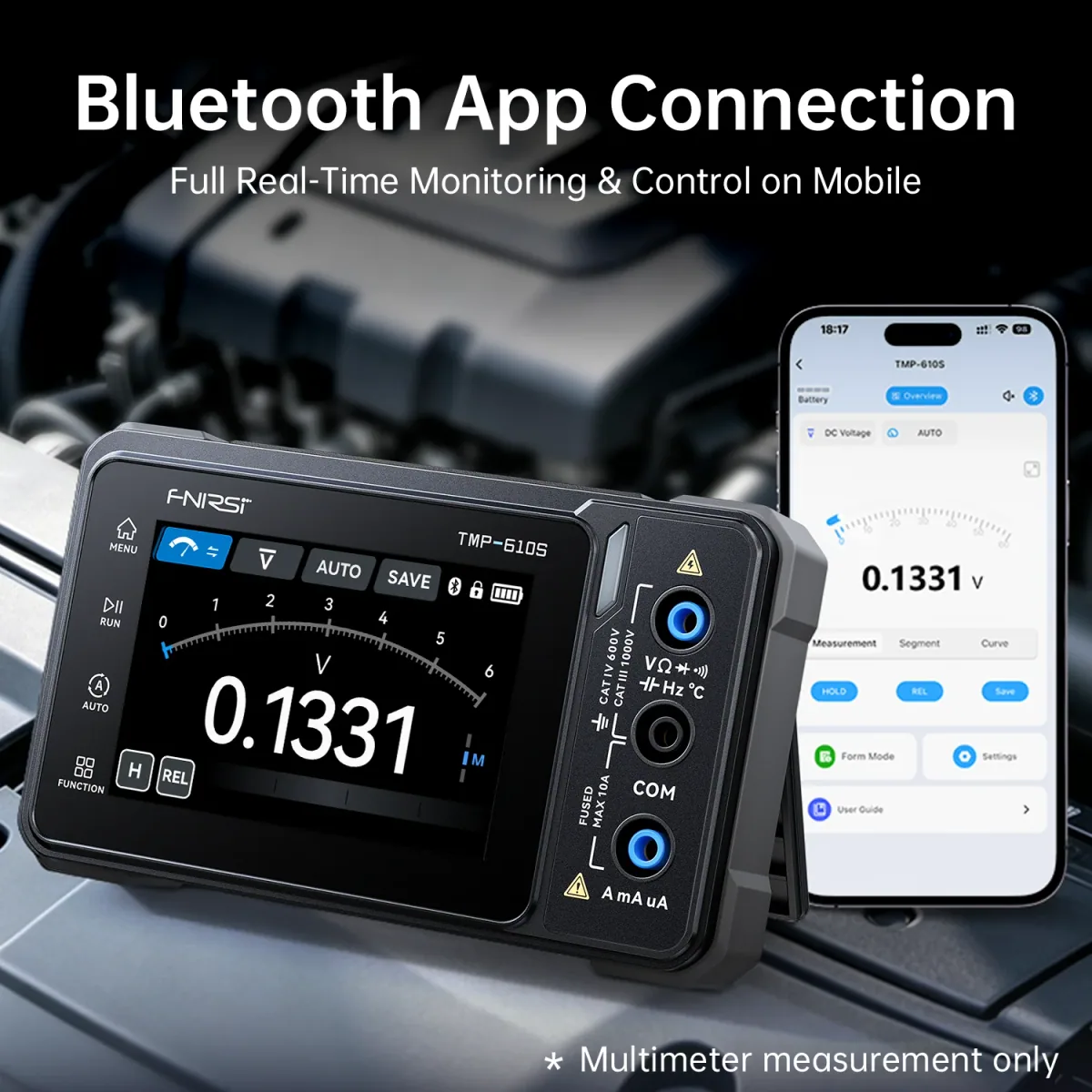

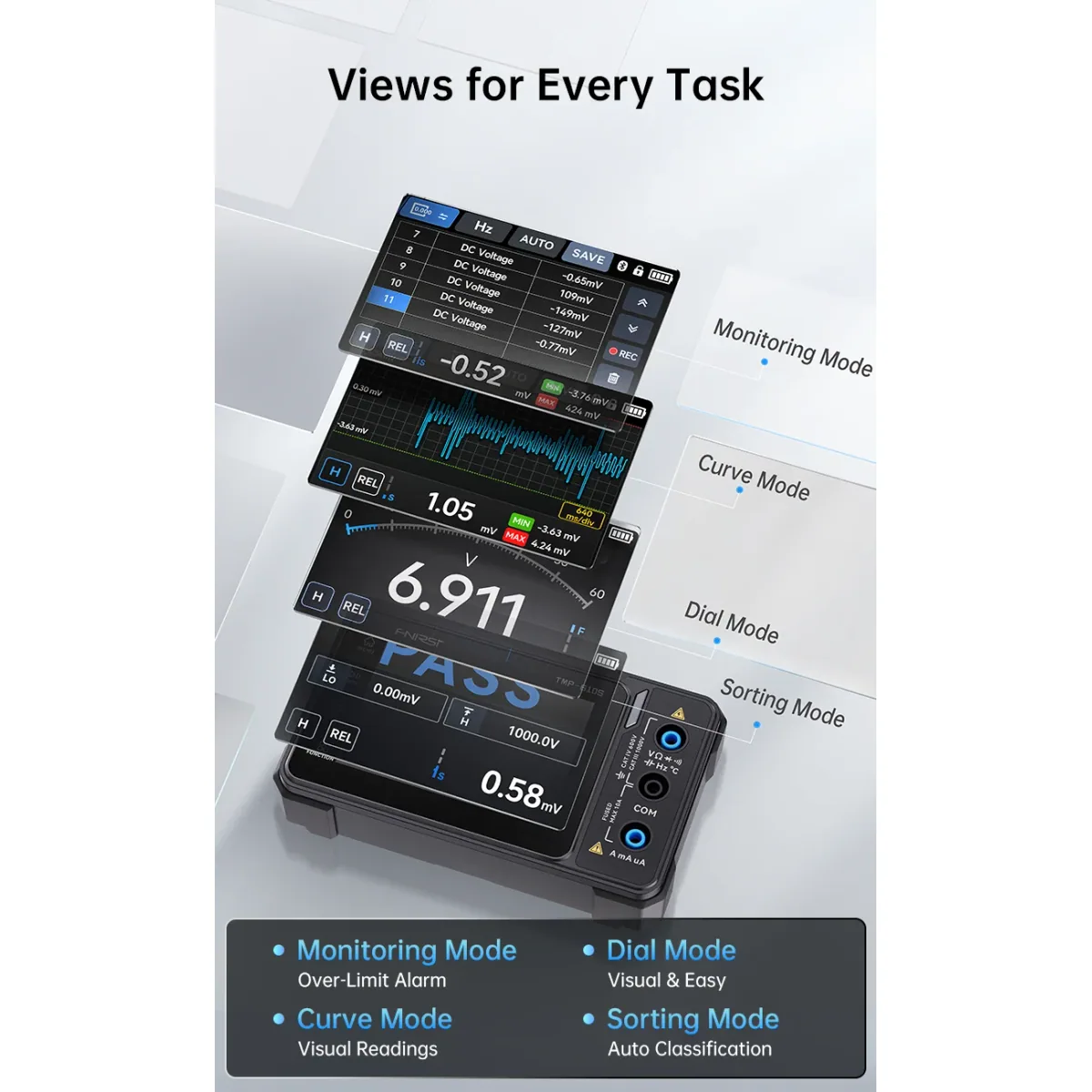

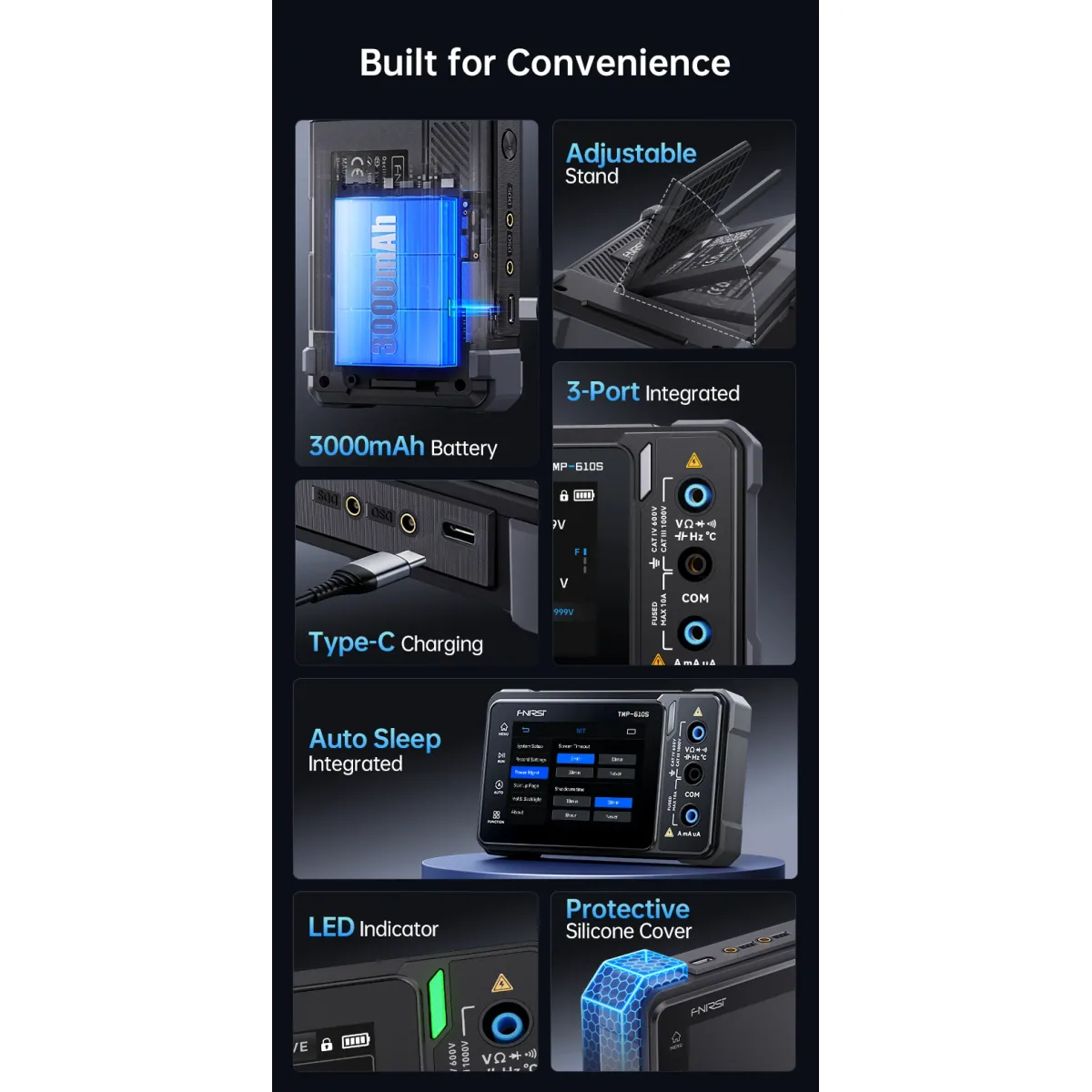

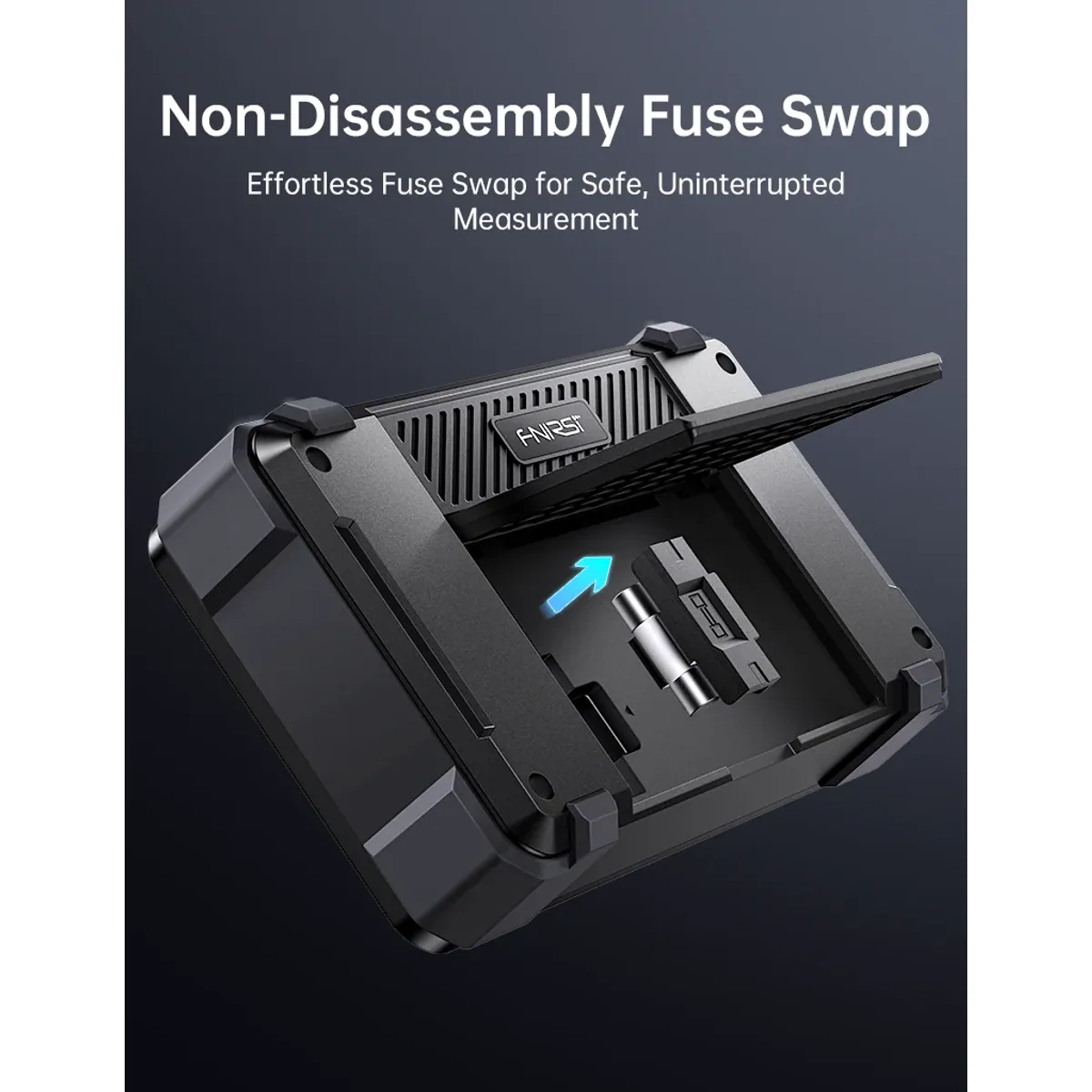

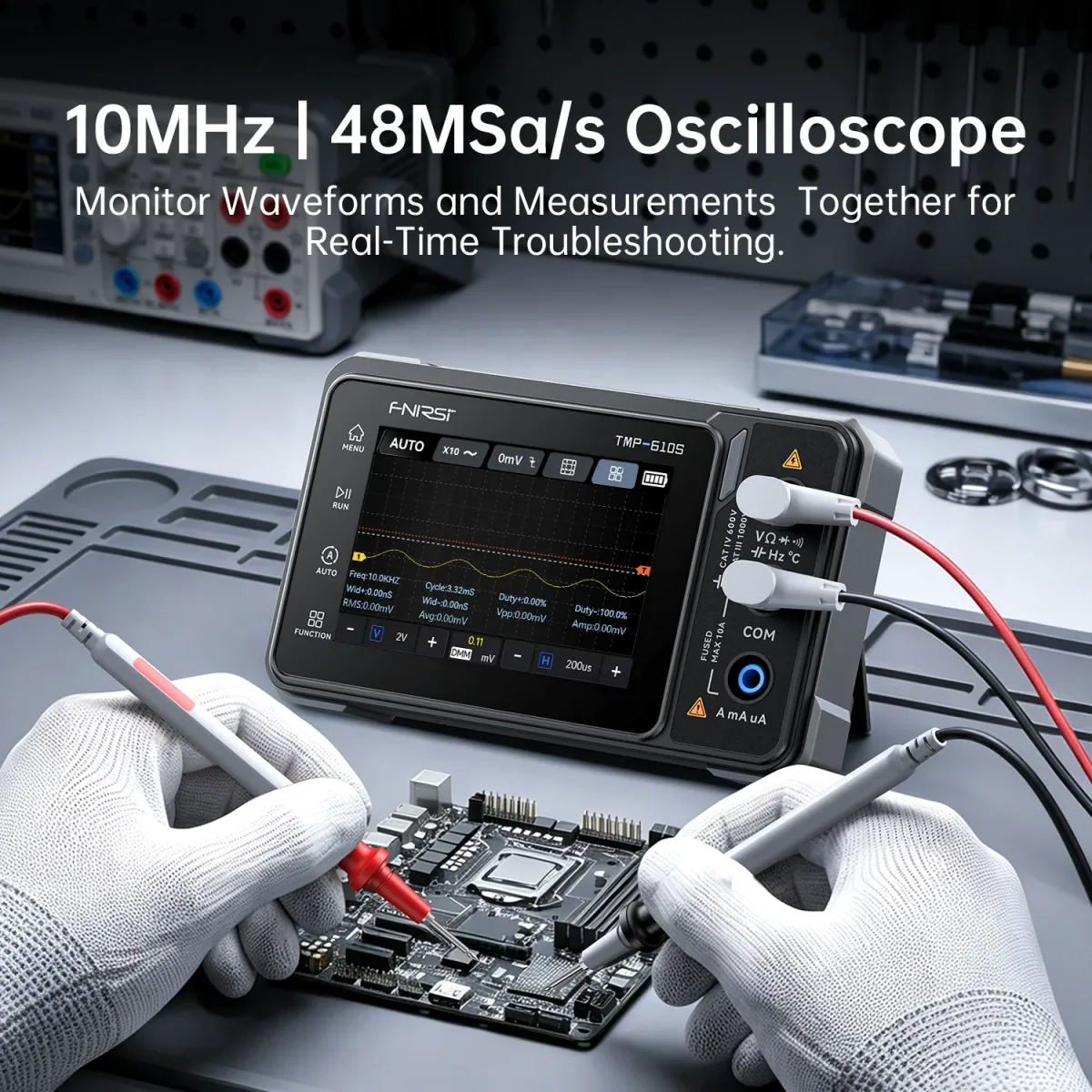

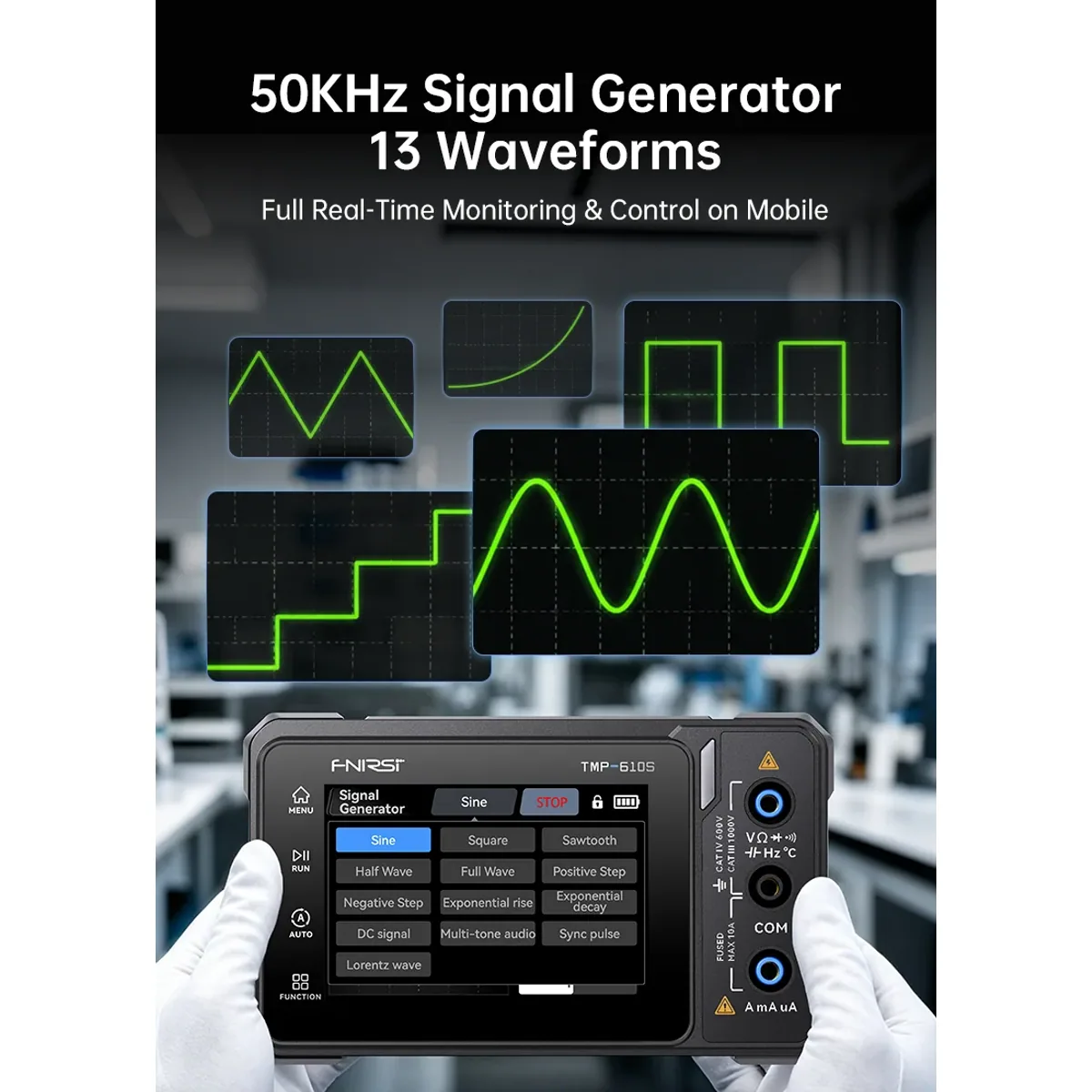

The TMP-610S is a 60000-count true RMS digital multimeter with oscilloscope and signal generator built in: a 10MHz, 48MSa/s single channel scope and a 13-waveform DDS generator up to 50kHz, run from a 3.5 inch touchscreen. It suits electronics repair, PCB work and automotive diagnostics where you need precise meter readings and the waveform behind them from one tool. Features and Benefits - 60000-count true RMS meter with DC voltage accuracy of ±(0.03%+5d): fine resolution for mV and µA work on sensitive circuits. - Smart auto-scan ranging from 1µA to 10A and 1mV to 1000V DC (750V AC), with manual override when you want a fixed range. - Four meter views: dial, curve (trend with min and max), monitoring with over-limit alarm, and sorting for pass or fail checks. - 10MHz scope with ±400V input on a 10:1 probe, Auto/Normal/Single trigger, 12 automatic measurements, cursors and persistence up to infinite. - DDS generator with 13 waveforms from 0 to 50kHz, duty adjustable on square and sawtooth: test amplifiers, filters and PWM inputs. - Bluetooth app link for live multimeter readings, logging and export on a phone (multimeter mode only). - Fuse swap without opening the case, adjustable stand, silicone corner protection, auto sleep and 3000mAh battery with Type-C charging. Applications - Automotive diagnostics: battery and charging checks, sensor signals and waveform faults. - Electronics and PCB repair: component checks, ripple and signal tracing. - Electrical maintenance with AC + DC readings and trend logging. - Development benches and training rooms. In the box - TMP-610S unit, P6100 scope probe, adapter, alligator clip lead, multimeter test leads, probe accessories (tips, spade and crocodile adapters), storage case, Type-C charging cable, user guide. Note: the scope input is ±40V (80Vpp) with a 1:1 probe and ±400V (800Vpp) with a 10:1 probe. Use the meter jacks for mains measurements, keep within 1000V DC and 750V AC, and use the 10A jack only on fused current circuits.

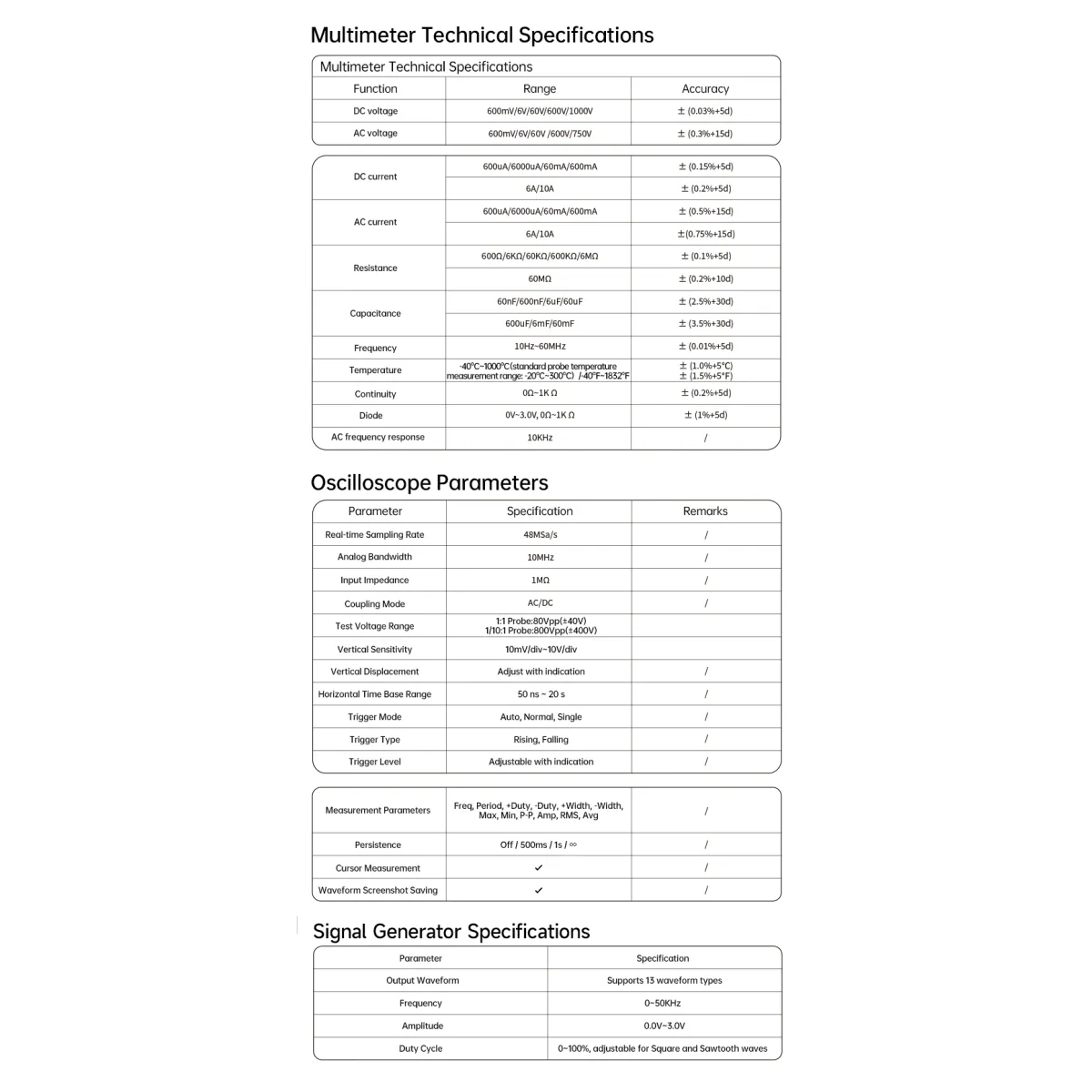

Functions: Digital multimeter, oscilloscope and DDS signal generator (3 in 1). Multimeter: 60000 counts, true RMS, auto-scan ranging with manual override. DC voltage: 600mV, 6V, 60V, 600V, 1000V; ±(0.03%+5d). AC voltage: 600mV, 6V, 60V, 600V, 750V; ±(0.3%+15d); AC frequency response 10kHz. DC current: 600µA, 6000µA, 60mA, 600mA ±(0.15%+5d); 6A, 10A ±(0.2%+5d). AC current: 600µA, 6000µA, 60mA, 600mA ±(0.5%+15d); 6A, 10A ±(0.75%+15d). Resistance: 600Ω to 6MΩ ±(0.1%+5d); 60MΩ ±(0.2%+10d). Capacitance: 60nF to 60µF ±(2.5%+30d); 600µF, 6mF, 60mF ±(3.5%+30d). Frequency (meter): 10Hz to 60MHz; ±(0.01%+5d). Temperature: -40°C to 1000°C (supplied probe -20°C to 300°C); -40°F to 1832°F; ±(1.0%+5°C). Continuity and diode: Continuity 0Ω to 1kΩ ±(0.2%+5d); diode 0V to 3.0V ±(1%+5d). Scope bandwidth and sample rate: 10MHz; 48MSa/s real time. Scope input: 1MΩ; AC or DC coupling; 1:1 probe 80Vpp (±40V), 10:1 probe 800Vpp (±400V). Vertical sensitivity and timebase: 10mV/div to 10V/div (x1); 50ns to 20s. Trigger: Auto, Normal, Single; rising edge, falling edge, 50% level; adjustable level with indicator. Scope measurements: Frequency, period, +duty, -duty, +width, -width, max, min, peak to peak, amplitude, RMS, average; cursors. Persistence: Off, 500ms, 1s, infinite. Signal generator: 13 waveforms, 0 to 50kHz, 0.0 to 3.0V amplitude, duty 0 to 100% on square and sawtooth. Generator waveforms: Sine, square, sawtooth, half wave, full wave, positive step, negative step, exponential rise, exponential decay, DC, multi-tone audio, sync pulse, Lorentz. Display: 3.5 inch touchscreen with day and night views. Meter views: Dial, curve (min and max trend), monitoring with over-limit alarm, sorting (auto classification). Wireless: Bluetooth app connection for live monitoring and control (multimeter mode only). Battery: 3000mAh, rechargeable. Charging: USB Type-C. Power saving: Auto sleep with selectable screen timeout and shutdown time. Inputs: V/Ω/diode/continuity/capacitance/Hz/°C jack, COM, fused A/mA/µA jack (max 10A); DSO and DDS ports and Type-C on the top edge. Fuse access: Fuse swap from the rear compartment without dismantling the case. Data: Data hold, waveform storage, one-tap USB export, firmware update over USB. Housing: Adjustable stand, protective silicone corners, LED indicator. Package contents: TMP-610S, P6100 probe, adapter, alligator clips, multimeter probes, probe accessories, storage case, Type-C cable, user guide. Q: What is the difference between a multimeter and an oscilloscope? A: A multimeter shows a single number such as volts or amps, while an oscilloscope draws how the voltage changes over time. The TMP-610S puts a 60000-count meter and a 10MHz scope in one case, so you can switch from a reading to the waveform.. Q: How do you use the oscilloscope on the TMP-610S? A: Fit the P6100 probe to the DSO port on the top edge, select the oscilloscope from the touchscreen menu and press AUTO. The screen shows the trace with frequency, duty, Vpp, RMS and other readings below it.. Q: What does a signal generator do? A: It produces a known test waveform to feed into a circuit. This unit generates 13 waveforms from 0 to 50kHz with adjustable amplitude, and duty cycle on square and sawtooth waves.. Q: Does the Bluetooth app work with the oscilloscope? A: No. The listing states the Bluetooth app connection is for multimeter measurements only; scope waveforms are stored on the unit and exported over USB.. Q: Is the TMP-610S suitable for automotive diagnostics? A: Yes, the listing describes it as an automotive diagnostic tool. You get precise DC voltage and current readings, a trend curve for logging, and a scope to view sensor and signal waveforms..
