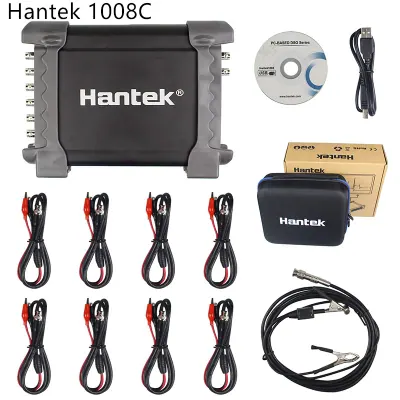

Automotive Oscilloscope | 8 Channel USB 12-bit 2.4MSa/s | 1008C

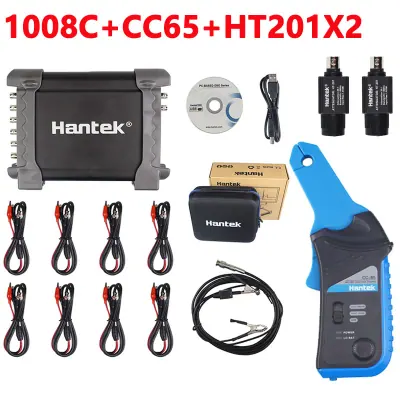

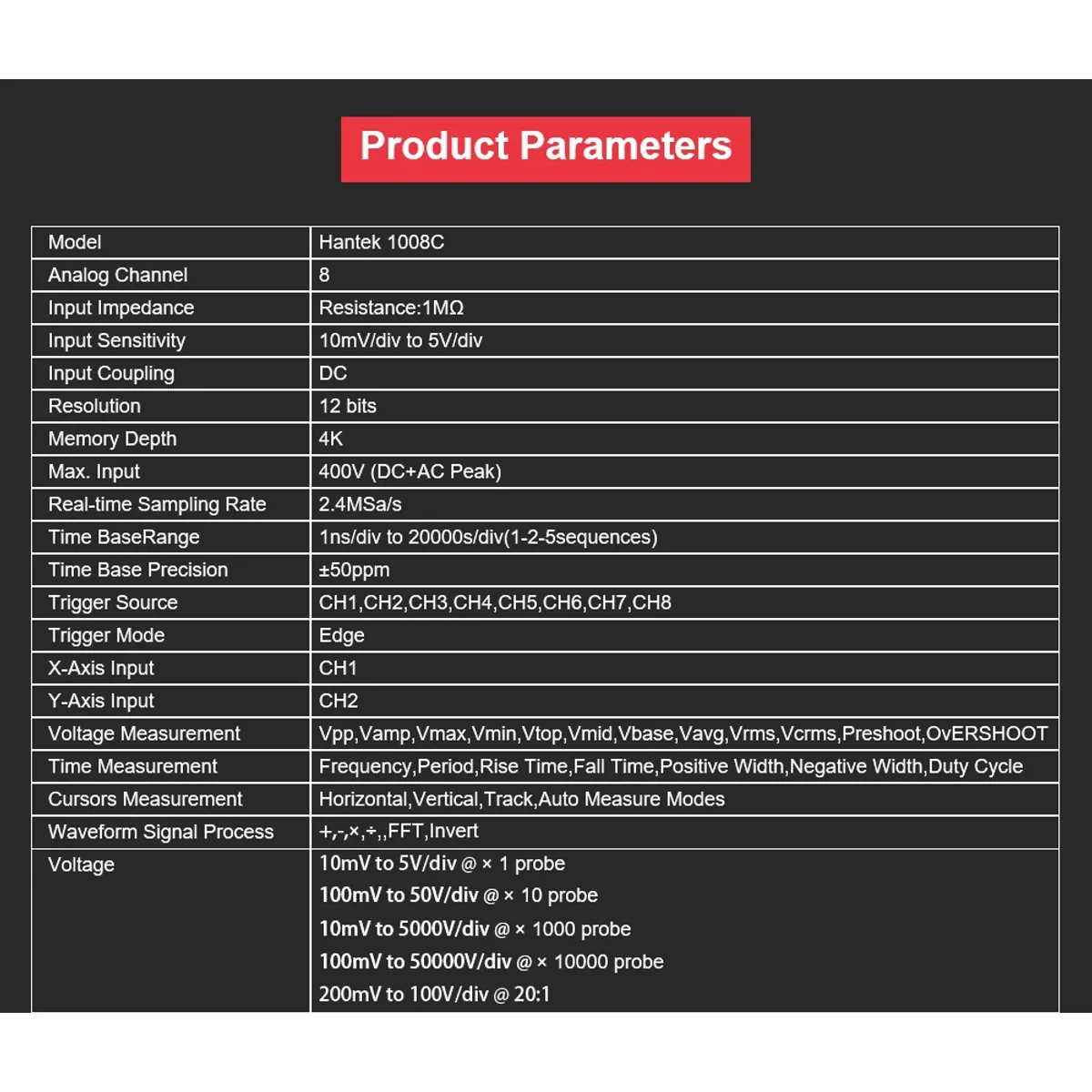

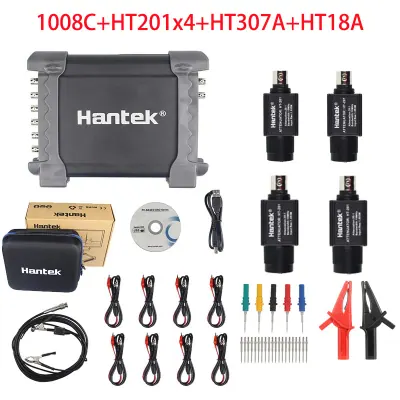

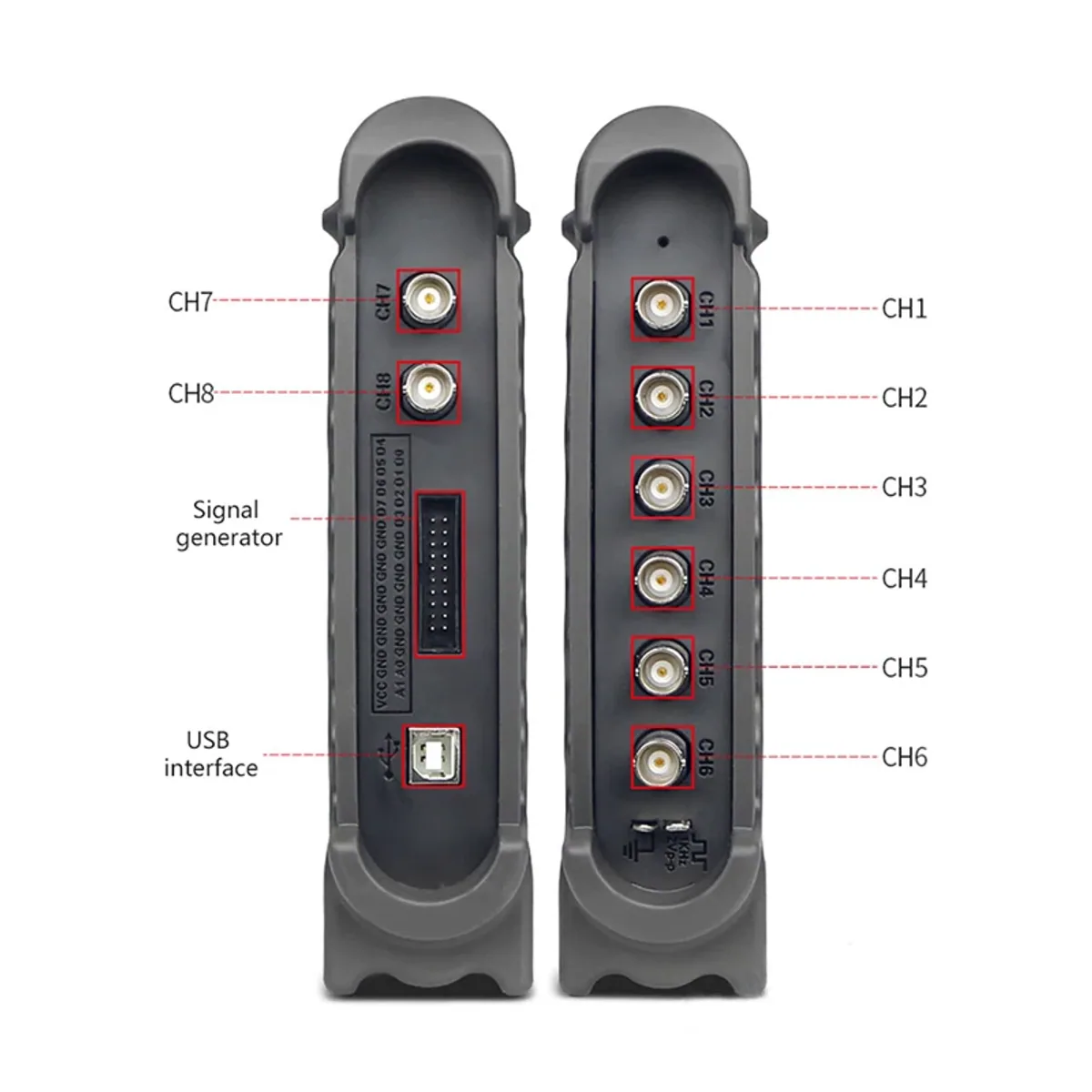

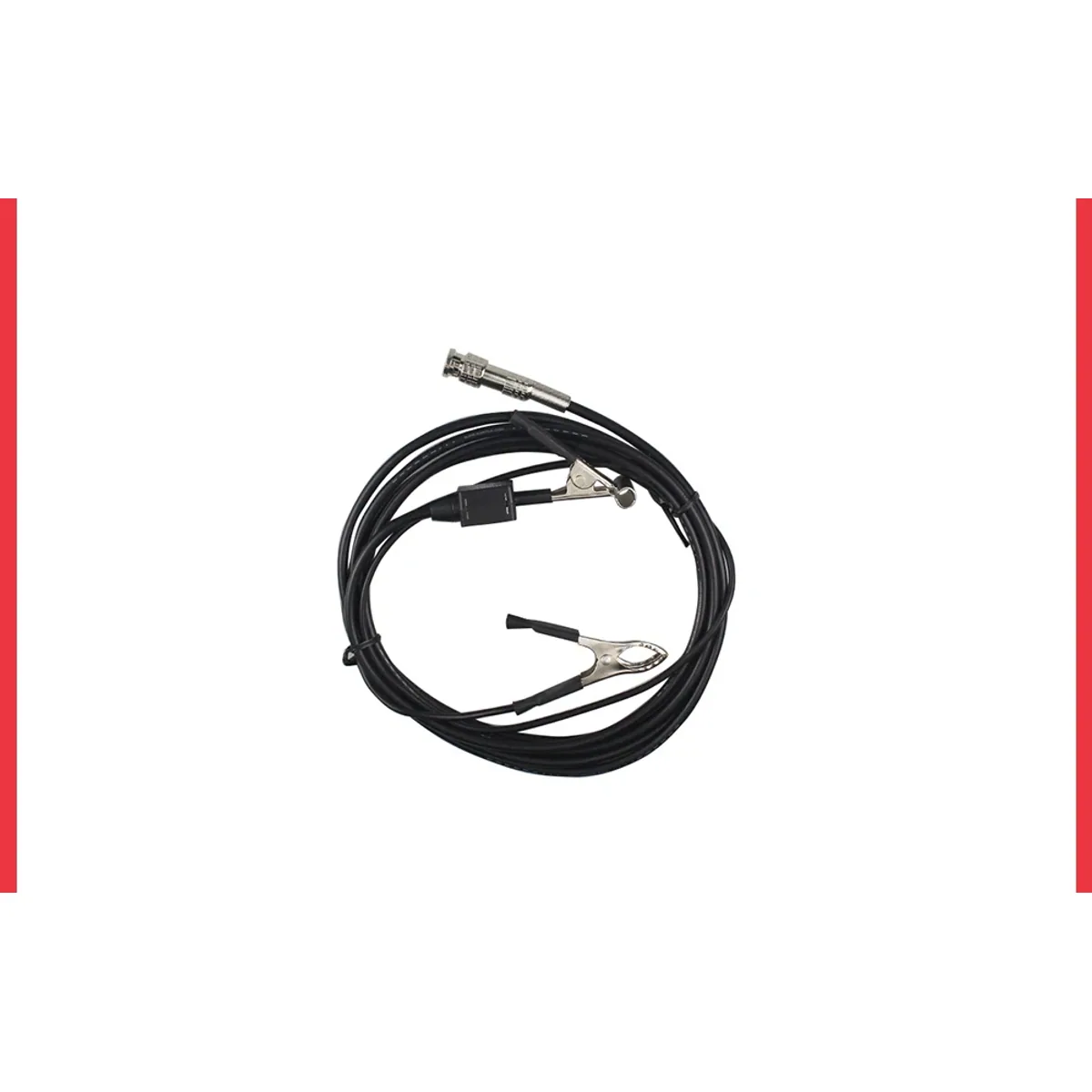

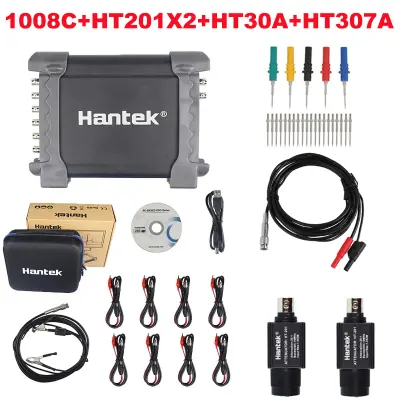

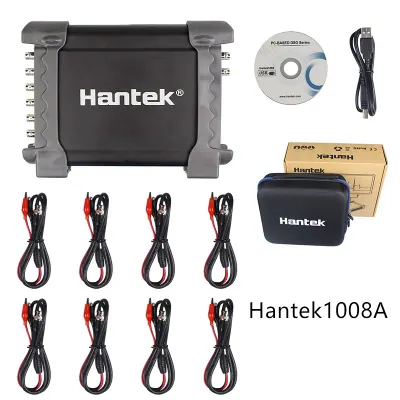

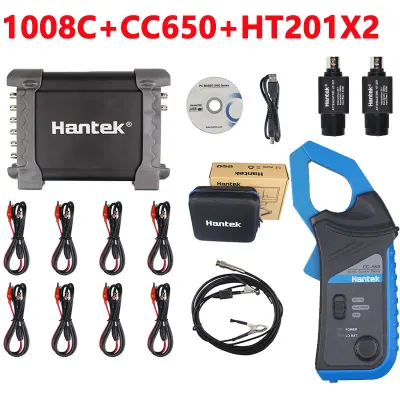

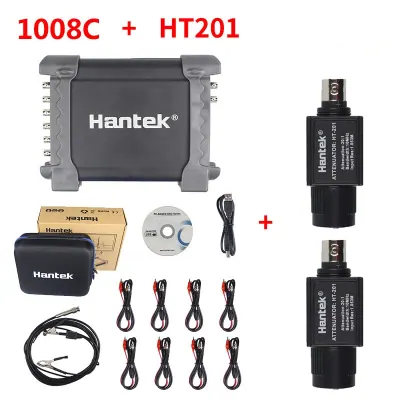

The 1008C is an 8 channel USB automotive oscilloscope for a laptop or PC, with 12 bit vertical resolution, 2.4MSa/s real-time sampling, a 400V (DC+AC peak) maximum input and more than 80 built-in vehicle diagnostic tests. It is powered over USB 2.0, includes a high voltage ignition probe (not on the 1008A) and has an 8 channel programmable generator that can simulate crankshaft and camshaft signals. Features and Benefits - 8 analogue channels - watch injectors, ignition, cam and crank sensors at the same time. - More than 80 automotive diagnostic functions - guided tests for ignition, sensors, CAN and LIN bus, starter and charging circuits. - 12 bit resolution and 10mV/div to 5V/div sensitivity - small sensor signals stay readable. - 8 channel programmable generator, 0 to 250kHz, LVTTL - simulate crankshaft and camshaft signals on the bench. - Optional HT201 20:1 attenuators and CC65 or CC650 current clamps - measure higher voltages and currents with the kit options. - Over 20 automatic measurements, FFT and maths - frequency, duty cycle, rise time and Vrms without manual counting. - USB powered, plug and play - no extra power supply in the workshop. Applications - Ignition primary and secondary diagnosis. - Sensor checks: air flow meter, camshaft, crankshaft, lambda and throttle position. - CAN bus and LIN bus signal checks. - Starter and charging circuit testing on petrol and diesel vehicles. In the box 1 x 1008C USB oscilloscope, 1 x ignition probe (not included with the 1008A), 4 x crocodile clip leads, 4 x BNC connectors, 1 x USB cable, 1 x software CD, as listed. The kit photos also show a carry case. Kit options add HT201 attenuators, current clamps and probe sets as named. Note: Keep within 400V (DC+AC peak) on the inputs and use the attenuator or ignition probe for higher voltages. Clip test leads away from fans, belts and hot exhaust parts.
