RF Spectrum Analyser TinySA Ultra | 100kHz to 5.3GHz | 4 Inch Screen

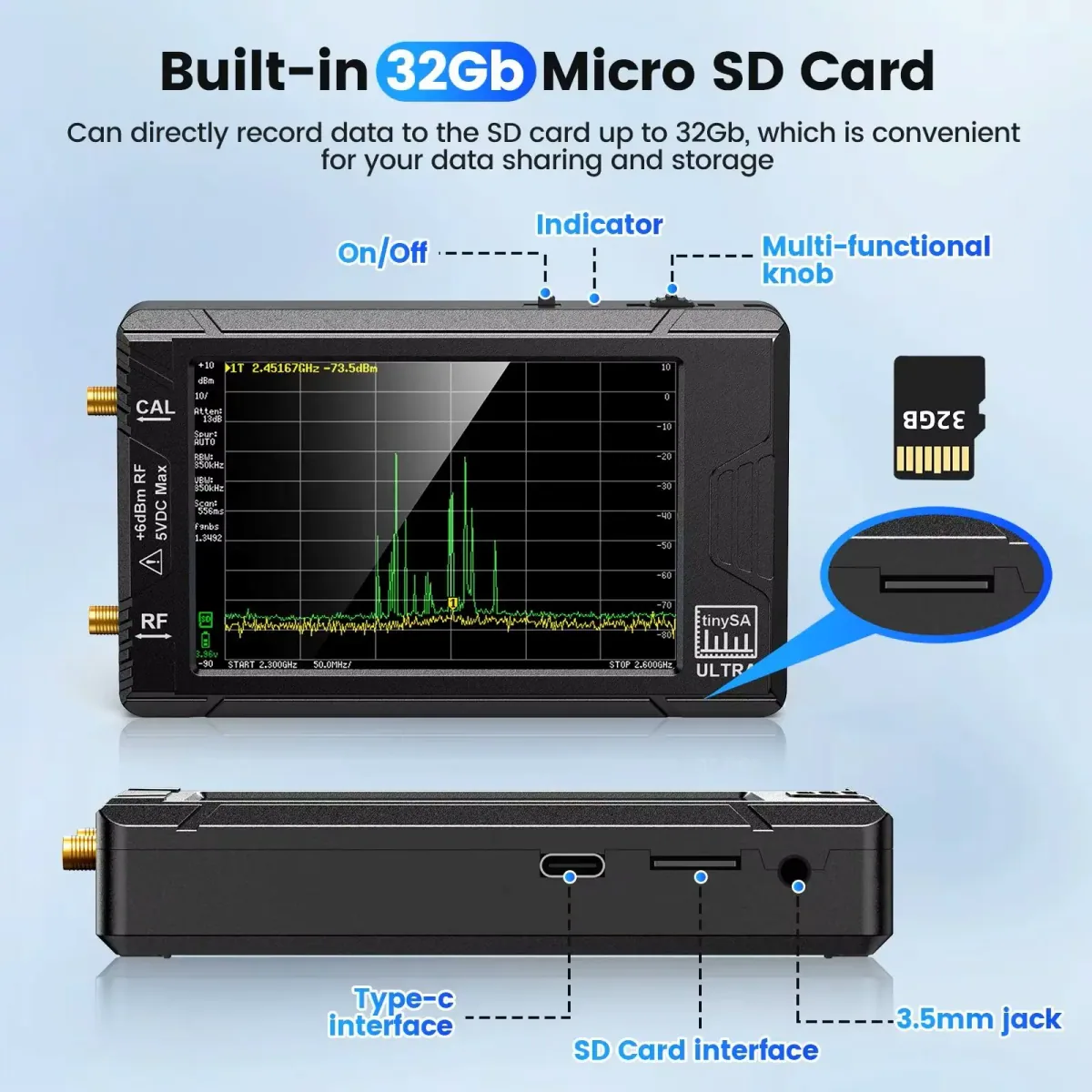

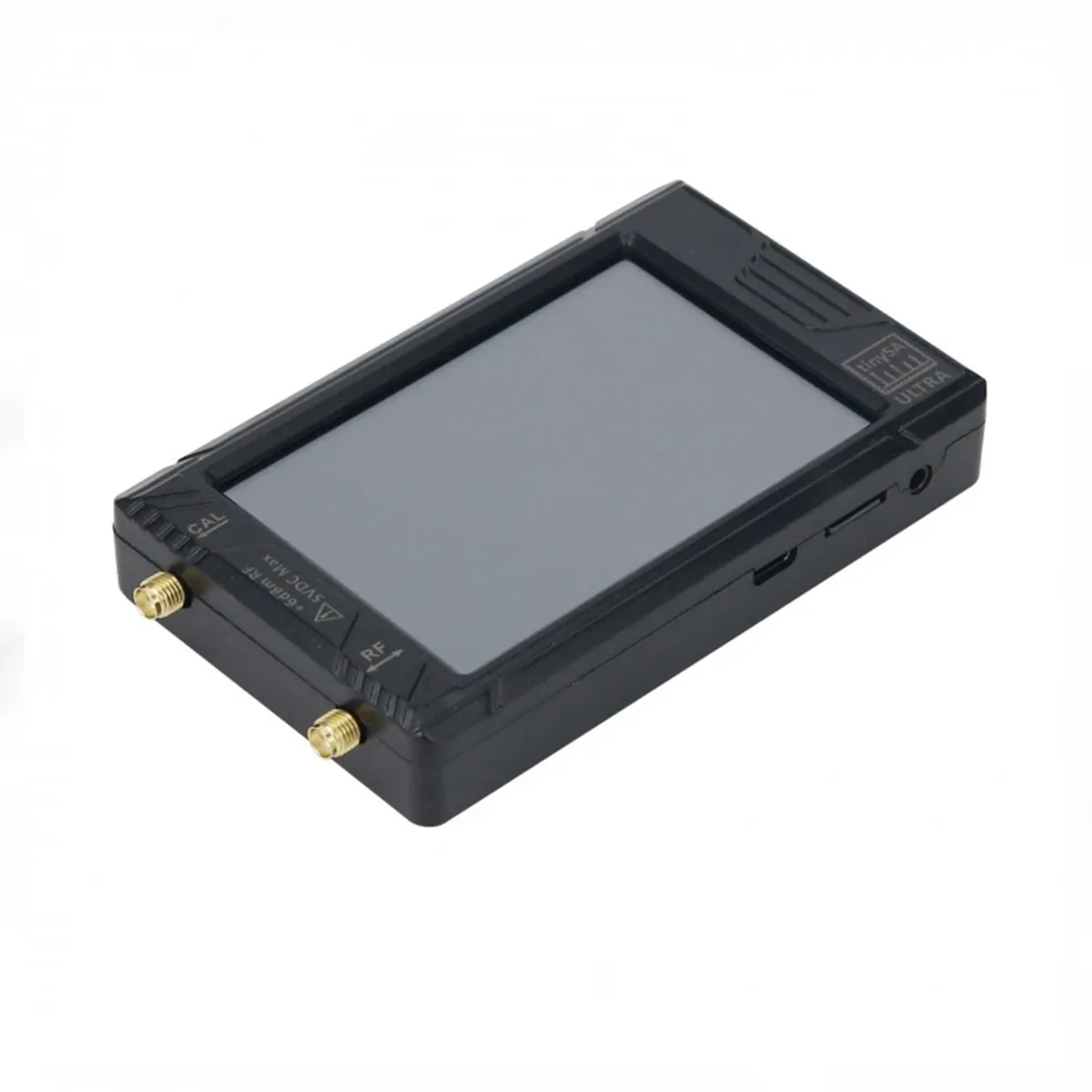

The TinySA Ultra is a handheld RF spectrum analyser covering 100kHz to 5.3GHz, with a 4 inch 480 x 320 touch screen, a built-in signal generator, a 3000mAh battery and a 32GB SD card for saving measurements. Features and Benefits - Wide frequency range - 100kHz to 800MHz in normal mode and 800MHz to 5.3GHz in ultra mode, on one SMA RF input. - Fine resolution bandwidth - switchable filters from 200Hz to 850kHz and up to 450 points per scan for close carriers and sidebands. - Low noise floor - DANL at 100MHz of -153dBm/Hz with the LNA off and -169dBm/Hz with the internal 20dB LNA switched on. - Built-in signal generator - sine output from 0.1 to 800MHz, and rectangular or dual tone output up to 4.40GHz, at -104dBm to -16dBm. - SD card storage - a 32GB card comes fitted, so traces and data can be saved on the card and moved to a PC. - Long running battery - 3000mAh lithium polymer cell with Type-C charging, LED charge indicator and a full charge in 3 hours. - PC control - USB serial commands run measurements and change settings; the Windows driver installs itself and the Linux driver is in the kernel. Applications - Checking transmitters for harmonics and spurious output - Surveying RF signals from 100kHz to 5.3GHz in the field - Testing filters and amplifiers with the built-in generator - Radio amateur, RF hobby and repair benches In the box - 1 x TinySA Ultra with built-in battery and 4 inch display - 1 x USB data cable - 2 x 30cm RG405 SMA RF cables - 1 x SMA to SMA barrel connector - 1 x antenna with SMA connector - 1 x lanyard - 1 x touch pen - 1 x 32GB SD card, fitted in the slot Note: Keep the RF input within +6dBm and 5V DC, as printed beside the port. In ultra mode the noise floor rises by 10dB above 2.5GHz, so expect lower sensitivity at the top of the range.
