Vector Network Analyser NanoVNA-F V2 | 50kHz to 3GHz | 4.3 Inch Touch Screen

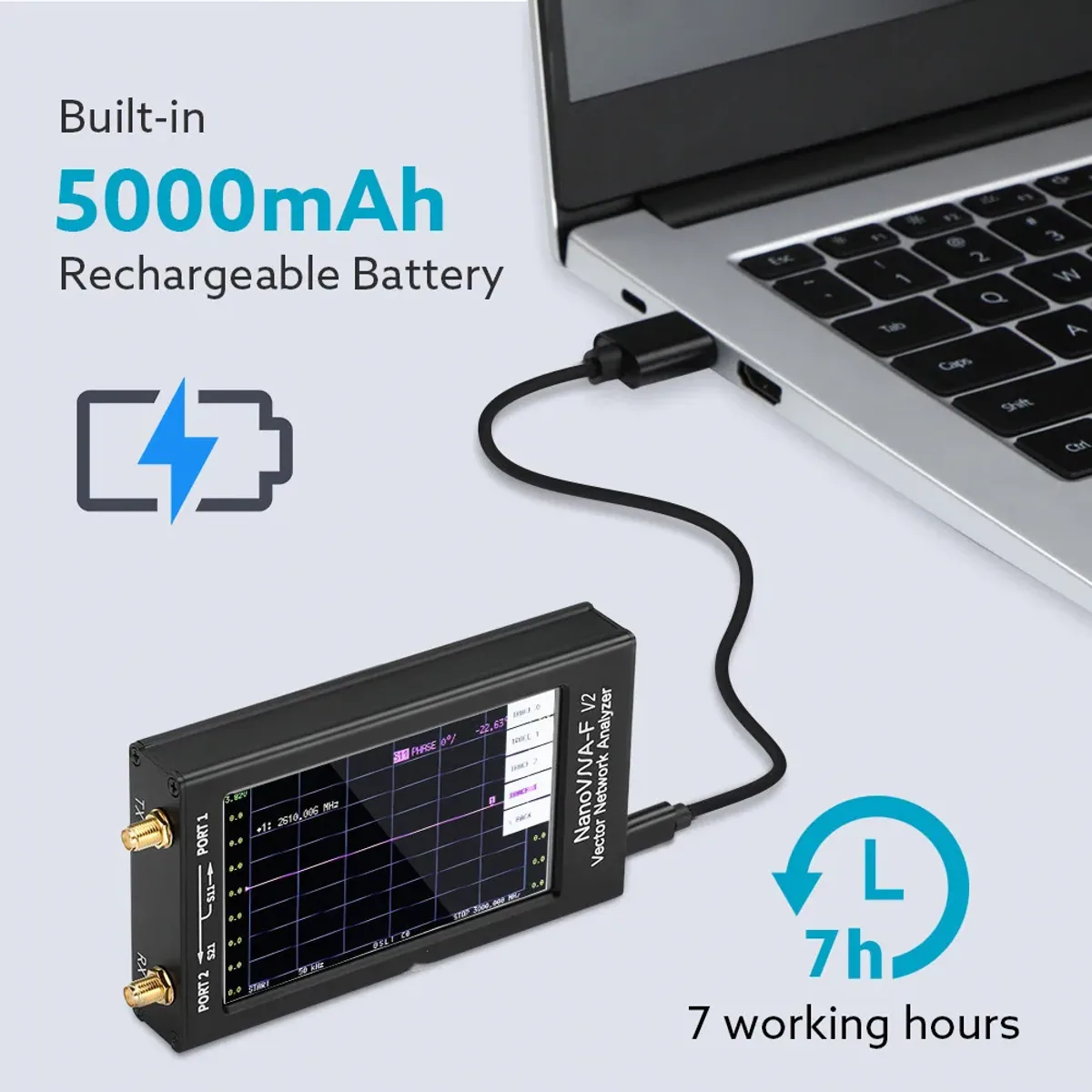

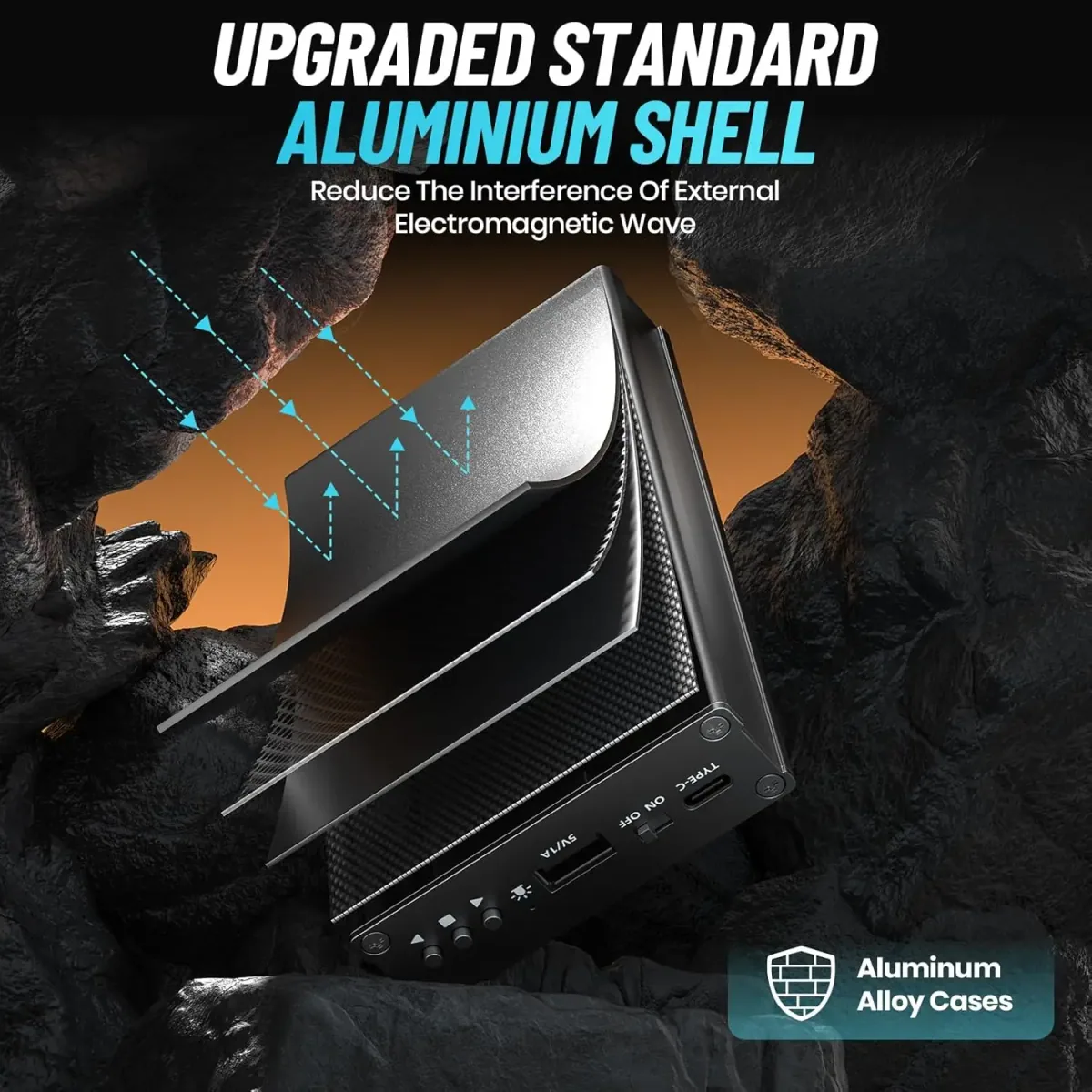

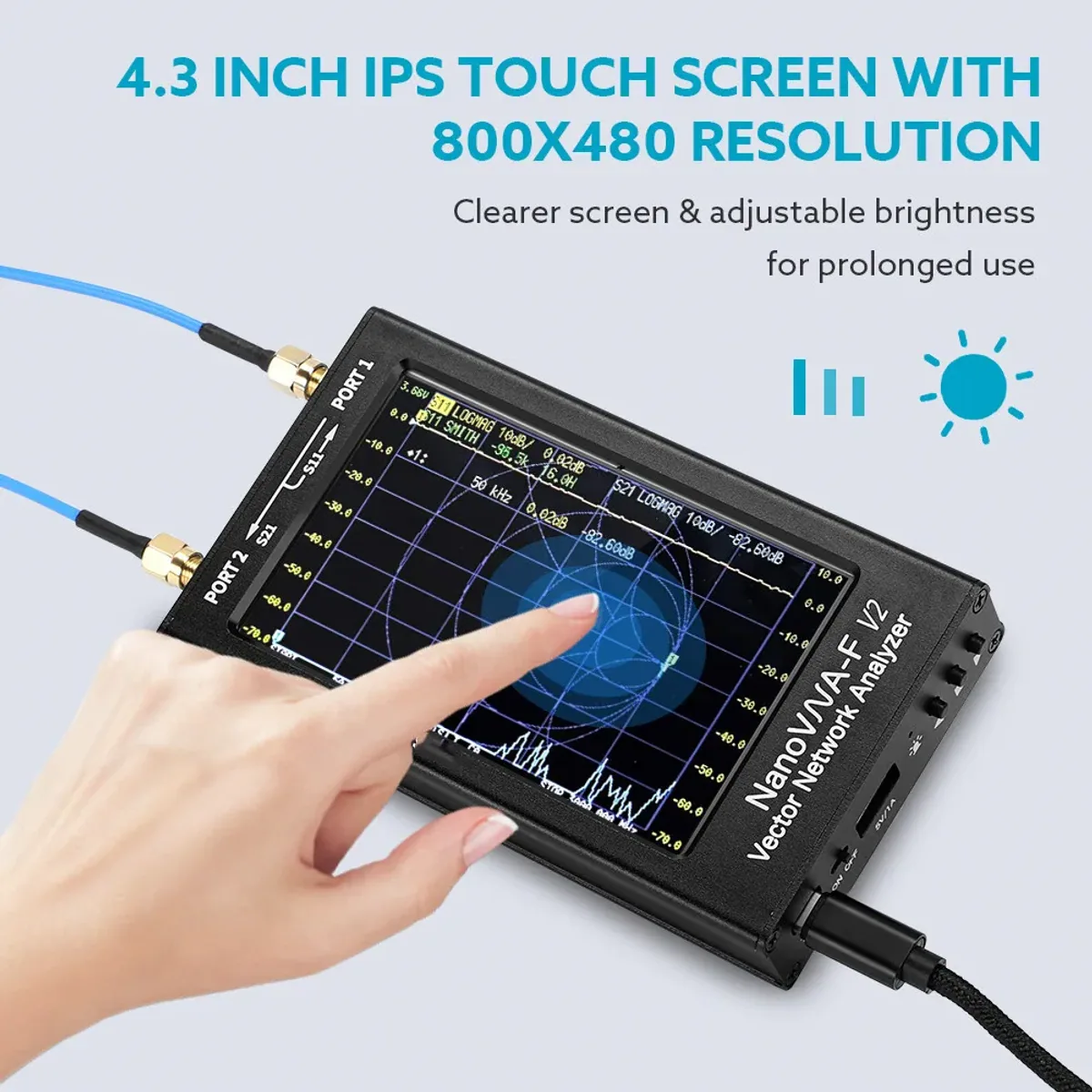

The NanoVNA-F V2 is a handheld vector network analyser that measures S11 and S21 from 50kHz to 3GHz, with 70dB S21 dynamic range at 1.5GHz and 60dB at 3GHz, a 4.3 inch 800 x 480 IPS touch screen and a 5000mAh battery for up to 7 hours of use. It shows SWR, Smith chart, phase and group delay, and connects to a computer over USB Type-C. Features and Benefits - 50kHz to 3GHz, with a full band sweep in about 1.9s - covers HF, VHF and UHF antennas plus 868MHz, 915MHz and 2.4GHz work - S21 dynamic range 70dB at 1.5GHz and 60dB at 3GHz - enough depth to test UV duplexers and filters - 4.3 inch IPS touch screen, 800 x 480 with adjustable brightness, plus 3 side buttons - readable traces and easy menu control - All aluminium alloy case with metal shielding - reduces external interference on measurements - 5000mAh battery for up to 7 hours, 2A charging and a 5V/1A USB output - long field sessions away from mains - 4 traces, 4 markers and 5 saved setups, with the last settings recalled at power on - repeat jobs without setting up again - PC software, screen capture and firmware upgrade by virtual USB disk - no programmer needed Applications - Antenna SWR and impedance checks on HF, VHF and UHF - Measuring 868MHz and 915MHz antennas - Testing UV duplexers and 2.4GHz microstrip filters - Cable and RF component checks in development and repair In the box 1 x NanoVNA-F V2, 1 x SMA open, 1 x SMA short, 1 x SMA 50Ω load, 1 x SMA-KK double female adapter, 1 x SMA-JJ double male adapter, 1 x SMA-JKW right angle female to male adapter, 2 x 20cm SMA-JJ RG405 RF cables, 1 x USB Type-C data cable, 1 x stylus. Note: The ports are for low level test signals. Never connect a transmitter output or a DC voltage directly to the SMA ports; use a suitable attenuator when working near transmitters.
