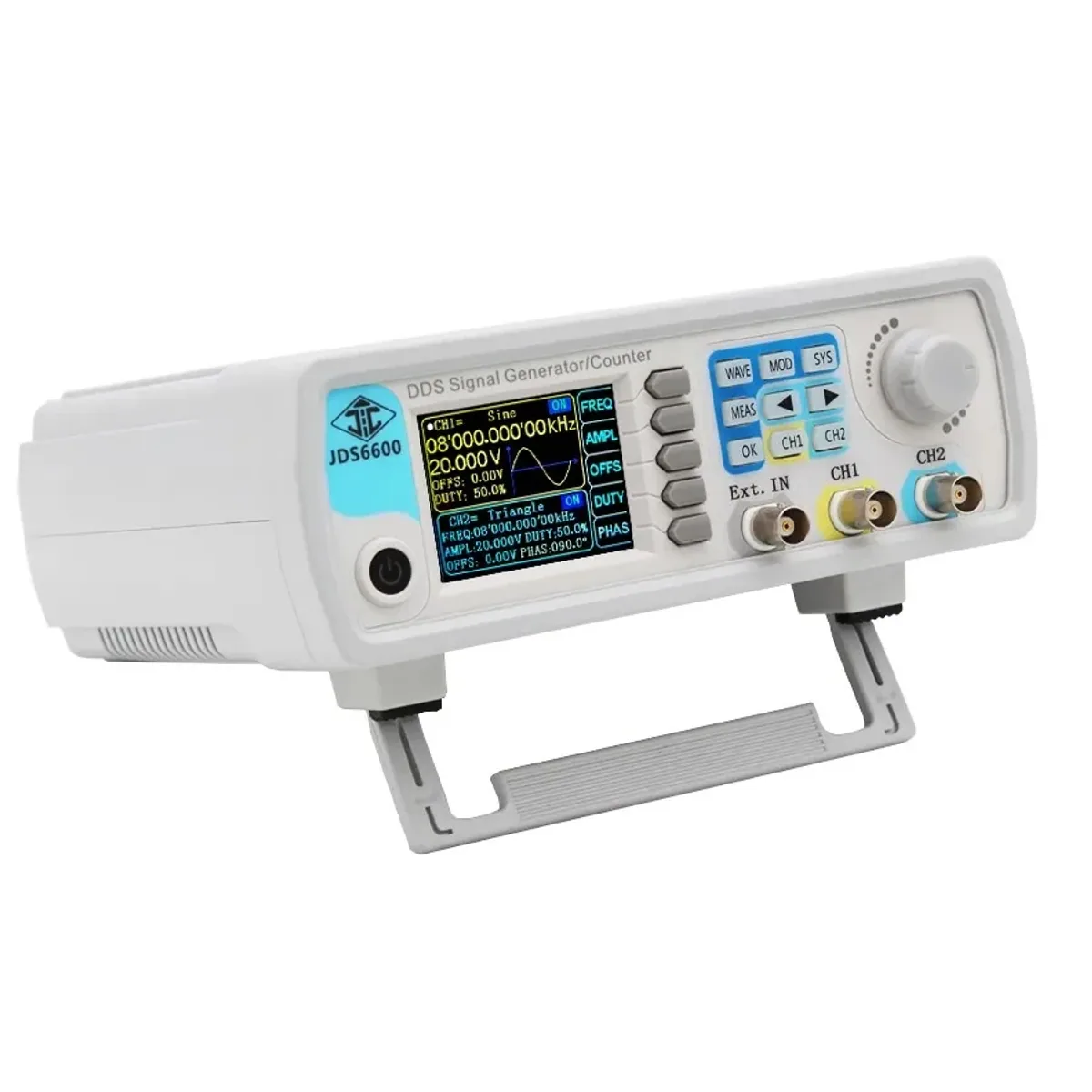

The JDS6600 is a dual channel DDS signal generator and arbitrary waveform generator with a built-in frequency counter, giving sine output from 0 to 15, 30, 40, 50 or 60MHz depending on the version you choose, a 266MSa/s sampling rate and 14 bit vertical resolution. The 2.4 inch colour TFT screen shows the CH1 and CH2 settings side by side.
Features and Benefits
- Two independent channels - run them separately or in step, with phase adjustable from 0 to 359.9° in 0.1° steps.
- 60 arbitrary waveform memories - each holds 2048 points at 14 bits; draw a waveform on a PC and download it to the unit.
- Fine frequency control - 0.01µHz resolution, ±20 ppm frequency accuracy and ±1 ppm per 3h stability.
- Wide amplitude and offset - 2mVpp to 20Vpp with 1mV resolution, plus DC offset of ±9.99V in 0.01V steps.
- Sweep and burst - linear or logarithmic sweep from 0.1s to 999.9s, and burst output of 1 to 1048575 pulses.
- Measurement input - frequency meter from 1Hz to 100MHz and a counter with AC or DC coupling, plus pulse width, period and duty cycle readings.
- Output protection - every signal output keeps working for 60s into a short circuited load.
Applications
- Bench testing of amplifiers, filters and audio stages
- Clock, TTL and CMOS logic signals for digital and microcontroller circuits
- Frequency response sweeps viewed on an oscilloscope
- Electronics teaching labs and student projects
In the box
- 1 x JDS6600 signal generator
- 1 x power adapter
- 1 x USB data cable
- 1 x BNC to BNC cable
- 2 x BNC to crocodile clip cables
- 1 x CD
- 1 x instruction manual

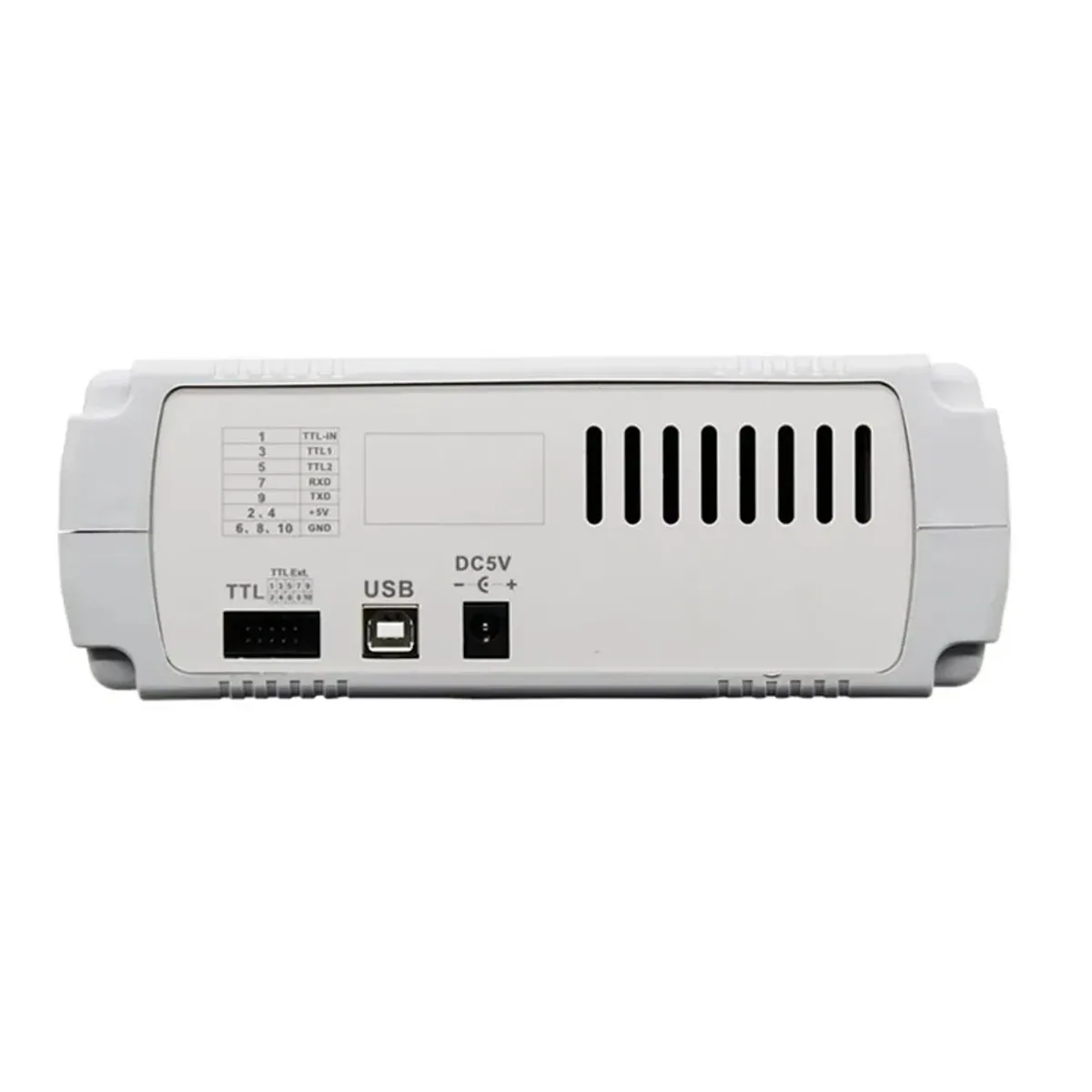

Note: The generator runs on DC 5V from the supplied adapter, which is listed with an EU or US plug only, so use a UK adapter. Do not connect an external voltage source to the CH1 or CH2 outputs.

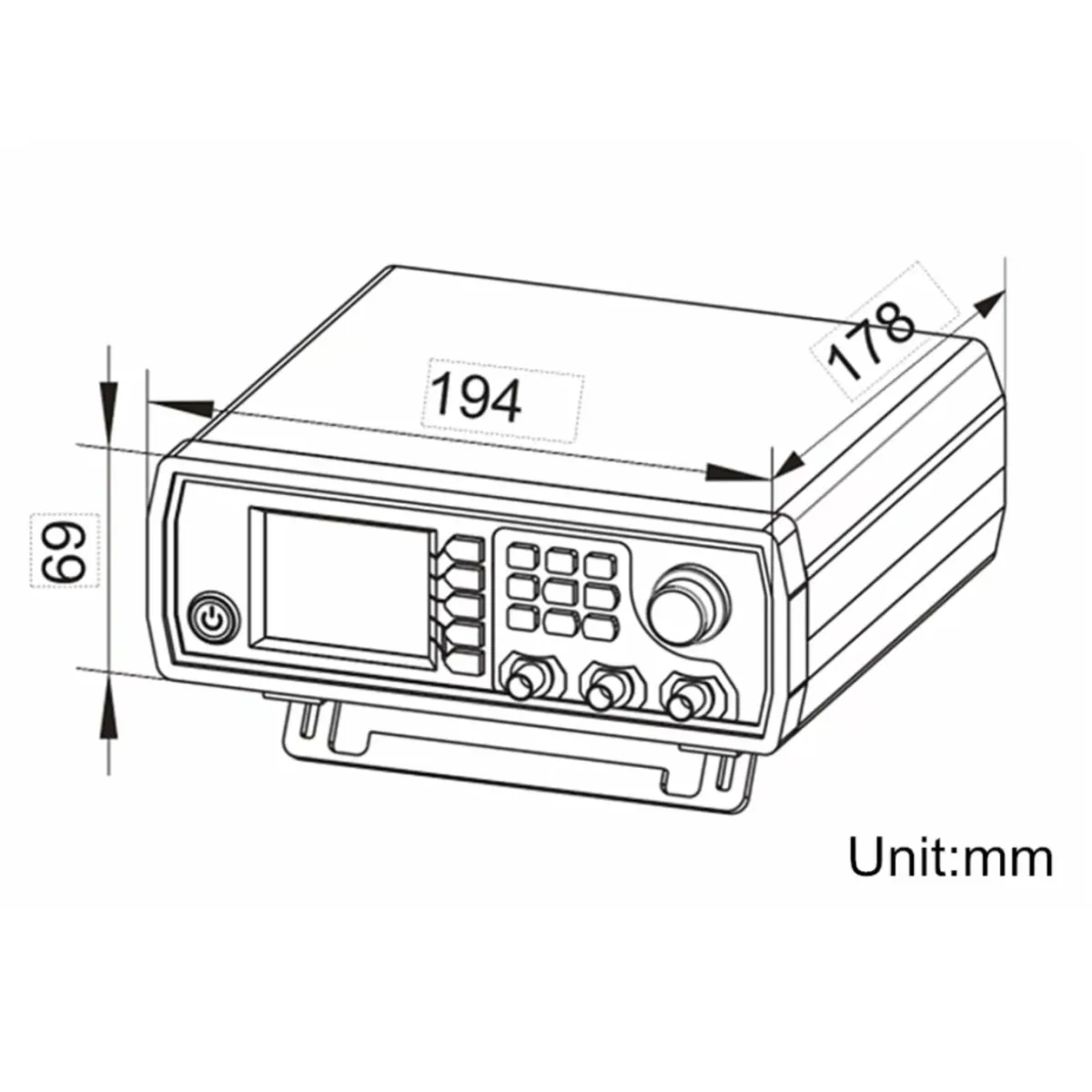

Model: JDS6600, in 15M, 30M, 40M, 50M or 60M versions. Channels: 2, fully independent, with adjustable phase. Sine frequency range: 0 to 15MHz, 30MHz, 40MHz, 50MHz or 60MHz by version. Square and triangle frequency range: 0 to 15MHz (15M); 0 to 25MHz (30M, 40M, 50M, 60M). Pulse, TTL and arbitrary frequency range: 0 to 6MHz. Sampling rate: 266MSa/s. Vertical resolution: 14 bits. Arbitrary waveforms: 60 user waveforms of 2048 points each. Frequency resolution: 0.01µHz. Frequency accuracy and stability: ±20 ppm; ±1 ppm per 3h. Sine amplitude: 2mVpp to 20Vpp (10MHz and below); 2mVpp to 10Vpp (10 to 30MHz); 2mVpp to 5Vpp (above 30MHz). Square and triangle amplitude: 2mVpp to 20Vpp (10MHz and below); 2mVpp to 5Vpp (10 to 25MHz). Amplitude resolution: 1mV. DC offset: ±9.99V (amplitude above 2V), ±2.5V (0.2V to 2V), ±0.25V (0.2V and below); 0.01V resolution. Output impedance: 50Ω ±10% (typical). Square rise time: ≤25ns (15M), ≤15ns (30M), ≤10ns (40M, 50M, 60M). Pulse width range: 100ns to 4000s (15M), 50ns (30M), 40ns (40M), 30ns (50M), 25ns to 4000s (60M). Duty cycle: 0.1 to 99.9%, adjustable per channel in 0.1% steps. Phase: 0 to 359.9°, 0.1° resolution. Frequency meter and counter: 1Hz to 100MHz; counter 0 to 4294967295; AC or DC coupling; input 2 to 20Vpp. Display: 2.4 inch colour TFT LCD, 320 x 240. Dimensions: 194 x 178 x 69mm (dimension drawing). Power: DC 5V ±0.5V from the supplied mains adapter. Plug: EU type (US also listed, no UK option); use a UK adapter. Front connectors: BNC sockets for Ext. IN, CH1 and CH2. Rear panel: DC 5V input, USB B socket and 10-pin TTL extension header. PC interface: USB to serial at 115200 bps, published command line protocol. Sine harmonic suppression and THD: ≥45dBc below 1MHz, ≥40dBc from 1 to 20MHz; THD <0.8% (20Hz to 20kHz, 0dBm). Sweep: CH1 or CH2, linear or logarithmic, 0.1s to 999.9s, forward, backward or round trip. Burst: 1 to 1048575 pulses; manual, CH2, external AC or external DC trigger. TTL/CMOS output: Low level <0.3V, high level 1 to 10V, rise and fall ≤20ns. Memory: 100 user parameter sets and 60 arbitrary waveforms. Operating environment: 0 to 40°C, humidity below 80%. Controls: Soft silicone keys and a continuous rotary knob. Q: What is a signal generator used for? A: It produces known test signals, such as sine, square, pulse or arbitrary waveforms, to feed into a circuit so you can see how it responds. The JDS6600 also has a frequency counter input for measuring an external signal.. Q: What sort of signal does a signal generator make? A: This one outputs sine, square, triangle, pulse, CMOS, DC level, half wave, full wave, rising and falling staircase, noise, exponential rise and fall, tone, sinc pulse and Lorentz pulse, plus 60 user-defined arbitrary waveforms.. Q: How does a signal generator work? A: The JDS6600 uses direct digital synthesis (DDS): each waveform is built from stored digital samples, here at 266MSa/s with 14 bit resolution, which allows frequency steps as fine as 0.01µHz.. Q: How do you use a signal generator with an oscilloscope? A: Connect CH1 to the scope or circuit with the BNC lead, pick the shape with the WAVE key, then set frequency, amplitude, offset, duty and phase with the soft keys and the knob before switching the channel on.. Q: Can the JDS6600 be controlled from a PC? A: Yes. It connects over USB as a serial device at 115200 bps, the command protocol is published, and PC software lets you draw arbitrary waveforms and download them to the generator..
