Automotive Oscilloscope Multimeter ET828Pro | 10MHz 50Msps | 6000 Count

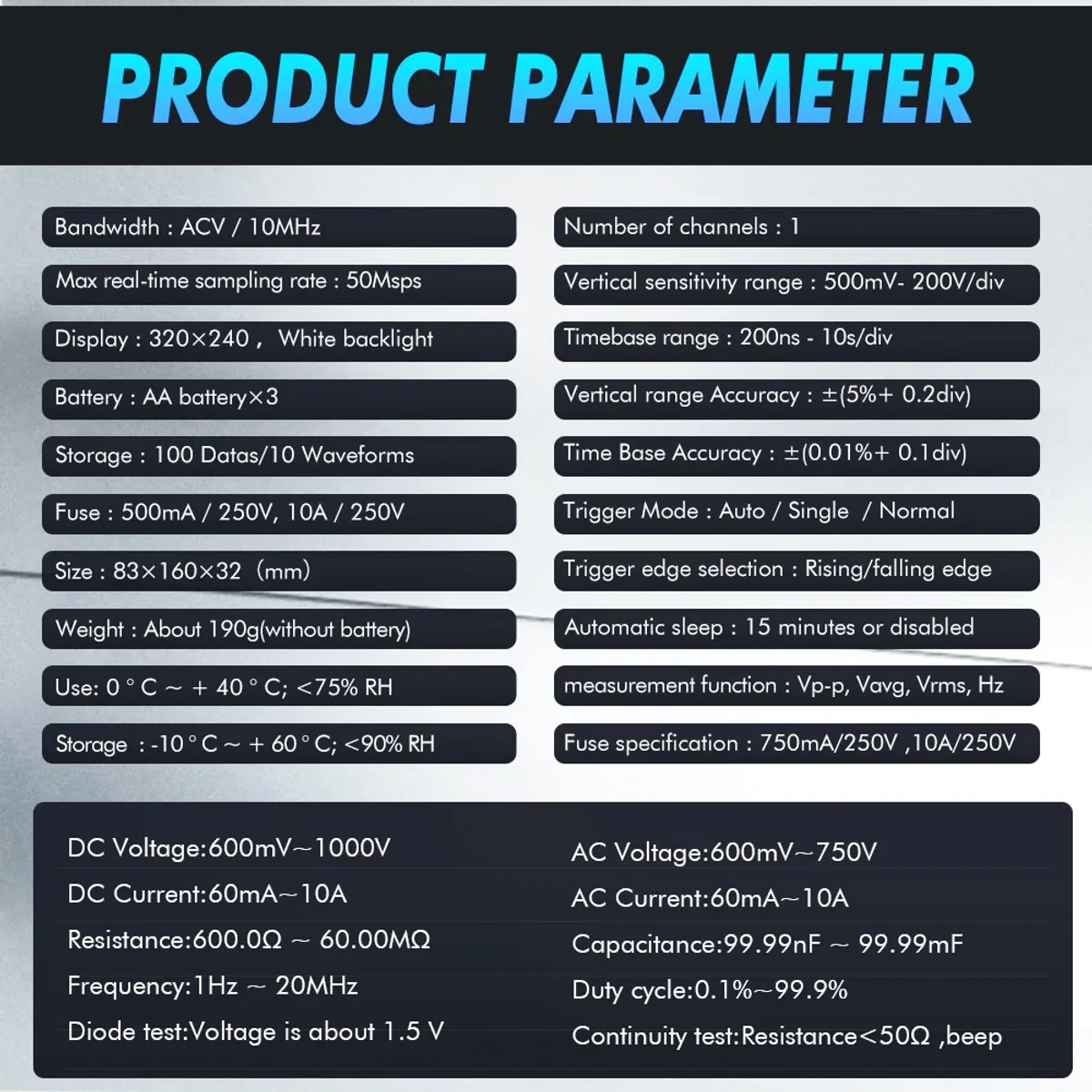

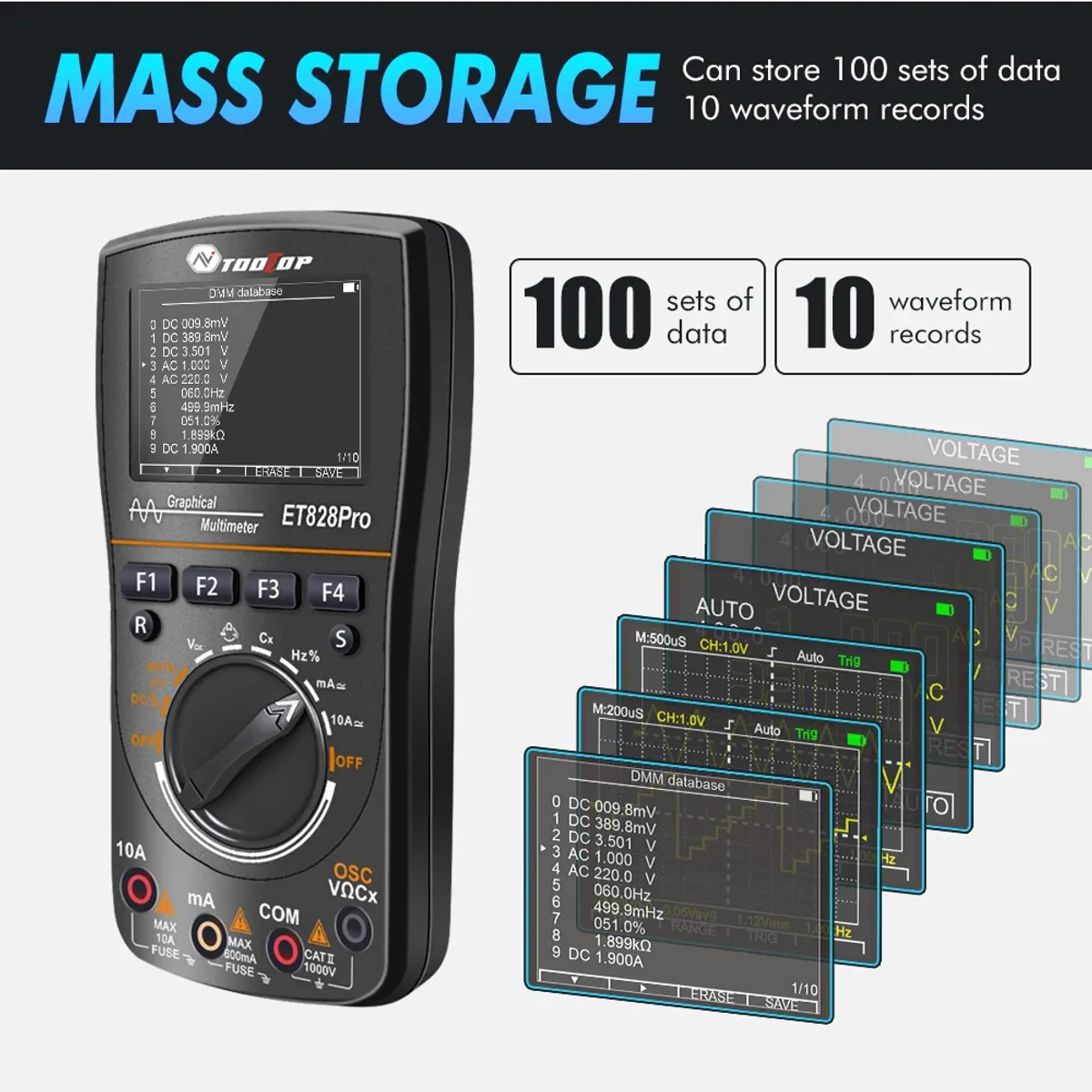

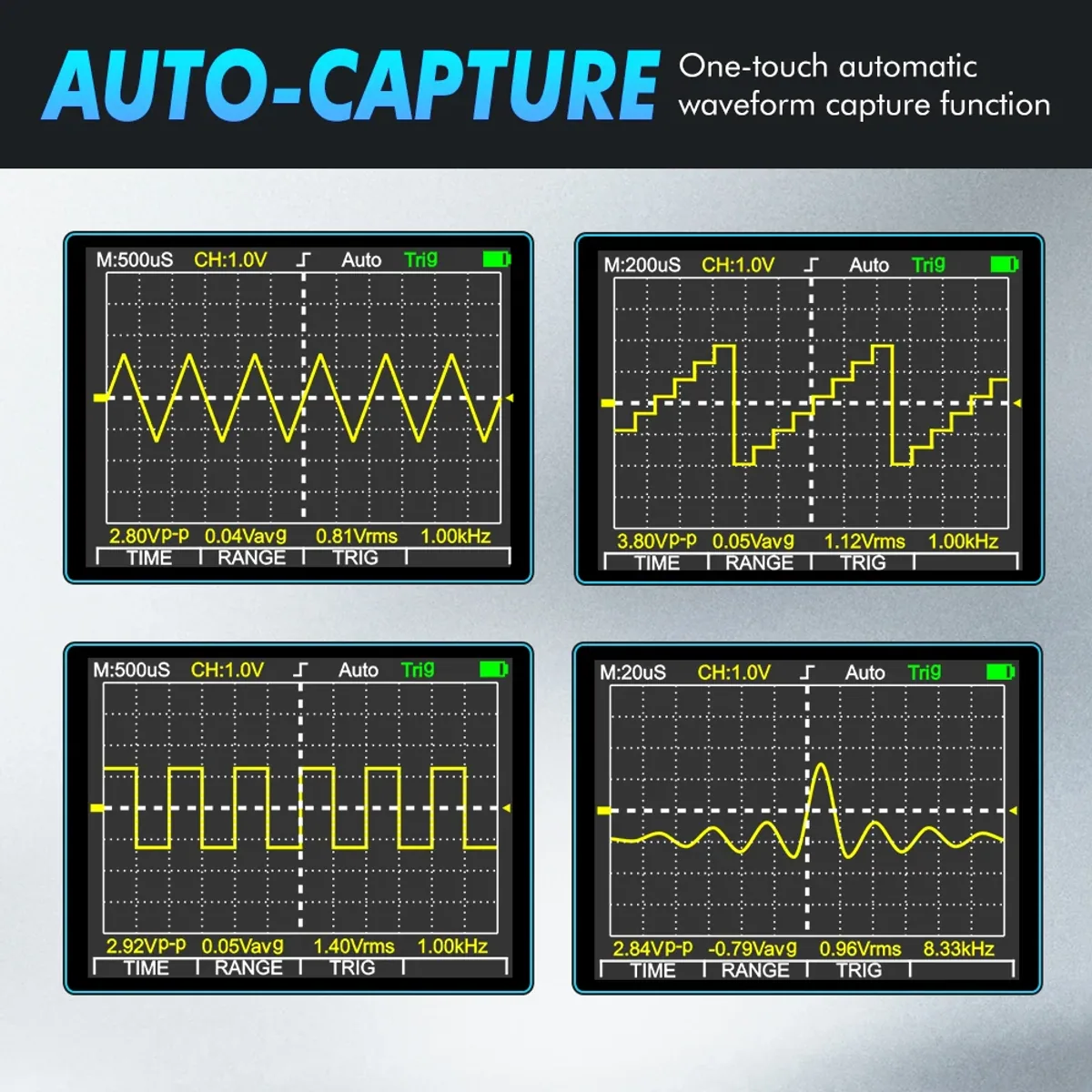

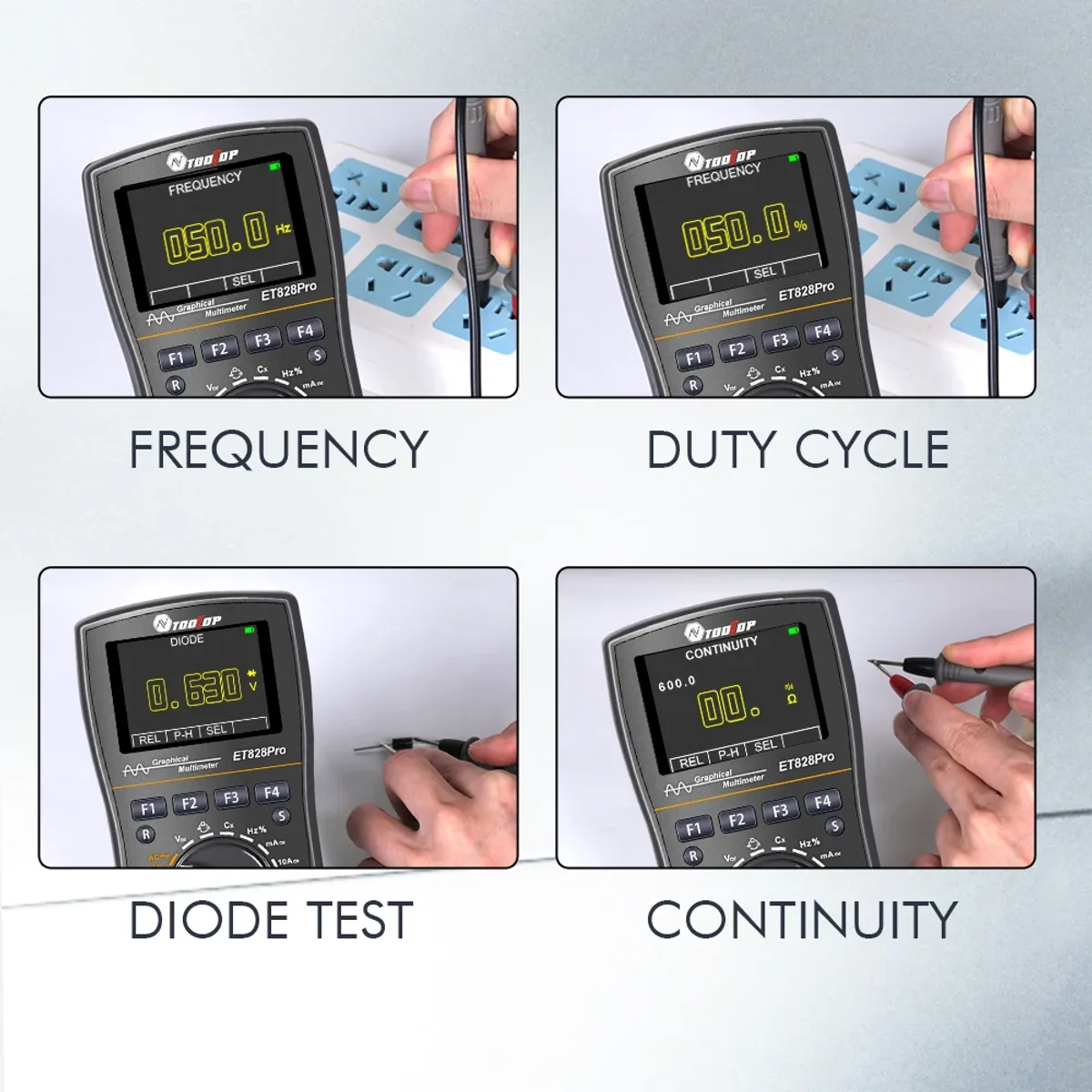

The ET828Pro is a handheld automotive oscilloscope and 6000 count True RMS multimeter in one: a single-channel scope with 10MHz analogue bandwidth and 50Msps real-time sampling, able to show AC up to 565V and up to 1600Vp-p, on a 2.4 inch colour screen. Features and Benefits - Scope and meter through the same test leads - long press R or turn to OSC and the waveform appears without changing probes - AUTO one-button waveform capture - time base and amplitude are set for you, with manual control of time base, amplitude, trigger edge and level when needed - Auto, Normal and Single sweep - follow a steady signal or freeze a one-off event such as a sensor dropout - Automatic Vp-p, Vavg, Vrms and Hz readings - the numbers that matter sit under the trace - 6000 count True RMS multimeter - DC to 1000V, AC to 750V, current to 10A, resistance, capacitance, frequency, duty cycle, diode and continuity - Stores 100 sets of data and 10 waveforms, with history and live reading on one screen - compare before and after a repair - Double fused mA and 10A inputs with auto range - fewer blown meters from a wrong range Applications - Car overhaul and vehicle electrical fault finding - Production line and equipment maintenance - Power system and panel work - DIY electronics design and repair In the box 1 x oscilloscope multimeter, 1 pair of test leads, 1 x English user manual, 1 x cloth bag, packing box. Batteries (3 x AA) are not included. Note: keep inputs within 1000V DC or 750V AC on the meter, and within 565V AC or 1600Vp-p in oscilloscope mode. Use the 10A socket only for current measurement.
