Oscilloscope Signal Generator DSO3D12 | Up to 120MHz 250MSa/s | 3 in 1

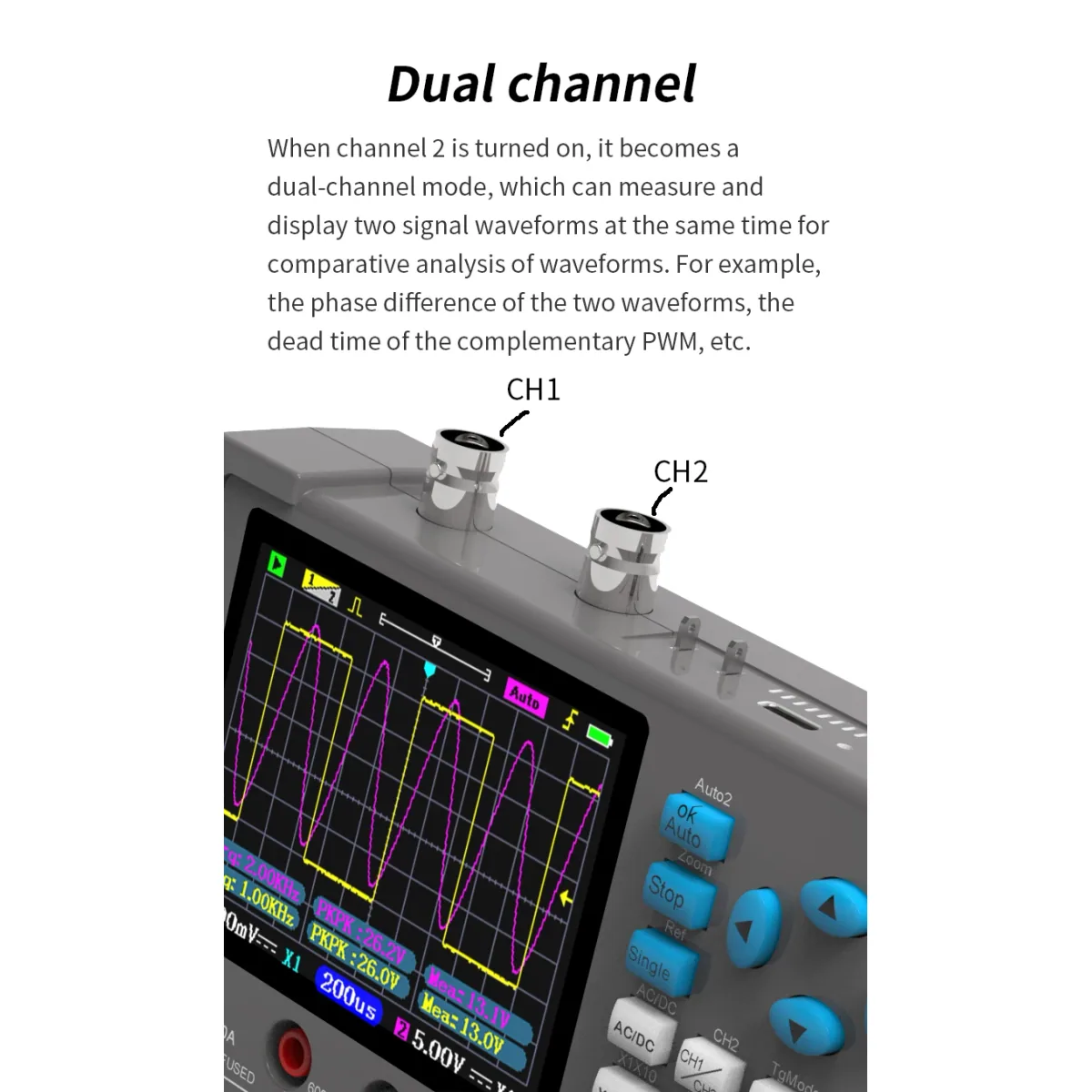

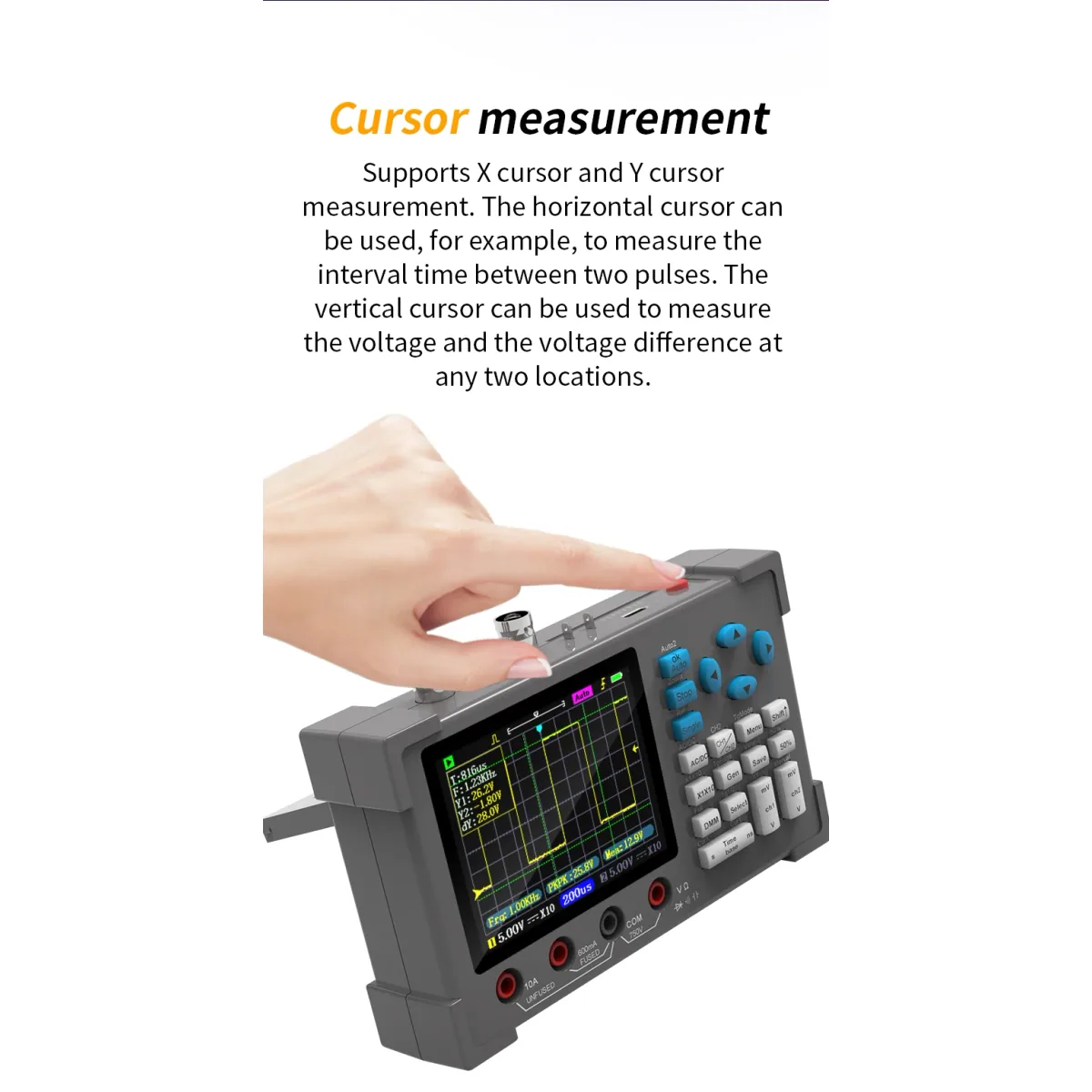

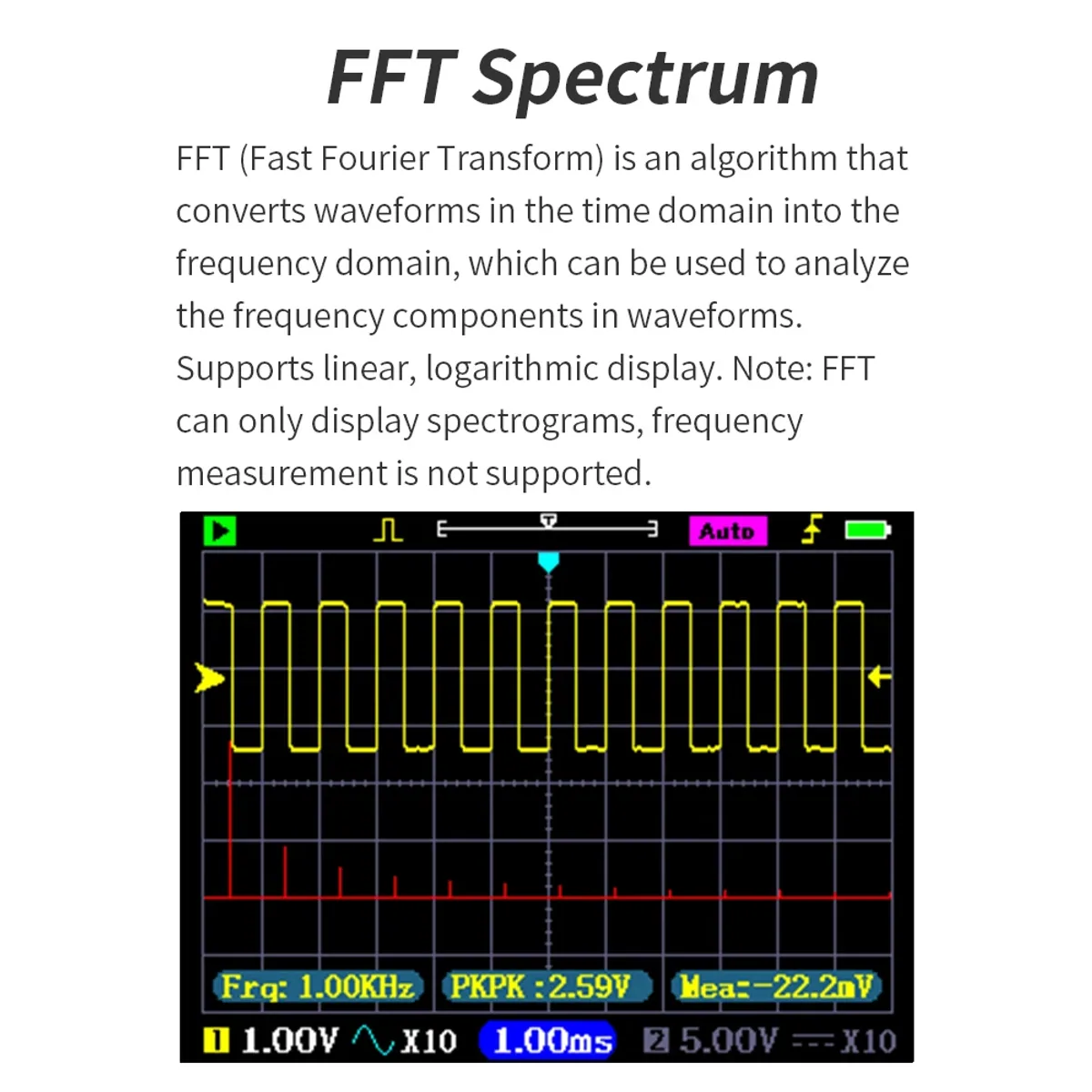

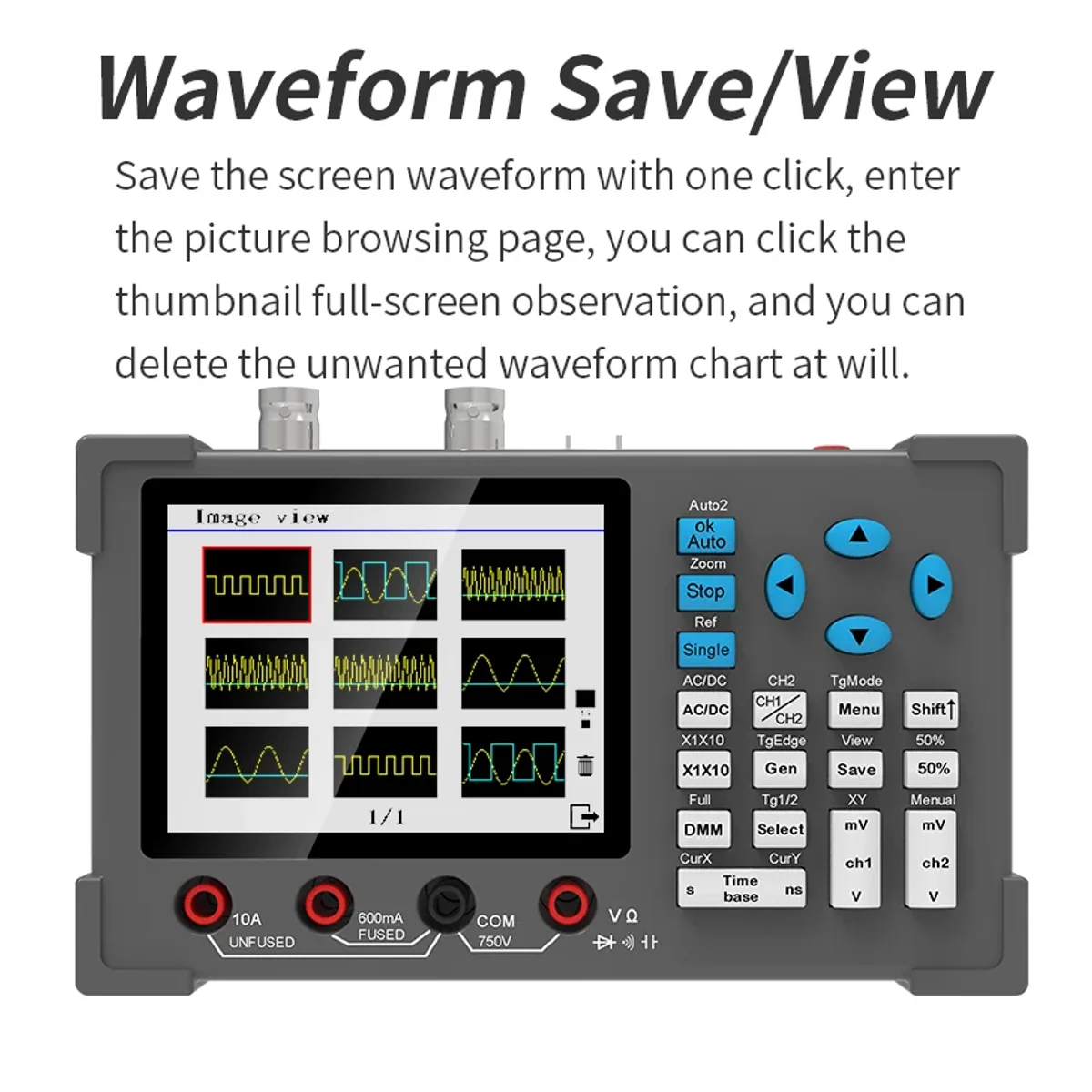

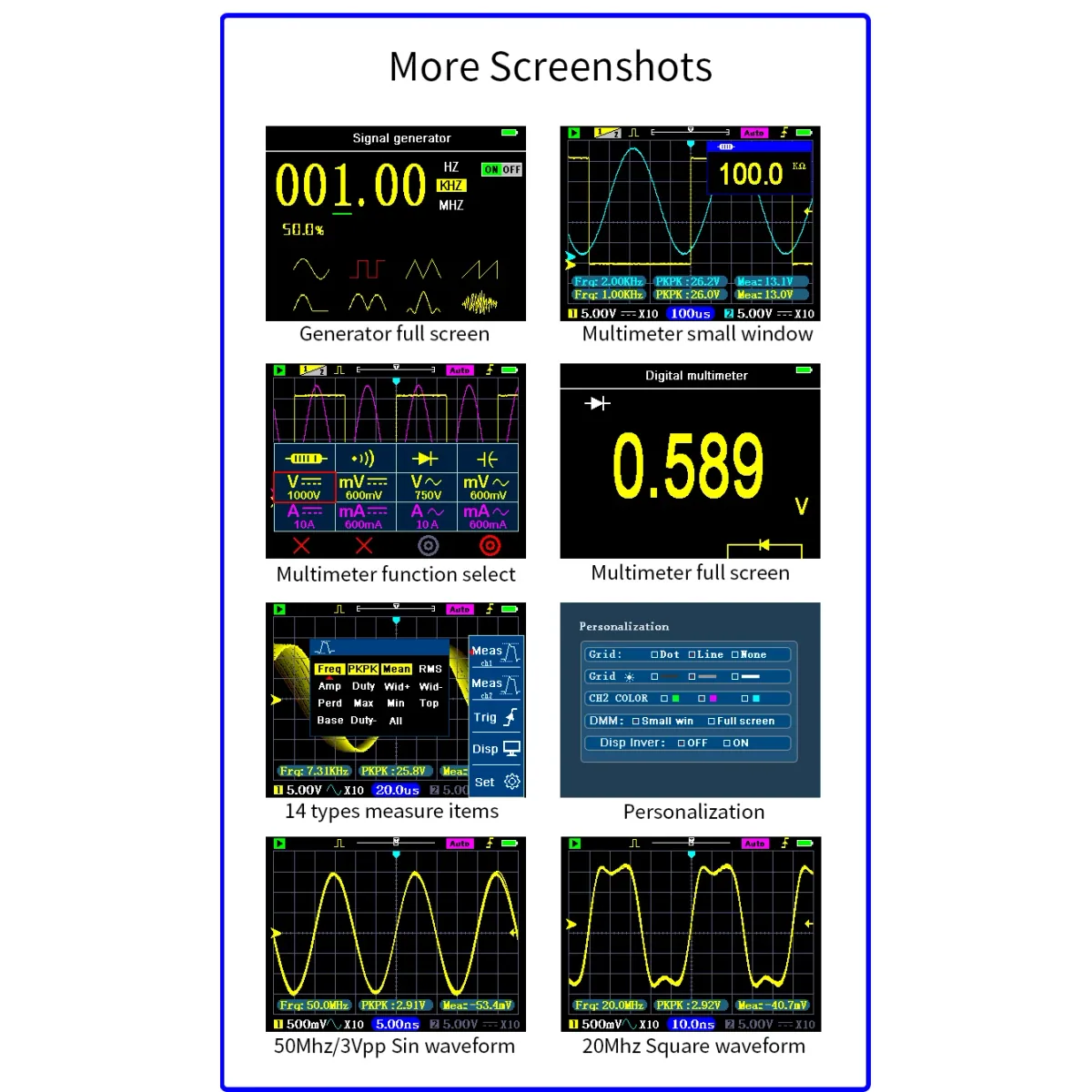

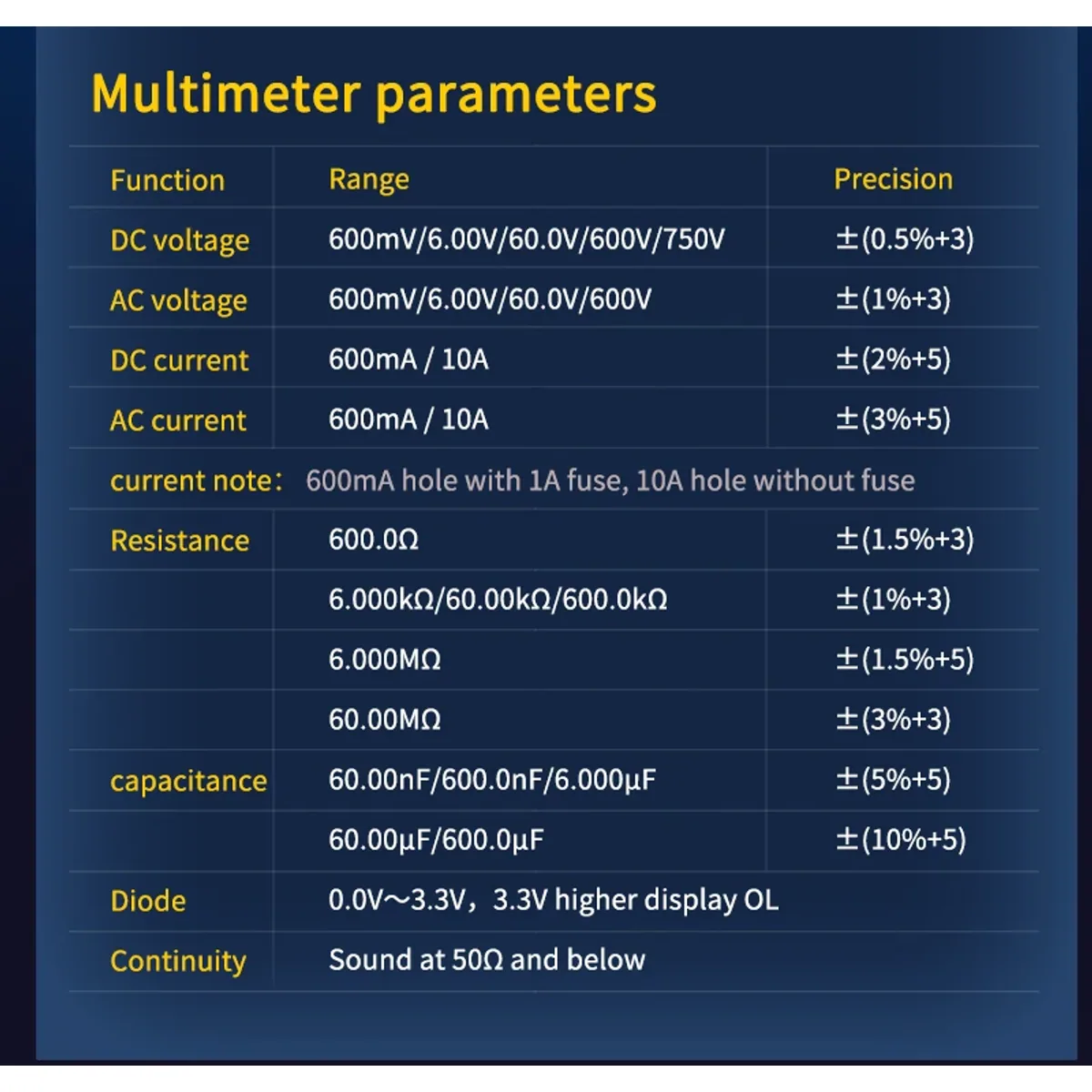

The DSO3D12 is a 3 in 1 desktop digital oscilloscope, True RMS multimeter and signal generator: 2 channels sampling at 250MSa/s in real time, 120MHz bandwidth with CH1 alone (60MHz with both channels on), and a 1Hz to 2MHz waveform output, all on a 3.2 inch IPS screen. Features and Benefits - Up to 120MHz bandwidth, 250MSa/s real time and 500MSa/s equivalent sampling - room for fast edges, with rise time under 3ns - One-key Auto and fully automatic mode - the waveform is found and scaled for you, then tracked without further key presses - Auto, Normal and Single trigger on a rising or falling edge, CH1 or CH2 source, manual or auto level - hold a steady trace or freeze a one-off event - 14 automatic measurements, X and Y cursors, FFT, XY, Roll, zoom, persistence and reference waveforms - compare PWM dead time, phase or Lissajous figures on the same screen - Built-in signal generator - sine, square, triangle and more from 1Hz to 2MHz at 2.5V, square duty adjustable from 1% to 99% - True RMS multimeter isolated from the scope - for low voltage, resistance and continuity it runs in a small window while the scope keeps working - Screenshot save and image viewer, USB Type-C 5V charging and about 6 hours of battery time - stands on its collapsible stand on the bench or travels in a tool bag Applications - Basic R&D, circuit fault finding and education - Car repair and automotive signal checks - Power supplies, welding machines and frequency converters - Audio work, radio amateurs, bus and crystal waveforms In the box DSO3D12 host, two oscilloscope probes with tips and colour rings, multimeter test leads and a USB Type-C cable. Note: keep the scope input within ±40V at x1 or ±400V at x10. The 10A socket is not fused and the 600mA socket has a 1A fuse. When measuring high voltage, do not use the multimeter and oscilloscope at the same time.
