Multimeter Oscilloscope DST-210/DST-201 | 19999 Counts TRMS | Up to 10MHz

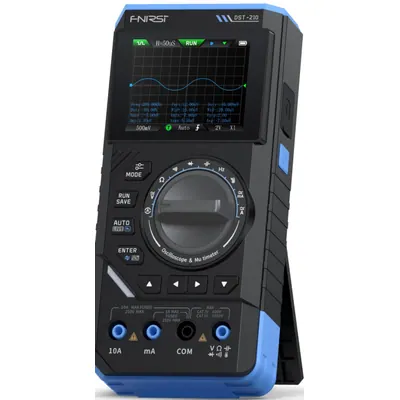

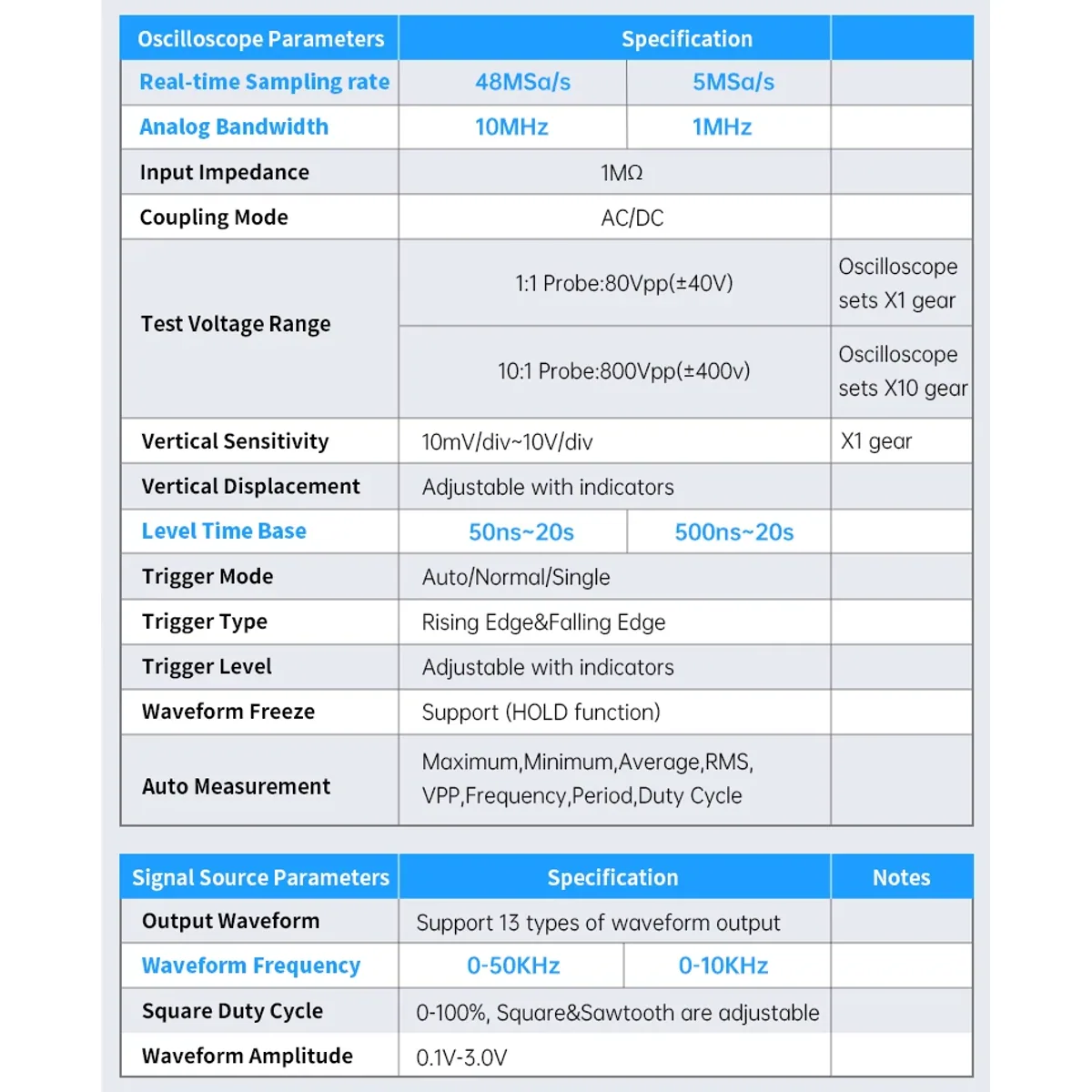

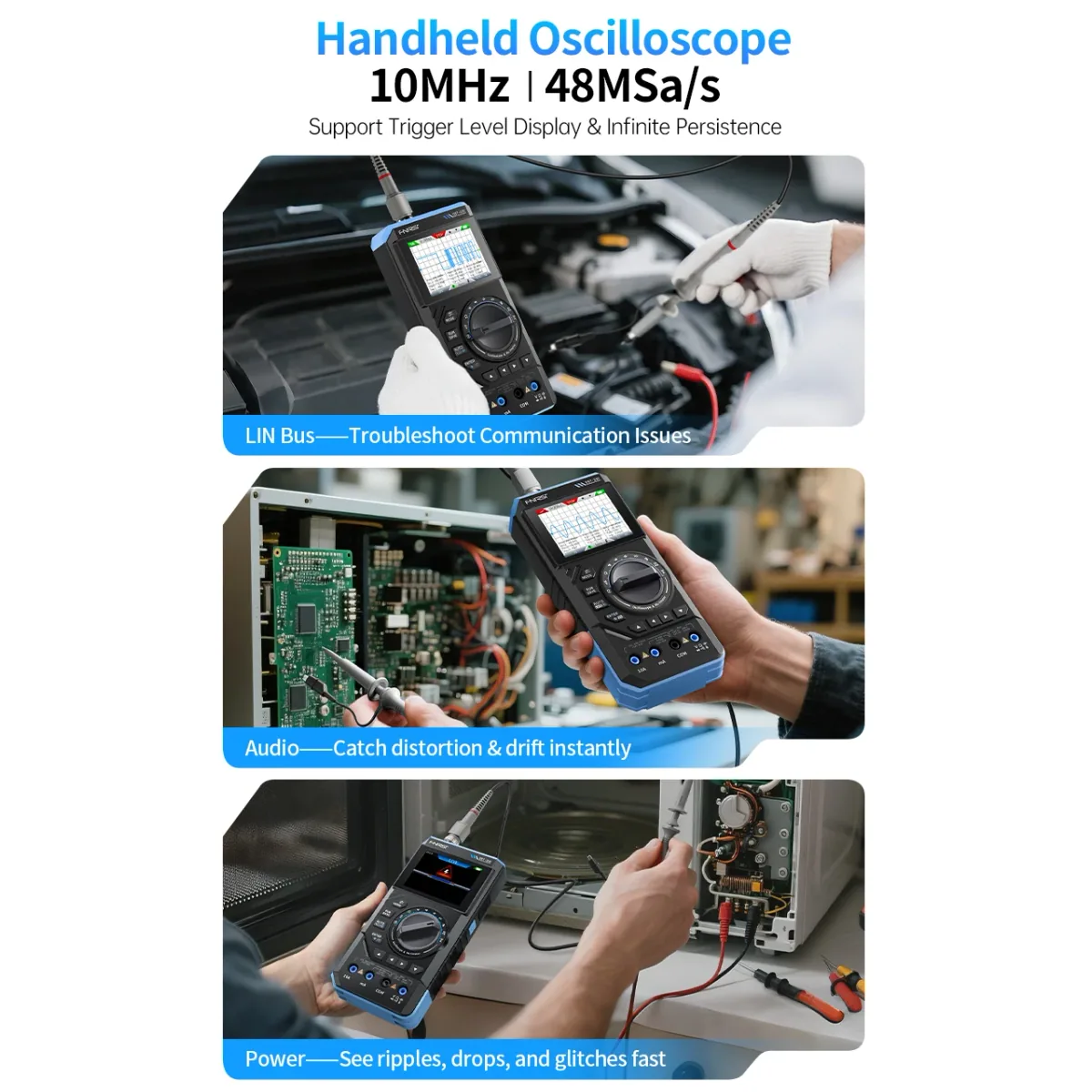

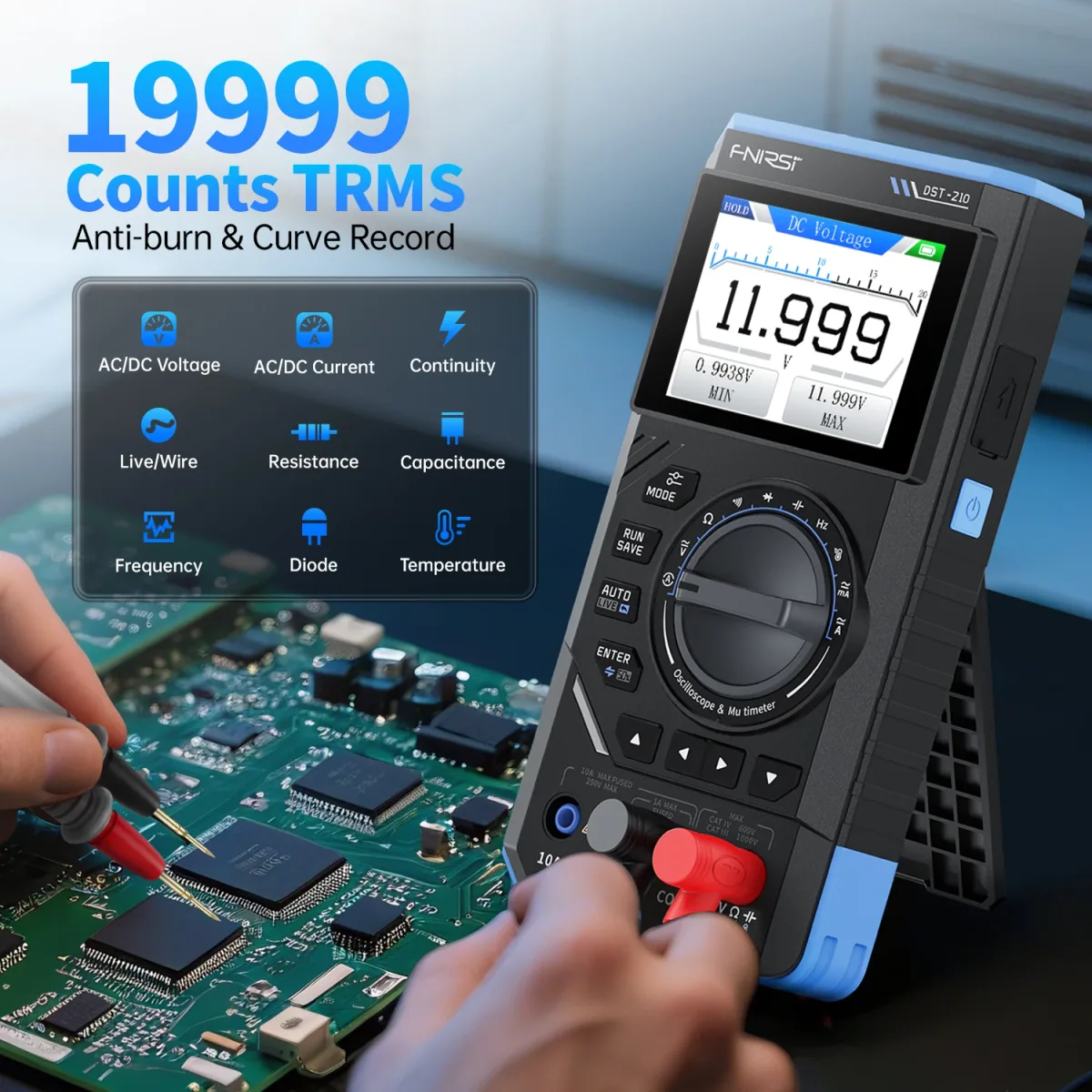

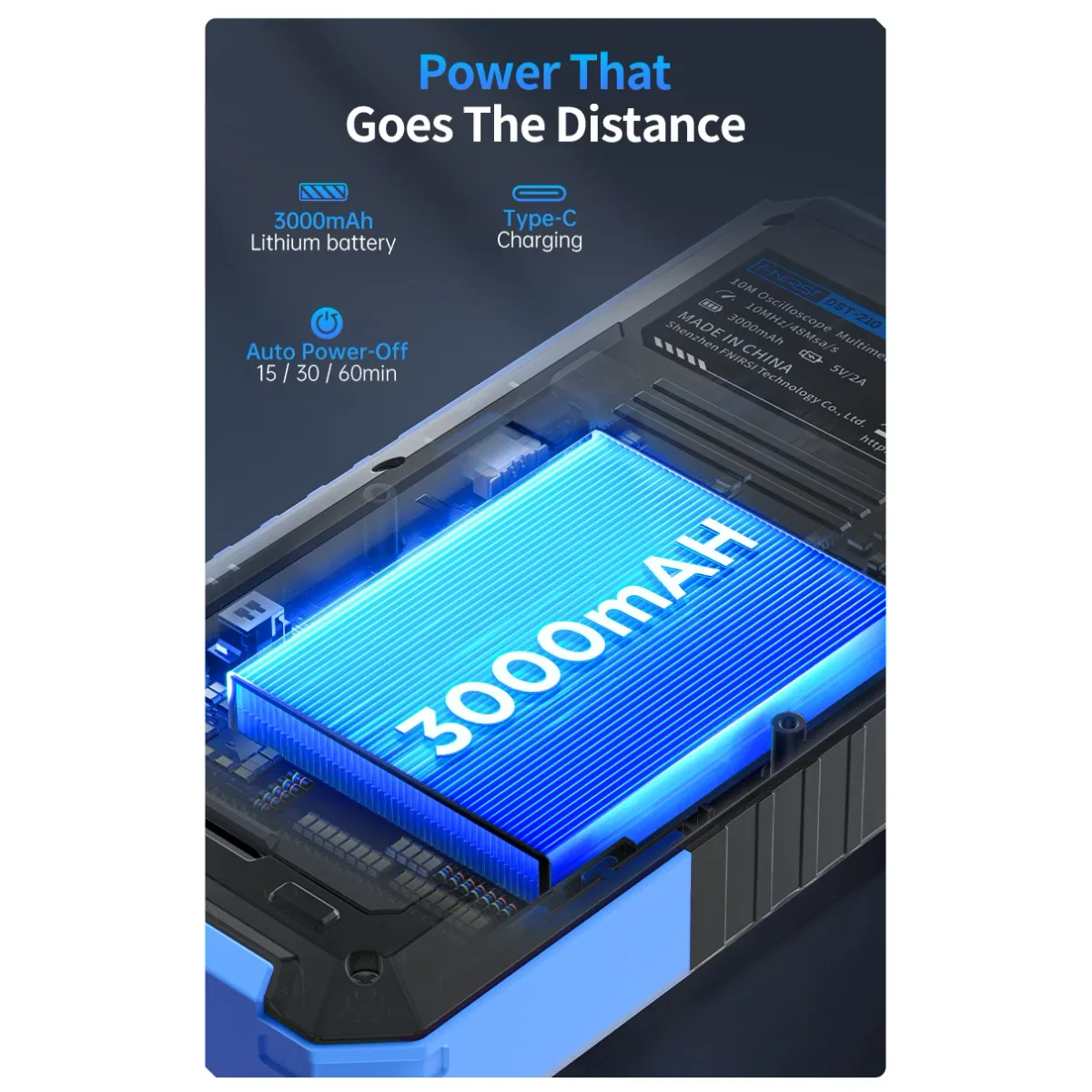

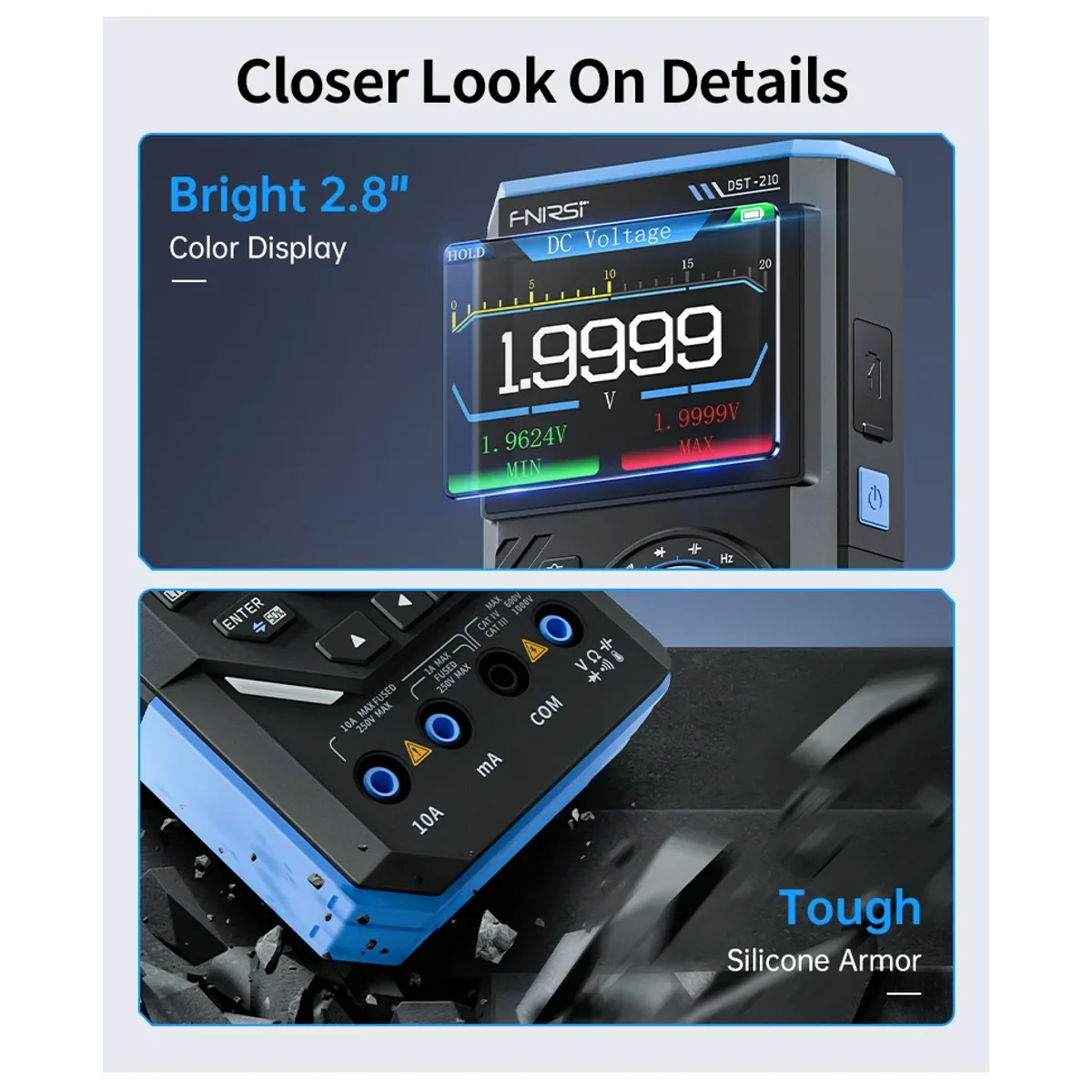

The DST-210 and DST-201 are handheld multimeter oscilloscopes: a 19999-count true RMS digital multimeter with a rotary dial, a built-in oscilloscope (10MHz and 48MSa/s on the DST-210, 1MHz and 5MSa/s on the DST-201) and a 13-waveform DDS signal source. They suit electricians and repair techs who want a familiar meter that can also show the waveform behind a reading, running from a 3000mAh battery on a 2.8 inch colour screen. Features and Benefits - Auto-ranging true RMS multimeter with published accuracy, for example DC voltage ±(0.5%+3) and AC voltage ±(1.0%+3): dependable readings on non-sinusoidal loads. - Scope with ±400V input on a 10:1 probe, Auto/Normal/Single trigger, adjustable trigger level and infinite persistence: see ripple, dropouts and ignition pulses that a meter averages away. - Automatic scope measurements of max, min, average, RMS, Vpp, frequency, period and duty cycle, with HOLD freeze. - Curve recording with min and max and storage for 10 data sets: trend a voltage while cranking an engine or cycling a load. - DDS signal source with 13 waveforms, 0.1 to 3.0V, square and sawtooth duty adjustable: amplifier, filter and PWM checks. - Single-probe live wire detection, frequency to 9.999MHz and temperature from -55°C to 1300°C. - Silicone armour, fold-out stand, day and night screen themes, Type-C charging and 15, 30 or 60 minute auto power-off. Applications - Automotive diagnostics: battery and starting faults, LIN bus and PWM signals, ignition faults. - Electrical maintenance: mains voltage, current and live wire checks on site. - Electronics repair: power supply ripple, audio distortion and component checks. - Training, schools and hobby workshops. In the box - DST-210: unit, P6100 probe, alligator clip probe, multimeter test leads, charging cable, user manual, box. - DST-201: unit, alligator clip probe, multimeter test leads, charging cable, user manual, box (no P6100 probe). Note: the scope input is ±40V (80Vpp) on a 1:1 lead and ±400V (800Vpp) with a 10:1 probe. Use the meter jacks for mains measurements and keep within 1000V DC and 750V AC.
