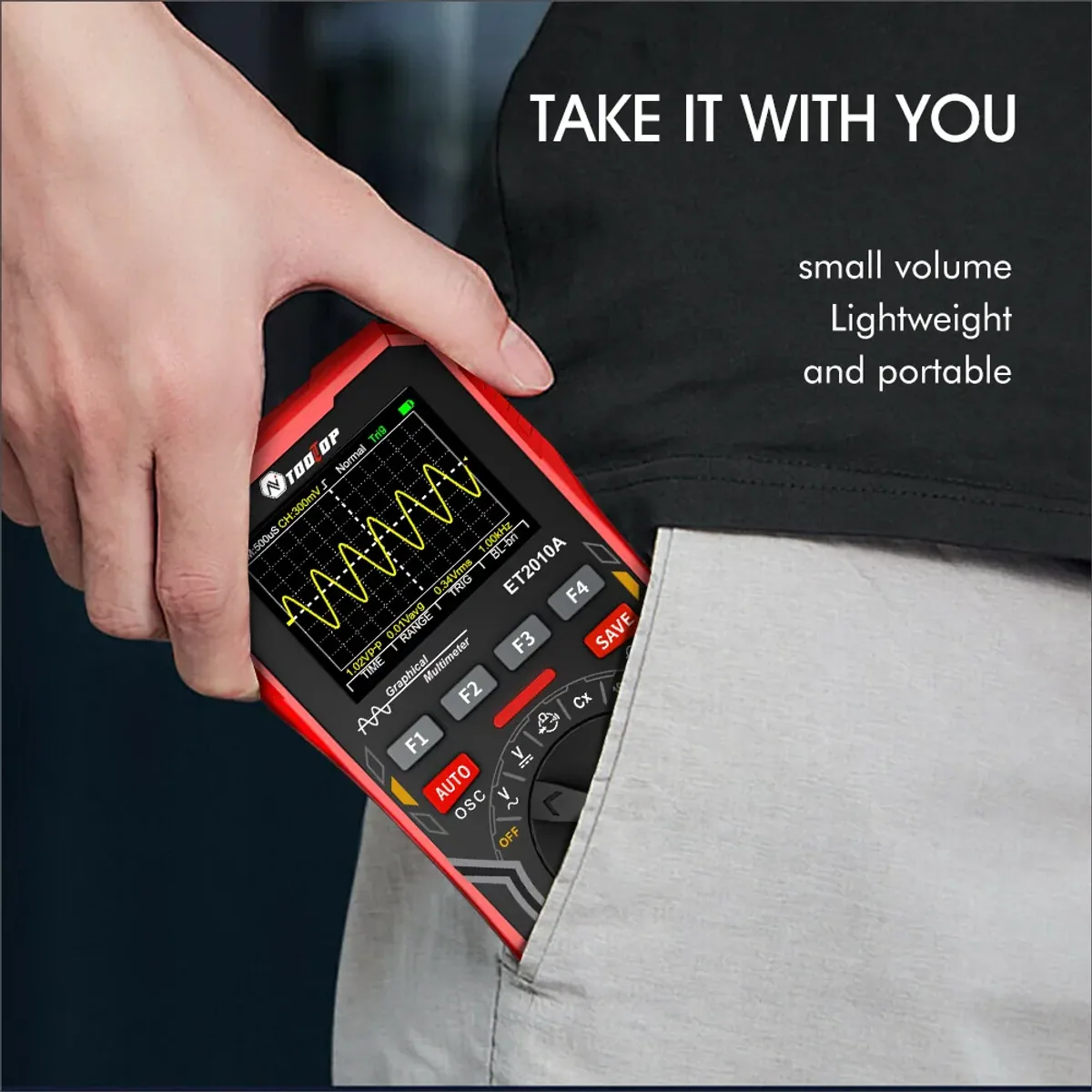

Multimeter with Oscilloscope ET2010A | 1MHz 2.5Msps | 4000 Count Auto Range

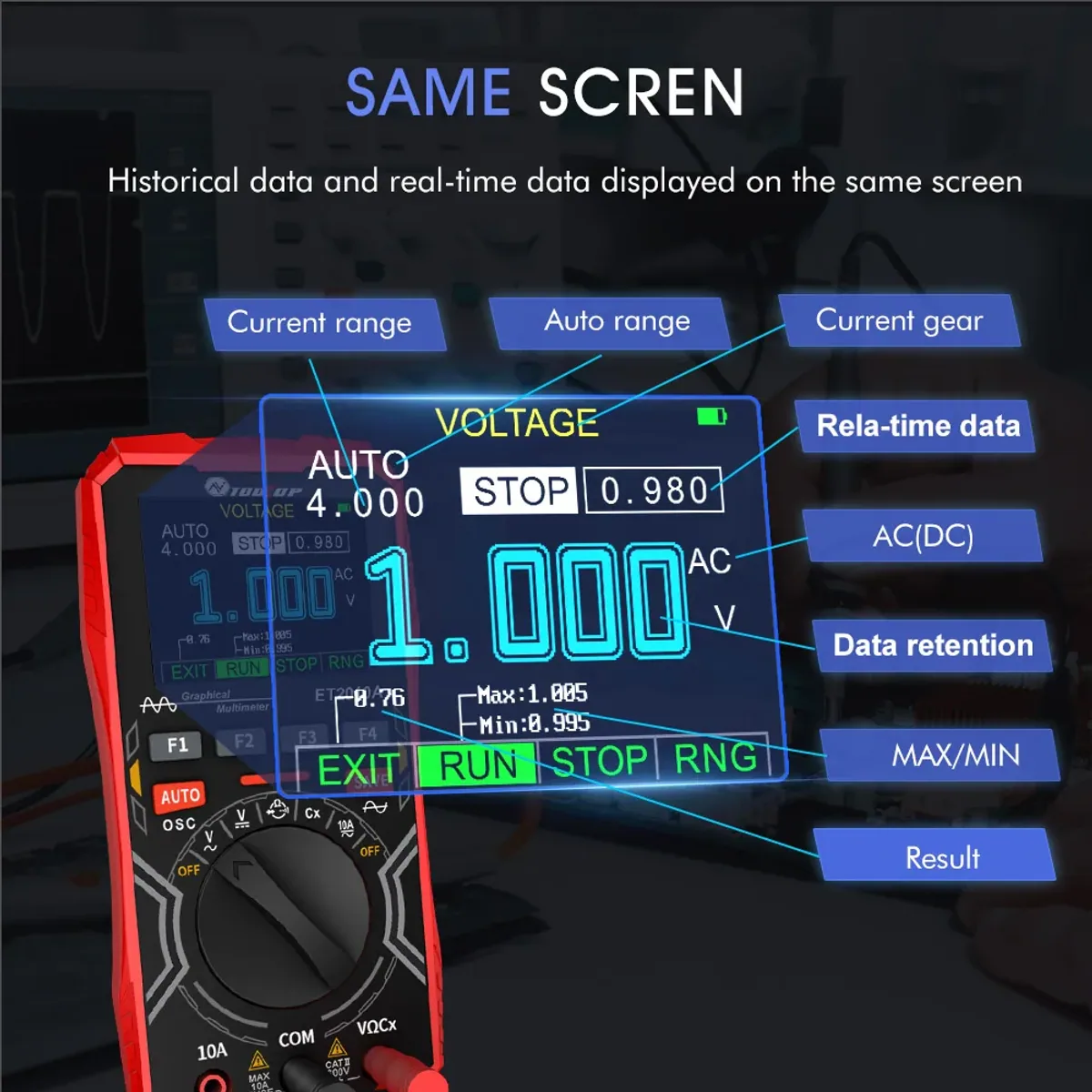

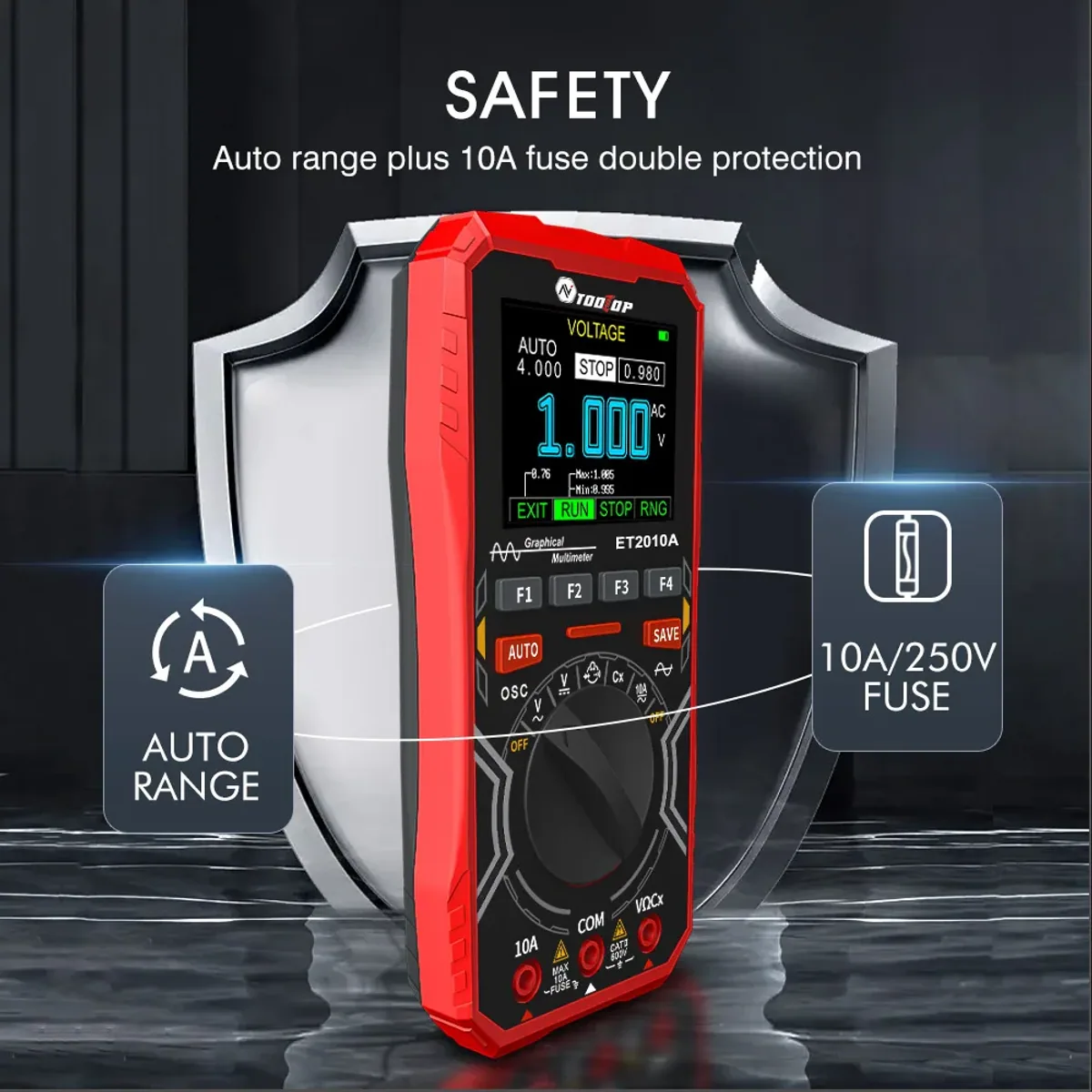

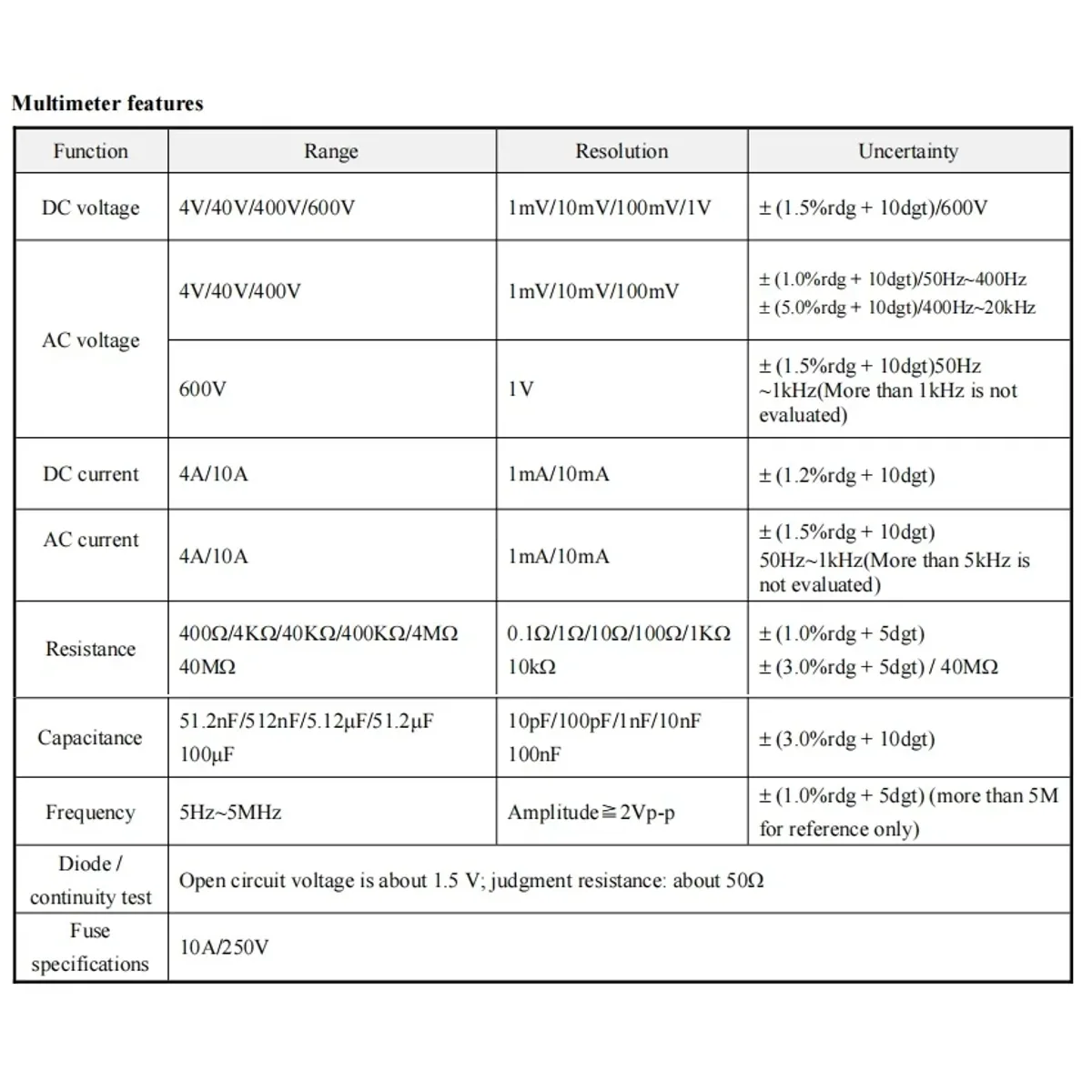

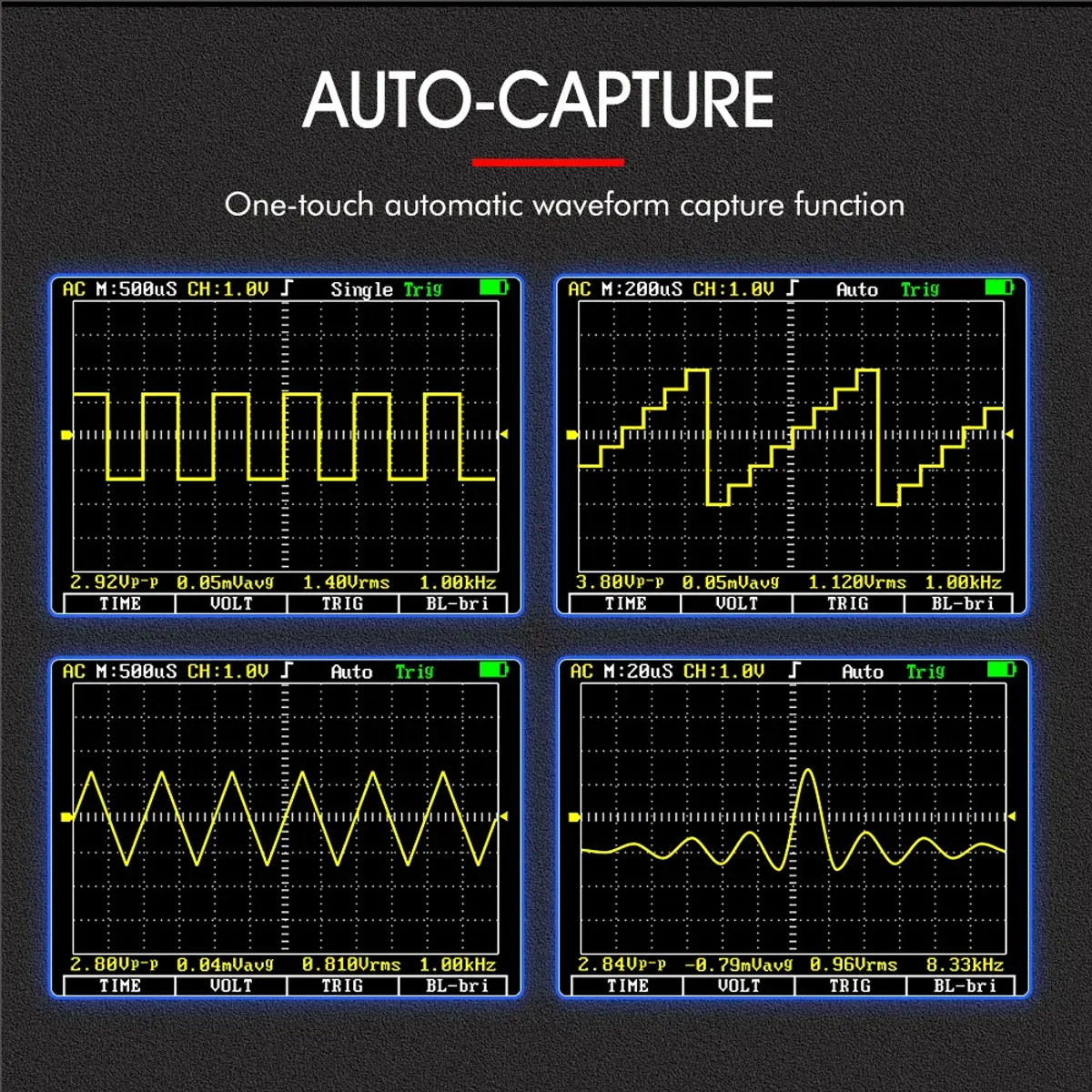

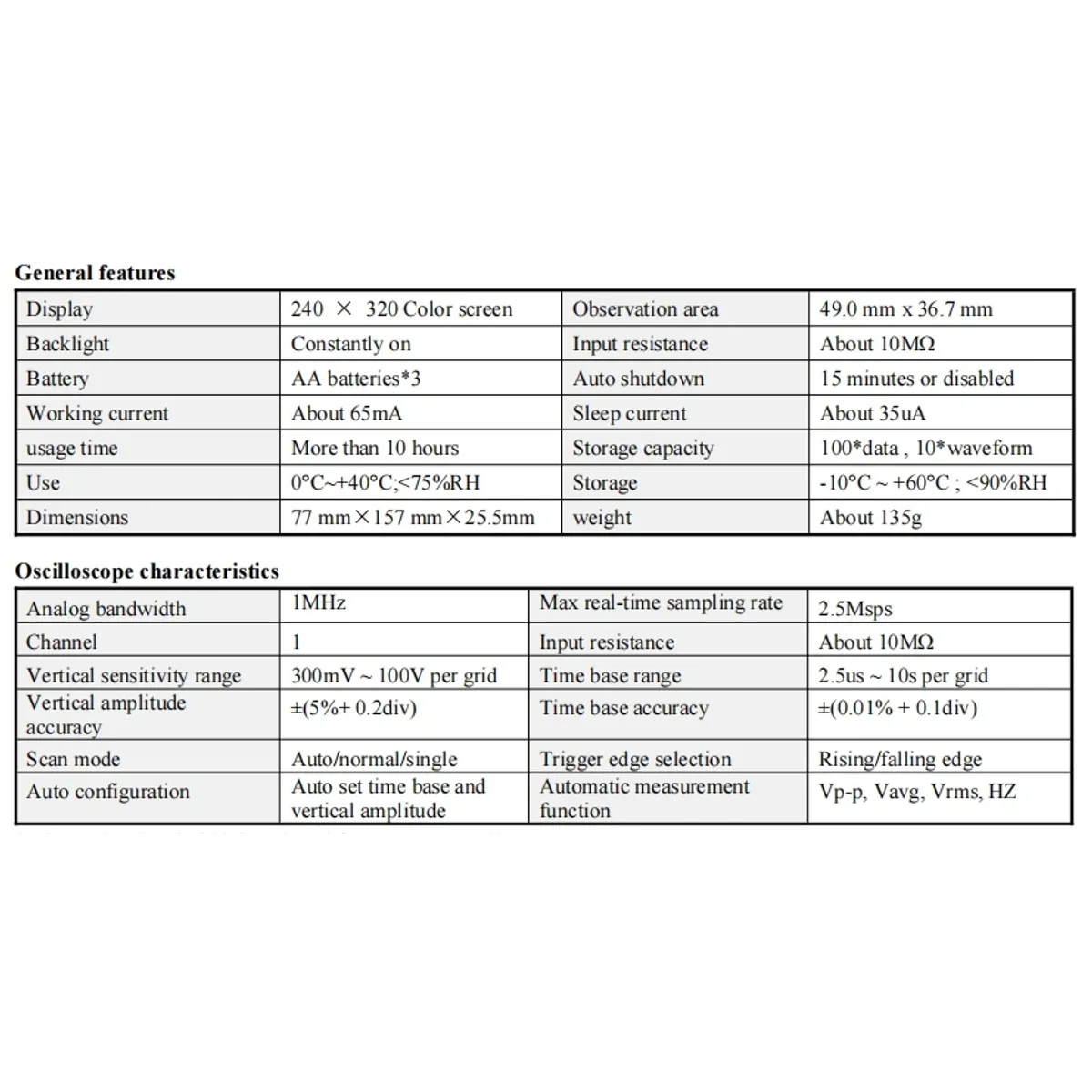

The ET2010A is a 2 in 1 handheld multimeter with oscilloscope: a 4000 count auto-ranging digital multimeter and a single-channel scope with 1MHz analogue bandwidth and 2.5Msps real-time sampling, shown on a 2.4 inch 320 x 240 colour screen. Features and Benefits - One-press AUTO waveform capture - the meter sets time base and amplitude for you, so a signal is on screen without fiddling - Auto, Normal and Single sweep with rising or falling edge trigger - catch repeating signals or a one-off event - Automatic Vp-p, Vavg, Vrms and frequency readings - the key numbers sit under the waveform - Multimeter for DC and AC voltage up to 600V, current up to 10A, resistance to 40MΩ, capacitance to 100uF, frequency to 5MHz, duty cycle, diode and continuity - one tool for most fault finding - Stores 100 sets of data and 10 waveforms - keep readings for a report or compare before and after a repair - REL and MAX/MIN with history on the same screen - remove lead resistance and track the highest and lowest values - 10A/250V fuse protection and 15 minute auto sleep - protects the meter and saves the 3 AA batteries Applications - Car and van electrical fault finding, sensors and charging circuits - Equipment and appliance maintenance - Power system and panel maintenance checks - Electronics hobby, education and DIY circuit work In the box 1 x oscilloscope multimeter, 1 pair of test leads, 1 x English manual, packing box. Batteries (3 x AA) are not included. Note: do not exceed 600V on the VΩCx input or 10A on the 10A input. A short display flicker with open leads is normal on an auto-ranging meter; shorted leads should read zero.
