USB Oscilloscope | 2 Channel 20MHz 48MSa/s | 6022BE or 6022BL Logic

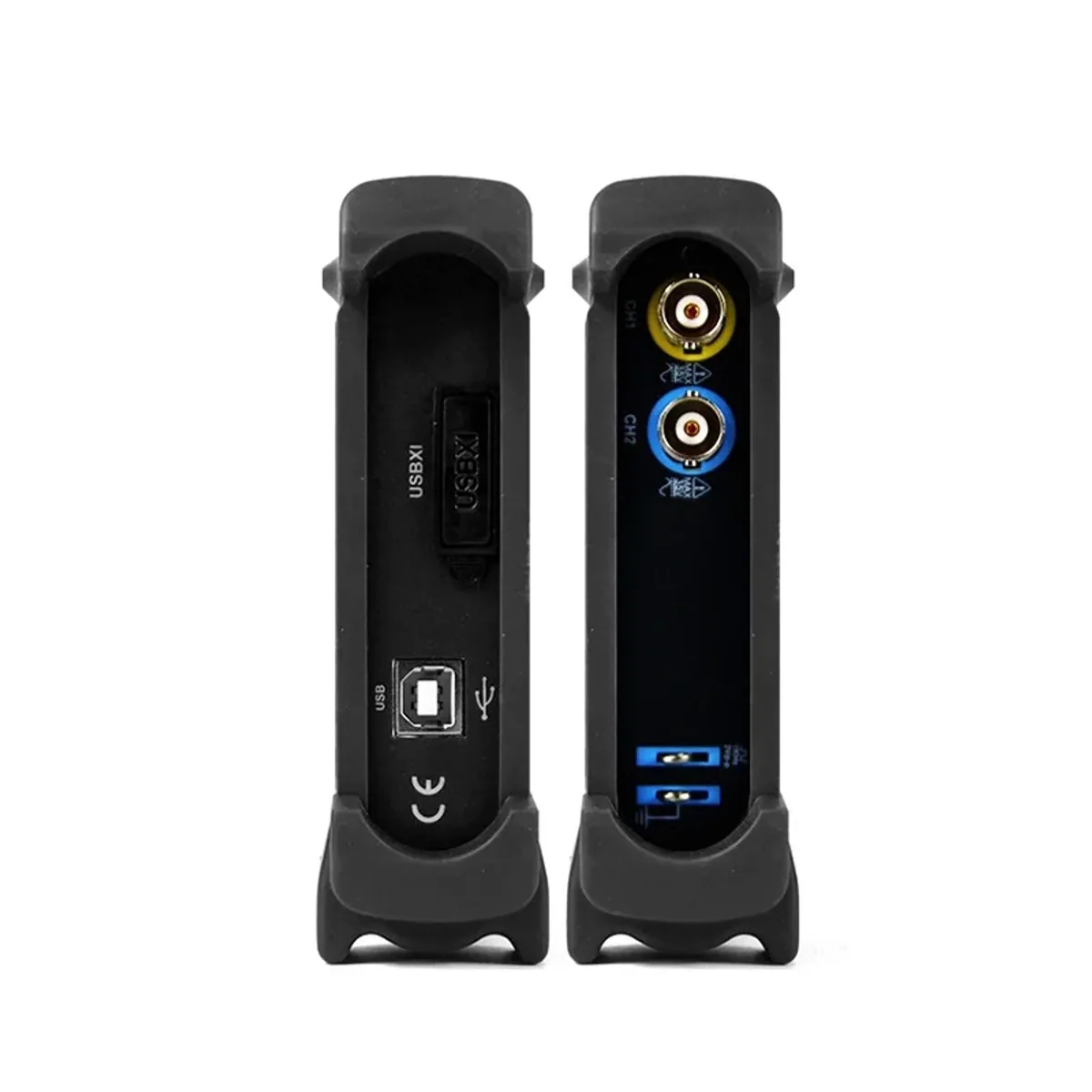

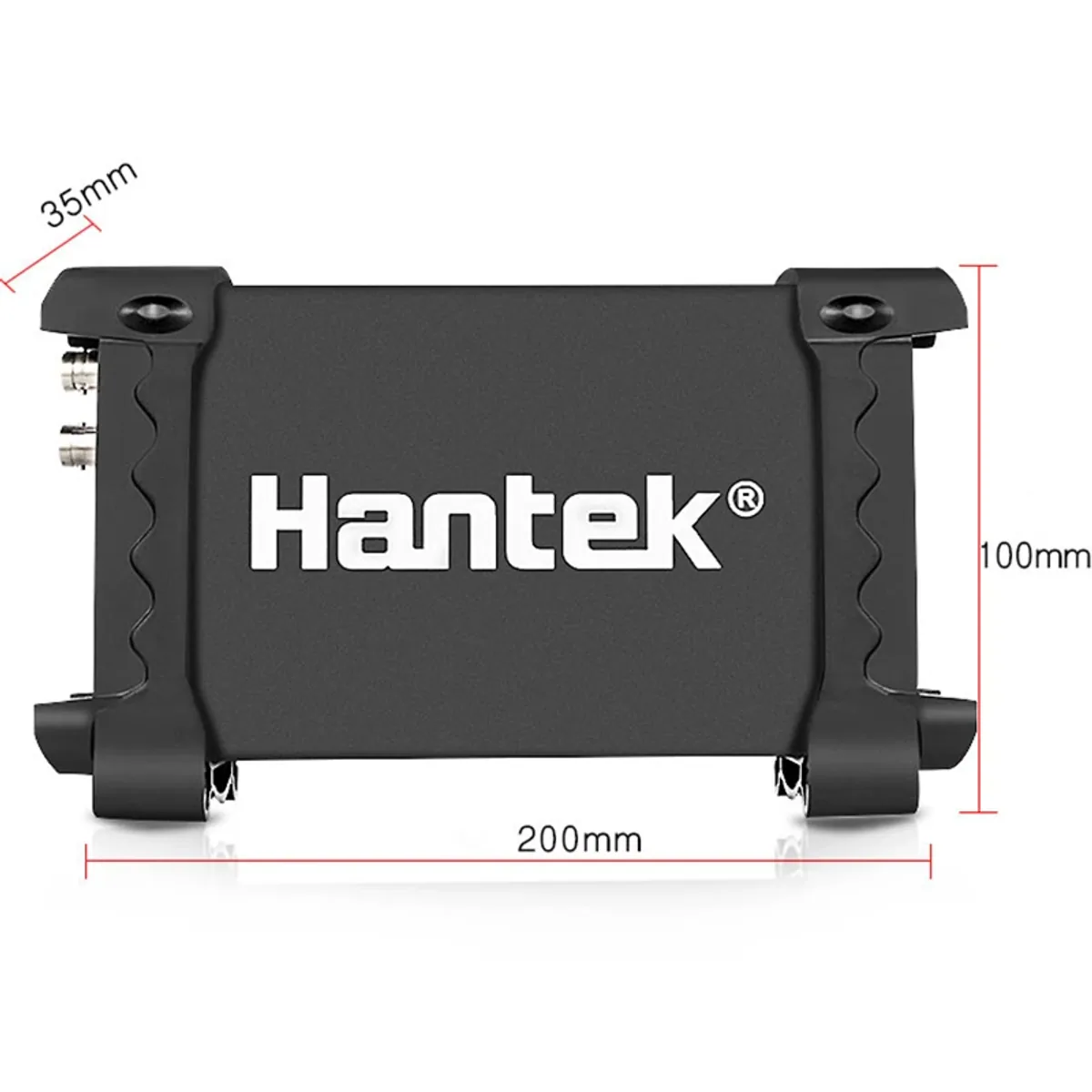

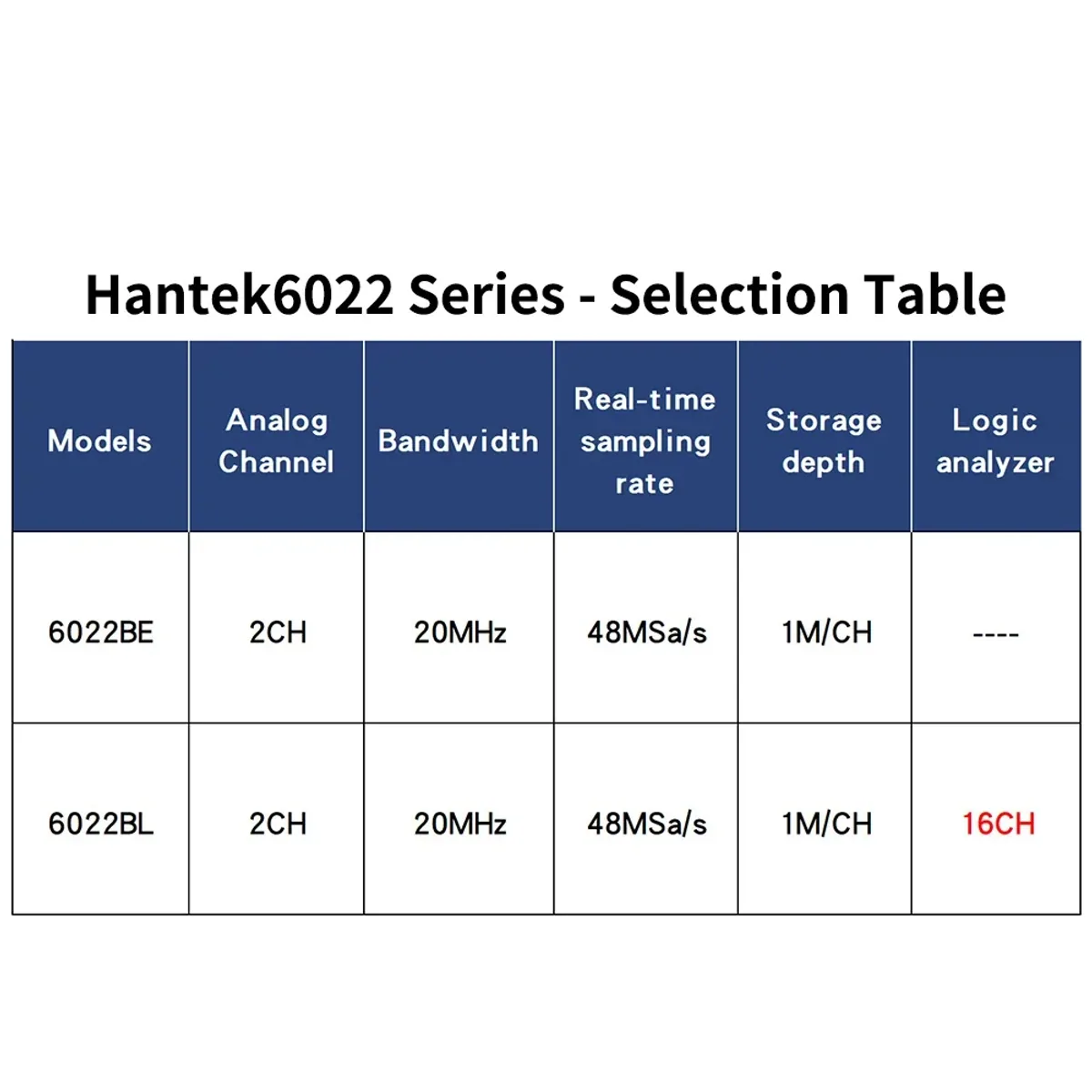

The 6022BE is a two channel USB oscilloscope for a laptop or PC with 20MHz bandwidth, 48MSa/s real-time sampling and 1M memory per channel, powered from the USB 2.0 port with no external supply. The 6022BL adds a 16 channel logic analyser in the same anodised aluminium case, so one unit covers analogue waveforms and digital timing. Features and Benefits - 2 channels at 20MHz and 48MSa/s - audio, sensor, PWM and low speed digital signals on the computer screen. - 1M memory per channel - long records for intermittent faults. - 6022BL: 16 logic channels at 48M sample rate, TTL, LVTTL and CMOS inputs - check serial and parallel timing next to the analogue view. - 23 measurement functions with PASS/FAIL check - Vpp, RMS, frequency, rise time, duty cycle and more without manual counting. - FFT, maths (+, -, x, ÷), invert, X-Y, persistence and averaging - analyse noise and phase as well as shape. - USB 2.0 powered - no mains adapter, suits laptops and production line work. - Save to text, jpg/bmp or Excel and Word files, and connect several units to one computer to add channels. Applications - Laptop based repair and field service. - Student and hobby electronics benches. - Microcontroller and logic timing checks with the 6022BL. - Product line maintenance and testing. In the box 2 x probes with accessories, USB cable, software CD and certificate card with each unit. The 6022BL also includes a 16 way logic cable and 16 logic test clips. The BAG options add a hard carry case. Note: Input sensitivity is 20mV/div to 5V/div on the x1 probe setting; use the x10 probe setting for larger signals and clip the probe ground only to circuit ground. The listing names Windows 7, NT, 2000, XP and Vista for the software.
