Handheld Oscilloscope 1C15 | 110MHz 500MSa/s | Single Channel ±400V

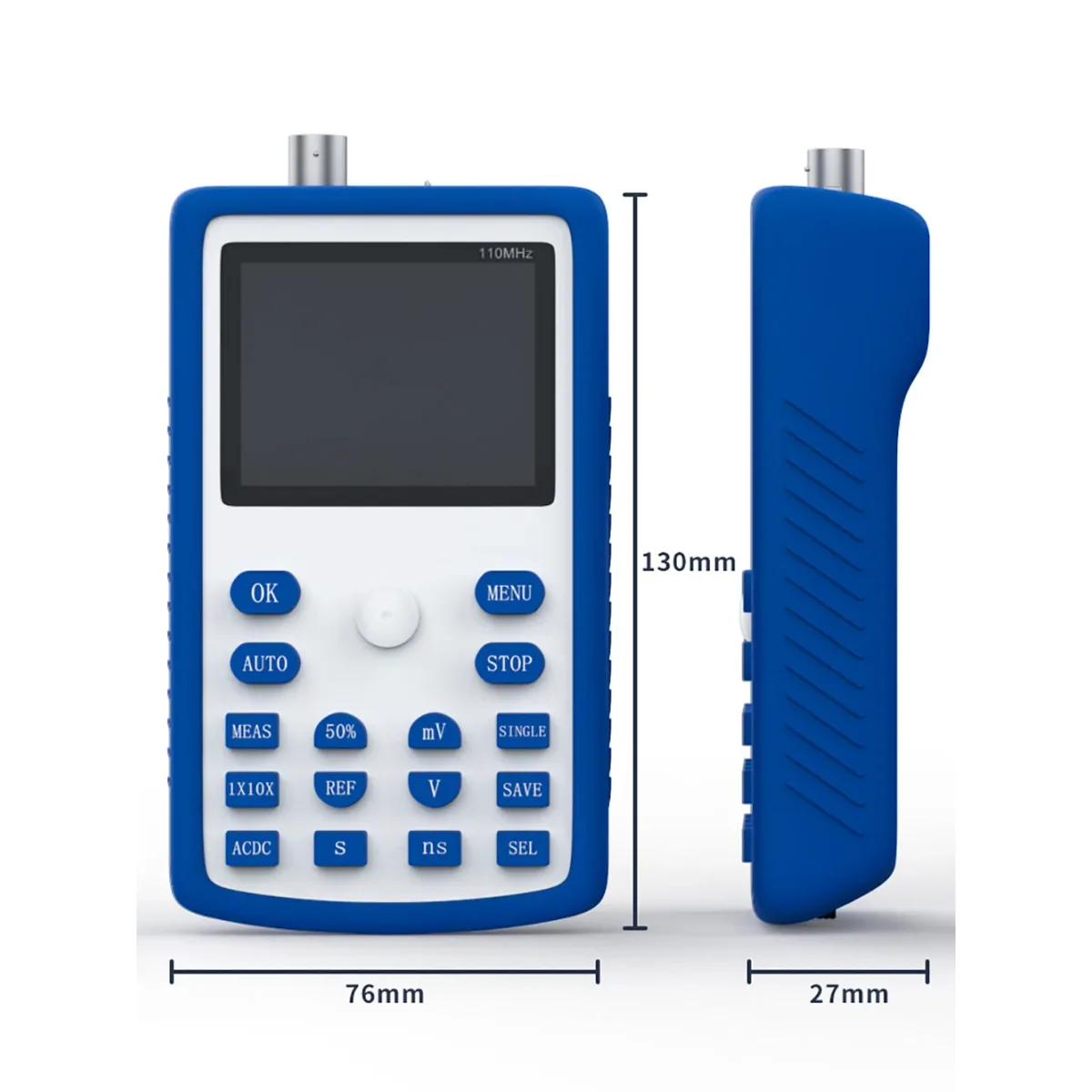

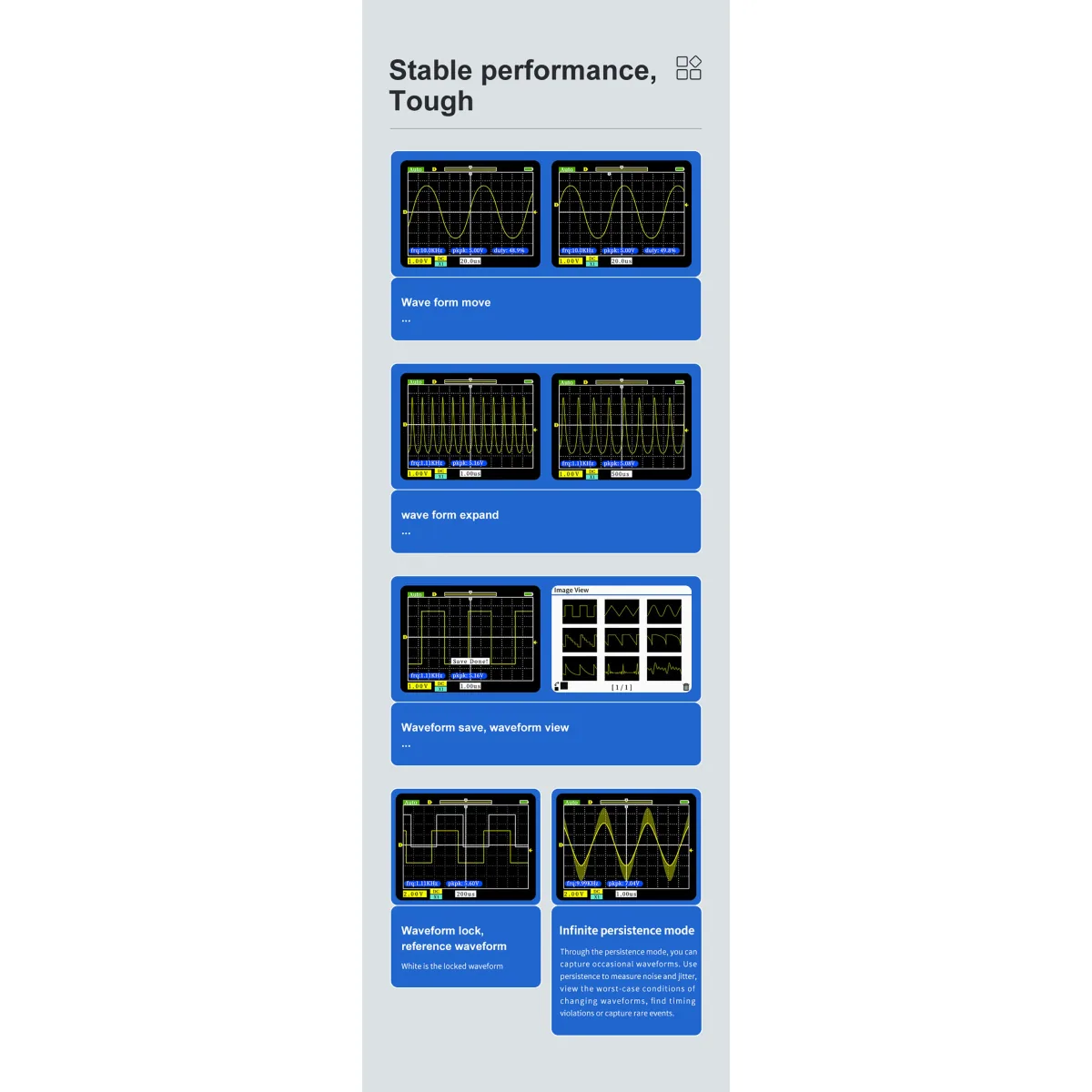

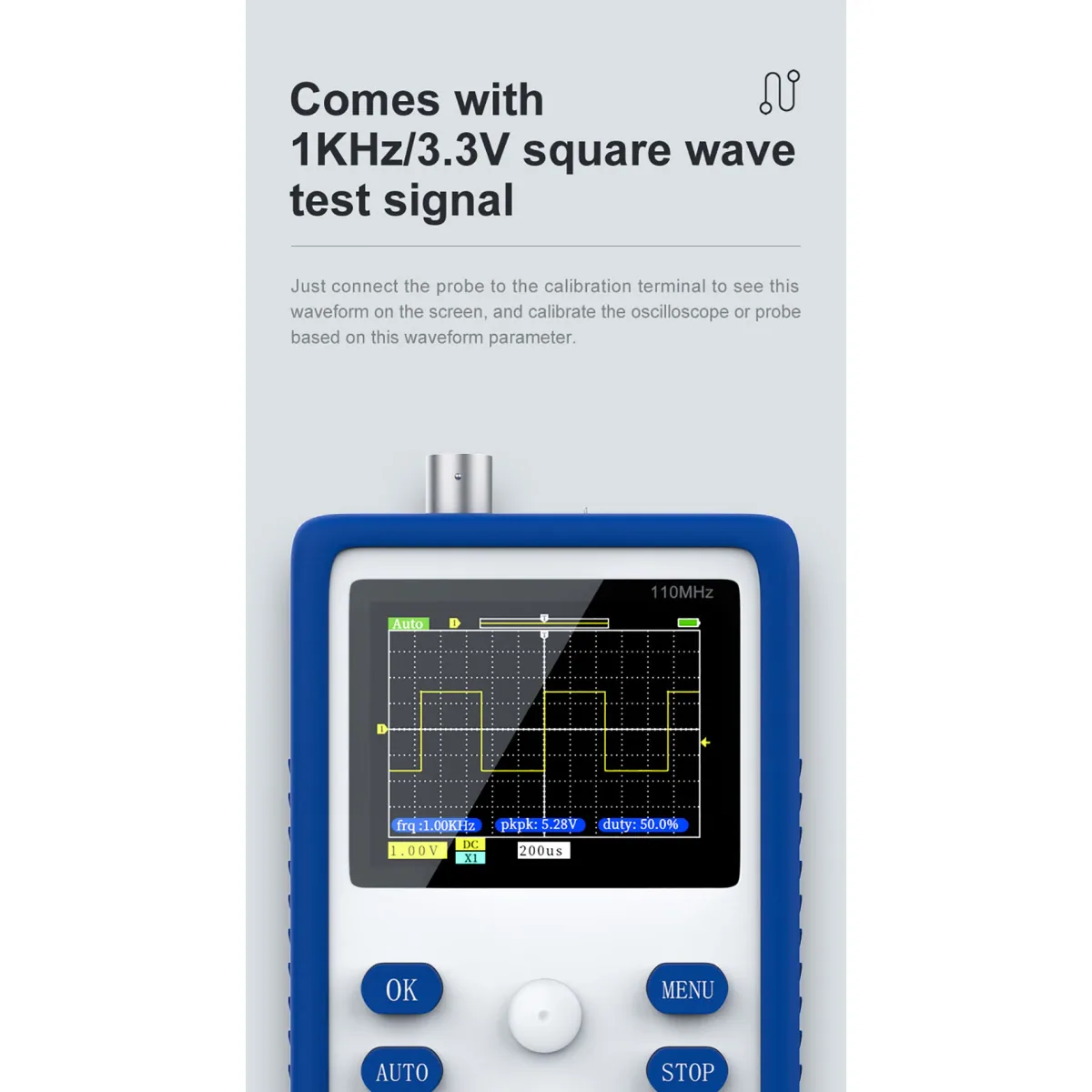

The 1C15 is a single channel handheld oscilloscope with 110MHz analogue bandwidth, 500MSa/s real-time sampling and a rise time under 3ns, measuring up to ±400V with the supplied P6100 probe on X10. It has a 2.4 inch 320 x 240 colour screen, one-key AUTO set-up, a built-in 1kHz square wave test output and a 3000mAh battery that runs for more than 10 hours per charge. Features and Benefits - 110MHz bandwidth and 500MSa/s sampling in a 130 x 76 x 27 mm body: enough speed for switching supplies, clocks and digital buses away from the bench. - One-key AUTO measures amplitude and frequency, then sets the horizontal and vertical scale so the waveform sits in the middle of the screen. - Auto, Normal and Single triggering on rising or falling edges: periodic signals, logic signals such as IR remote codes, or one-off events such as ignition pulses. - Reference waveform lock, waveform save and view, drag and expand, plus afterglow (none, 1s, infinite) and scroll mode for noise, jitter and rare events. - 1kHz 3.3V square wave test output: check the probe and the scope set-up before a job. - FPGA, ARM and ADC design with intelligent anti-burn protection on the input. - Eight-way joystick, waterproof conductive silicone buttons and a removable anti-slip, drop-resistant silicone sleeve that hides the fold-out stand. Applications - Home appliance and power supply repair. - Car diagnosis, including ignition and sensor signals with Single trigger. - Mains measurement with the P6100 probe on X10, within ±400V. - Product development, research and education. In the box - 1C15 oscilloscope, P6100 high voltage probe, alligator clip probe, Micro USB charging cable, English user manual, cloth bag. Note: the input range is ±40V on X1 and ±400V on X10. Set the probe switch and the 1X10X key to match before measuring, and keep the earth clip on circuit ground.
