4 Inch Vector Network Analyser | LiteVNA, NanoVNA-H4 or DeepVNA | Up to 6.3GHz
CECE marking - EU conformityCertified - manufacturer-declared
Stock Nr:
SKU:
1 / 7
£183.99inc VAT

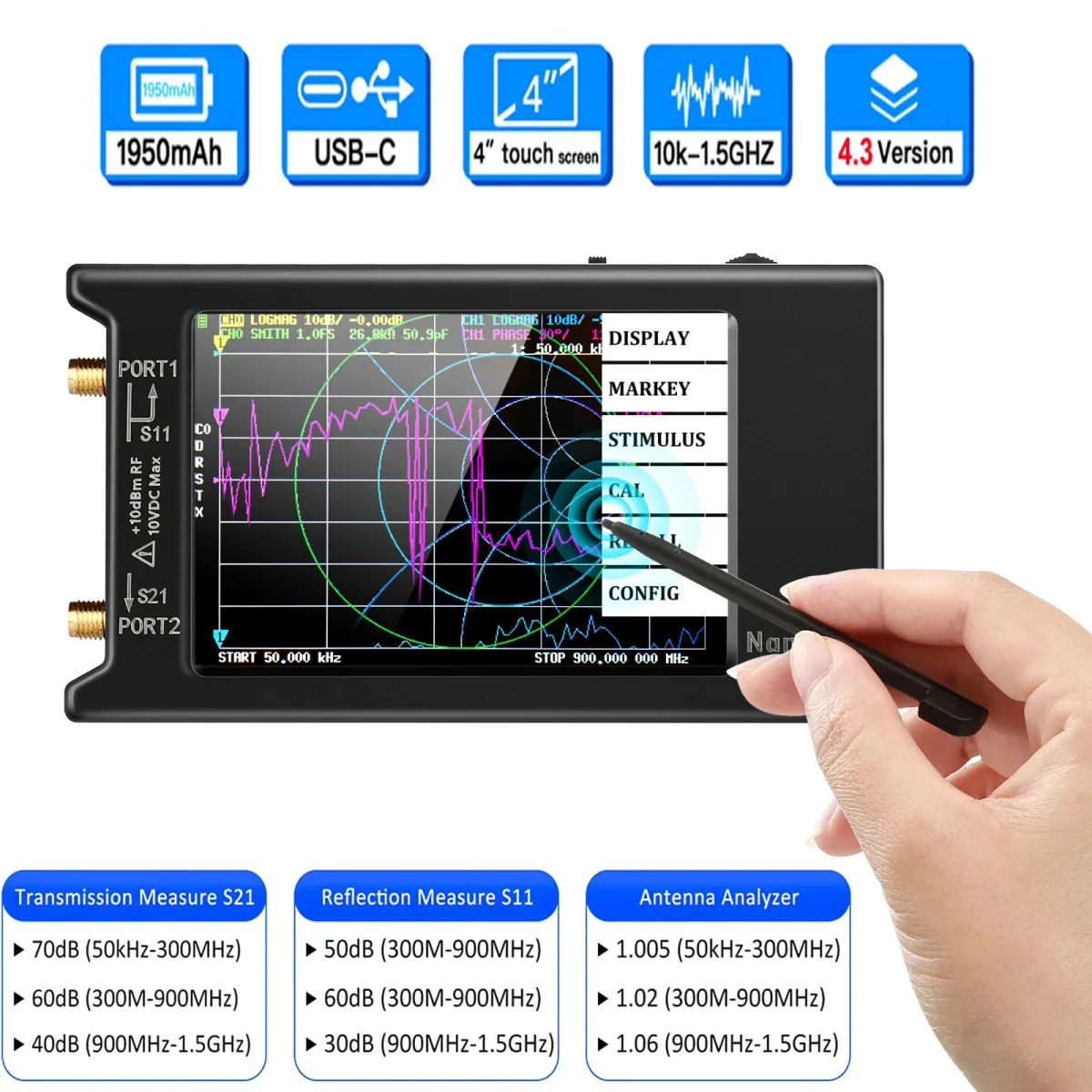

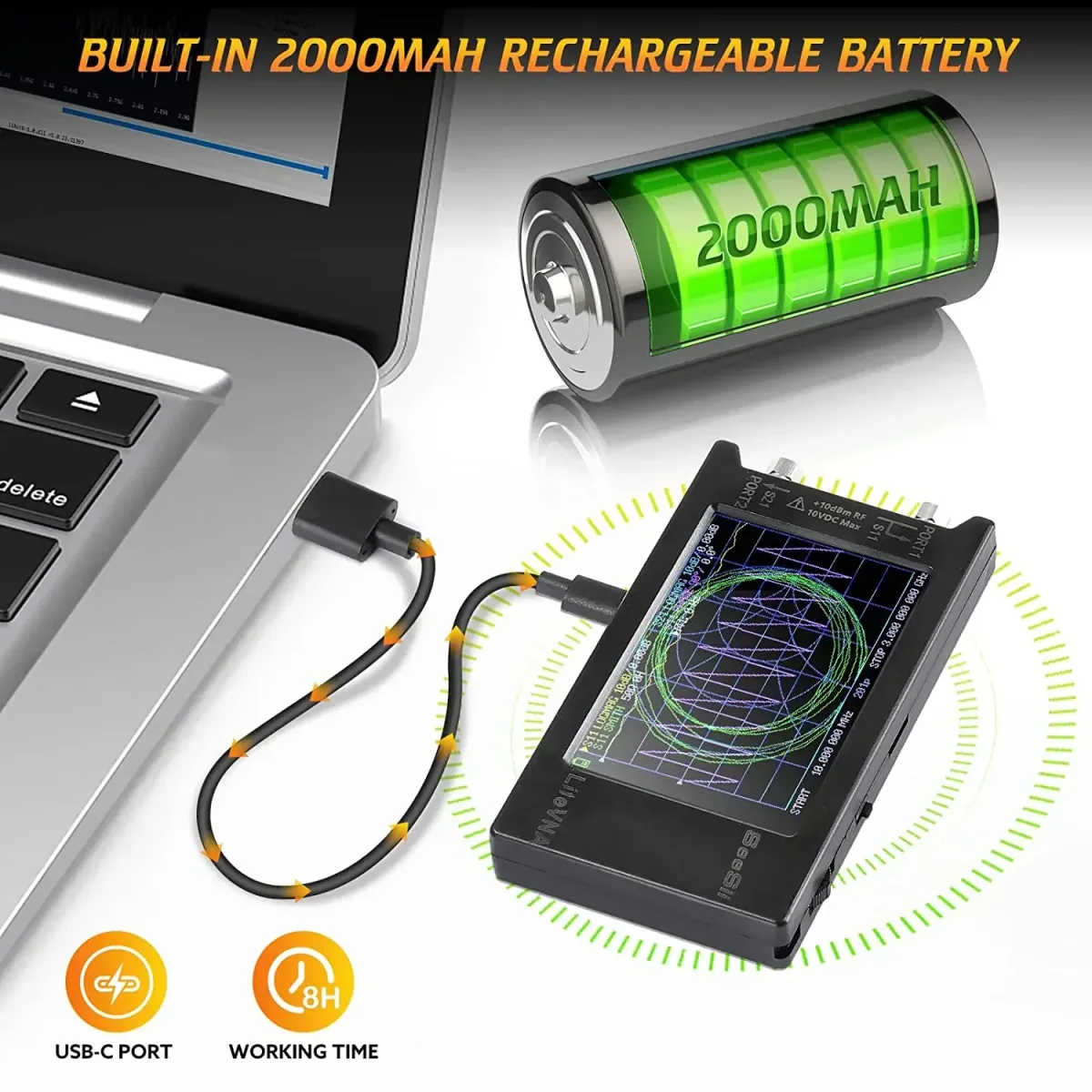

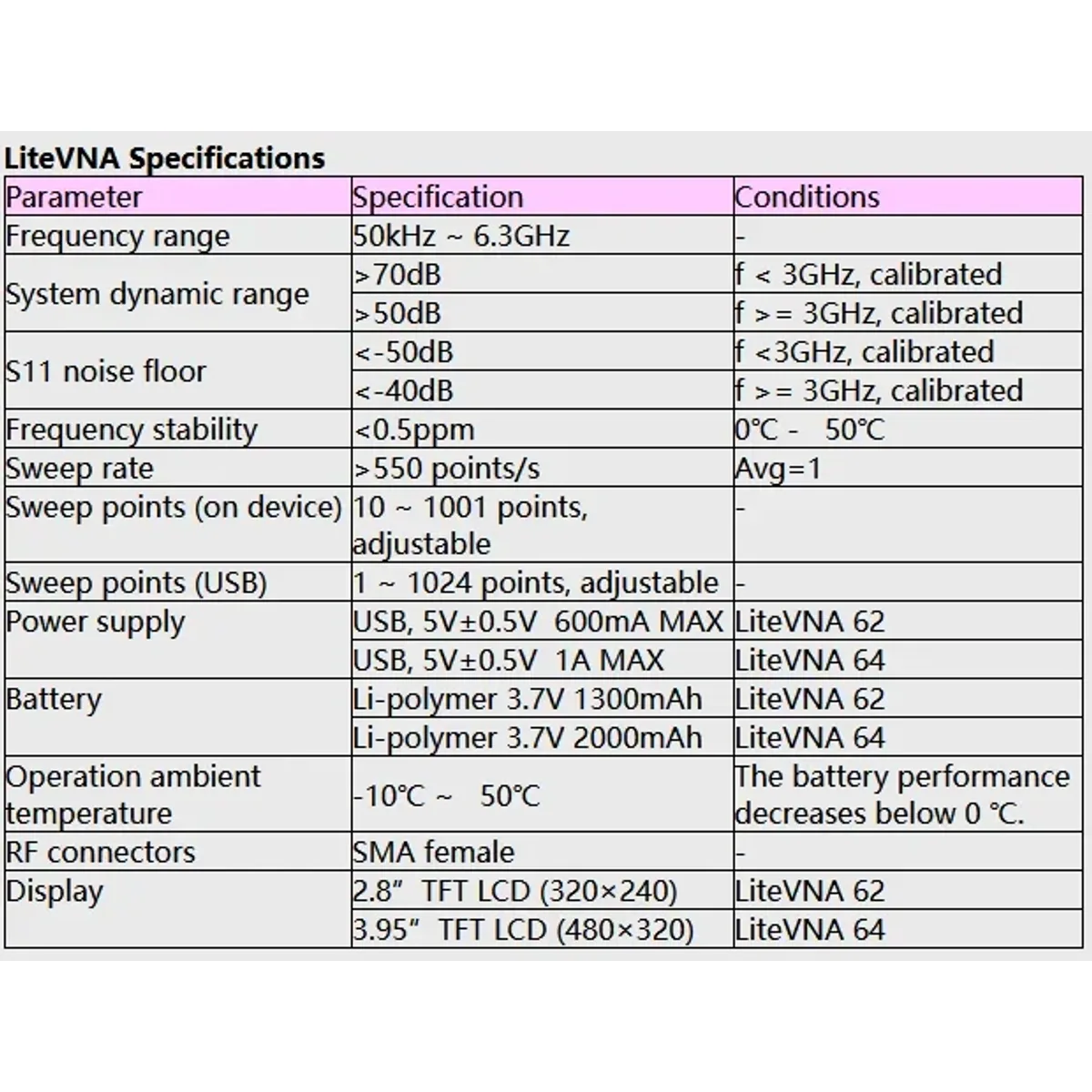

This 4 inch vector network analyser is offered in three models: the LiteVNA 64 (50kHz to 6.3GHz), the NanoVNA-H4 (10kHz to 1.5GHz) and the DeepVNA 101 (10kHz to 1.5GHz). Each is a battery powered hand...
Select an option
£183.99
Fast Shipping
Secure Payment
Easy Returns
Good to know
Questions about this product
- Which model should I choose?

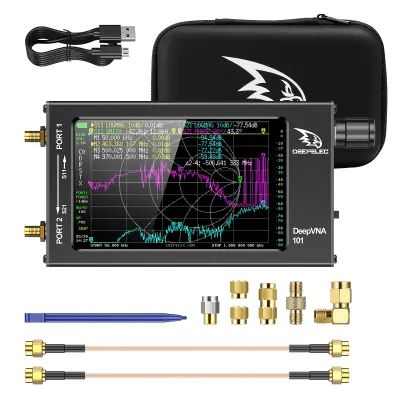

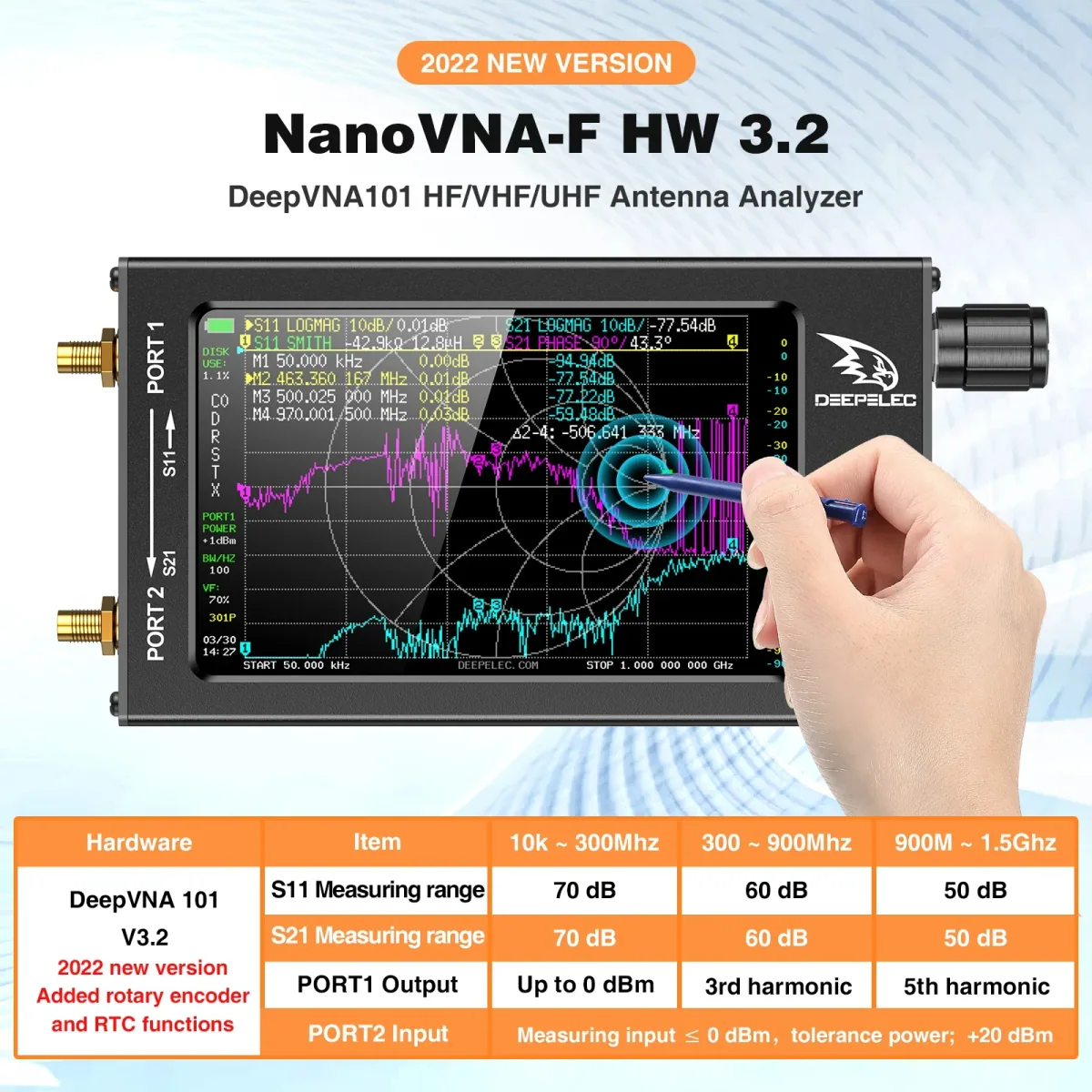

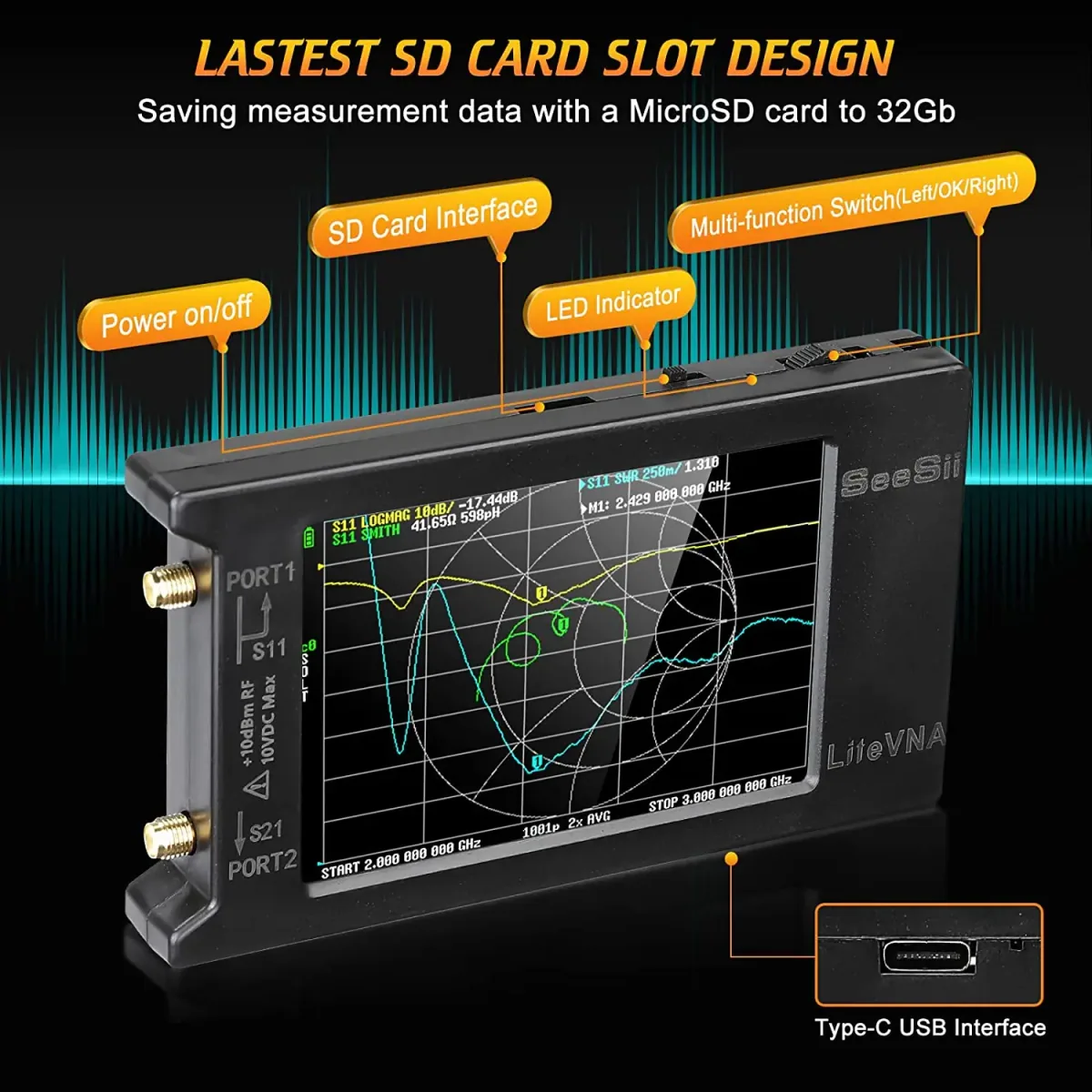

- Choose the LiteVNA 64 for work above 1.5GHz, such as 5.8GHz antennas and links, or where TDR and DTF are needed. The NanoVNA-H4 and DeepVNA 101 cover 10kHz to 1.5GHz for HF, VHF and UHF antenna and filter work; the DeepVNA 101 adds a 4.3 inch screen, a rotary encoder and a zip storage case.
- Do I need to run the open, short and load routine before measuring?

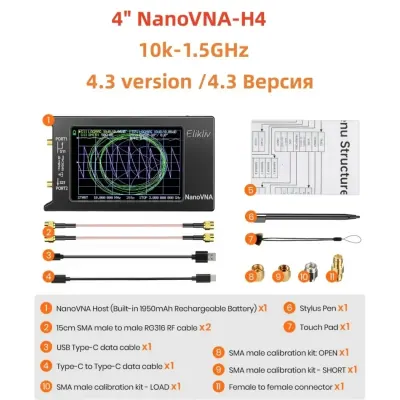

- Yes. Run the correction routine with the SMA open, short and load standards over the frequency range you plan to use, at the end of the cables you measure through. The status letters at the left of the screen show which correction steps are applied.
- What is the maximum input to the ports?
- The LiteVNA 64 and NanoVNA-H4 are marked +10dBm RF and 10VDC maximum, and the DeepVNA 101 port 2 tolerates +20dBm. Never connect a transmitter directly, and discharge static before connecting cables.
