Will these wraps fit batteries other than the 18650 size?

These pre-cut wraps measure 72 millimeters long and 29.5 millimeters wide when flat. They are sized specifically for standard 18650 battery cells. You cannot use them on larger battery sizes like 21700, but you can trim them for shorter cells.

How do I apply these wraps to my batteries?

Slide your battery into the sleeve, leaving a small, even overhang on both ends. Use a heat gun set between 80°C and 100°C to shrink the PVC wrap tightly. Keep the heat moving constantly to avoid damaging the battery or melting the plastic.

Do these wraps provide proper electrical insulation to prevent short circuits?

Yes, these PVC wraps provide excellent insulation with a dielectric strength of about 15 kilovolts per millimeter. They also carry a VW-1 flammability rating to help prevent dangerous electrical shorts. Never use an 18650 battery with a torn wrap, as exposed metal poses a serious safety hazard.

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

Name: Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment
Brand: Compel
SKU: BATT-00051
Price: 9.95 USD
Availability: InStock

Stock #:CMP-01664

SKU:BATT-00051

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment - Image 1

$9.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

Quantity

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

$9.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Will these wraps fit batteries other than the 18650 size?: These pre-cut wraps measure 72 millimeters long and 29.5 millimeters wide when flat. They are sized specifically for standard 18650 battery cells. You cannot use them on larger battery sizes like 21700, but you can trim them for shorter cells.
How do I apply these wraps to my batteries?: Slide your battery into the sleeve, leaving a small, even overhang on both ends. Use a heat gun set between 80°C and 100°C to shrink the PVC wrap tightly. Keep the heat moving constantly to avoid damaging the battery or melting the plastic.
Do these wraps provide proper electrical insulation to prevent short circuits?: Yes, these PVC wraps provide excellent insulation with a dielectric strength of about 15 kilovolts per millimeter. They also carry a VW-1 flammability rating to help prevent dangerous electrical shorts. Never use an 18650 battery with a torn wrap, as exposed metal poses a serious safety hazard.

Batteries spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare batteries

This product

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

Price$9.95

Rating4.9

Sold10,000+

Stock In stock

You're viewing this

Alternative

18650 Battery PVC Heat Shrink Tubing | Insulated Film Wrap | 130mm-500mm Width

Price$7.95

Rating4.9

Sold1,000+

Stock In stock

View

Alternative

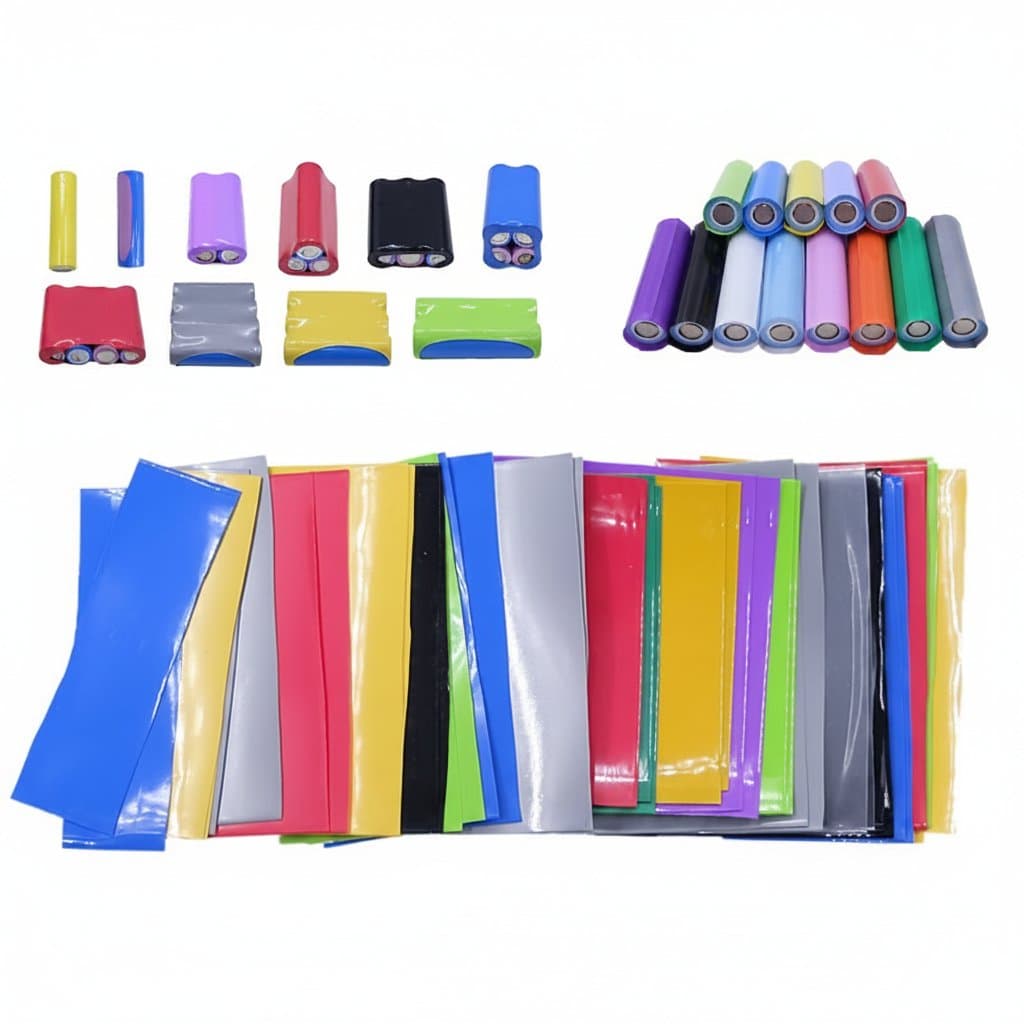

18650 Battery Heat Shrink Wrap | Precut PVC Sleeves for 1S-4S Battery Packs | 25-100 Pieces

Price$5.95

Rating4.9

Sold700+

Stock In stock

View

Alternative

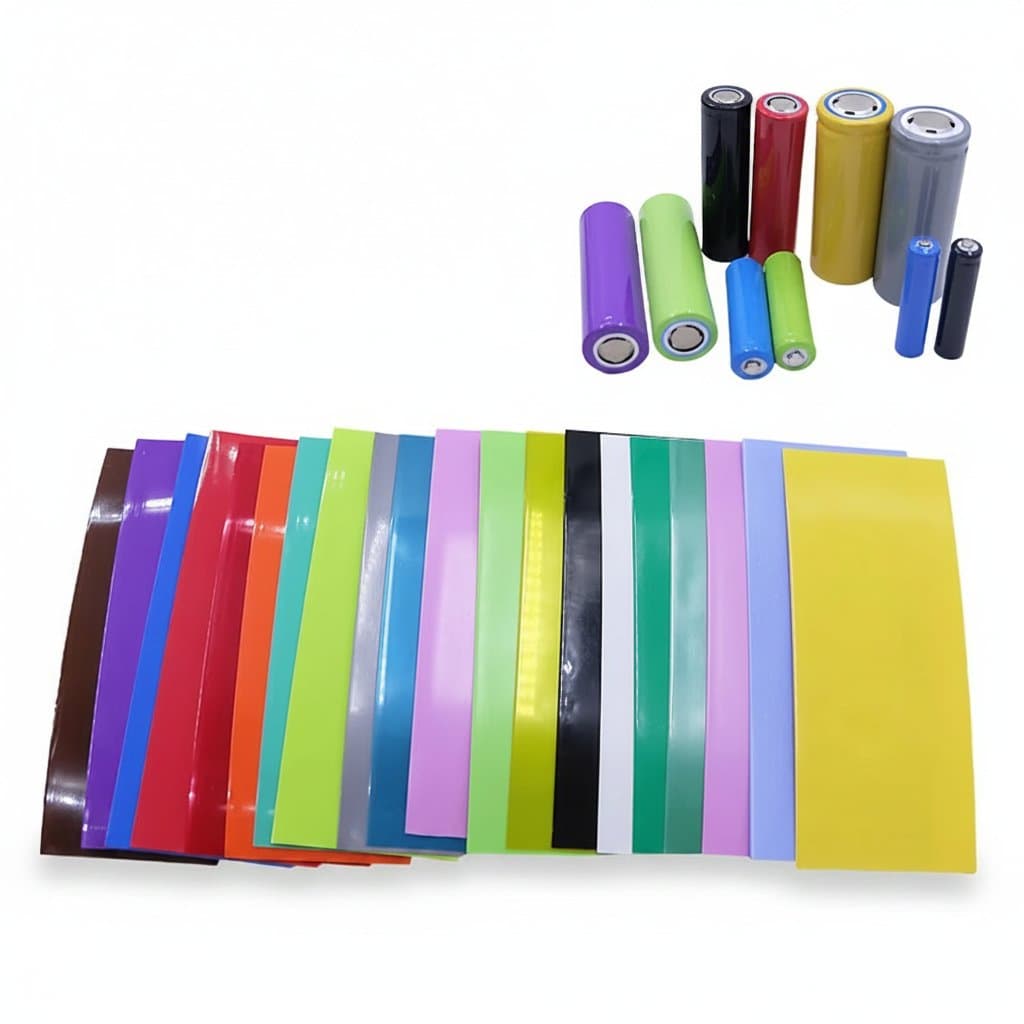

18650/21700/26650 Battery PVC Heat Shrink Wrap | Precut Insulated Film | 20/100/300 Pcs

Price$5.95

Rating4.8

Sold1,000+

Stock In stock

View

Compare options

More Batteries

All Batteries

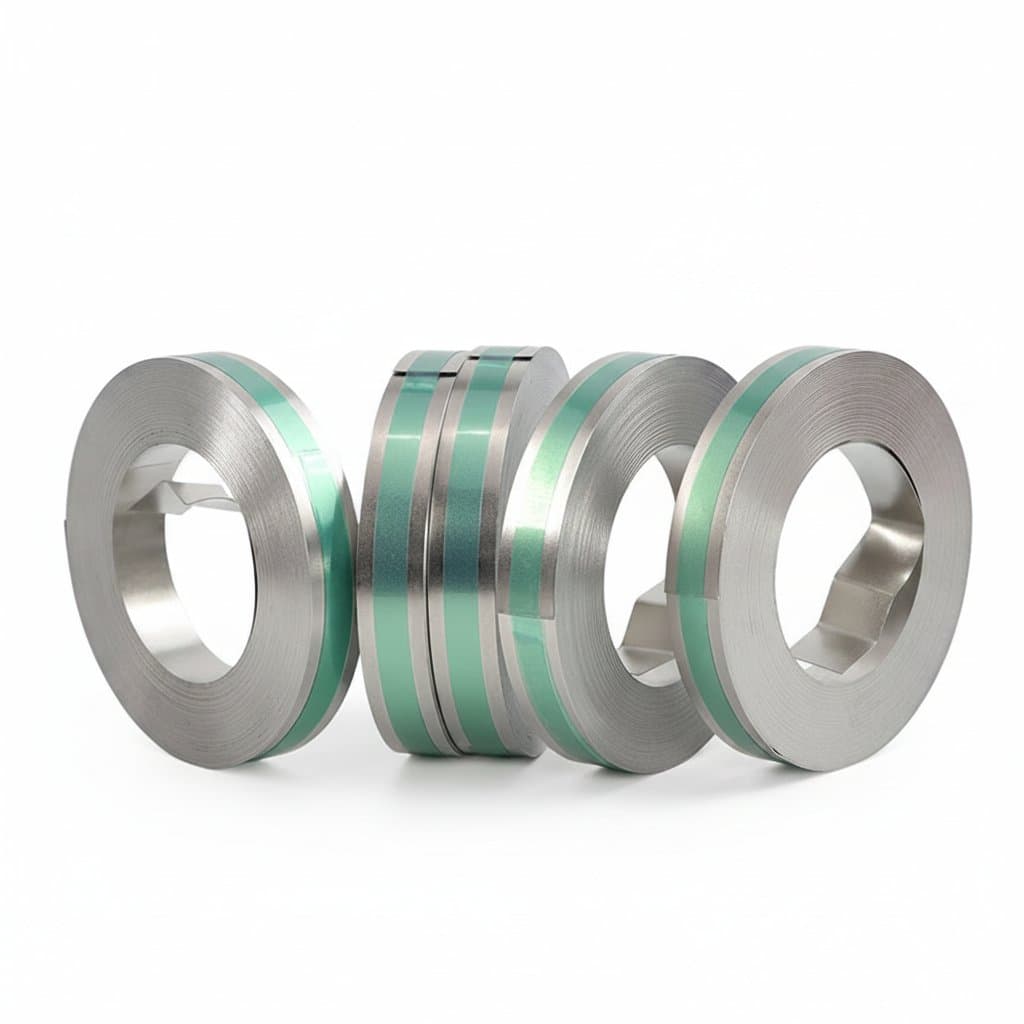

Nickel Plated Strip | 0.1mm x 10m for 18650 Battery Spot Welding | Steel Connector

4.9

$6.95

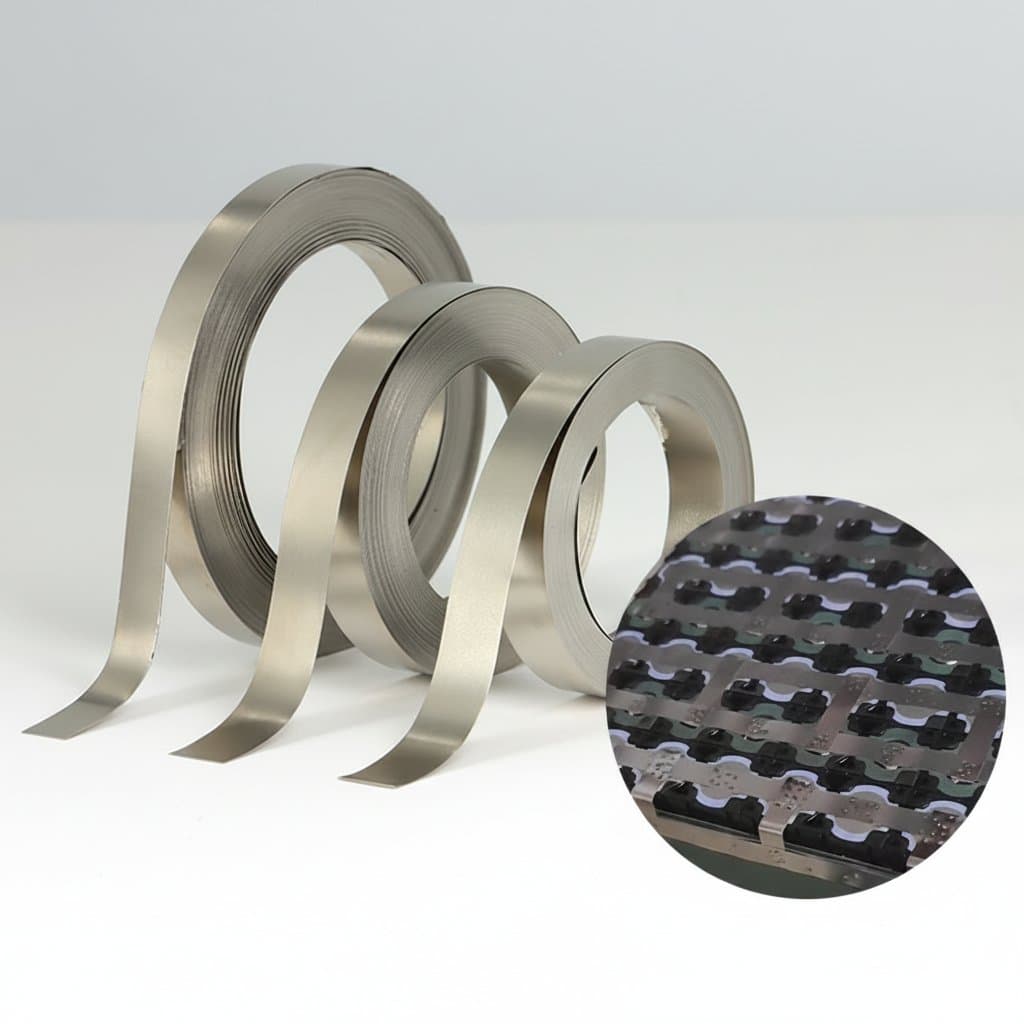

18650 Battery Nickel Strip | Li-ion Cell Connector | 0.15mm x 10m Spot Welding Strip

4.9

$5.95

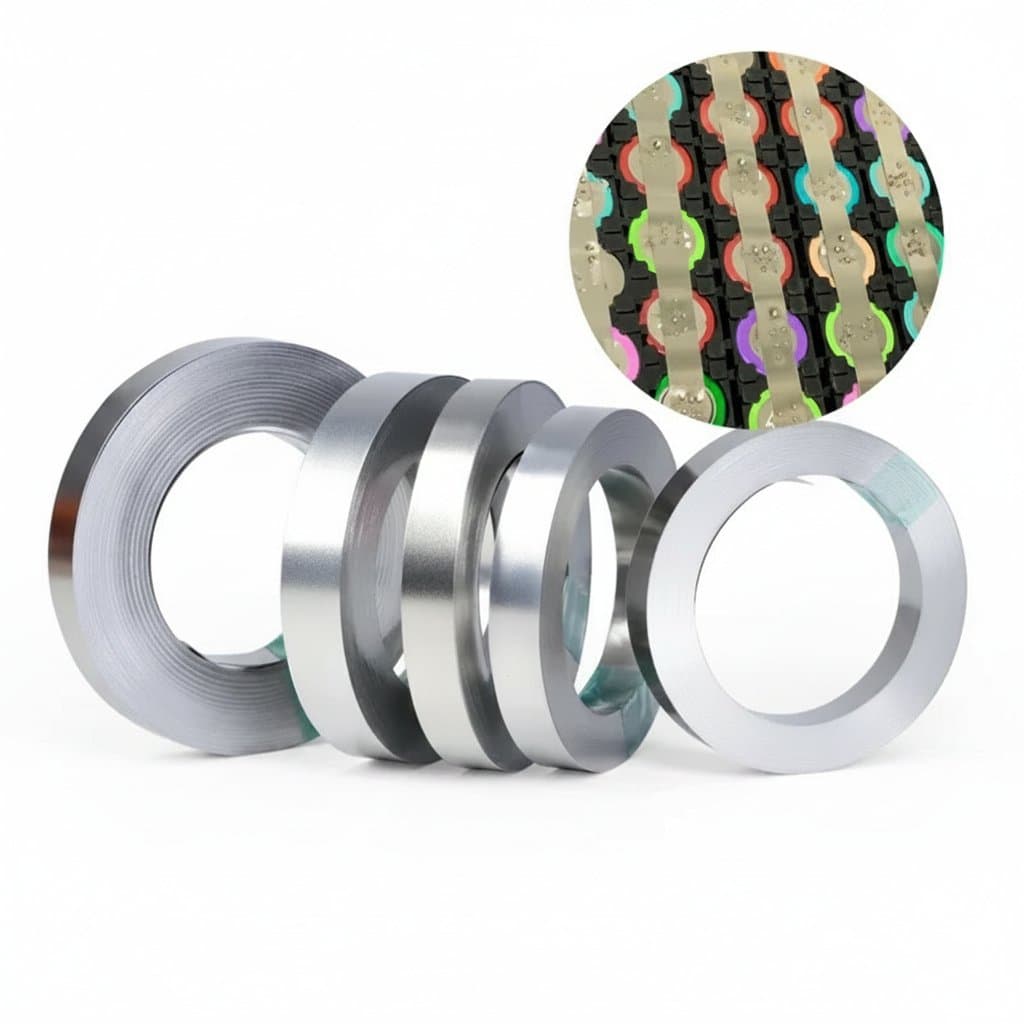

Nickel Plated Steel Strip | 18650 Battery Connector | 10m Roll, 0.15mm Thickness

4.8

$7.95

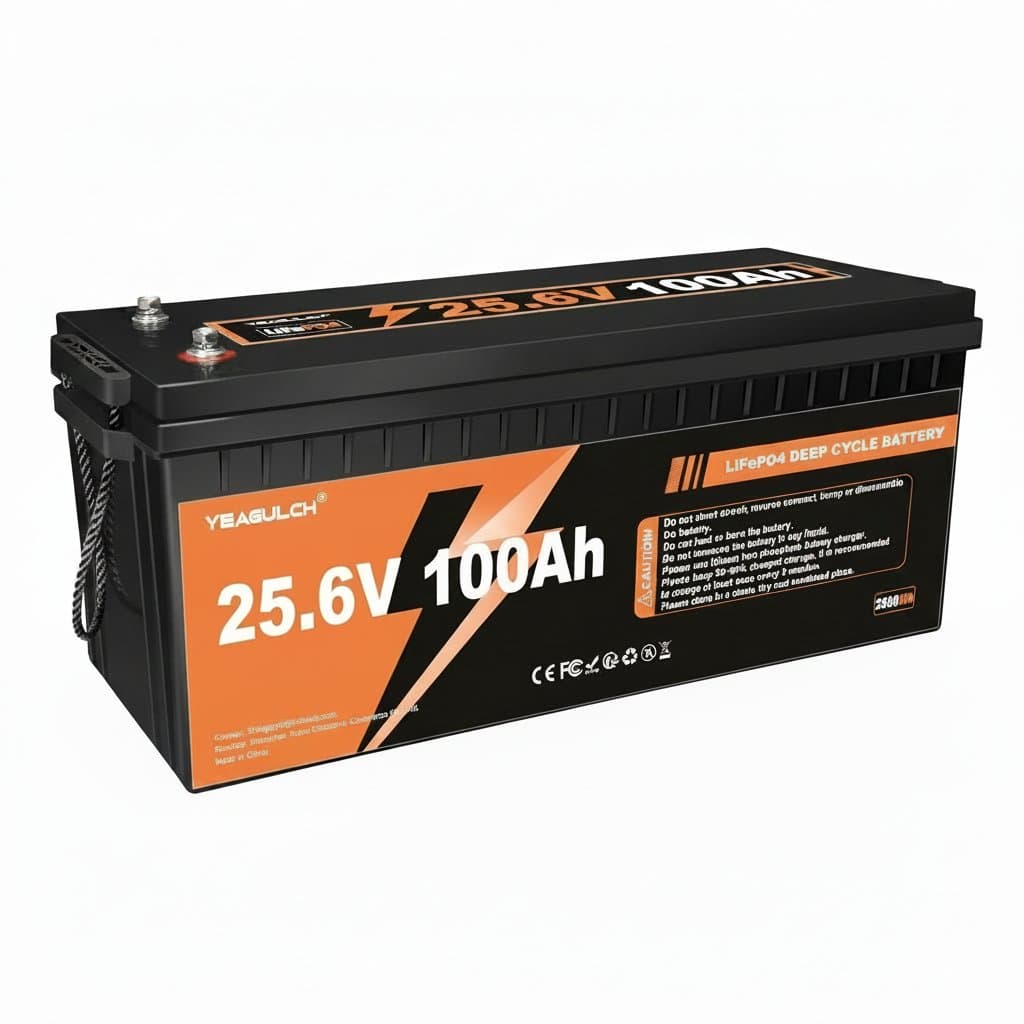

24V 100Ah LiFePO4 Battery | 2560Wh Solar & RV Power | Home Backup Energy Storage

5.0

$819.99

Outdoor Electronics Enclosure | ABS Plastic Housing | Customizable Controller Case

$38.95

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

AC/DC Power Adapter | 5V 12V 24V Output | 10A Max for LED Strips & Camera Systems

4.8

$6.95

-18%

Smart Plug | 16A/20A EU Socket with Energy Monitoring | Voice Control for Alexa & Google Home

4.7

$10.99$13.33

5-in-1 SD Card Reader | USB-C, Micro & USB-A | For Android & PC OTG

4.7(2.6K)

$5.95

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

$8.95

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

$5.95

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

$9.95

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

$5.95

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

$14.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

$11.99

HDD Caddy | Replaces 9.5mm/12.7mm DVD Bay | SATA 3.0 SSD Adapter

4.9(444)

$7.95

Bay 2.5 to 3.5 Bracket | Includes SATA Cable Set | Metal SSD Mount

4.9(327)

$13.99

Cable Set | 7 Pin to SAS 12Gbps | For Server & NAS Hard Drives

4.9(123)

$26.95

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

$9.95

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

$17.99

M.2 2230 NVMe SSD to CFexpress Adapter | Drive Accessory for Pro Cameras

4.9(148)

$46.95

This heat shrink tubing assortment provides protection for 18650 lithium batteries. The flat PVC material shrinks when heated, forming a tight cover around battery cells. It helps insulate and organize batteries for various electronics projects and repairs. Features and Benefits - Flat PVC material - conforms tightly to battery shape - Shrinks with heat - provides a secure, insulating layer - Designed for 18650 batteries - ensures a proper fit - 100-piece kit - offers a supply for multiple uses Applications - Insulating individual 18650 battery cells - Repairing damaged battery wraps - Organizing battery packs

Product Type: Heat Shrink Tubing. Application: Battery Wrap. Compatibility: 18650 Cells. Material: PVC. Form Factor: Flat. Quantity: 100 Pieces. Color: Assorted. Shrink Ratio: 2:1 (approximate). Material Composition: Polyvinyl Chloride (PVC). Flat Width (before shrinking): Approximately 29.5 mm. Length (each piece): Approximately 72 mm. Wall Thickness (before shrinking): Approximately 0.1 mm. Operating Temperature Range: -40°C to +105°C. Minimum Shrinkage Temperature: Approximately 80°C. Full Shrinkage Temperature: Approximately 100°C. Dielectric Strength: Approximately 15 kV/mm. Tensile Strength: Approximately 18 MPa. Elongation at Break: Approximately 250%. Flammability Rating: VW-1. Resistance to Acids: Good. Resistance to Alkalis: Good. Resistance to Solvents: Moderate. UV Resistance: Limited. RoHS Compliance: Yes. Packaging: Bagged assortment. Q: What is the primary use of this heat shrink tubing? A: This heat shrink tubing is primarily used for insulating and protecting 18650 lithium-ion battery cells. It provides an additional layer of protection against short circuits and physical damage.. Q: How do I apply this heat shrink tubing to a battery cell? A: To apply, slide a piece of tubing over the 18650 cell. Then, use a heat gun or other controlled heat source to evenly heat the tubing until it shrinks tightly around the battery. Avoid overheating the battery itself.. Q: Is this heat shrink tubing suitable for all 18650 battery sizes? A: This tubing is specifically sized for standard 18650 cells, which typically have a diameter of 18 mm and a length of 65 mm. It may not fit protected 18650 cells that are slightly longer or wider due to their integrated protection circuit.. Q: Does this product provide electrical insulation? A: Yes, PVC heat shrink tubing offers effective electrical insulation for battery cells. It helps prevent accidental short circuits, especially when batteries are used in multi-cell configurations or handled frequently.. Q: Can this tubing be reused after shrinking? A: No, once PVC heat shrink tubing has been shrunk onto a component, it cannot be effectively removed and reused. If removal is necessary, the tubing must be carefully cut off and replaced with a new piece..
