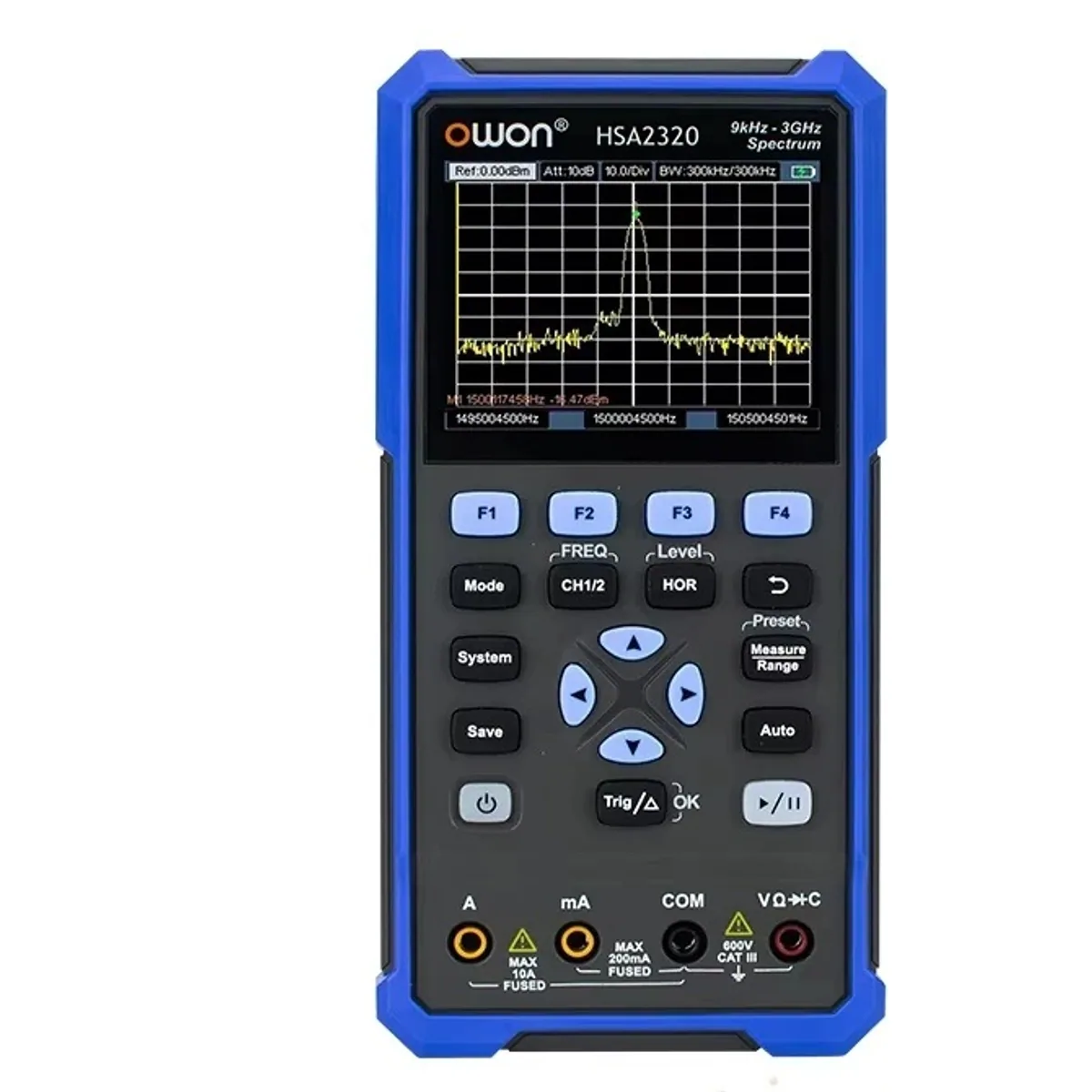

Handheld Spectrum Analyser HSA2000 | 1.5 or 3GHz | Scope and Multimeter

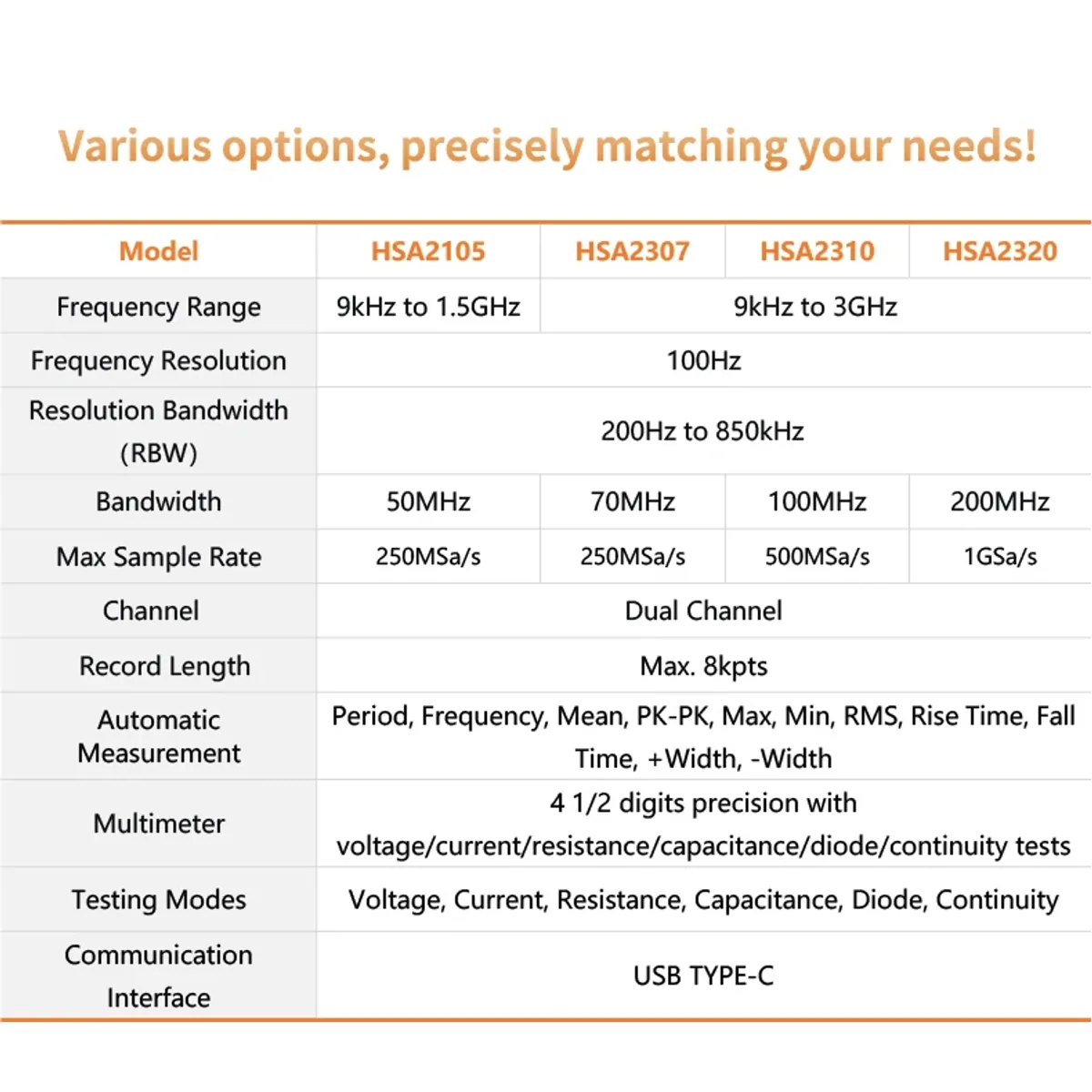

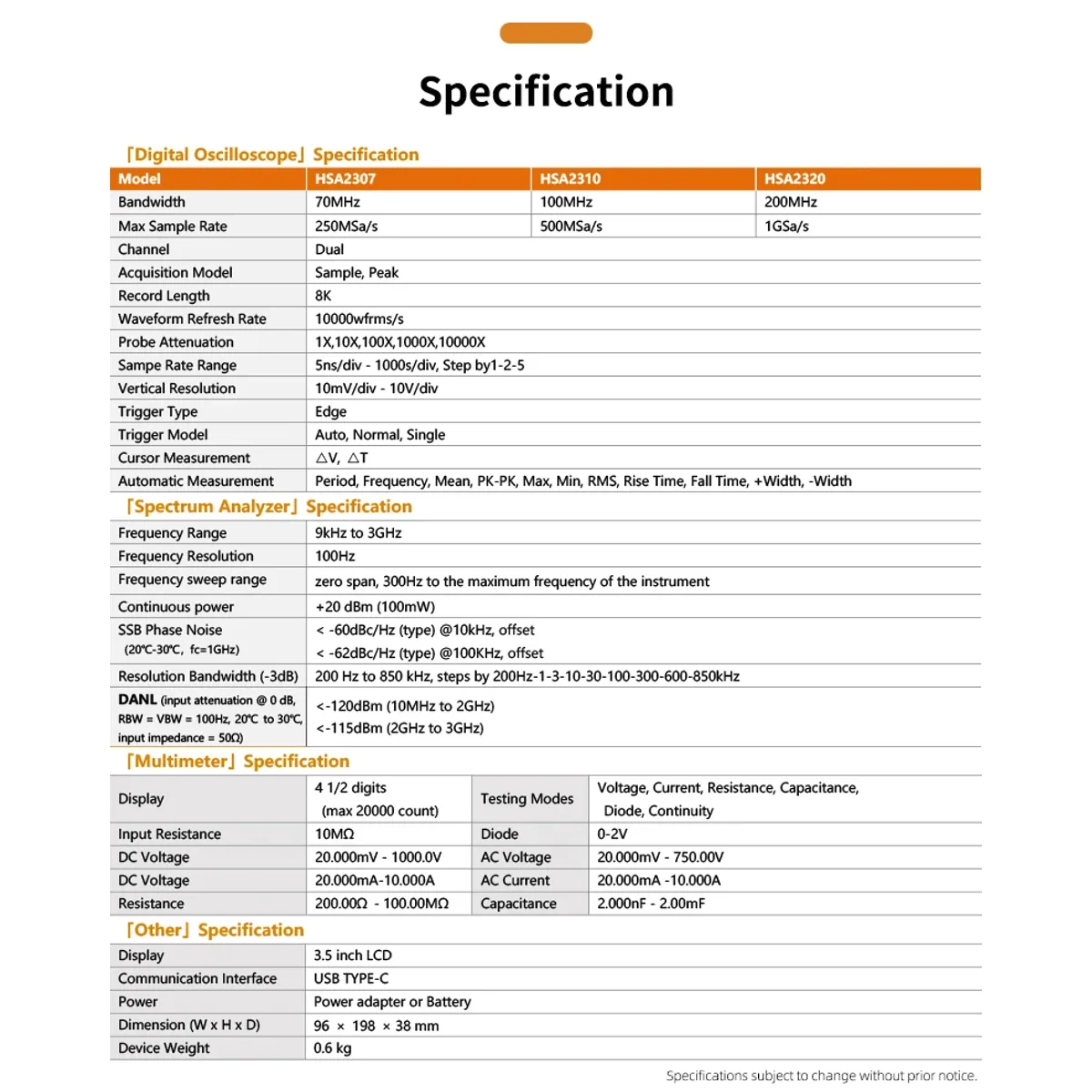

The HSA2000 series is a handheld spectrum analyser, dual channel oscilloscope and 4 1/2 digit true RMS multimeter in one unit, covering 9kHz to 1.5GHz (HSA2105) or 9kHz to 3GHz (HSA2307, HSA2310, HSA2320), with oscilloscope bandwidths from 50MHz to 200MHz depending on the model. Features and Benefits - Three instruments in one - switch between spectrum analyser, oscilloscope and multimeter with the Mode key. - Spectrum analyser - 100Hz frequency resolution, RBW from 200Hz to 850kHz and DANL below -120dBm from 10MHz to 2GHz. - Model choice - 50MHz at 250MSa/s (HSA2105), 70MHz at 250MSa/s (HSA2307), 100MHz at 500MSa/s (HSA2310) or 200MHz at 1GSa/s (HSA2320). - Oscilloscope - 2 channels, 8K record length, 10,000 wfrms/s refresh rate, 5ns/div to 1000s/div timebase and 12 automatic measurements. - True RMS multimeter - 4 1/2 digits with a 20000 count maximum, DC voltage to 1000V, AC voltage to 750V, current to 10A, plus resistance, capacitance, diode and continuity. - Saves your work - 4 setups, 4 reference waveforms, 4 screenshots and 4 CSV waveform files, with USB Type-C for the PC. - Built for site use - rubber coated case, acrylic screen protector, fold out stand and a replaceable 18650 battery. Applications - EMI pre-testing and interference hunting with a near-field probe (not included) - RF signal and base station coverage checks in the field - Electronics repair where a scope and a meter are both needed - Mains voltage and current checks with the true RMS meter In the box - 1 x main unit (HSA2105, HSA2307, HSA2310 or HSA2320) - 2 x oscilloscope probes - 1 x pair of multimeter test leads - 1 x USB Type-C cable - 1 x soft carry bag - 1 x quick guide - 1 x USB plug adapter, EU type Note: Keep every input within the limits printed beside it; the RF IN port is marked max +20dBm / 50V DC. The supplied plug adapter is EU type, so use a UK adapter or a UK USB charger.
