High Voltage Probe | 40kV DC, 28kV AC Multimeter Probe | 1000:1 Divider

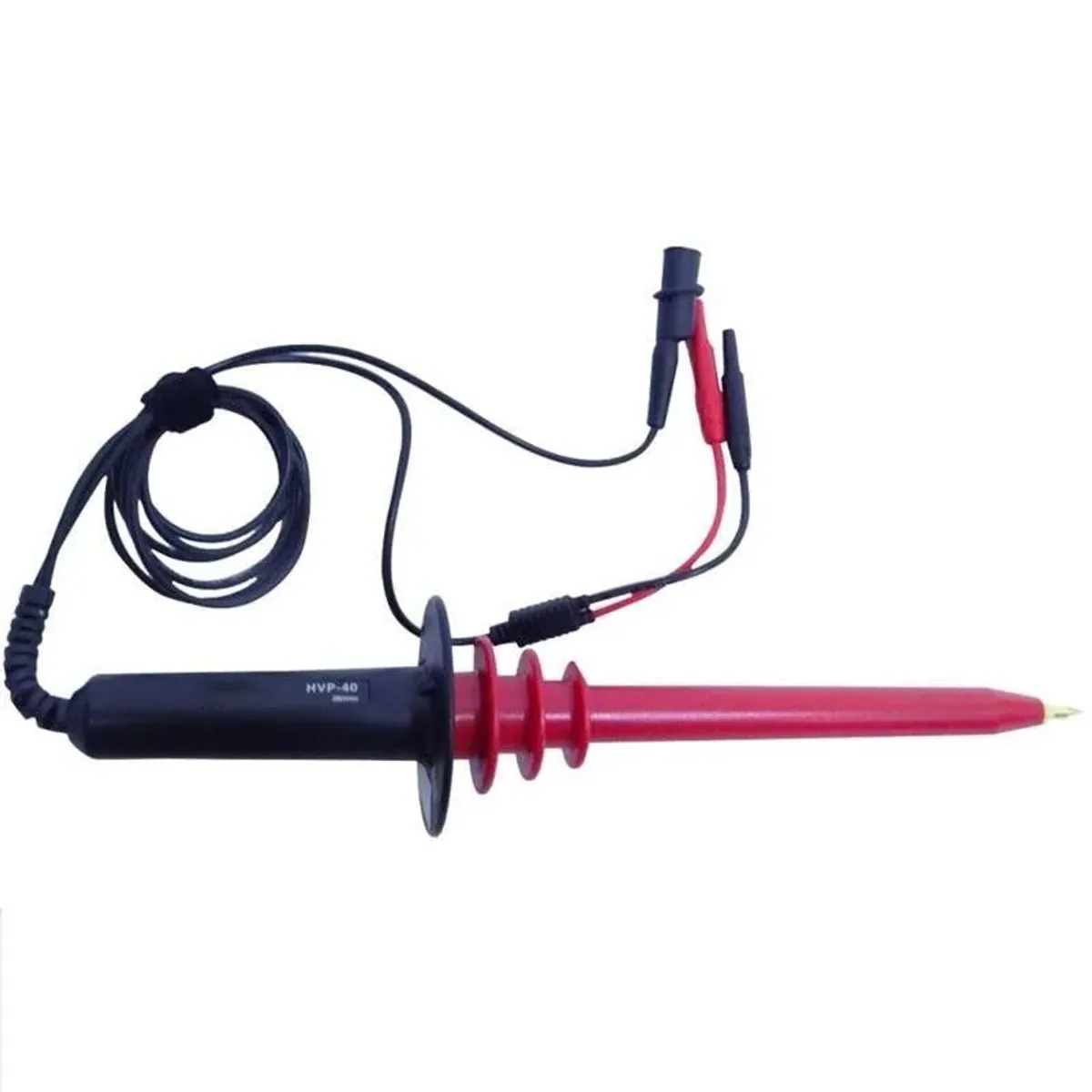

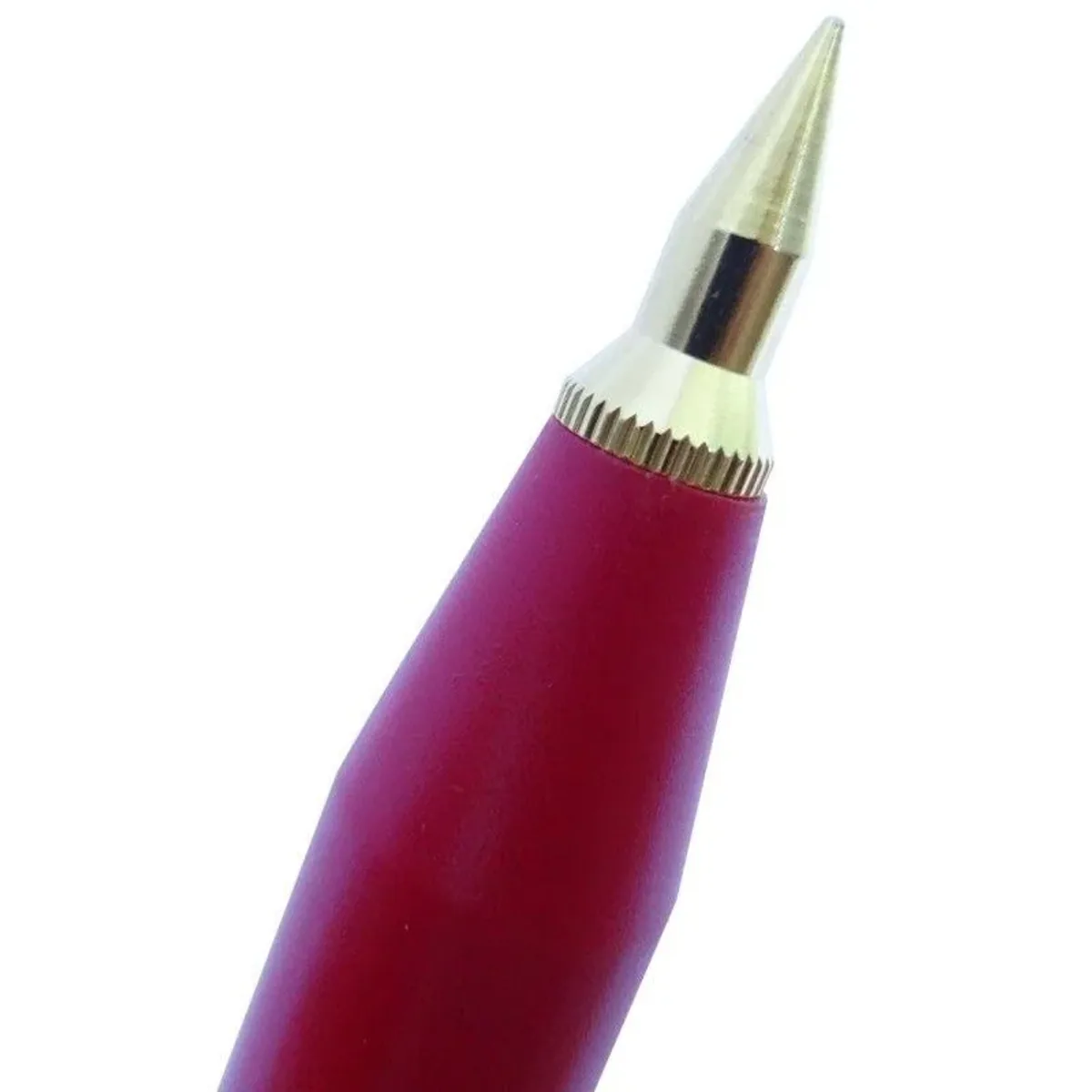

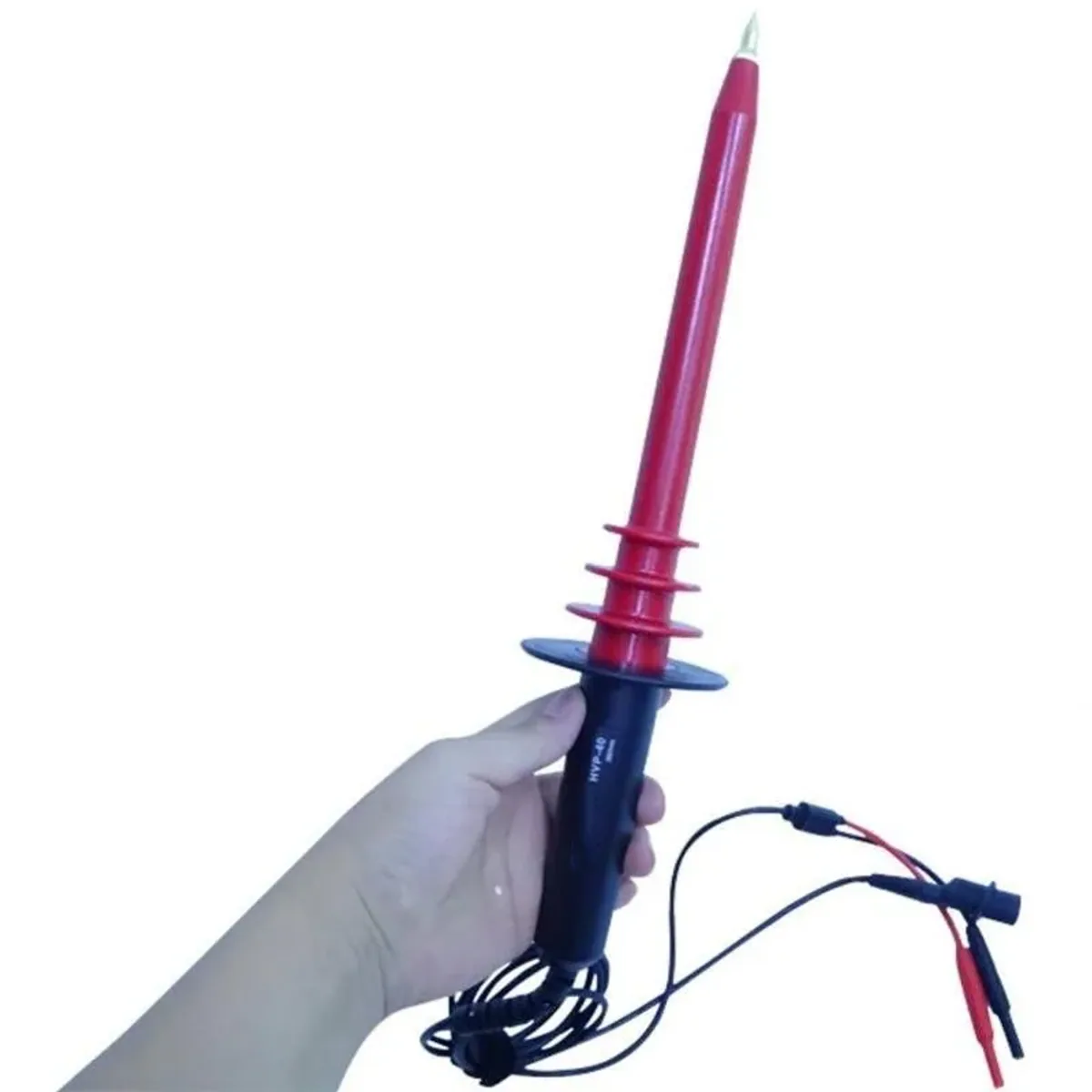

This high voltage probe is a 1000:1 divider that lets a digital multimeter read up to 40kV DC and 28kV AC at 50/60 Hz, with 1000 MΩ input impedance. Plug it into a DMM with 10 MΩ input impedance and every 1 V on the display equals 1 kV at the probe tip. Features and Benefits - 1000:1 division ratio - simple scaling: 1 V reads as 1 kV and 10 V as 10kV - 1000 MΩ input impedance - light loading on the circuit, with a maximum load current of 40 µA at 40kV DC - Positive and negative polarity - measures DC high voltage of either polarity - Stated accuracy - DC ±1% to 20kV and ±2% to 40kV; AC -5% to -10% at 50/60 Hz - Guarded handle - ribbed red shaft with a black hand guard flange between the tip and the grip - Separate leads - 100 cm output cable to the meter and a 90 cm ground lead Applications - Reading DC high voltage up to 40kV on a digital multimeter - Reading 50/60 Hz AC high voltage up to 28kV - Checking positive or negative high voltage outputs - High voltage test and measurement work by trained staff Note: For trained personnel only. Switch off the high voltage supply before connecting, connect the ground lead to a good earth before the tip touches anything, use a DMM with 10 MΩ input impedance and accuracy within ±0.5%, and confirm zero volts with a meter before handling the circuit.
