Capacitor Discharge Pen | Retractable Claw Probes | 1000µF or 5000µF, 1000V

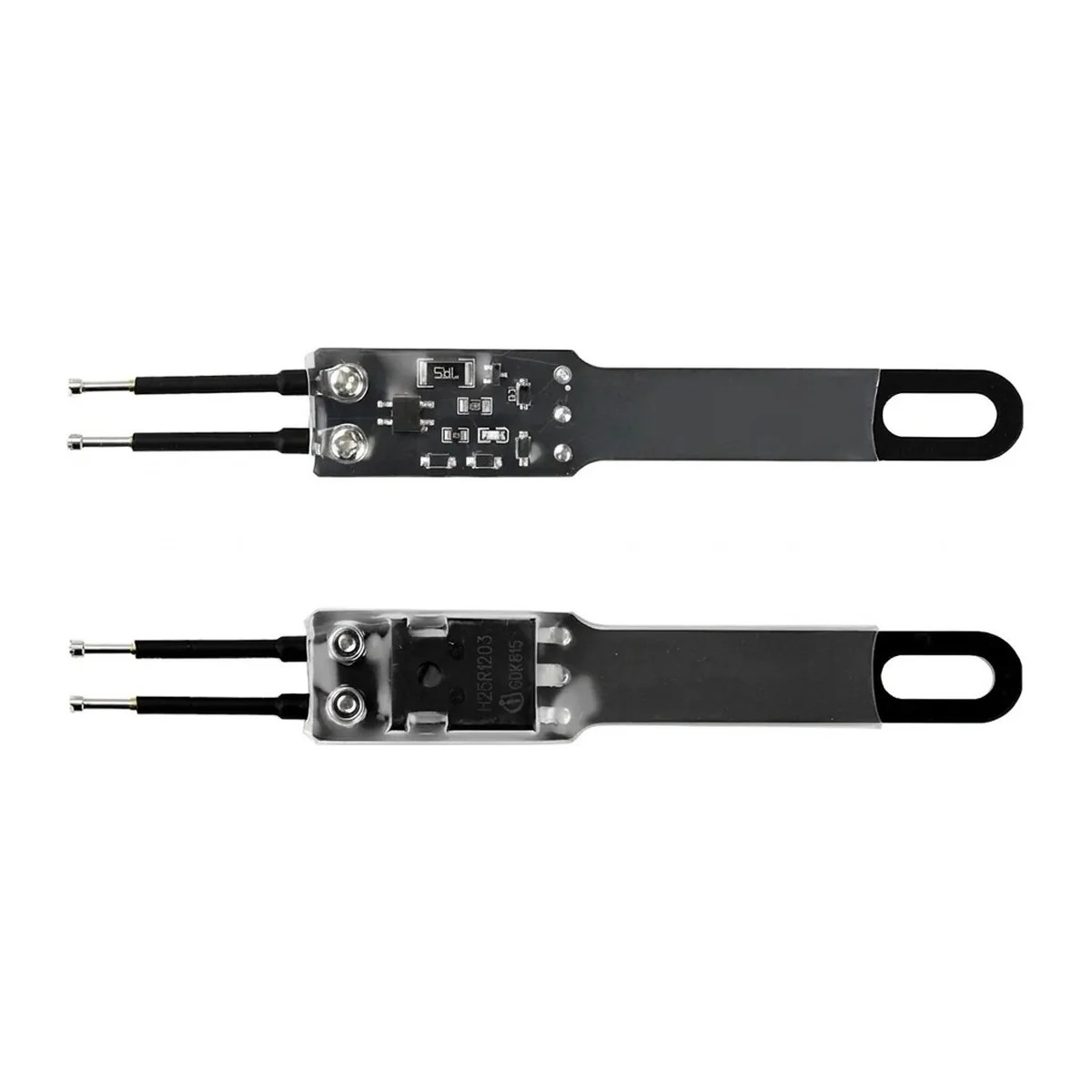

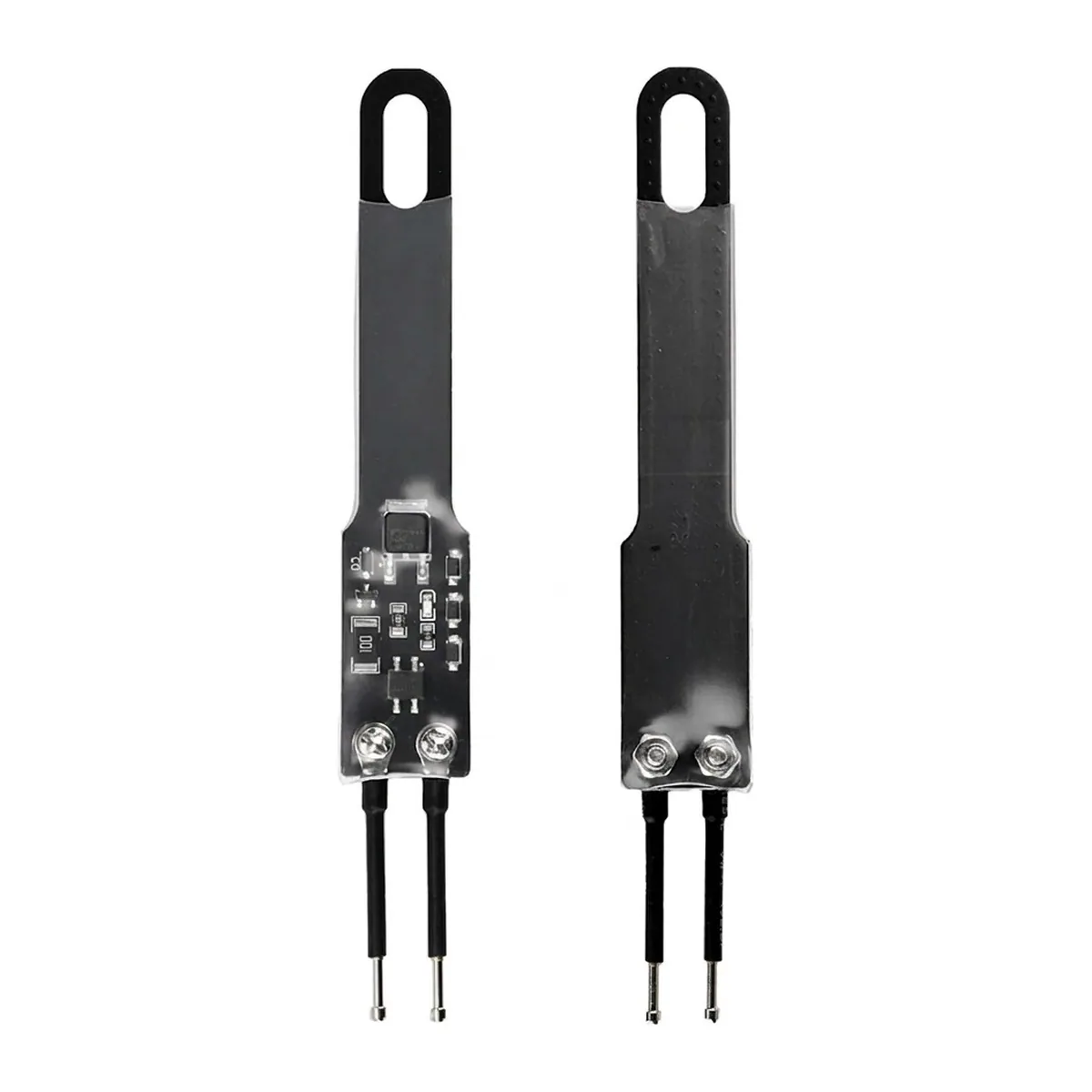

This capacitor discharge pen releases residual charge from capacitors of up to 1000µF or 5000µF, depending on the version, at a maximum supported voltage of AC/DC 1000V. A constant current design keeps the discharge spark free: the 1000µF version clears 1000µF in 1 to 2 seconds and the 5000µF version clears 5000µF in 2 to 3 seconds. The indicator light is on during discharge and goes out at about 6V. Features and Benefits - Constant current, spark free discharge - drains the capacitor without arcing at the terminals. - 1000µF or 5000µF versions - both rated AC/DC 1000V. - Non polarised, spring loaded probes - no polarity check, and the tips retract when pressed. - Multi claw probe tips - they grip capacitor pins and solder joints without slipping. - Heat shrink tubing over the board - high voltage, heat resistant cover for a safer grip. - 132 x 18mm body with a slotted hanging ring - hangs with your other bench tools. Applications - Electronics repair: discharge filter and bulk capacitors before you start work. - Production and testing: clear residual charge from boards between test steps. - Maintenance of electronic equipment whose capacitors keep a charge after power off. Note: Disconnect the power first. This pen is not suitable for low voltage supercapacitors. Do not touch the circuit or exposed metal, and discharge high capacity capacitors in several goes, letting the MOSFET cool in between. About 6V remains when the light goes out, so confirm zero volts with a meter.
