Capacitor Discharge Pen | Tweezer Probes, Double-Sided LED | 1000uF 375V

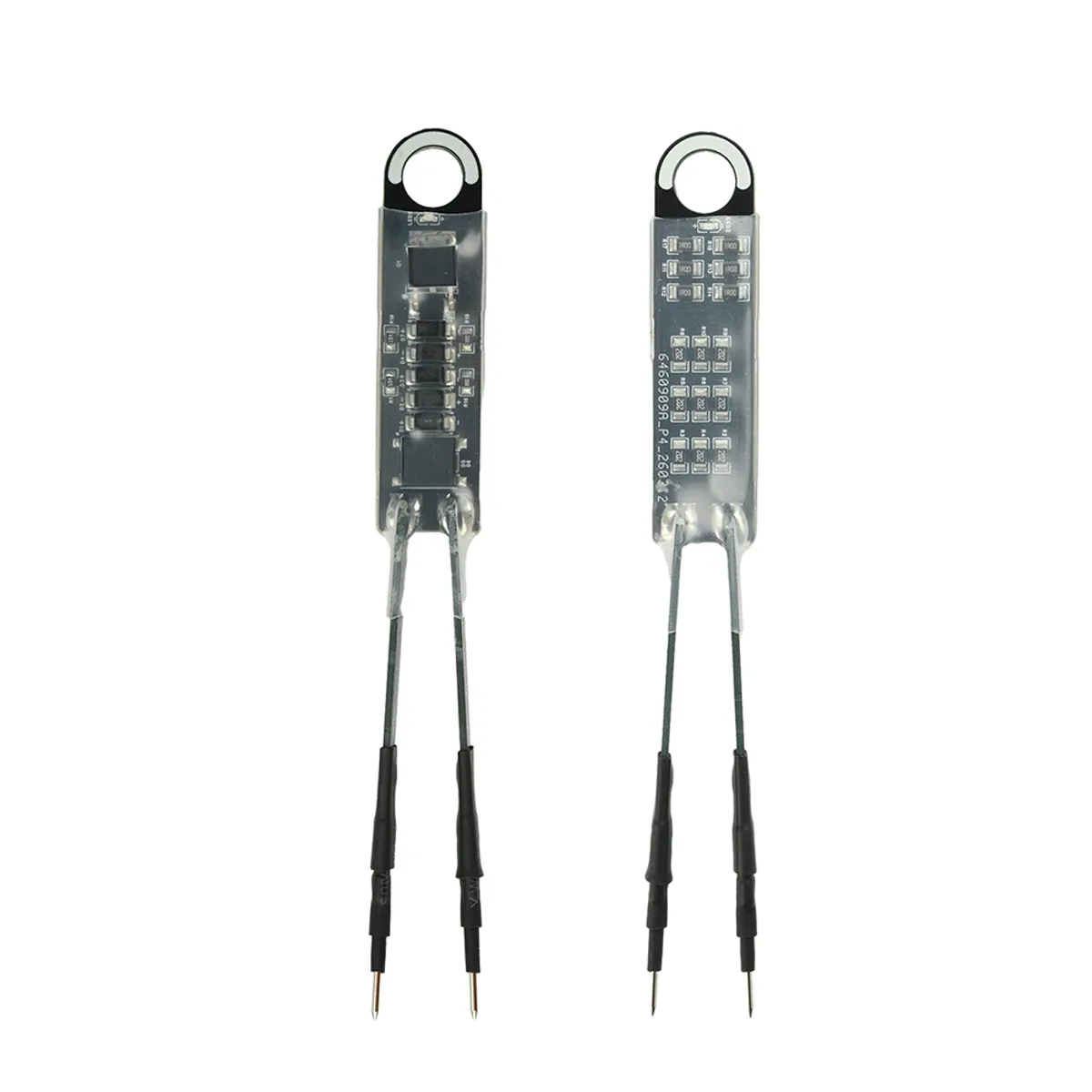

This capacitor discharge pen drains electrolytic capacitors of up to 1000uF at 375V through a pair of tweezer probes, with a published supported range of DC 5 to 375V, DC 10 to 650V and AC up to 260V. It discharges at a constant current of 18mA or less, without a spark, and a double-sided LED stays lit until the voltage falls to about 3.5V. The non-polar probes extend up to 30mm and their spacing adjusts for crowded power boards and SMT parts. Features and Benefits - Tweezer probes with adjustable spacing - grip both terminals of small and SMT capacitors with one hand - Constant current, 18mA or less - spark free discharge that protects the operator and the board - Double-sided LED - readable from either side, out at about 3.5V when discharge is complete - Built-in rectifier - either probe can sit on either terminal - Extendable probes, up to 30mm - more reach and a safer grip distance, retract for storage - Discharge terminates at about 2.3V - the capacitor is brought well down before you lift off Applications - Electrolytic capacitors on switch mode power supply boards after power-off - Electronics repair and power board servicing - Production testing and maintenance of electronic products - SMT components and densely populated boards Note: Power off and disconnect the equipment first, and do not touch the circuit or exposed metal during discharge. Avoid long discharges and let the pen cool after a large capacitor. The LED going out is not proof of a safe circuit: confirm zero volts with a meter before handling.
