Capacitor Discharge Pen | LED Indicator, Spring Probes | 1000µF or 5000µF

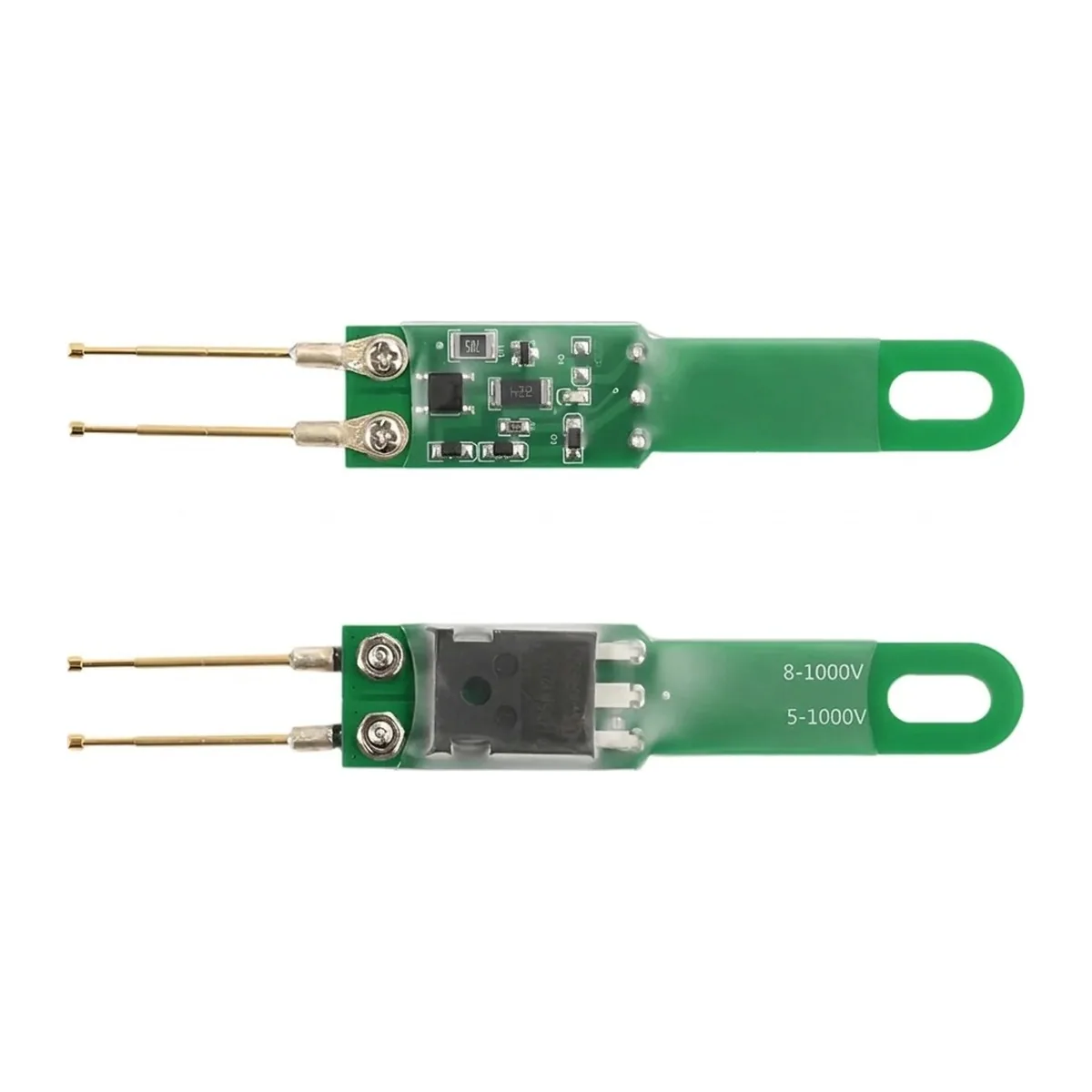

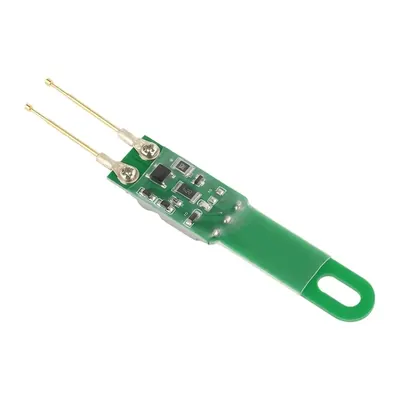

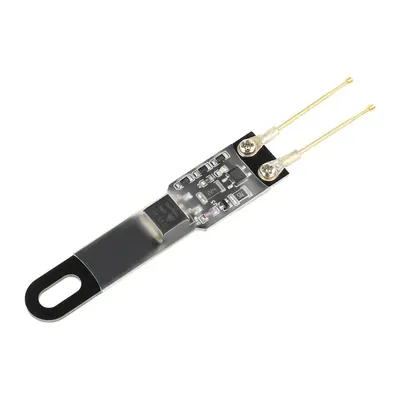

This capacitor discharge pen drains the residual charge from capacitors in electronic equipment, using a black 1000µF board rated AC 8 to 450V and DC 10 to 650V, or a green 5000µF board rated AC 8 to 1000V and DC 5 to 1000V. The LED stays lit while it discharges and goes out at about 6V. Features and Benefits - Two capacity boards - match the pen to the capacitors you work on. - LED discharge indicator - lit during discharge and off at about 6V, so you know when to lift the probes. - No polarity to observe - either probe can go on either leg. - Sprung, adjustable probes - the gold coloured tips retract under pressure, resist crushing and can be set to the pitch of the part. - Automatic, spark-free discharge - the circuit sets the discharge time and keeps the discharge constant. - Slim 119 x 19mm board with hanging loop - fits a tool roll or hangs at the bench. Applications - Draining capacitors in switching power supplies before repair - Production, testing and maintenance of electronic products - Bench repair of boards that hold a charge after switch off - Protecting the technician from shock and the product from damage Note: Disconnect the power before use. This pen is for capacitors only and cannot be used to discharge batteries. Do not touch the circuit or exposed metal during discharge, and avoid long continuous use. About 6V can remain when the LED goes out, so confirm zero volts with a meter before you work.
