Digital Capacitor Discharge Tool | 10 to 1000V Voltage Display | FDQ1A or FDQ1

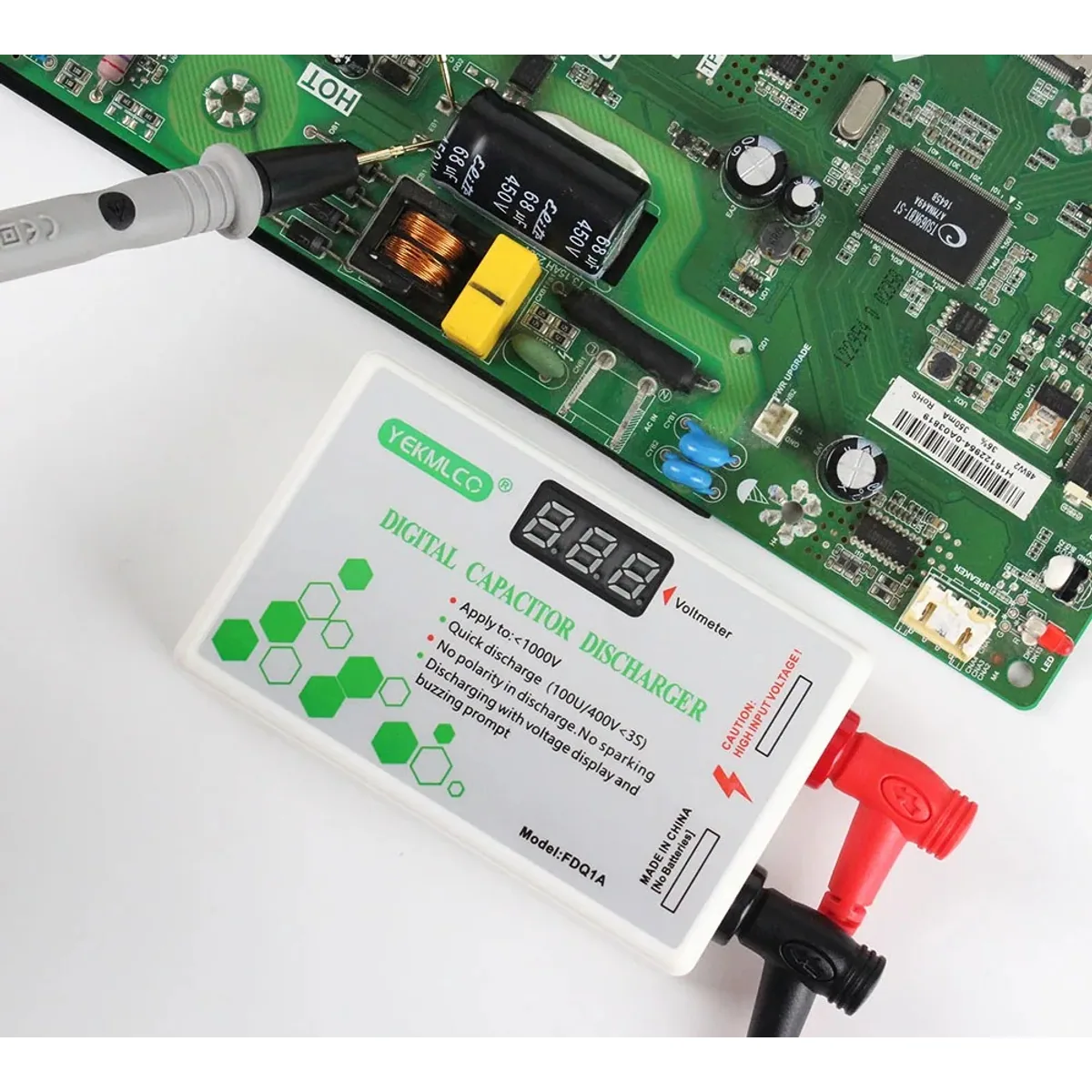

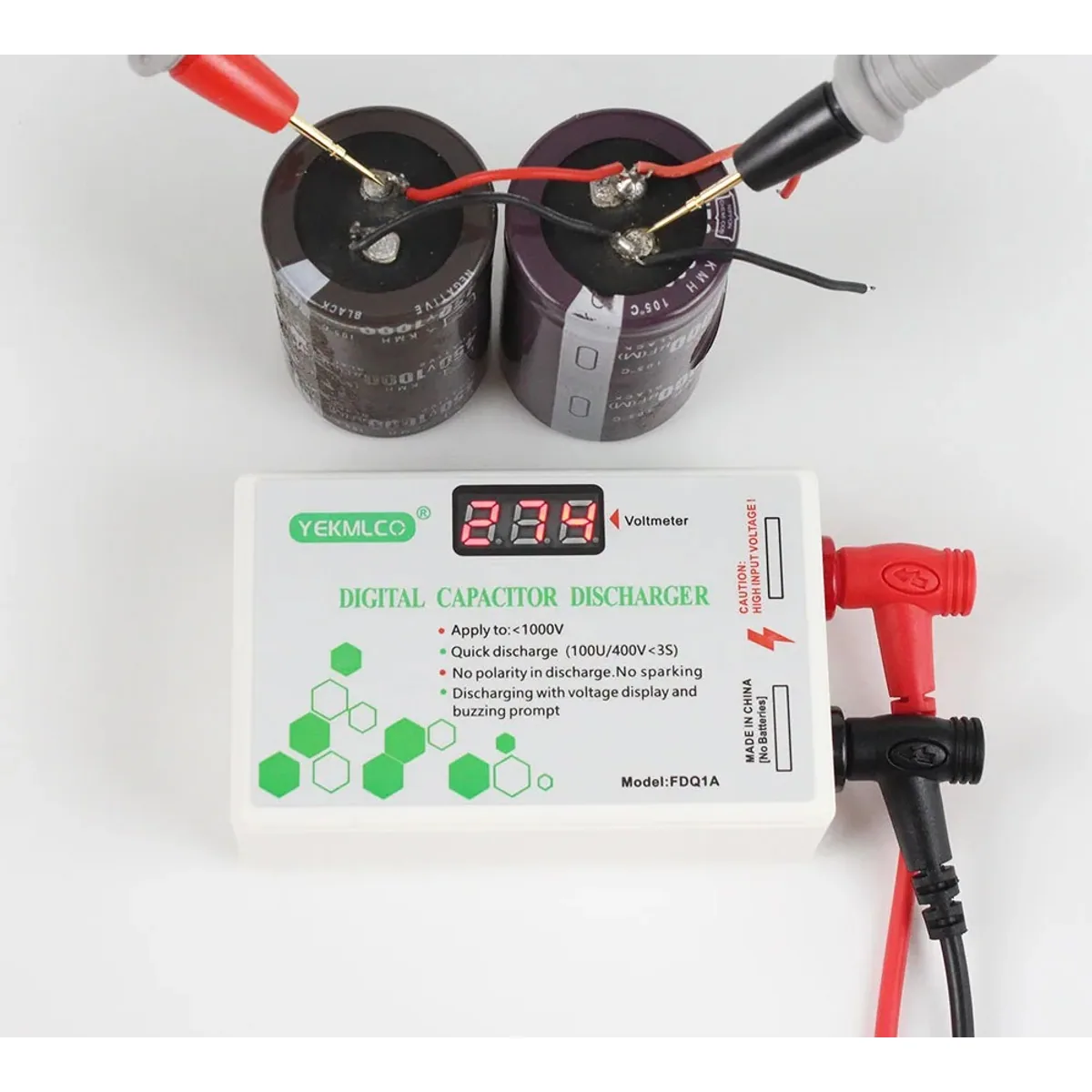

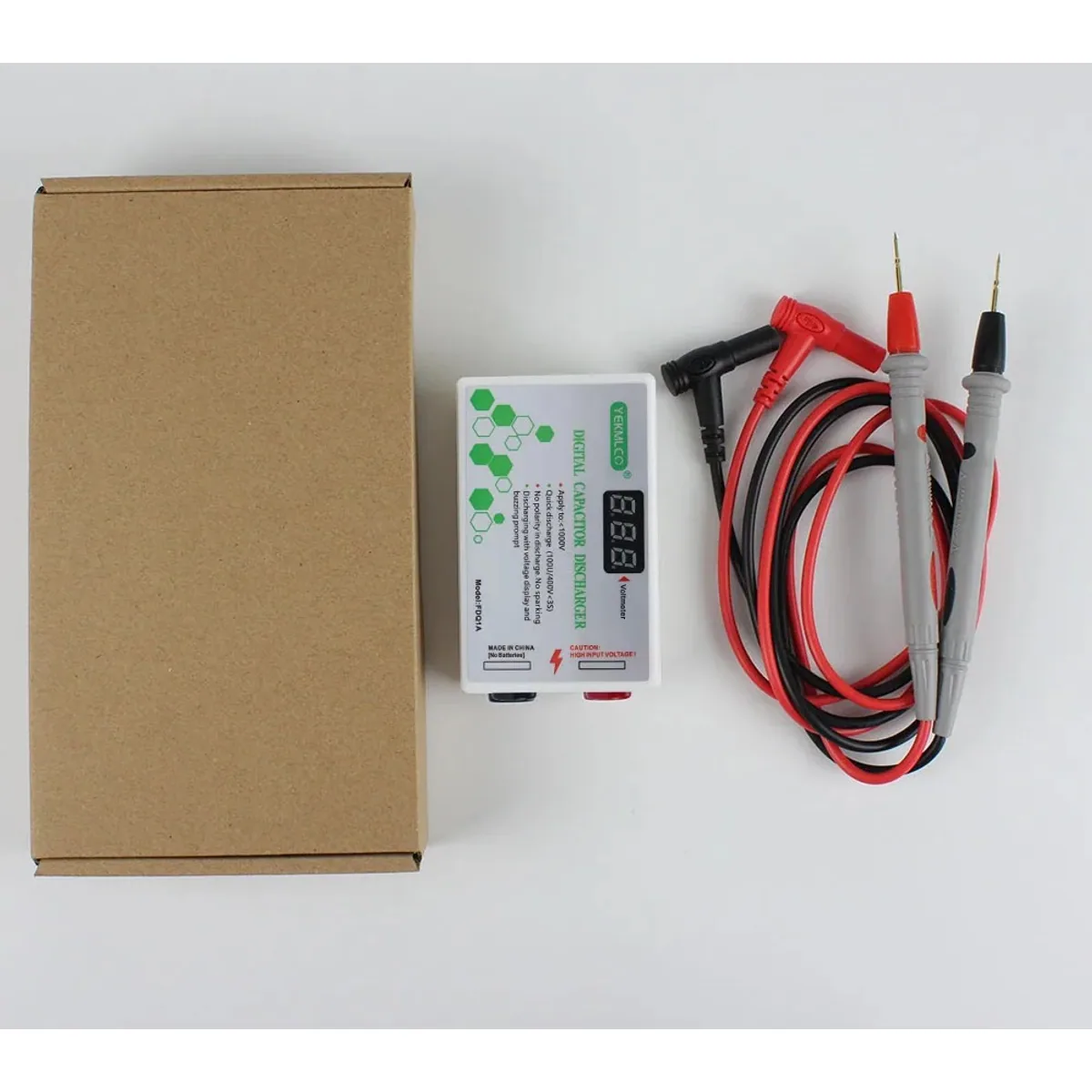

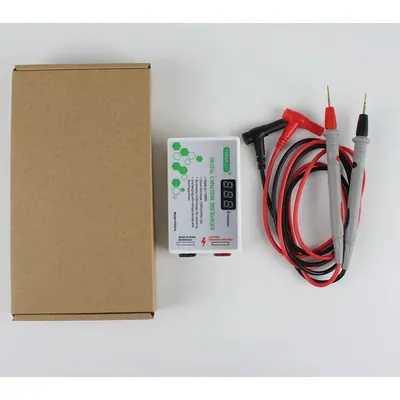

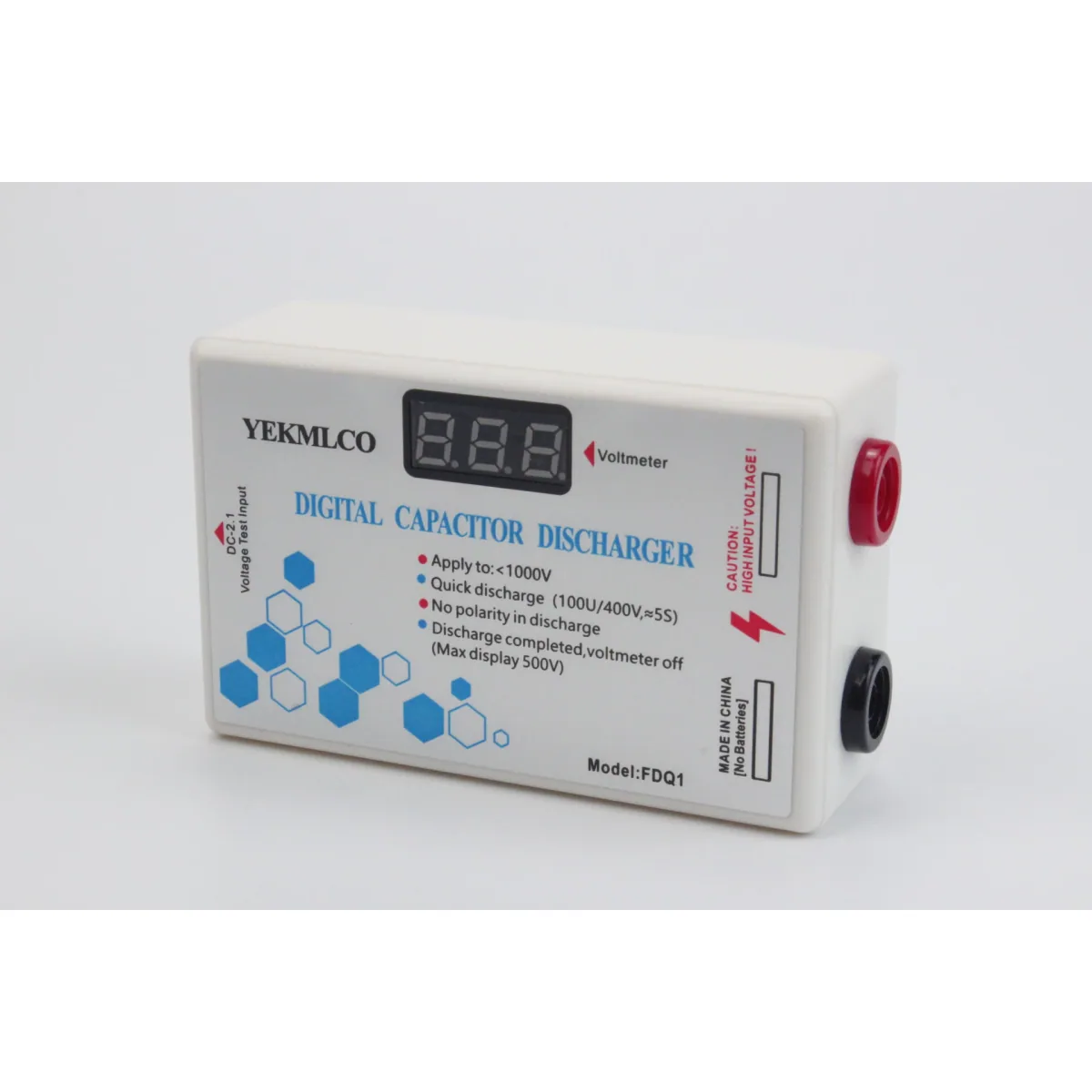

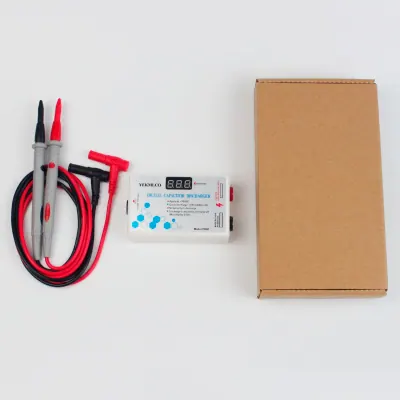

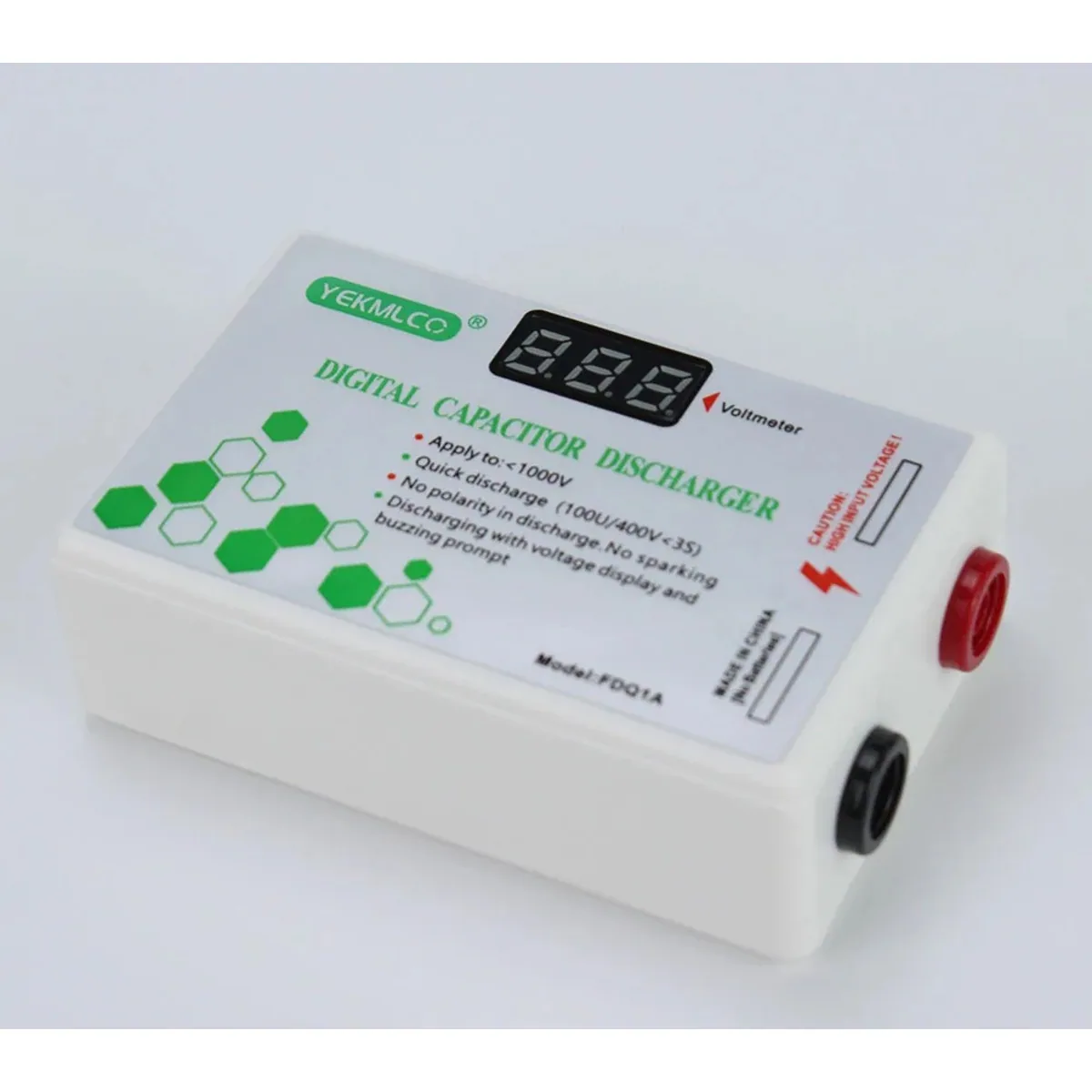

This digital capacitor discharge tool drains stored charge from capacitors rated 10 to 1000V in electrical appliances, and its voltmeter shows the voltage falling as it works. Choose the FDQ1A, which discharges a 100uF capacitor at 400V in under 3 seconds with constant current and a buzzer, or the FDQ1, which takes about 5 seconds and doubles as a 10 to 500V AC/DC voltmeter. Features and Benefits - Live voltage display - watch the charge drop; when the display goes off, the discharge is complete - No polarity in discharge - touch the probes on either terminal without finding the positive leg first - FDQ1A constant current with buzzer - no sparking, an audible prompt, and it keeps discharging to below 2V after the display goes off at about 6V - FDQ1 voltmeter mode - reads DC or AC voltage from 10 to 500V, so one box checks the circuit and drains it - Compact case - 95 x 58 x 31mm and 195g, it sits on the bench beside the board - Ready to use - supplied with red and black test probes and a user manual Applications - Switching power supplies and TV power boards before repair - Digital cameras and mobile phones on the repair bench - Household appliance maintenance - FDQ1: AC or DC voltage checks from 10 to 500V Note: Unplug the appliance and disconnect the power first, and only discharge offline, never while the circuit is charging. For capacitors only: it cannot discharge batteries or electric double layer capacitors and is not an electronic load. Keep fingers off the metal probe tips and confirm zero volts with a meter before touching the circuit.
