Grounding Stick Set | Portable Earthing Kit with Copper Leads | 0.4kV to 35kV

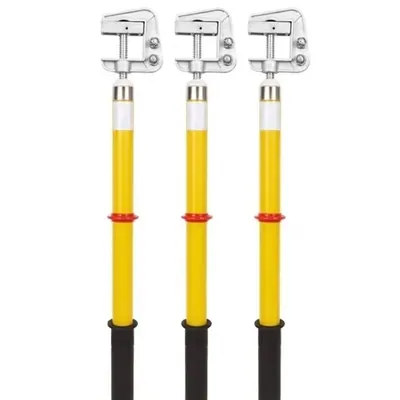

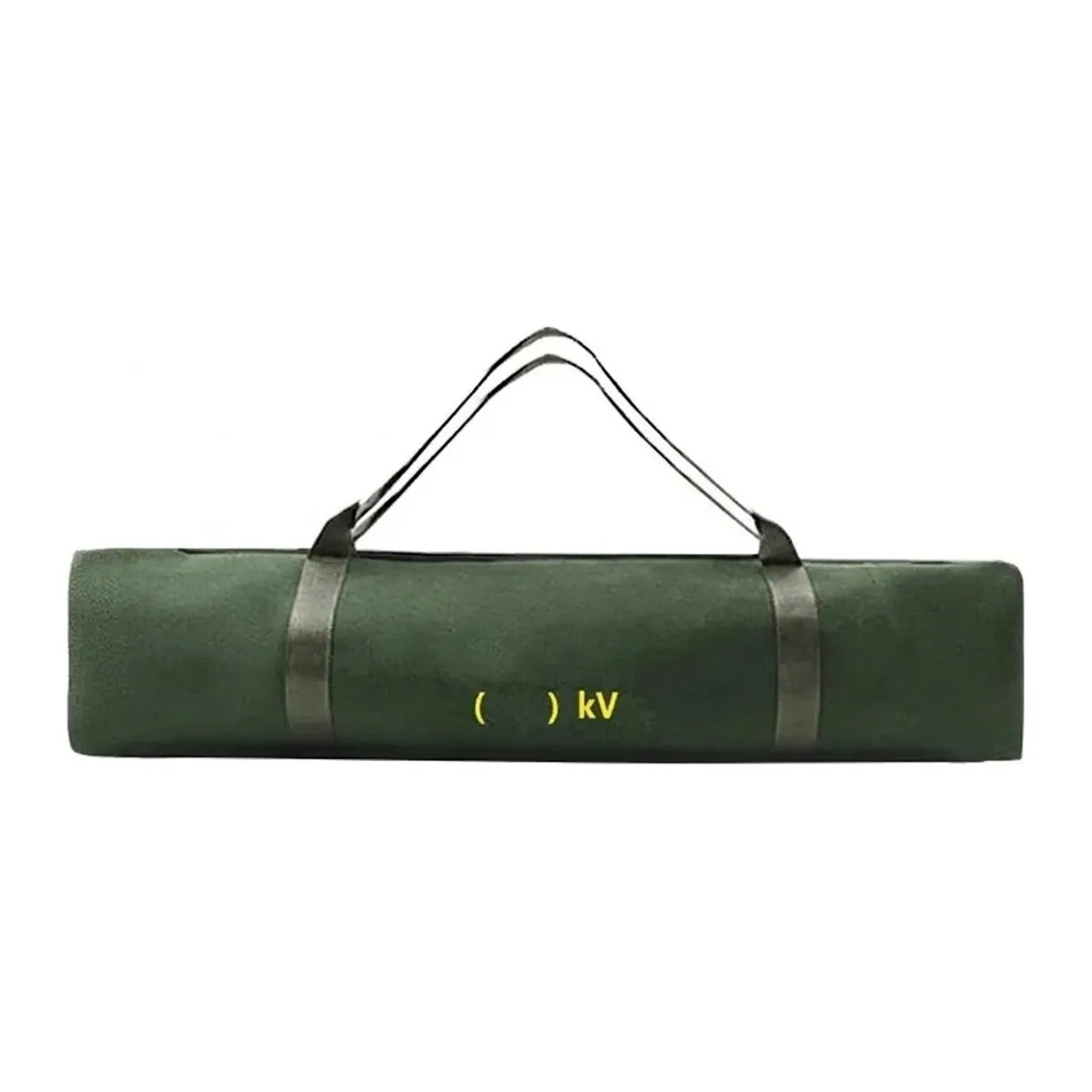

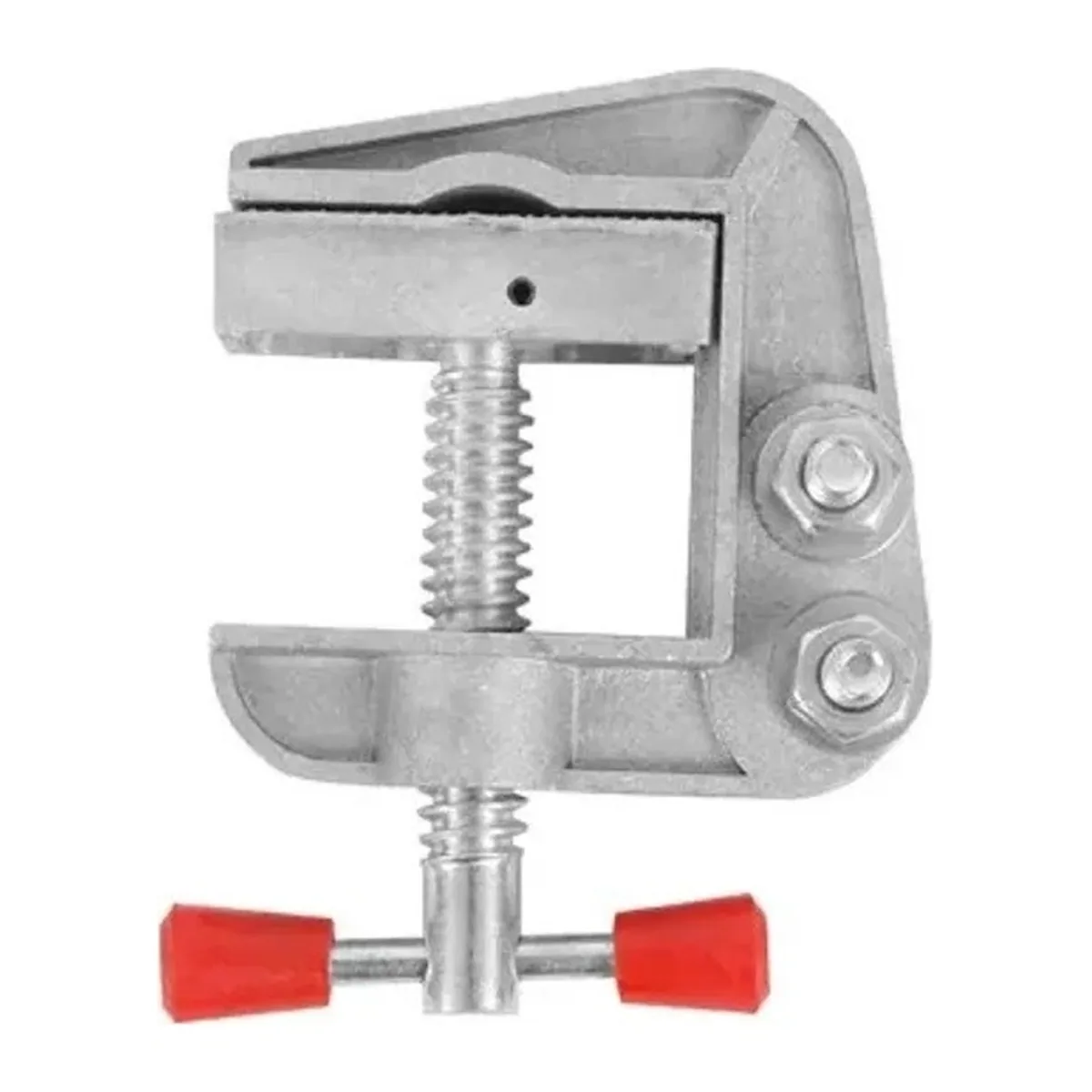

This grounding stick set is a portable short circuit earthing kit for isolated conductors, with insulated clamp rods joined by stranded copper leads to an aluminium earth clamp, offered as 0.4kV, 10kV and 35kV kits. The 10kV kit has three 0.5 m rods on 25 mm² leads, the 35kV kit three 1.5 m rods on 25 mm² leads, and the 0.4kV kit four 0.5 m rods on 16 mm² leads. Features and Benefits - Flat mouth screw clamps - die cast wrought aluminium heads tighten onto busbars and conductors as you turn the insulated rod - Epoxy resin rods - yellow insulating shafts with a red limit ring and an anti slip rubber handle with an insulating skirt - Oxygen free copper leads - finely stranded copper for low resistance and high current, in a transparent PVC sleeve that resists cold and cracking - Sealed terminations - double hole red copper lugs and a copper crimp tube, each sealed with transparent heat shrink - Aluminium earth clamp - T handle screw clamp with a 35 mm opening, 120 mm high and 85 mm wide - Canvas carry bag - army green bag keeps the rods, leads and clamp together between jobs Applications - Substation maintenance and fault repair - Power station repair work - Distribution rooms - Power network emergency repair after isolation Note: For trained, authorised personnel only. Disconnect and isolate the supply and prove it dead with a suitably rated detector before applying earths. Connect the earth clamp first and remove it last, and confirm zero volts with a rated tester before touching any conductor.
