High Voltage Probes | 20kV or 30kV Multimeter Probe | 1000:1, 1000MΩ

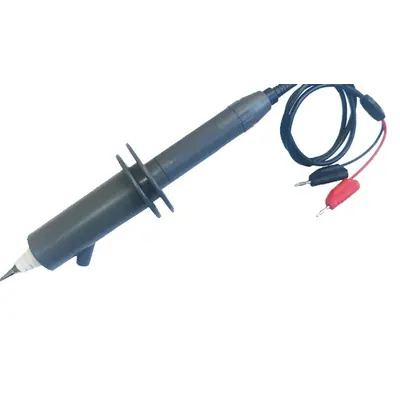

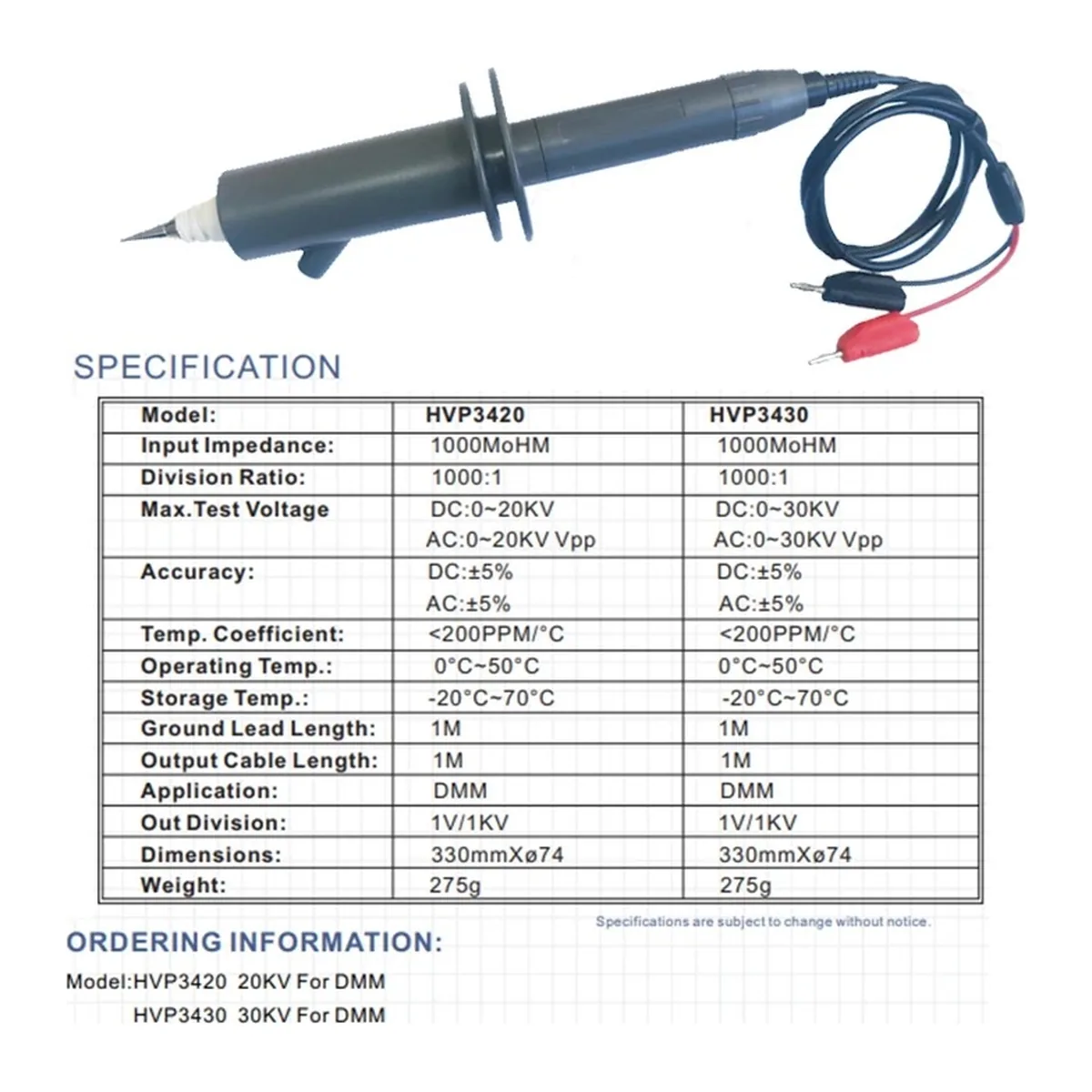

These high voltage probes are 1000:1 dividers for digital multimeters, available as a 20kV model and a 30kV model, each with 1000 MΩ input impedance. Every 1 V on the meter equals 1 kV at the tip, and each model reads DC and AC (Vpp) up to its rated voltage. Features and Benefits - 1000:1 division ratio - 1 V on the meter reads as 1 kV, so scaling is simple - Two ratings - the 20kV model covers DC up to 20kV and AC up to 20kV Vpp; the 30kV model covers DC up to 30kV and AC up to 30kV Vpp - 1000 MΩ input impedance - a high impedance divider made for DMM use - Stated accuracy - ±5% on both DC and AC - Grey insulated body - two guard flanges between the tip and the grip keep your hand back - 1 m leads - 1 m ground lead and 1 m output cable with red and black meter plugs, 275 g in total Applications - Reading DC high voltage up to 20kV or 30kV on a digital multimeter - Reading AC high voltage up to the rated Vpp - High voltage test and service work by trained staff Note: For trained personnel only. Switch off the high voltage supply before connecting, connect the probe's ground lead to a good earth and make sure the connection is electrically good before any measurement, and confirm zero volts with a meter before handling the circuit.
