High Voltage Probe P2301C | 300MHz Oscilloscope Probe | 100:1, 5kV BNC

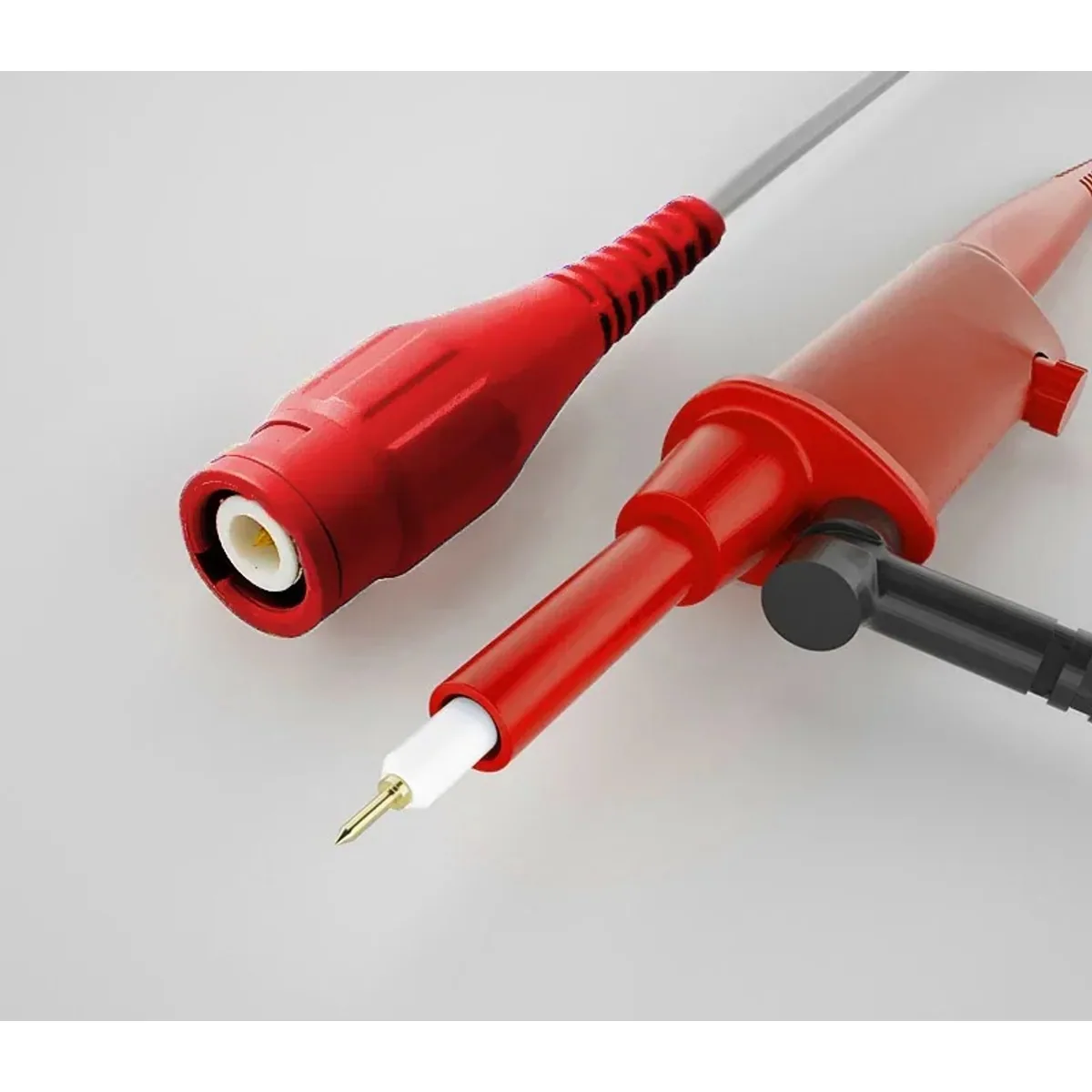

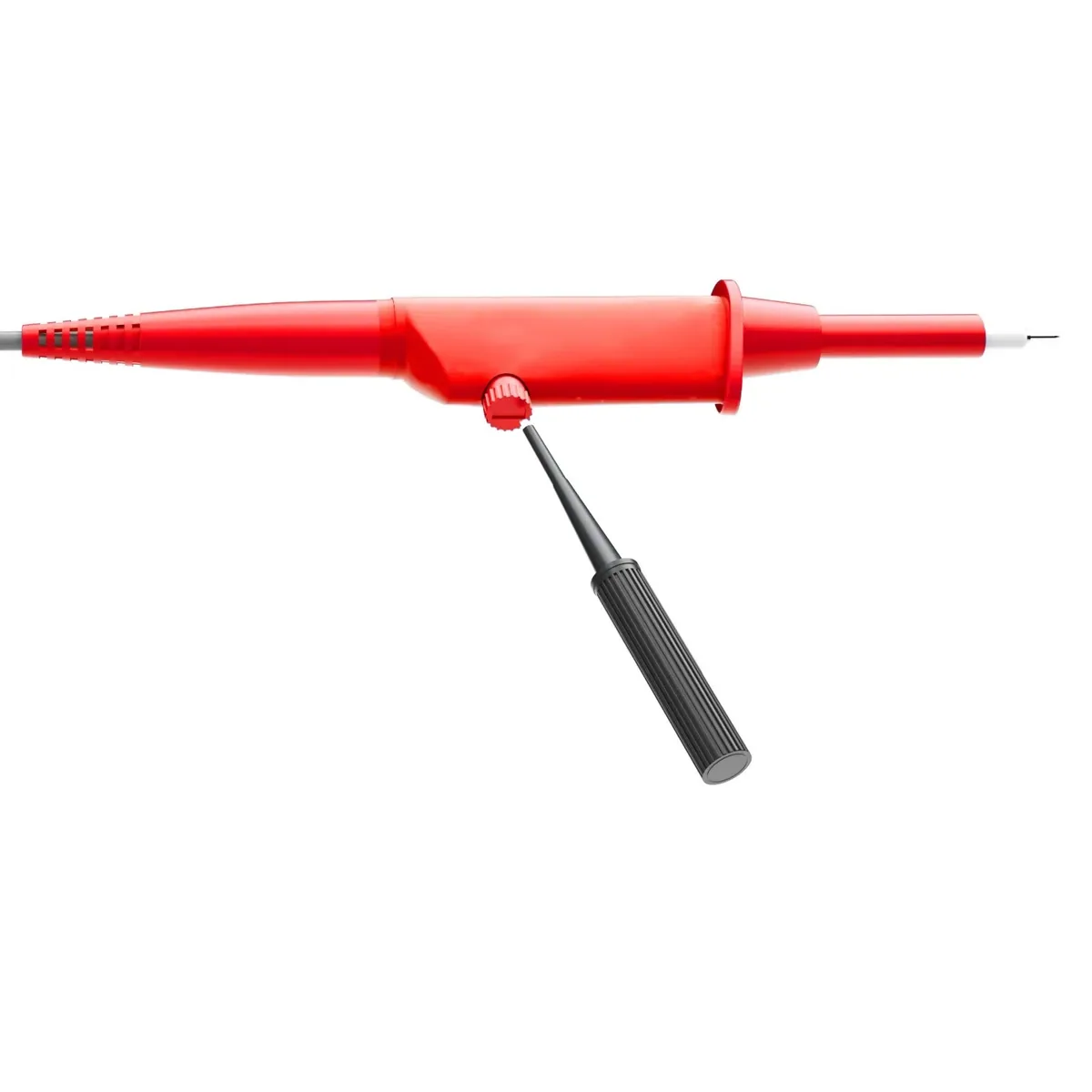

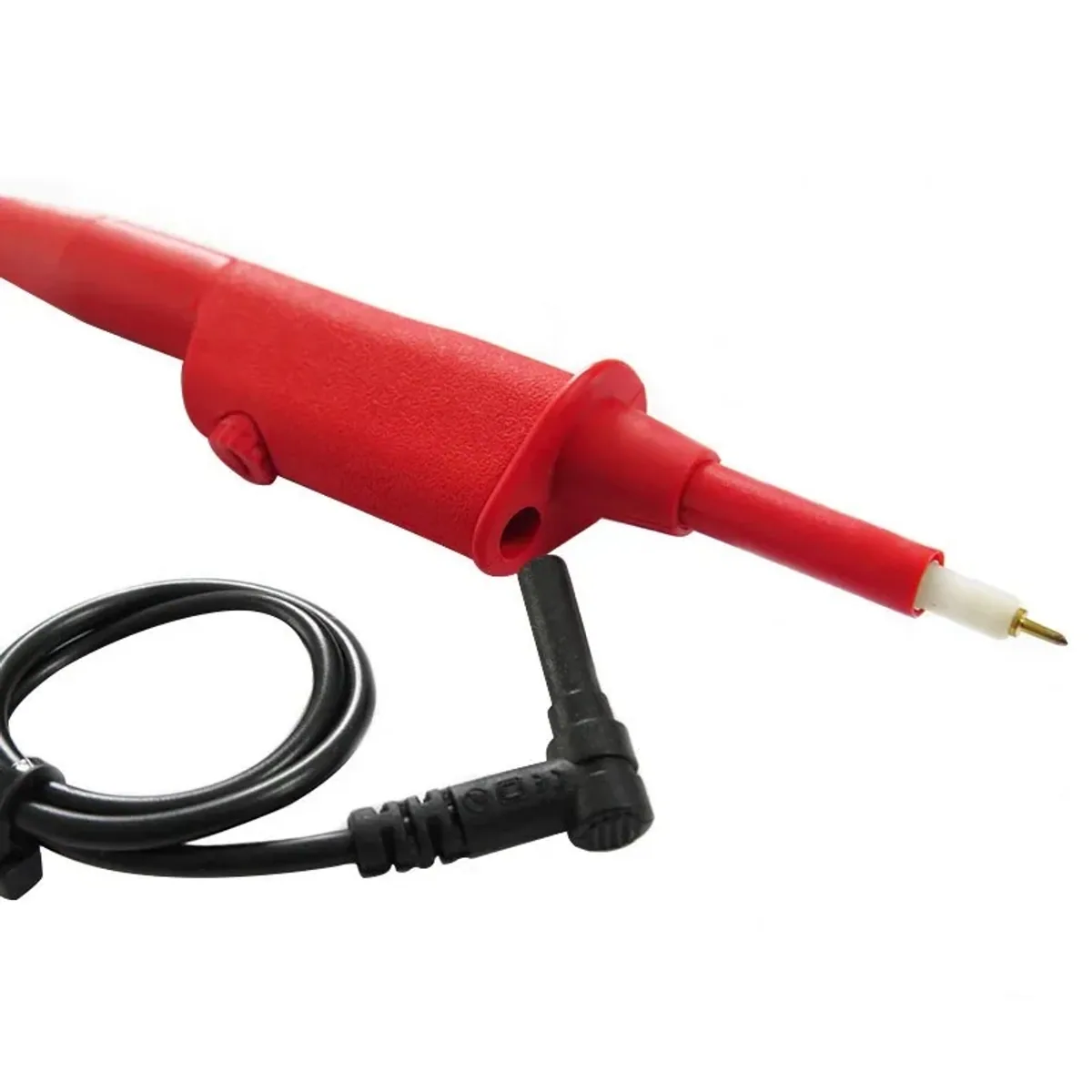

The P2301C is a 100:1 high voltage probe for oscilloscopes with 300MHz bandwidth and a 5000 V (Vp-p) working voltage, built to show high voltage signals on a scope with a BNC input. It has a fixed 100X attenuation, a 1.15ns rise time and a 100MΩ input resistance, in a red insulated body with a fully insulated ground lead. Features and Benefits - 5000 V (Vp-p) working voltage - headroom for large high voltage swings on the oscilloscope - 300MHz bandwidth and 1.15ns rise time - keeps fast edges sharp on the screen - Fixed 100:1 attenuation - set the scope channel to 100X and read the real voltage at the tip - 100MΩ input resistance and 6.5pF input capacitance - light loading on the circuit under test - Compensation adjust hole on the probe body - trim against the scope's 1KHz square wave calibration output - Fully insulated ground lead with crocodile clip, hook tip and BNC male connector - secure test connections and a fit for BNC oscilloscope inputs Applications - Electronics repair and test benches: viewing high voltage waveforms within the 5000 V (Vp-p) rating - Development labs: a 300MHz high voltage probe alongside standard 10X probes - General oscilloscope work on digital scopes with BNC inputs Note: Power down the circuit before connecting or moving the probe, and clip the ground lead to circuit ground only, as it is common with the scope ground. The rating is a peak to peak figure, so keep the full swing of the signal within it, and confirm zero volts with a meter before touching the circuit.
