High Voltage Probe | P4100 100MHz or T3100 120MHz | 100:1, 2kV BNC

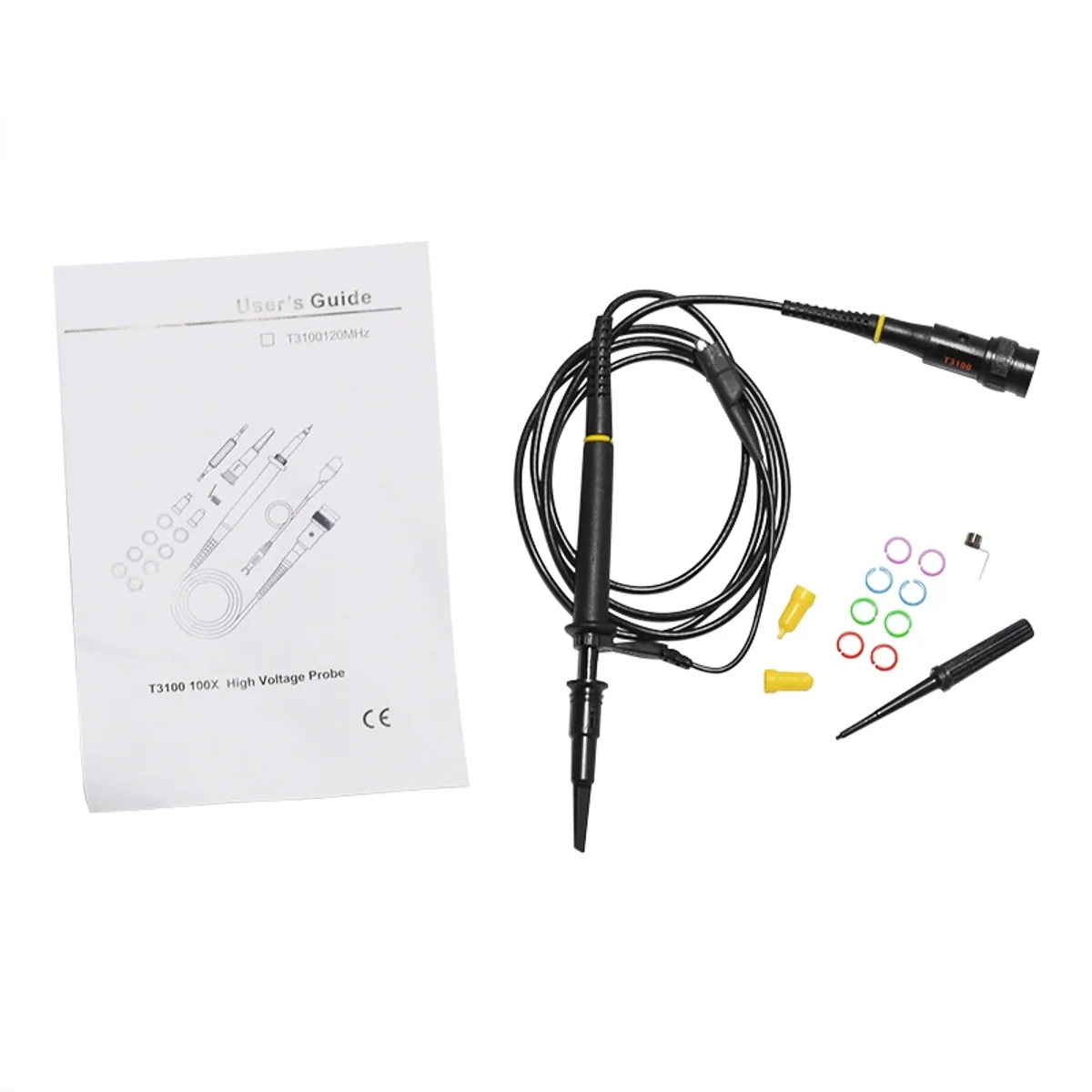

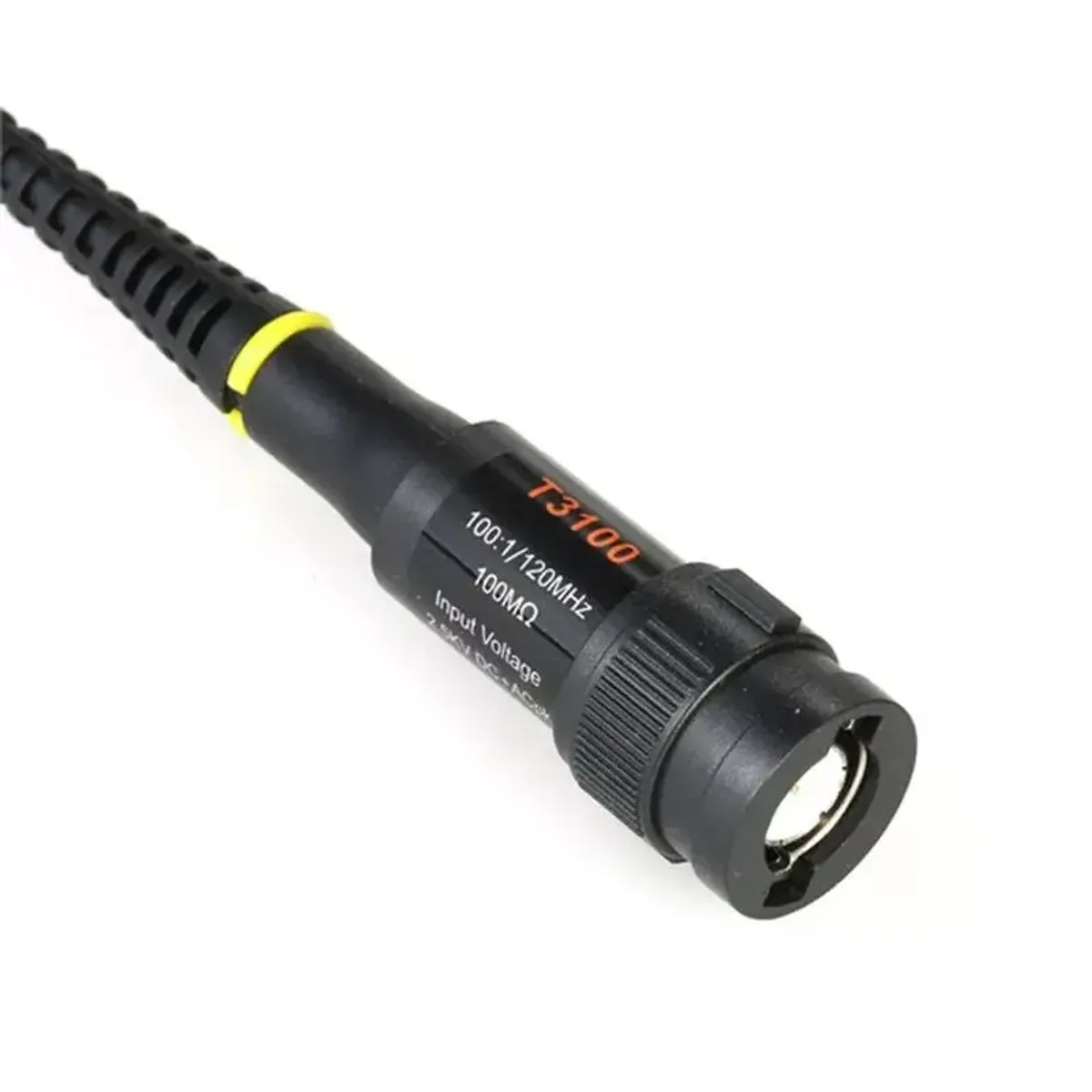

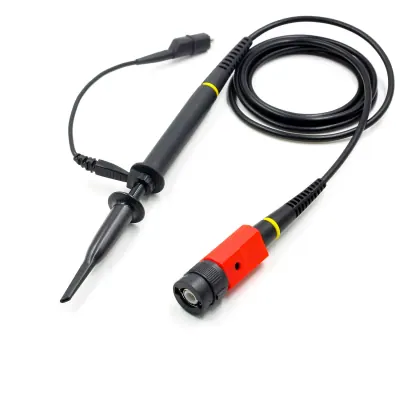

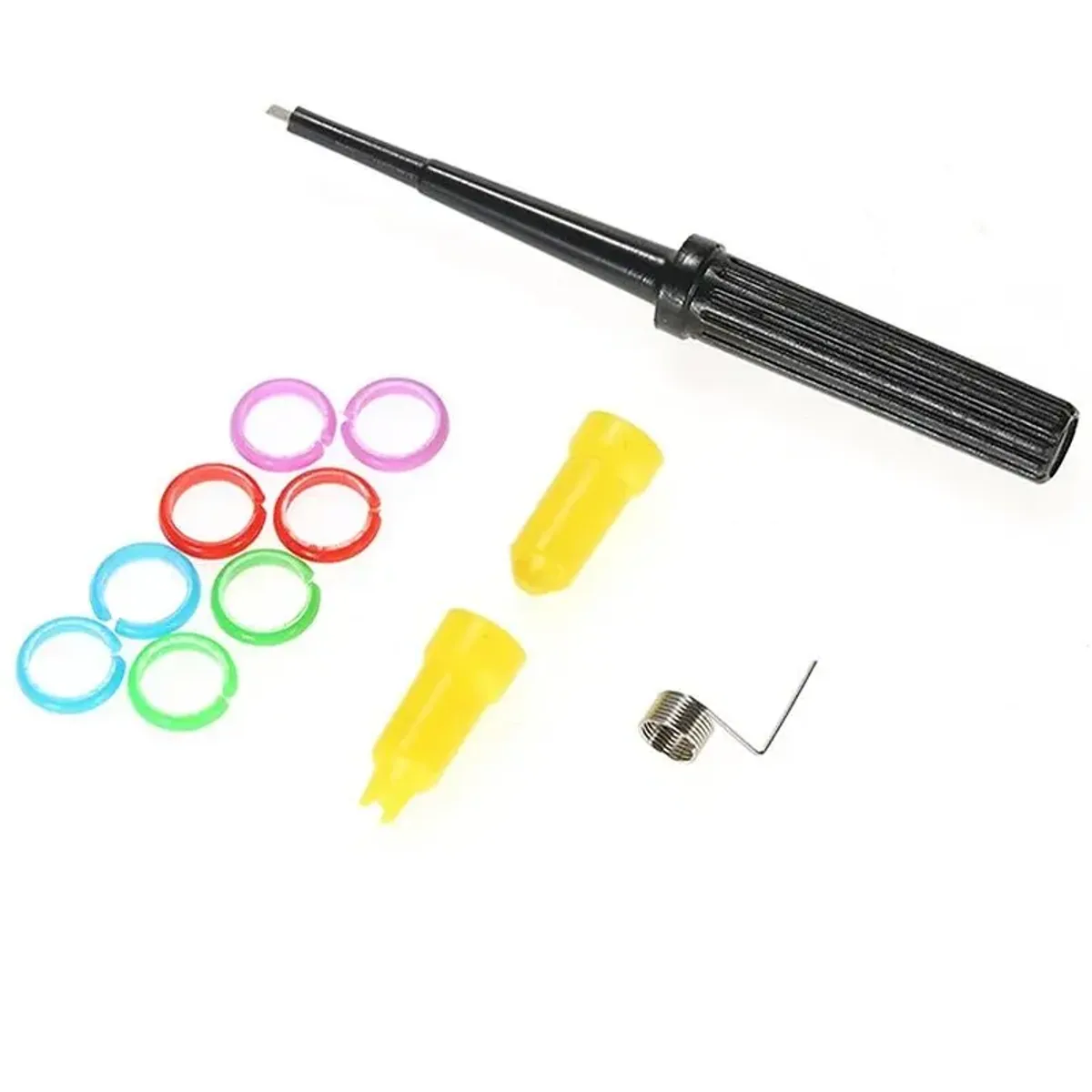

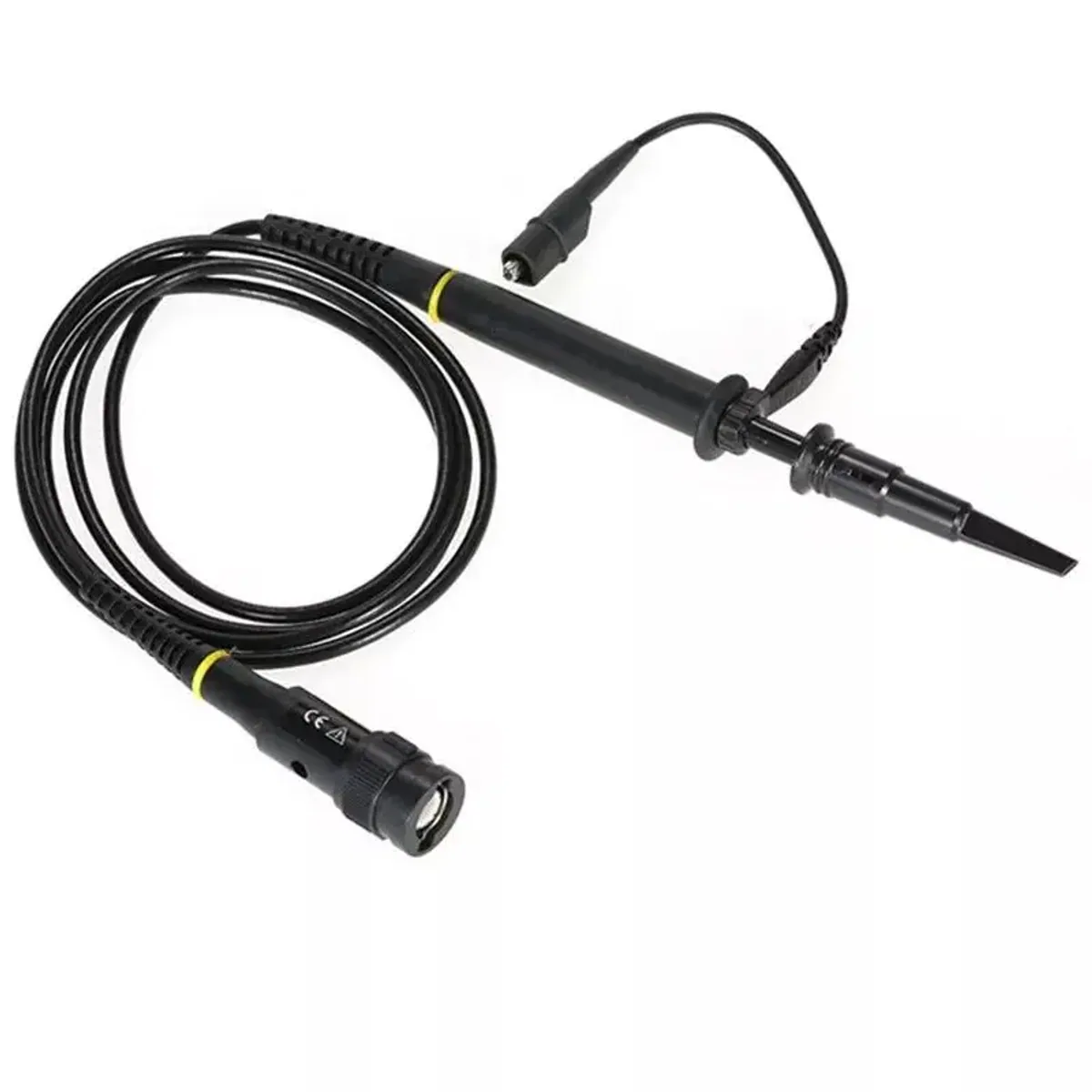

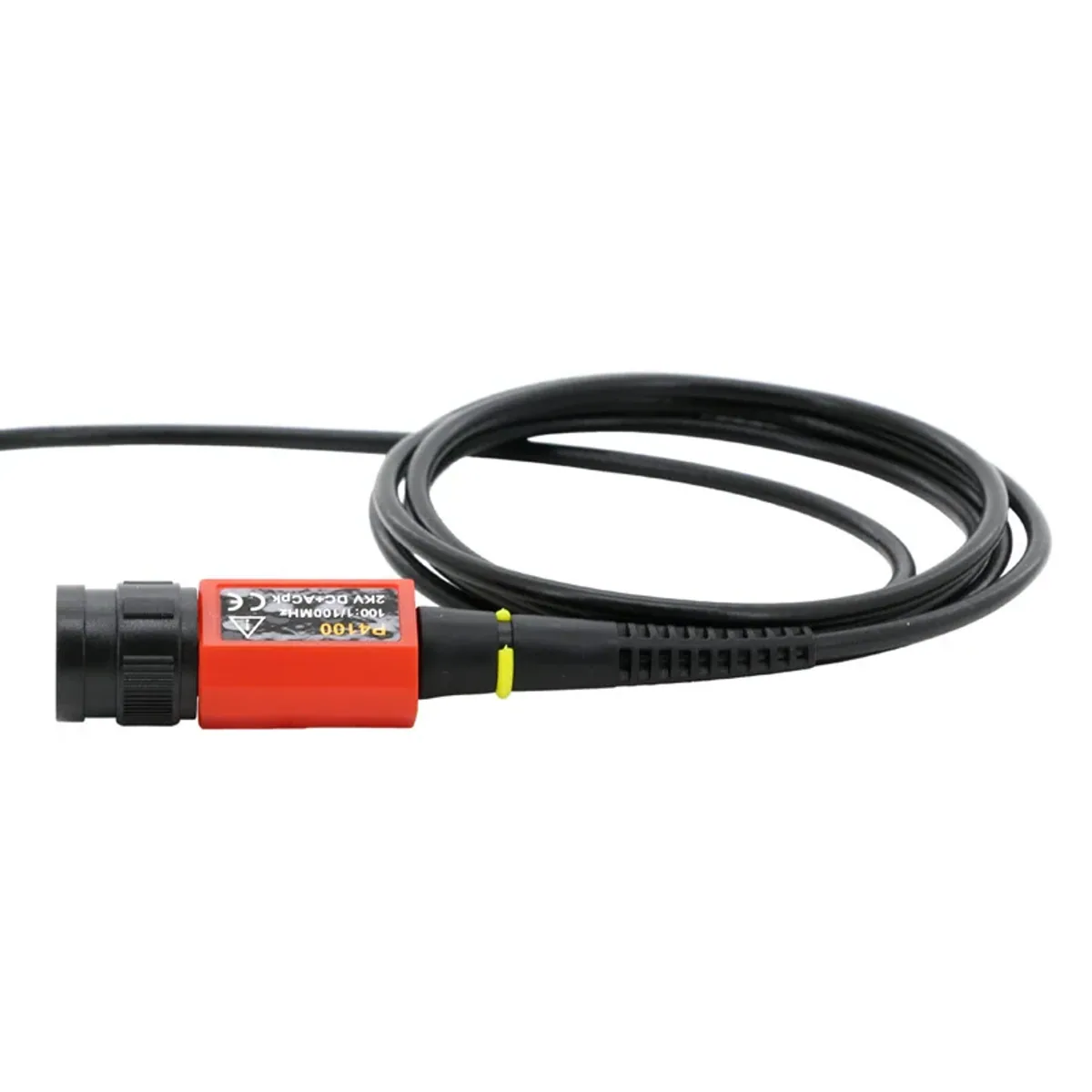

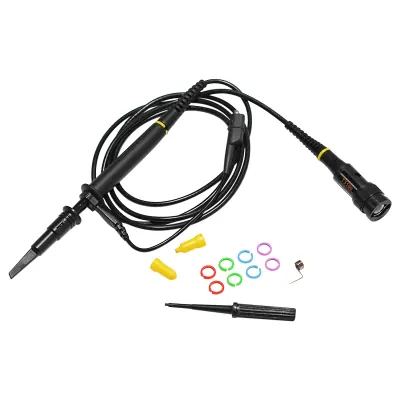

This high voltage probe is a passive 100:1 oscilloscope probe in two models: the P4100 (100MHz, 2 kV printed on the connector) and the T3100 (DC to 120MHz, under 2000 V DC + peak AC on its spec sheet). It divides the signal by 100, so a scope with a BNC input can show voltages above the rating of a standard 10X probe. Features and Benefits - 100:1 attenuation - set the channel to 100X and the screen reads the real voltage at the tip - 100 MΩ input resistance on both models - light loading on the circuit under test - P4100: 100MHz, 3.5ns rise time, 6 pF input capacitance - low capacitance for clean edges - T3100: DC to 120MHz, 2.9ns rise time in the supplier table - more bandwidth headroom and a 120 cm cable - Adjustable compensation, 10 to 35 pF (P4100) or 15 to 35 pF (T3100) - match the probe to your scope with the supplied screwdriver - P4100 accessories: screwdriver, 8 colour marker rings, 2 tip positioning sleeves, spring and user manual - ready for the bench and easy to tag by channel Applications - Electronics repair benches: viewing high voltage waveforms within the probe rating on scopes with BNC inputs - Test and development labs: a 100:1 probe alongside standard 10X probes for signals above their rating - Multi channel measurements: colour marker rings show which probe is on which channel Note: Power down the circuit before connecting or moving the probe, and clip the ground lead to circuit ground only, as it is common with the scope ground. Stay within the rating of your model, working to the lower figure where the supplier gives two, and confirm zero volts with a meter before touching the circuit.
