High Voltage Probe P4250 | 250MHz Oscilloscope Probe | 100:1, 2kV BNC

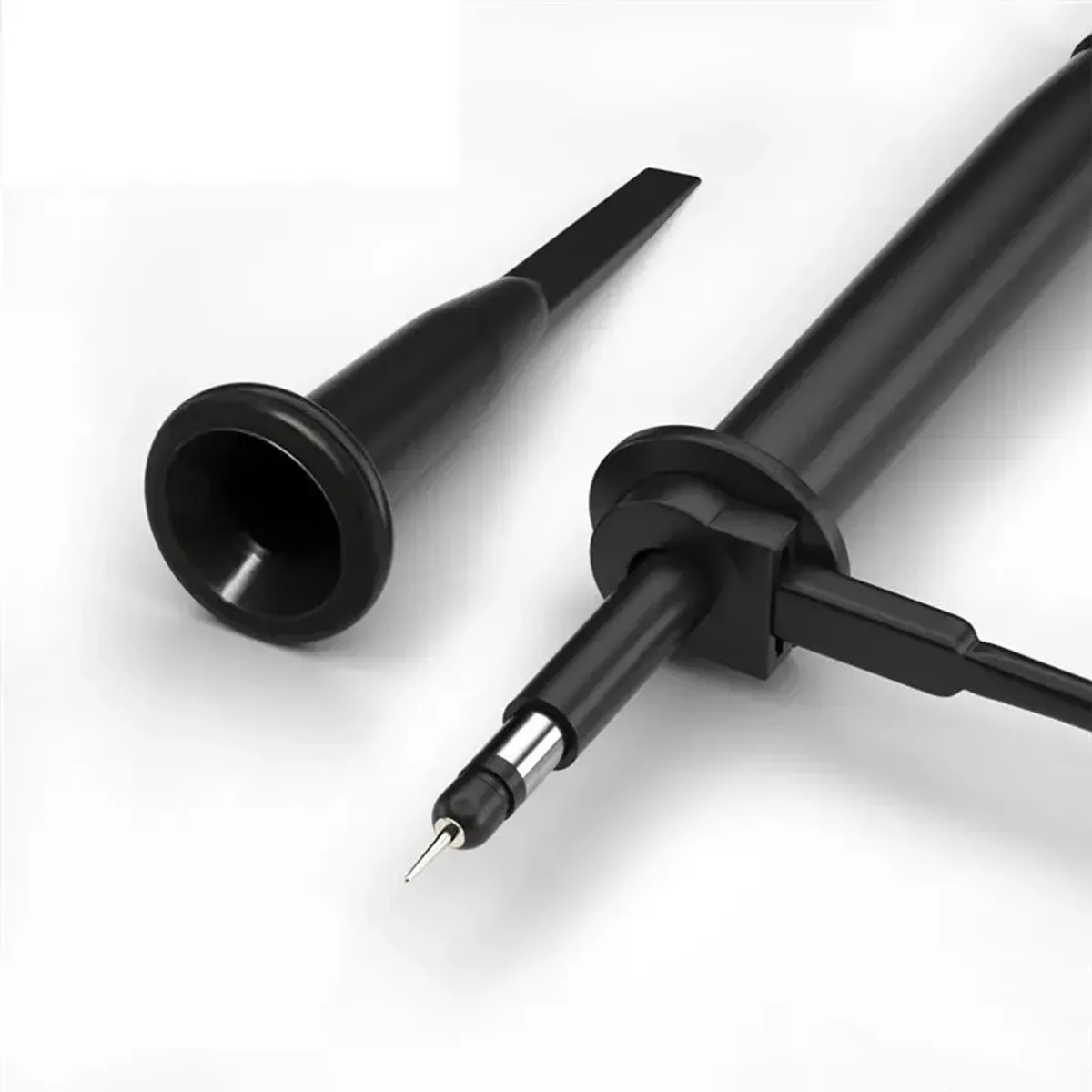

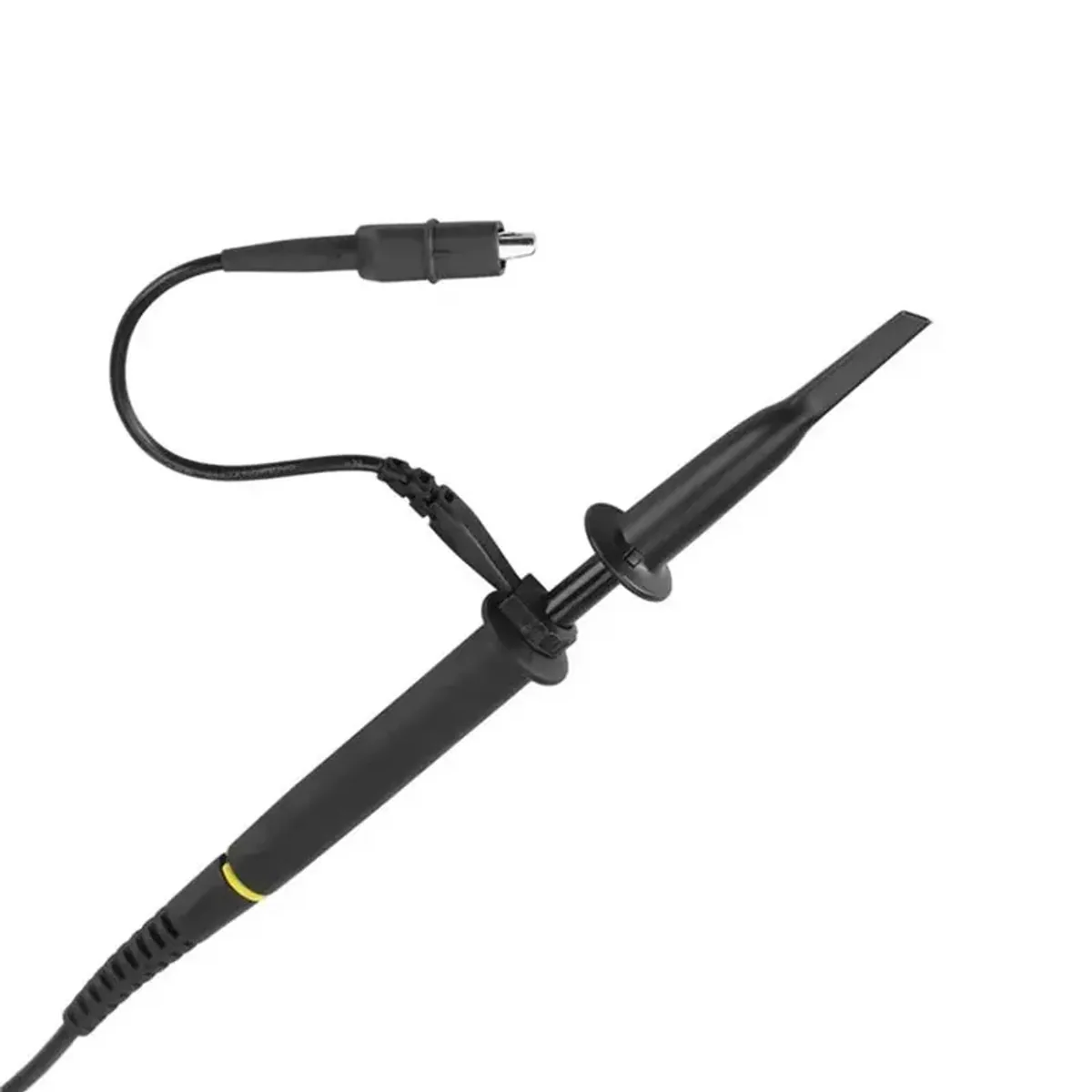

The P4250 is a 100:1 high voltage probe for oscilloscopes, with 250MHz bandwidth and a 2 kV rating, that divides the signal by 100 so a scope with a BNC input can display voltages above the rating of a standard 10X probe. The body is safety insulated plastic and the connector housing is printed with its 100:1/250MHz ratio and bandwidth and 100MΩ input resistance. Features and Benefits - 250MHz bandwidth - headroom for faster edges than a 100MHz high voltage probe - 100:1 (100X) attenuation - set the scope channel to 100X and read the real voltage at the tip - 2 kV rating - for high voltage signals beyond the limit of a standard 10X probe - 100MΩ input resistance, printed on the housing - light loading on the circuit under test - Safety insulated body with hook tip and ground lead - a secure hold on the test point while you watch the screen - BNC plug with compensation adjustment on the connector - fits BNC oscilloscope inputs and can be trimmed to your scope Applications - Electronics repair benches: viewing high voltage waveforms within the 2 kV rating - Test and development labs: a wider bandwidth 100:1 probe alongside standard 10X probes - General high voltage measurement on oscilloscopes with BNC inputs Note: Power down the circuit before connecting or moving the probe, and clip the ground lead to circuit ground only, as it is common with the scope ground. Stay within the 2 kV rating and confirm zero volts with a meter before touching the circuit.
