USB Oscilloscope | 2 Channel 25MHz 100MSa/s | VDS1022 or VDS1022I

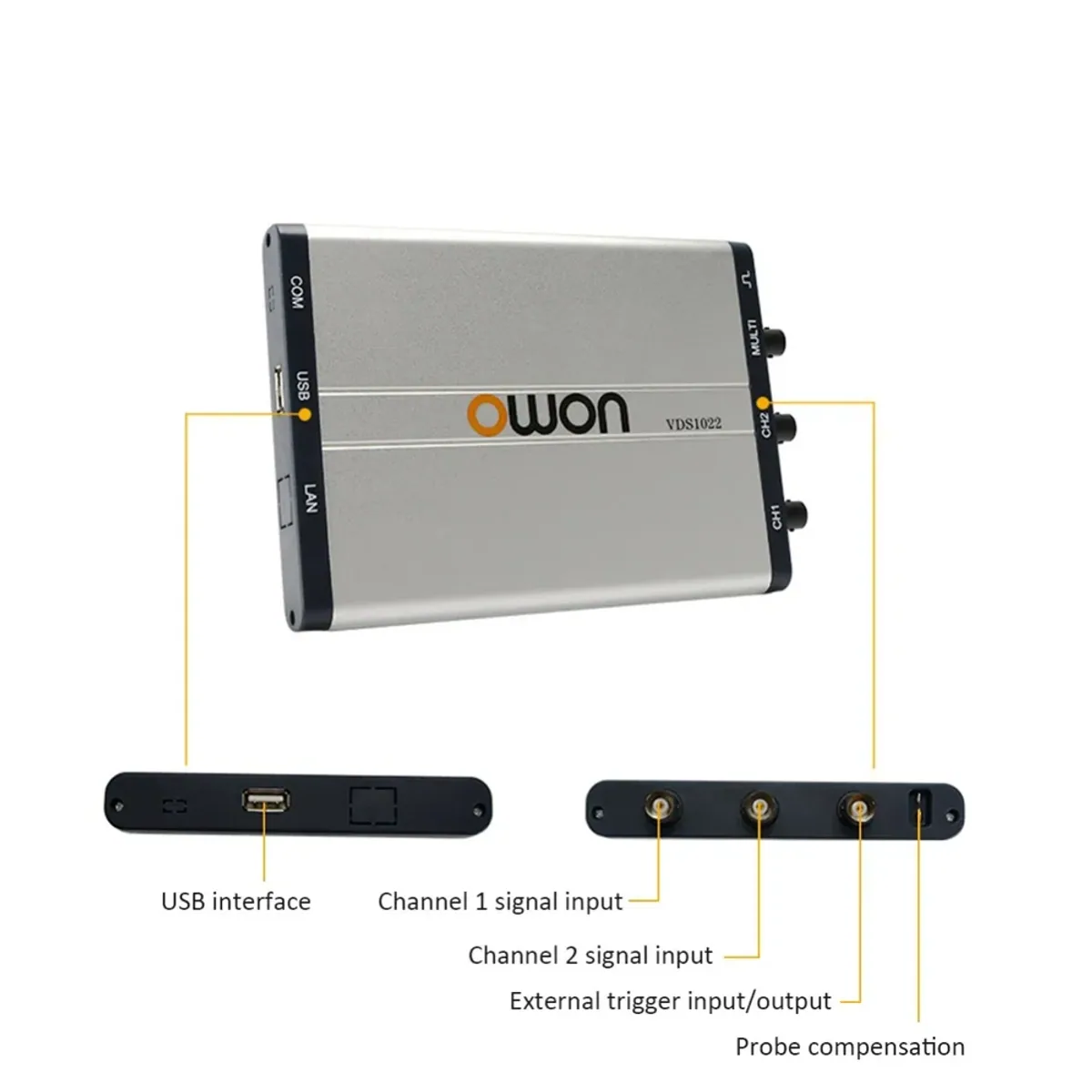

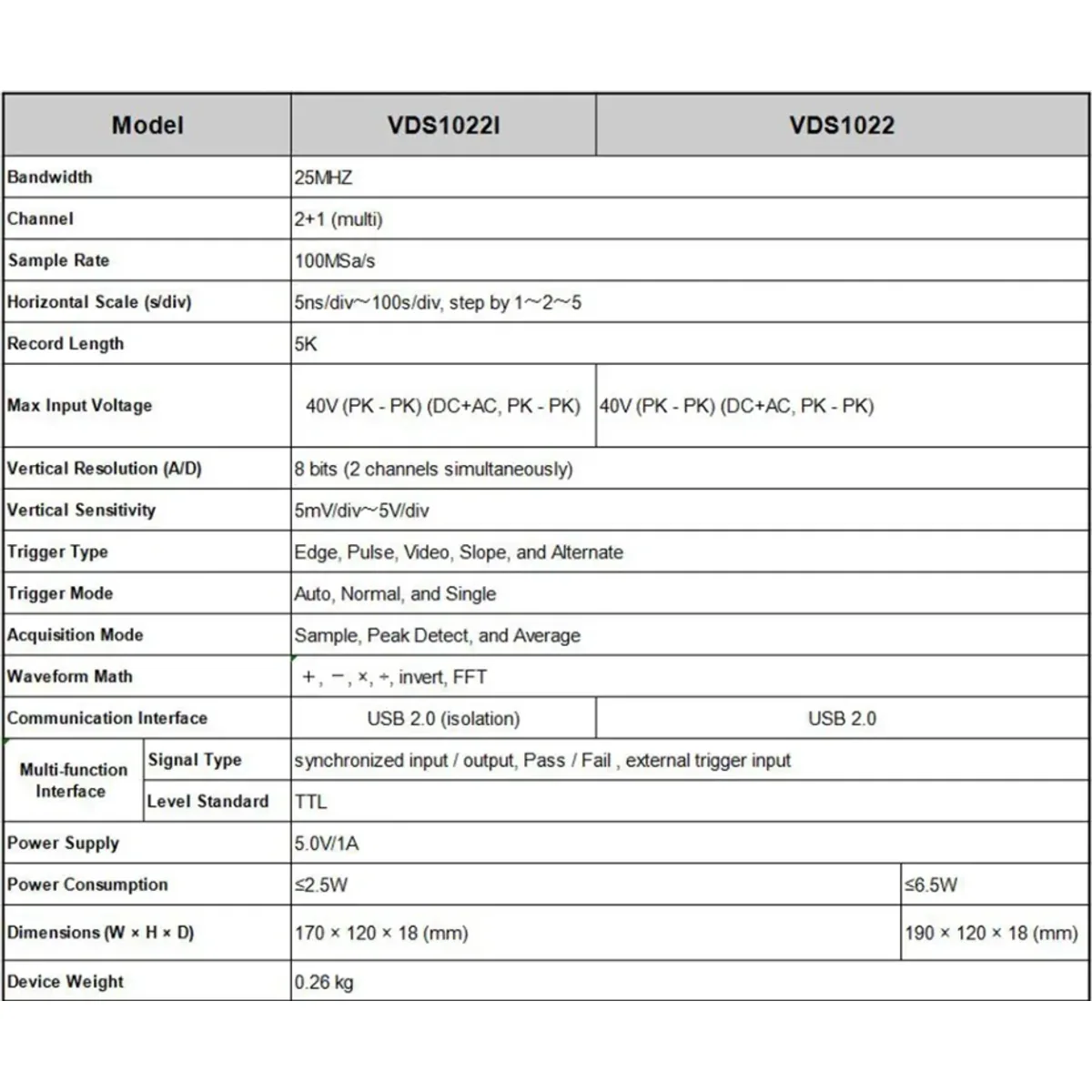

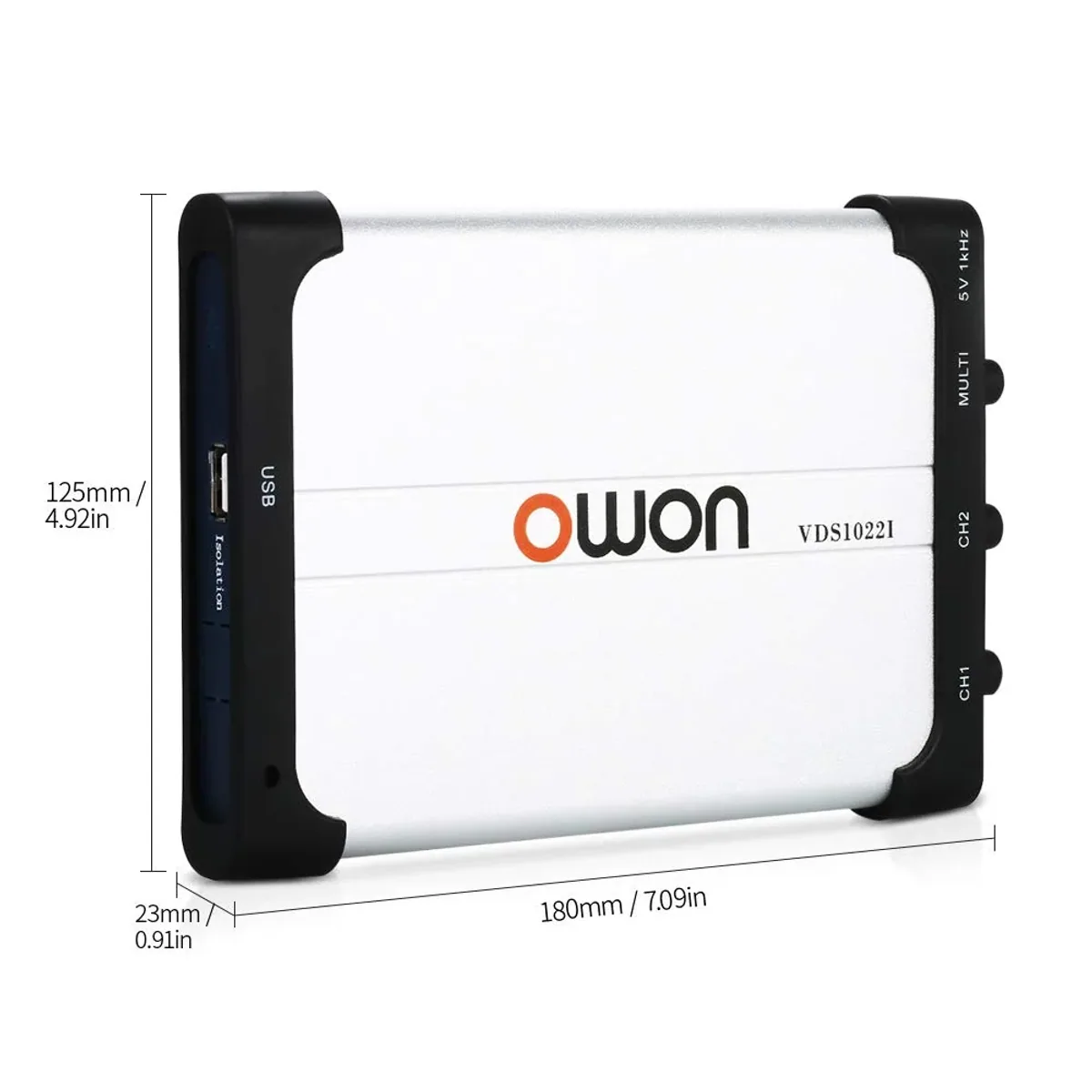

The VDS1022 is a two channel USB oscilloscope for a laptop or PC, with 25MHz bandwidth, 100MSa/s sampling, a 5K record length and 5mV/div to 5V/div sensitivity, powered entirely from the USB port. The VDS1022I version adds USB isolation between the oscilloscope and the computer to protect the PC from being damaged by a wrong connection. Features and Benefits - 2 channels plus a multi-function BNC - compare two signals and use the third socket for trigger input or output and pass/fail signals. - 25MHz bandwidth and 100MSa/s sampling - audio, sensor, PWM and low speed digital work on a laptop screen. - Edge, pulse, video, slope and alternate triggers with auto, normal and single modes - stable traces and one-shot captures. - Sample, peak detect and average acquisition - pick out narrow spikes or clean up a noisy signal. - Waveform maths (+, -, x, ÷, invert) and FFT, shown with an X-Y or FFT view on the same screen. - USB bus powered at 5.0V/1A - no mains adapter, so it travels in a laptop bag. - VDS1022I USB isolation - the computer stays separated from the circuit under test. Applications - Field service and on-site repair with a laptop. - Education and student benches with limited space. - Hobby electronics, audio and microcontroller projects. In the box 1 x PC oscilloscope, 2 x probes, 1 x USB cable, 1 x software CD, 1 x manual, 1 x adjustment tool, 2 x tip locating sleeves, 8 x colour rings, 2 x ground springs. The BAG options add a soft carry case. Note: Maximum input is 40V peak to peak (DC+AC). Connect the probe ground clip only to the circuit ground reference. The VDS1022I isolates the power between the computer and the oscilloscope to protect the computer from a wrong connection, so choose it where that risk exists.
