Pocket Handheld Oscilloscope DSO510/DSO153/DSO152 | Up to 10MHz | 2.8in

Name: Pocket Handheld Oscilloscope DSO510/DSO153/DSO152 | Up to 10MHz | 2.8in
Brand: Compel Group
SKU: TEST-00336
Price: 133.99 GBP
Availability: InStock

Stock Nr:

SKU:

Pocket Handheld Oscilloscope DSO510/DSO153/DSO152 | Up to 10MHz | 2.8in - Image 1

1 / 8

£133.99inc VAT

Model and kitSelect an option

Quantity

Pocket Handheld Oscilloscope DSO510/DSO153/DSO152 | Up to 10MHz | 2.8in

£133.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

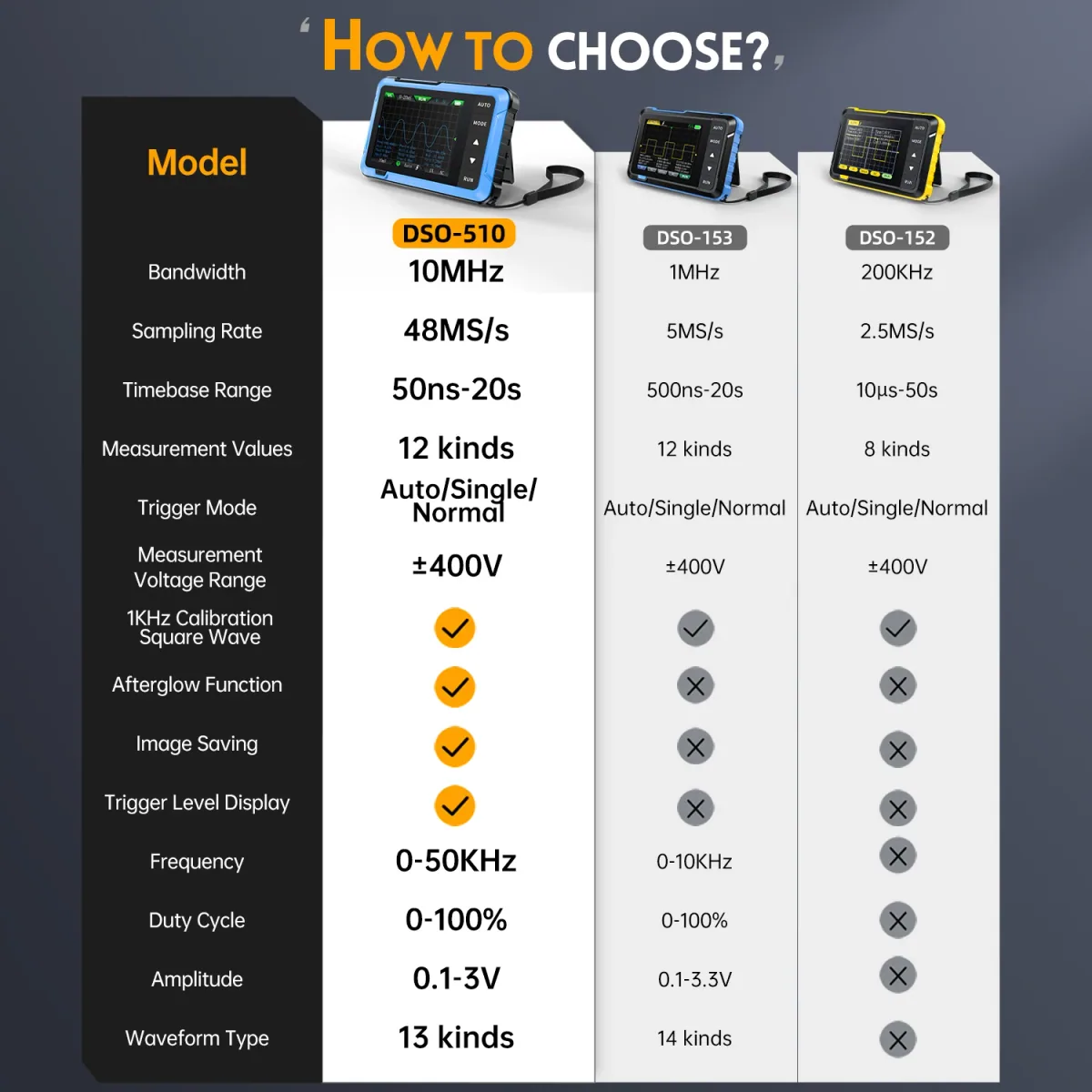

Which model should I choose: DSO510, DSO153 or DSO152?: The DSO510 is the fastest at 10MHz and 48MS/s, with a 50kHz generator, persistence and image saving. The DSO153 offers 1MHz, 5MS/s and a 10kHz generator, and the DSO152 covers basic work at 200kHz and 2.5MS/s without a generator.
Is the alligator clip lead safe for high voltage?: No. The clip lead works at X1 with a ±40V limit. For anything up to ±400V use the P6100 probe on X10, which is included in the DSO510 kit and the DSO153 and DSO152 probe options.

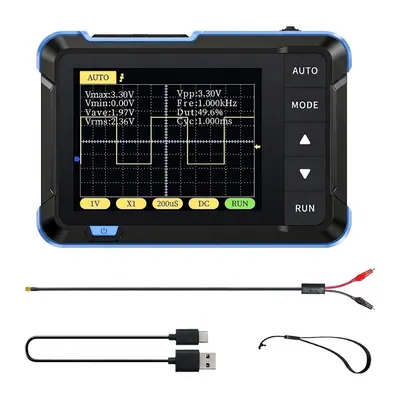

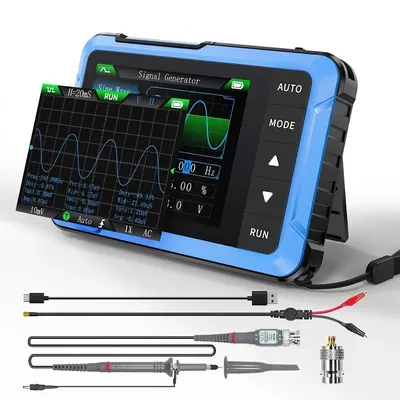

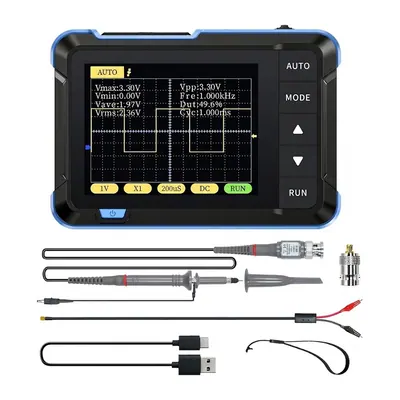

What is included with each option?: Every kit has the unit, alligator clip probe, charging cable, lanyard and user manual. The DSO510 kit and the DSO153 and DSO152 probe options add a P6100 probe and a BNC adapter.

Oscilloscopes & Bench Test Equipment spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

Nothing close enough to compare right now

We only put products side by side when they are genuinely the same kind of thing, in stock and in a similar price range. For this one there is no true match at the moment, so we would rather show you nothing than the wrong thing.

Browse all oscilloscopes & bench test equipment

Compare options

More Oscilloscopes & Bench Test Equipment

All Oscilloscopes & Bench Test Equipment

3-in-1 Digital Multimeter & Oscilloscope | 50MHz Bandwidth | PC Data Storage & Signal Generator

5.0

£306.99

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

UGREEN CAT 8 Ethernet Cable | 40Gbps 2000MHz Shielded | Router PC PS5 Xbox

4.9(2.8K)

£35.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

USB-C Hub 8-in-1 Adapter | 4K HDMI, RJ45 & PD | SD/TF Card Reader

4.9(4.2K)

£44.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

SD Card 256GB | A2 Rated for Faster Apps | Android Phone Game Storage

4.8(11.1K)

£29.99

M.2 SSD NVMe PCIe 3.0 Drive | 3500MB/s Read Speed | 2280 Internal Form Factor

4.8(3.1K)

£145.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

Bay 2.5 to 3.5 Bracket | Includes SATA Cable Set | Metal SSD Mount

4.9(327)

£47.99

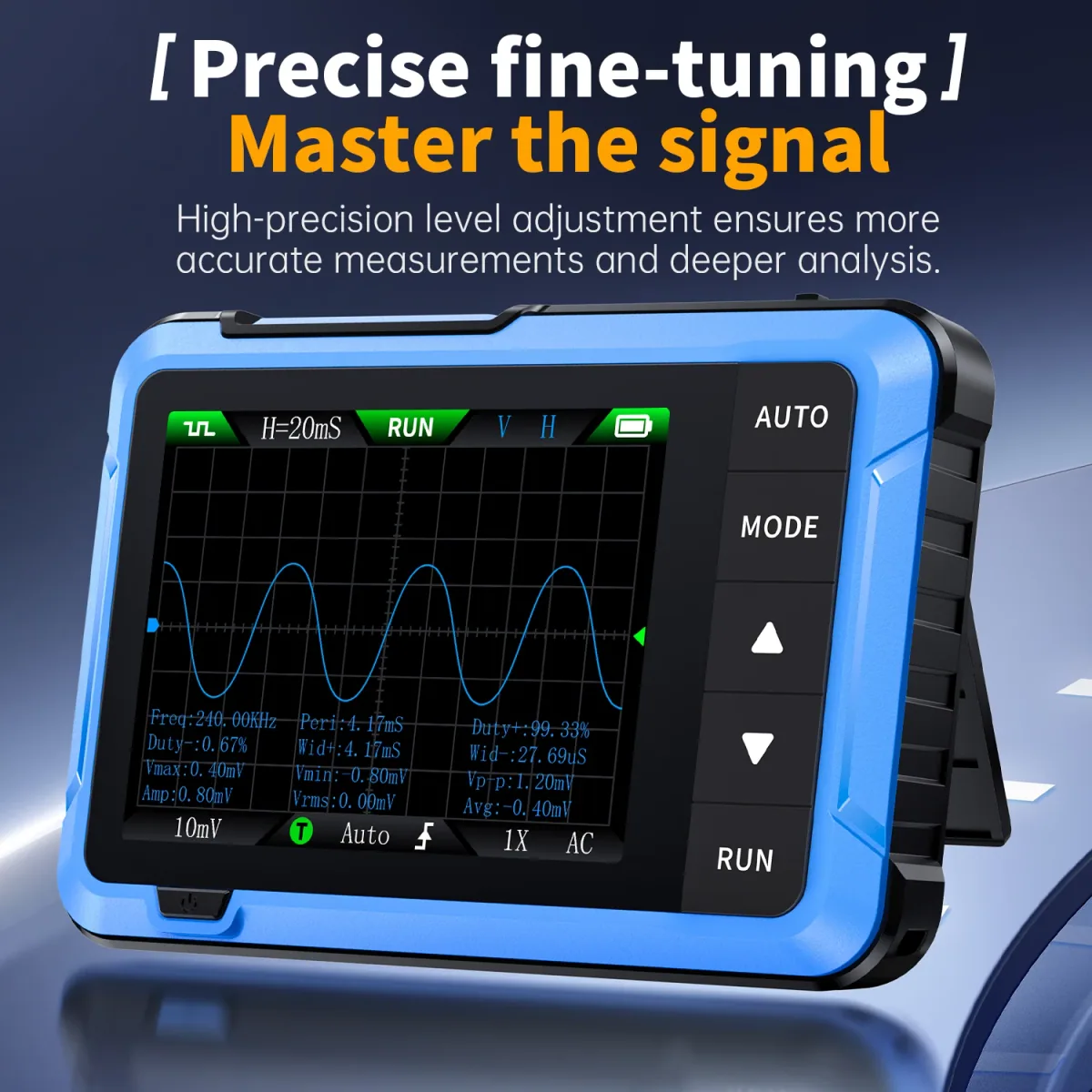

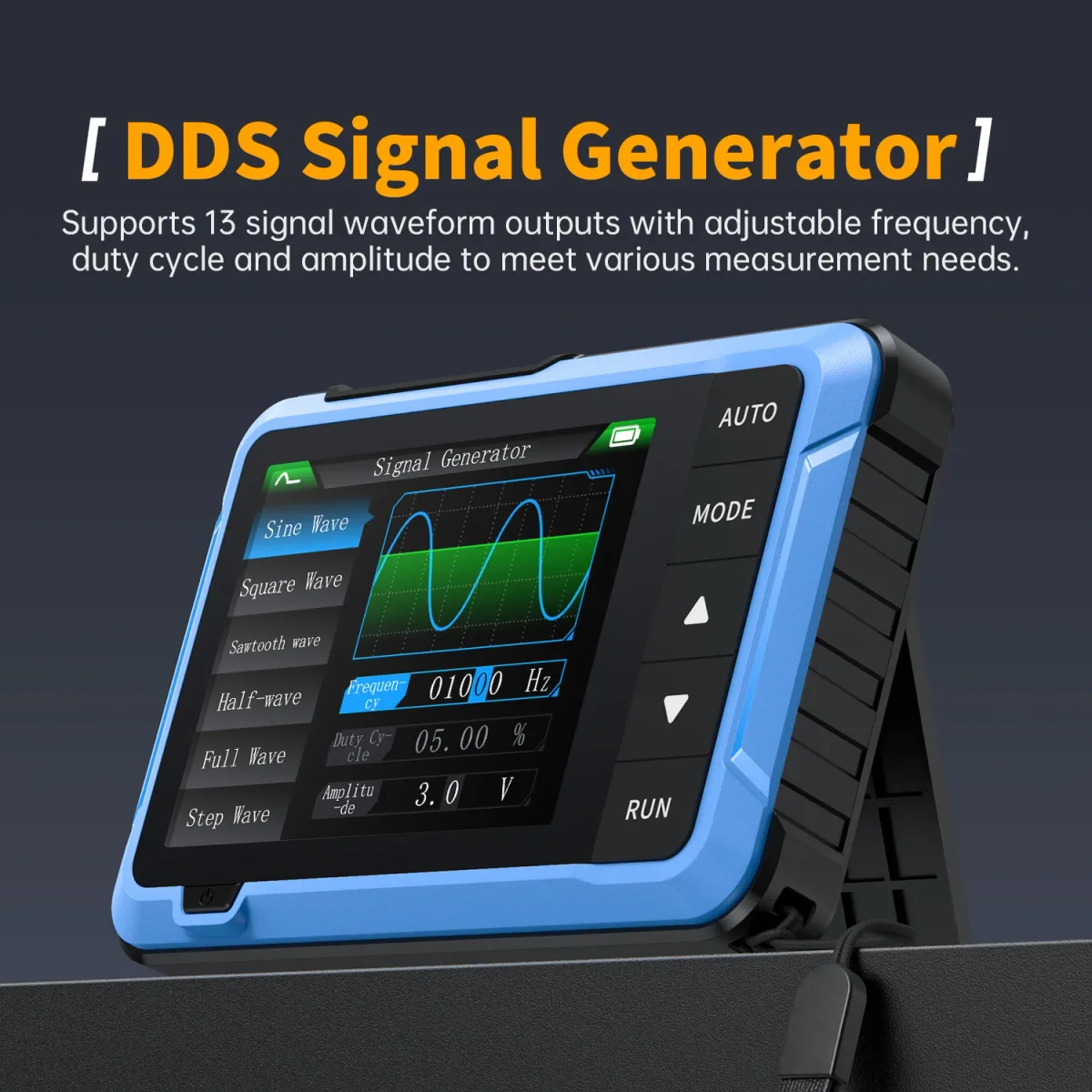

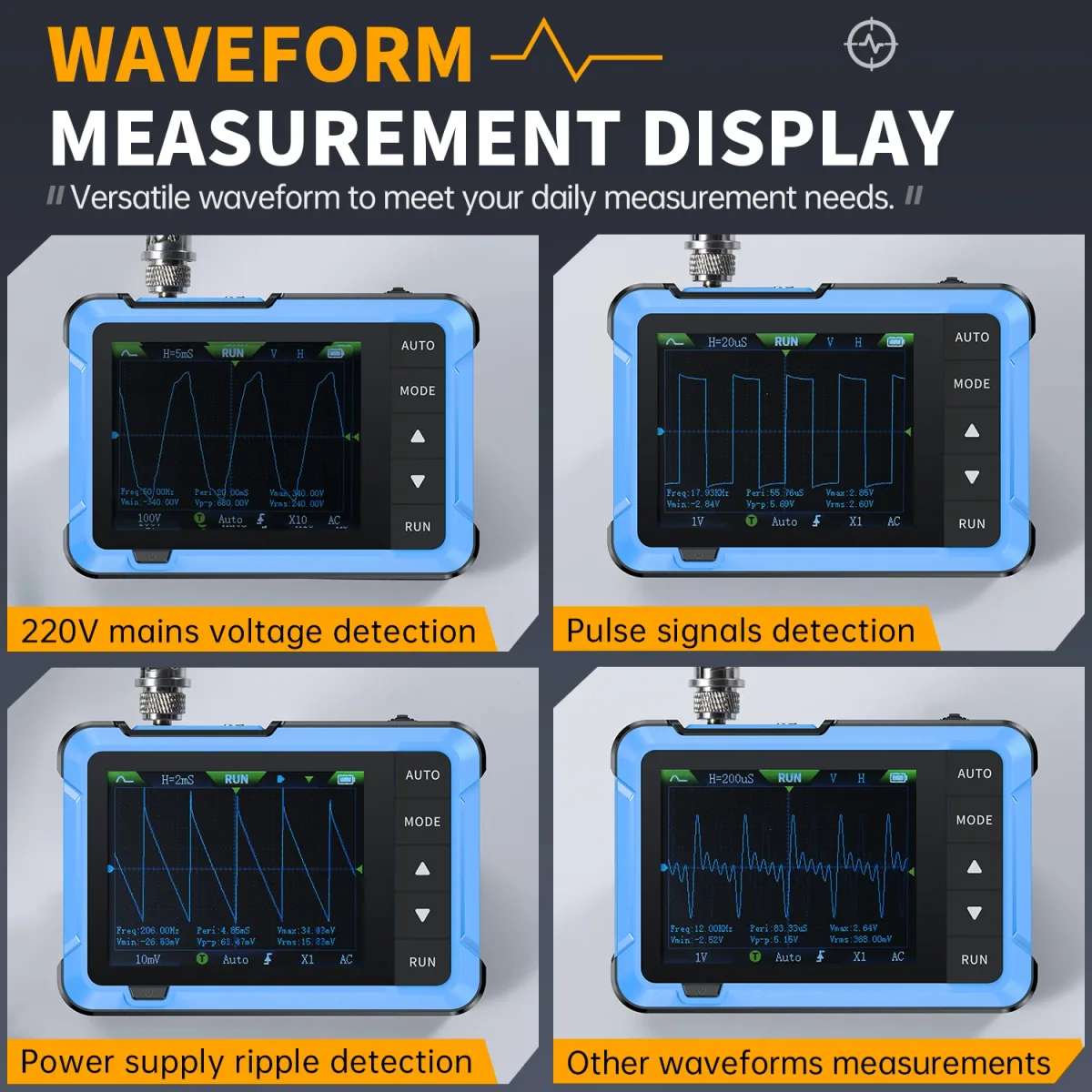

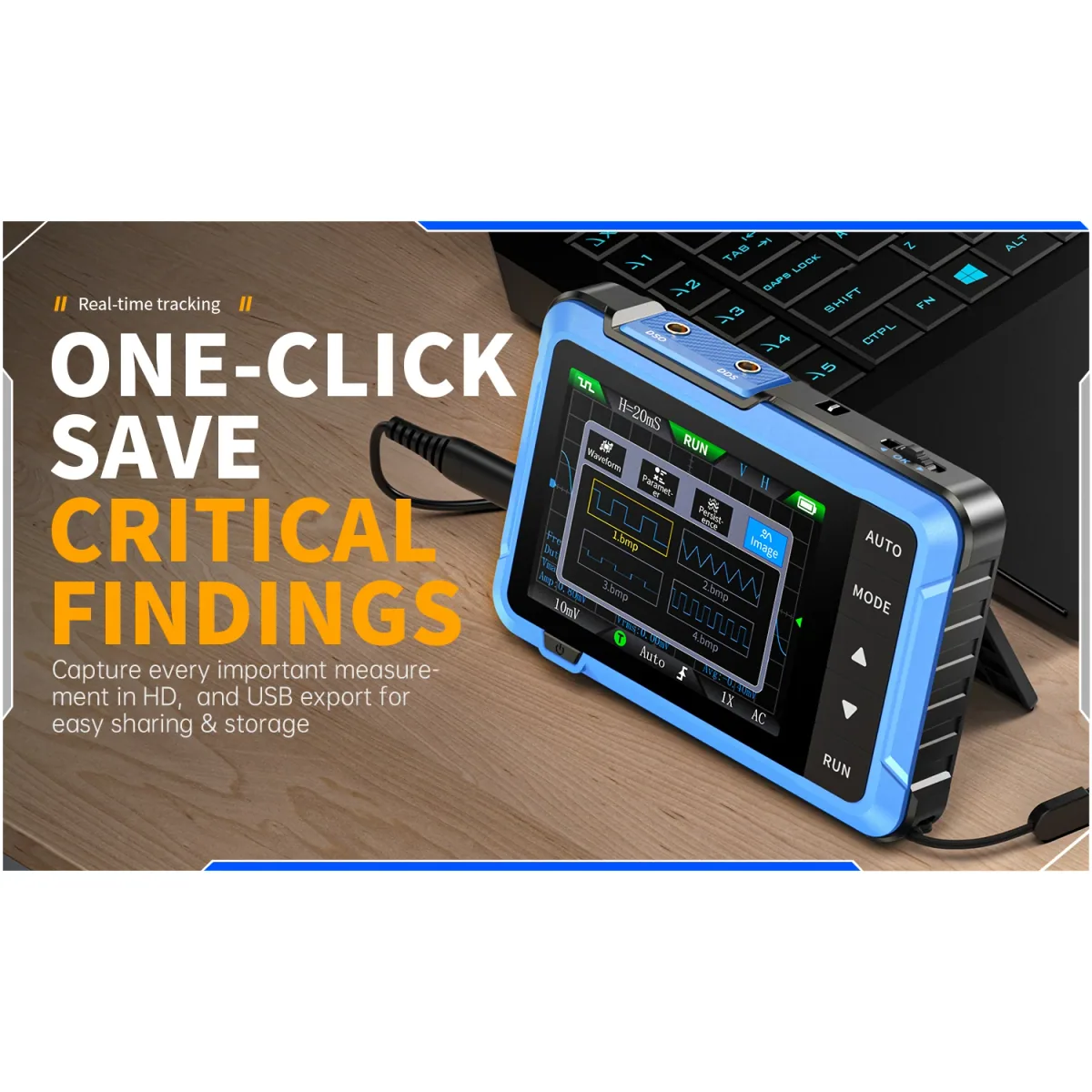

This pocket handheld oscilloscope comes in three versions: the DSO510 with 10MHz bandwidth, 48MS/s real-time sampling and a 13-waveform signal generator, the DSO153 with 1MHz, 5MS/s and a 14-waveform generator, and the entry DSO152 with 200kHz and 2.5MS/s. All three are single channel, measure up to ±400V with a X10 probe, and show the trace on a 2.8 inch 320 x 240 colour screen powered by a built-in 1000mAh battery. Features and Benefits - One-press AUTO mode: the waveform appears without manual timebase and voltage setting, so quick checks take seconds. - 12 on-screen measurement values on the DSO510 and DSO153 (8 on the DSO152): frequency, period, duty, Vmax, Vmin, Vpp, Vrms and average are read straight off the screen. - Built-in DDS signal generator on the DSO510 (0 to 50kHz) and DSO153 (0 to 10kHz): feed a test signal into a circuit and check the response with one pocket tool. - DSO510 extras: persistence (Off, 500ms, 1s, infinite), trigger level display and screenshot saving with USB export. - 1kHz square wave test output: set up and check the probe before you measure. - 99 x 68.3 x 19.5 mm and about 100g with a fold-out stand and lanyard: fits a shirt pocket or tool pouch. Applications - Electronics repair: power supply ripple, pulse and switching signal checks. - Mains waveform viewing with the P6100 probe on X10, within the ±400V input range. - Car repair and outdoor maintenance where a bench scope will not fit. - Teaching, DIY learning and hobby projects. In the box - DSO510 with probe: DSO510 unit, P6100 probe, BNC adapter, alligator clip probe, charging cable, lanyard, user manual, box. - DSO153 or DSO152 standard: unit, alligator clip probe, charging cable, lanyard, user manual, box. - DSO153 or DSO152 with probe: as standard plus P6100 probe and BNC adapter. Note: with the alligator clip lead (X1) the input range is ±40V (80Vpp). Only measure up to ±400V (800Vpp) with the P6100 probe set to X10, and keep fingers behind the probe guard on live circuits.

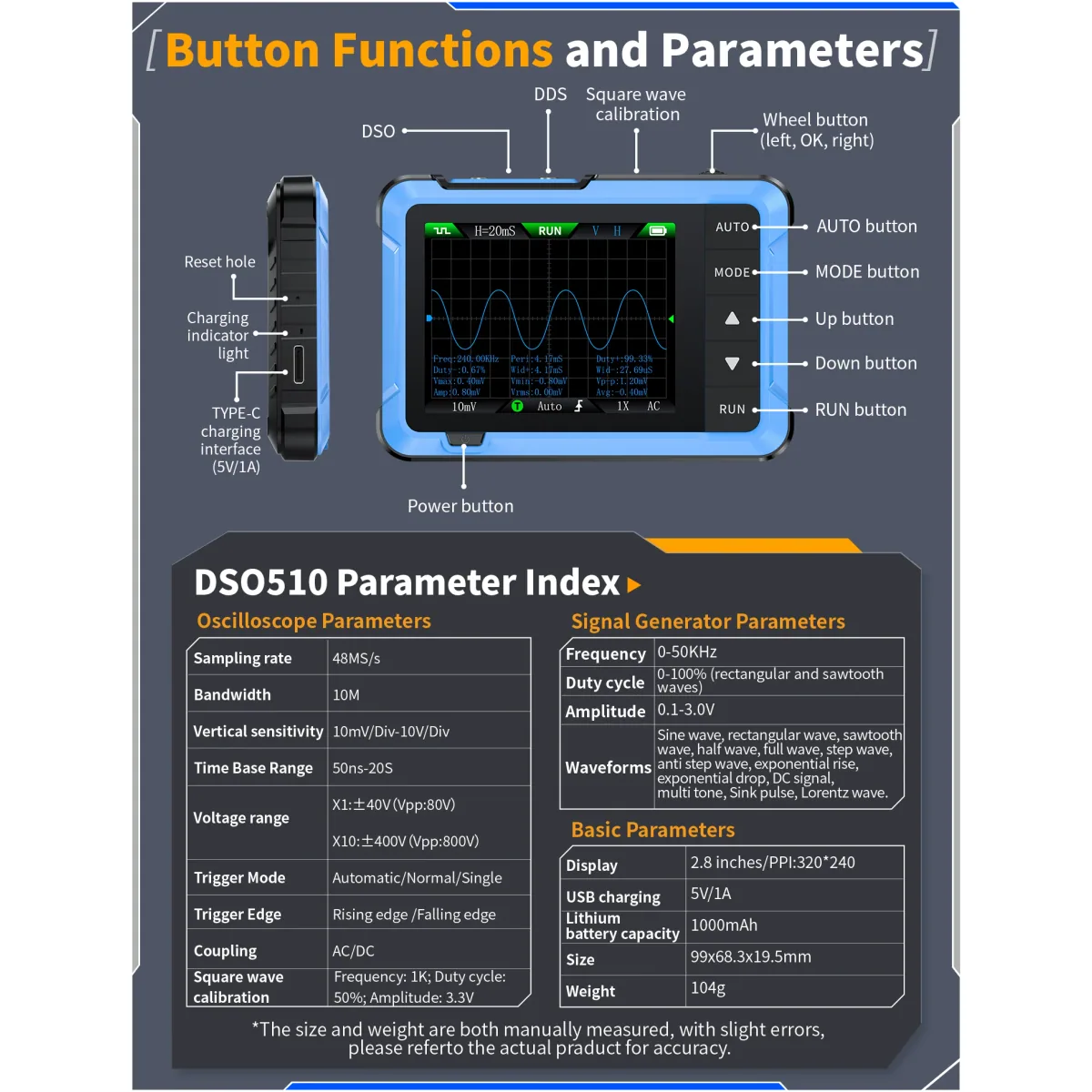

Models: DSO510, DSO153 or DSO152 (choose in options). Channels: 1. Bandwidth: 10MHz (DSO510); 1MHz (DSO153); 200kHz (DSO152). Real-time sample rate: 48MS/s (DSO510); 5MS/s (DSO153); 2.5MS/s (DSO152). Timebase range: 50ns to 20s (DSO510); 500ns to 20s (DSO153); 10µs to 50s (DSO152), in 1-2-5 steps. Vertical sensitivity: 10mV/div to 20V/div in 1-2-5 steps (the DSO510 parameter sheet lists 10mV/div to 10V/div). Input voltage range: X1: ±40V (80Vpp); X10: ±400V (800Vpp). Trigger: Auto, Normal, Single; rising or falling edge. Coupling: AC, DC. Signal types: Periodic analogue signals and non-periodic digital signals. Measurement values: 12 kinds (DSO510, DSO153); 8 kinds (DSO152). Square wave test output: 1kHz, 50% duty, 3.3V amplitude. Persistence (DSO510): Off, 500ms, 1s, infinite. Image saving and trigger level display: DSO510 only. Signal generator (DSO510): 13 waveforms, 0 to 50kHz, 0.1 to 3.0V, duty 0 to 100% (rectangular and sawtooth). Signal generator (DSO153): 14 waveforms including noise, 0 to 10kHz, 0.1 to 3.3V, duty 0 to 100% (rectangular and sawtooth). Signal generator (DSO152): Not fitted. Generator waveforms (DSO510): Sine, rectangular, sawtooth, half wave, full wave, step, anti step, exponential rise, exponential drop, DC, multi tone, sink pulse, Lorentz. Display: 2.8 inch colour LCD, 320 x 240 pixels. Battery: 1000mAh lithium, built in, with auto shutdown. Run time: Up to 4 hours per charge (seller figure). Charging: USB Type-C, 5V/1A; the port also takes firmware upgrades. Dimensions: 99 x 68.3 x 19.5 mm. Weight: 104g (DSO510); 100g (DSO153, DSO152). Connections: DSO input, DDS output and square wave test terminal on the top edge; BNC adapter supplied with probe kits. Controls: AUTO, MODE, up, down and RUN buttons, wheel button (left, OK, right), power button, reset hole, charging indicator. Stand and carry: Fold-out stand and wrist lanyard. Menu languages (DSO153): 8 languages including English, Russian, Japanese, Spanish, Portuguese, German and Korean. Package contents: Unit, alligator clip probe, charging cable, lanyard, manual; probe kits add a P6100 probe and BNC adapter. Q: What does an oscilloscope measure? A: It measures voltage over time and draws it as a waveform. This unit also reads out values such as frequency, period, duty cycle, Vmax, Vmin, Vpp, Vrms and average: 12 kinds on the DSO510 and DSO153, 8 on the DSO152.. Q: How do you use a pocket oscilloscope like the DSO510? A: Connect the clip lead or P6100 probe to the DSO input, attach the earth clip, touch the test point and press AUTO. MODE switches between adjusting the vertical scale and the timebase with the up and down keys, and RUN freezes the trace.. Q: How do you read an oscilloscope screen? A: The horizontal axis is time, set by the H value at the top of the screen, and the vertical axis is volts per division, shown bottom left. The readouts underneath give the measured values, so you rarely need to count grid squares.. Q: What does a signal generator do? A: It outputs a known test waveform so you can drive a circuit and watch the result. The DSO510 generates 13 waveforms up to 50kHz and the DSO153 14 waveforms up to 10kHz; the DSO152 has only the 1kHz square wave test output.. Q: Can this handheld oscilloscope show mains voltage? A: Yes with the P6100 probe set to X10, which gives a ±400V (800Vpp) range; the seller shows a 220V mains waveform test. On the X1 clip lead the limit is ±40V, so the standard kits without the probe are for low voltage work..
