ESR Meter and Transistor Tester LCR-P1 | Auto Component ID | 1.44 Inch Screen

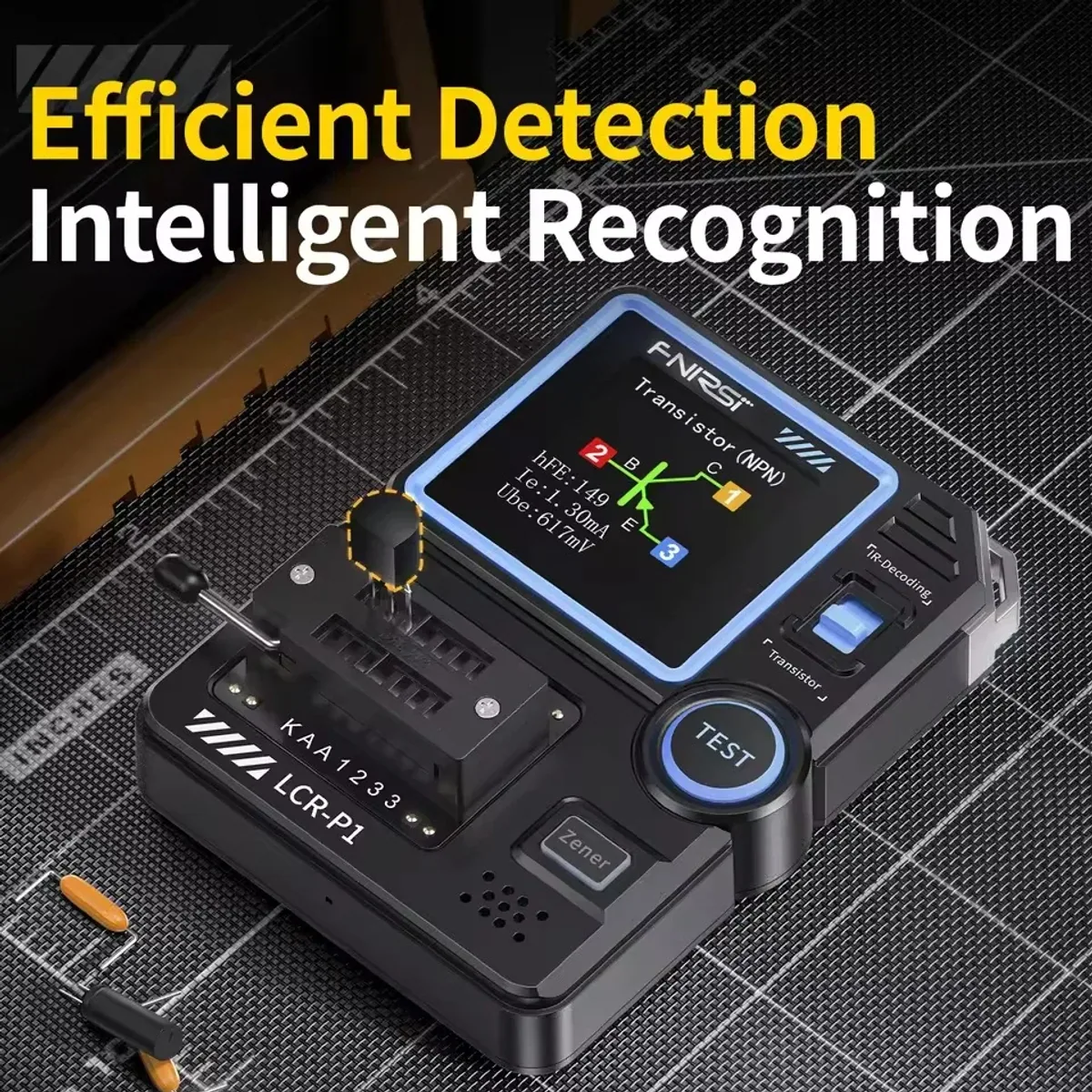

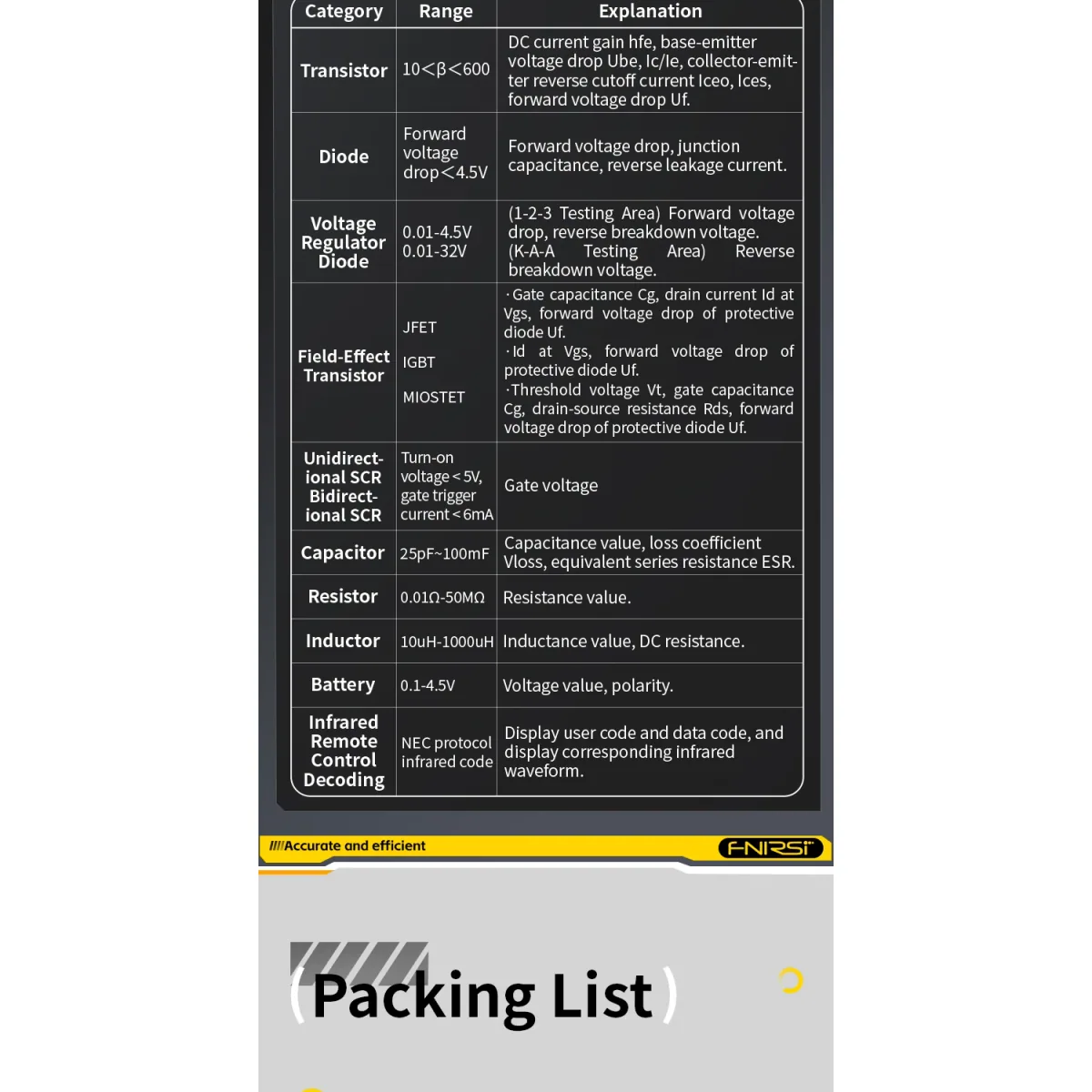

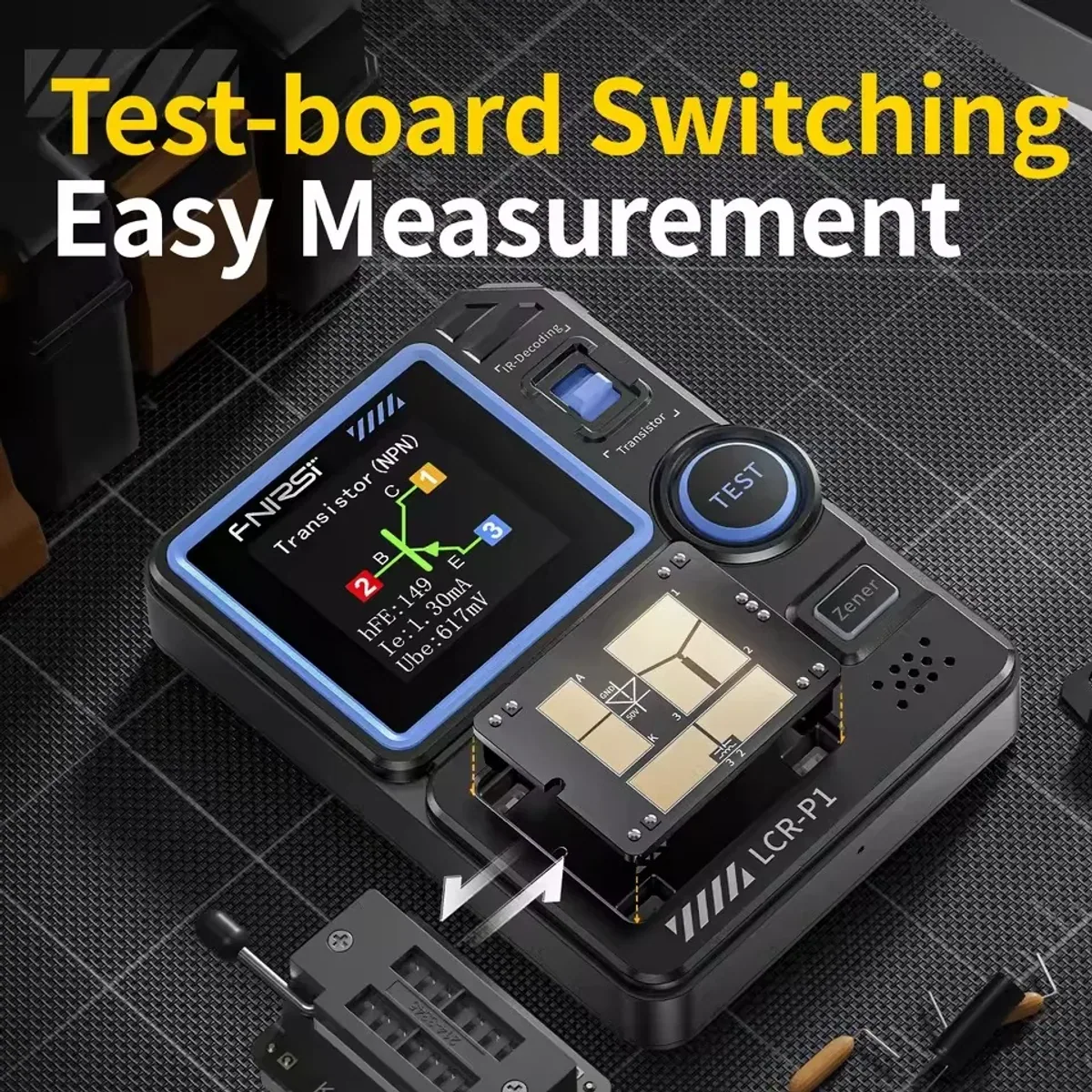

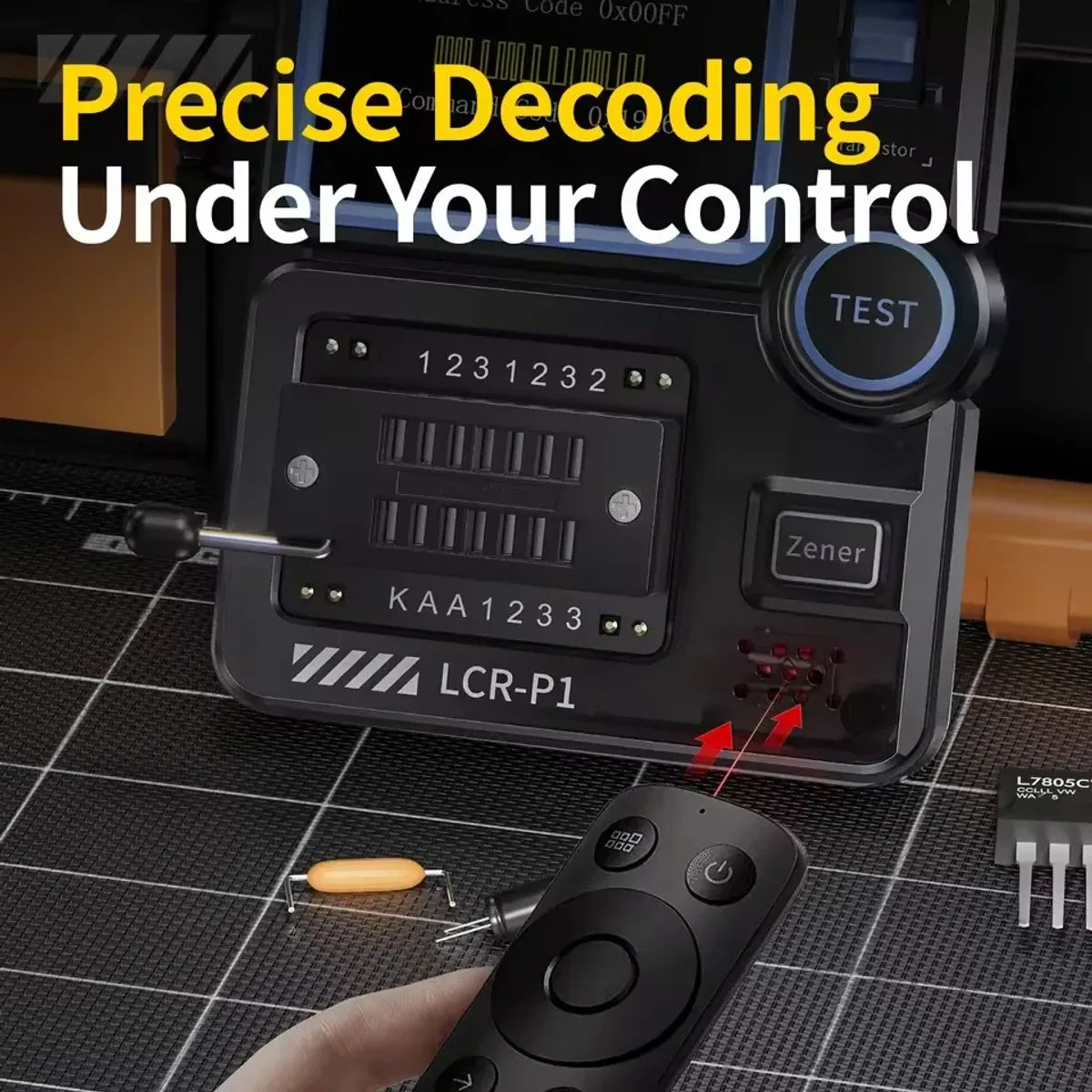

The LCR-P1 is a pocket ESR meter and transistor tester that identifies transistors, diodes, Zener diodes, MOSFETs, JFETs, IGBTs, thyristors, capacitors, inductors and resistors with one press of the TEST button, showing the part type, pin order and key values on a 1.44 inch colour screen. Capacitors are measured from 25pF to 100mF with ESR and loss, resistors from 0.01Ω to 50MΩ. Features and Benefits - One button automatic identification - shows the component type and which pin is which, so unmarked parts can be sorted quickly - Capacitance with ESR and Vloss - checks electrolytic capacitors for ageing, not just their value - Resistance 0.01Ω to 50MΩ and inductance 10uH to 1000uH with DC resistance - covers most passives on the bench - Separate Zener channel measuring 0.01V to 32V with its own supply - tests Zener and regulator diodes above the 4.5V limit of the main test area - Swappable test boards: a lever socket for leaded parts and an SMD pad board - test through-hole and chip components - Anti-burn protection - the tester discharges capacitors on insertion to help prevent damage - NEC infrared remote decoding, PC data export and firmware upgrades - extra functions for remote control repair and logging Applications - Sorting salvaged, unmarked or suspect transistors and MOSFETs - Checking capacitor ESR in power supply and home appliance repair - Testing infrared remote controls that use the NEC protocol - Product development, education and hobby electronics In the box 1 x LCR-P1 tester, 1 x replaceable test board, 1 x USB data cable, 3 x test hooks, user manual and packing box. Note: Discharge large or high voltage capacitors before testing and never test parts in a powered circuit. Infrared decoding reads NEC protocol remotes only.
