Optical Fibre Fusion Splicer | AI-5Pro or AI-9 | 6-Motor Core Alignment

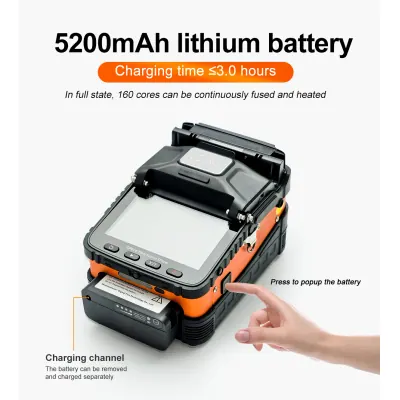

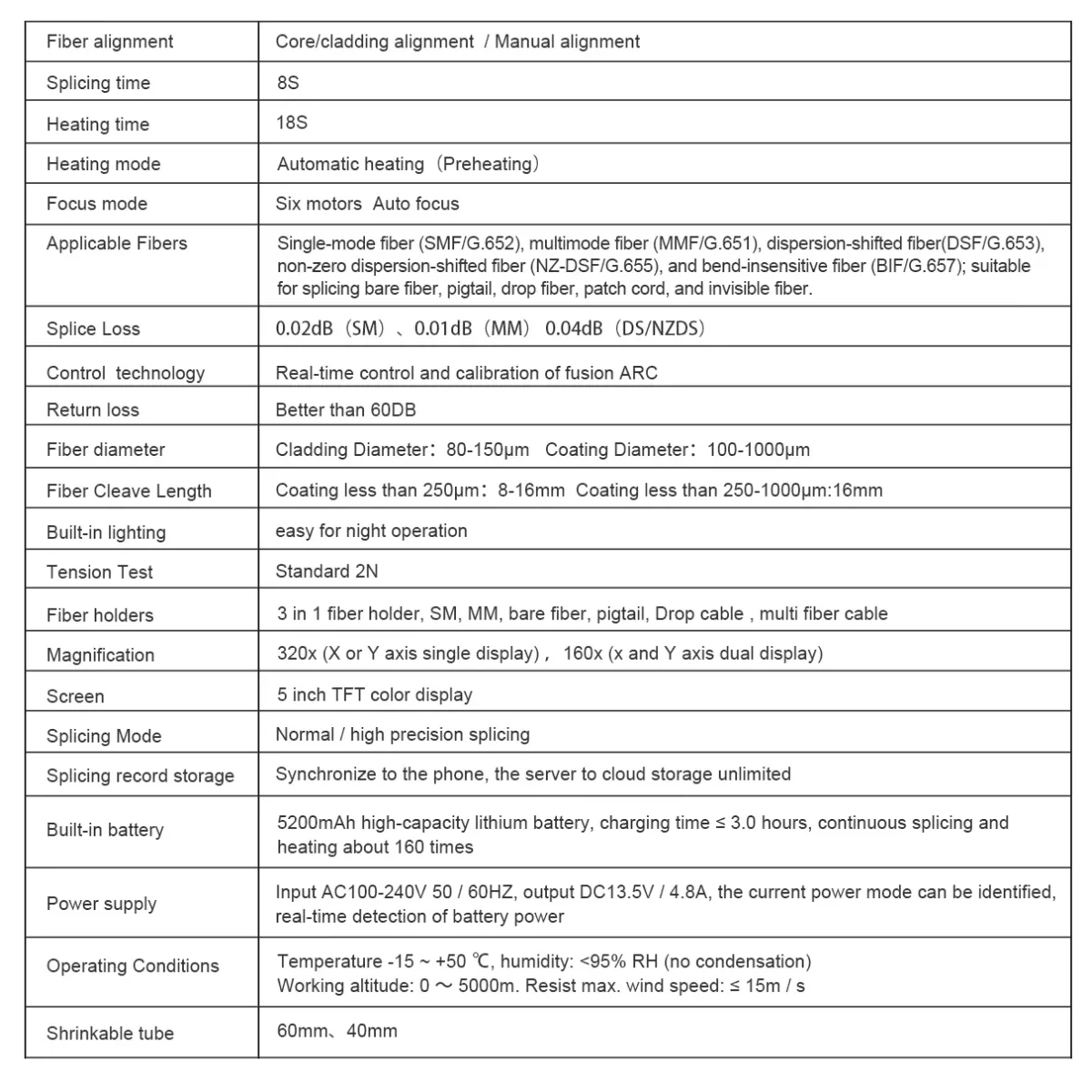

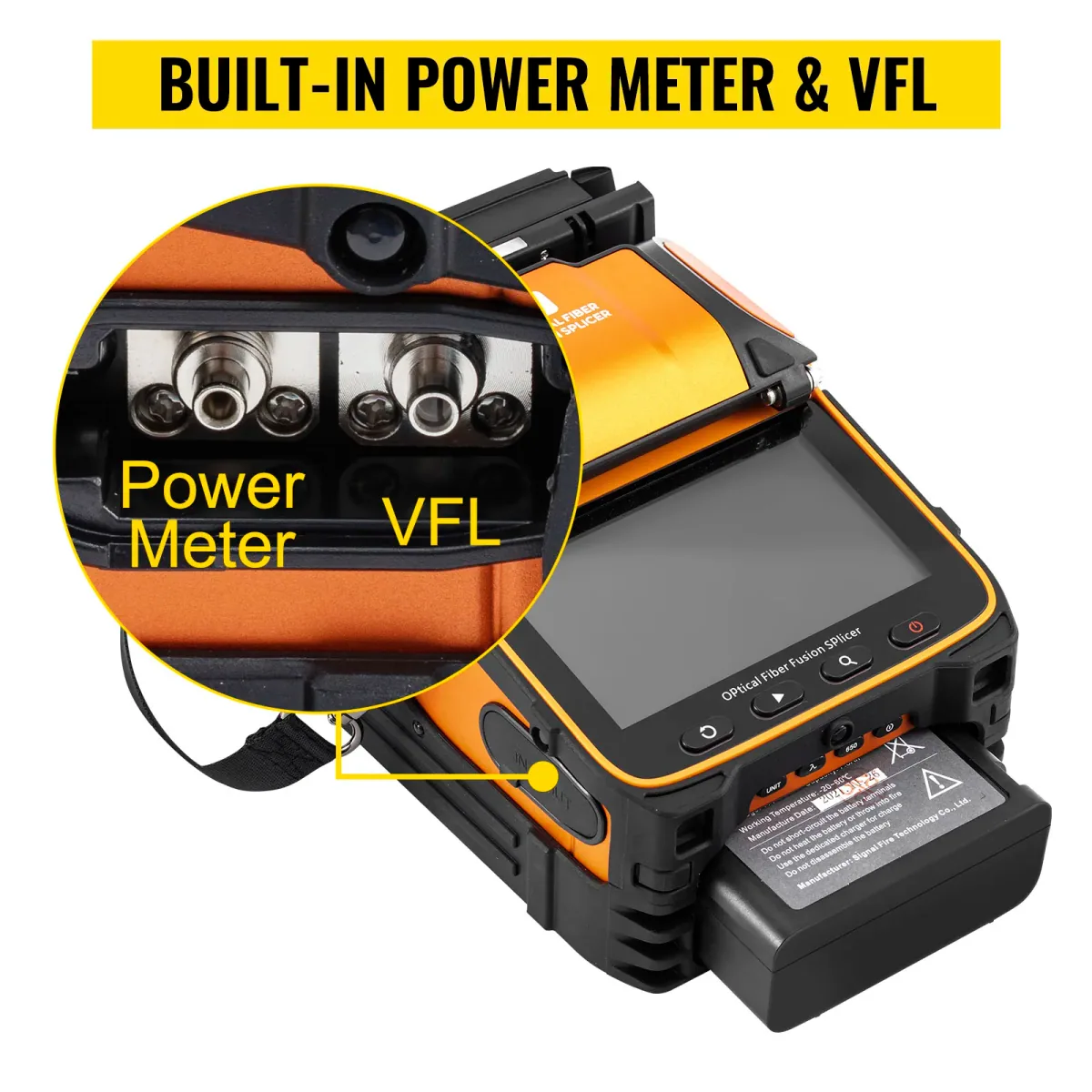

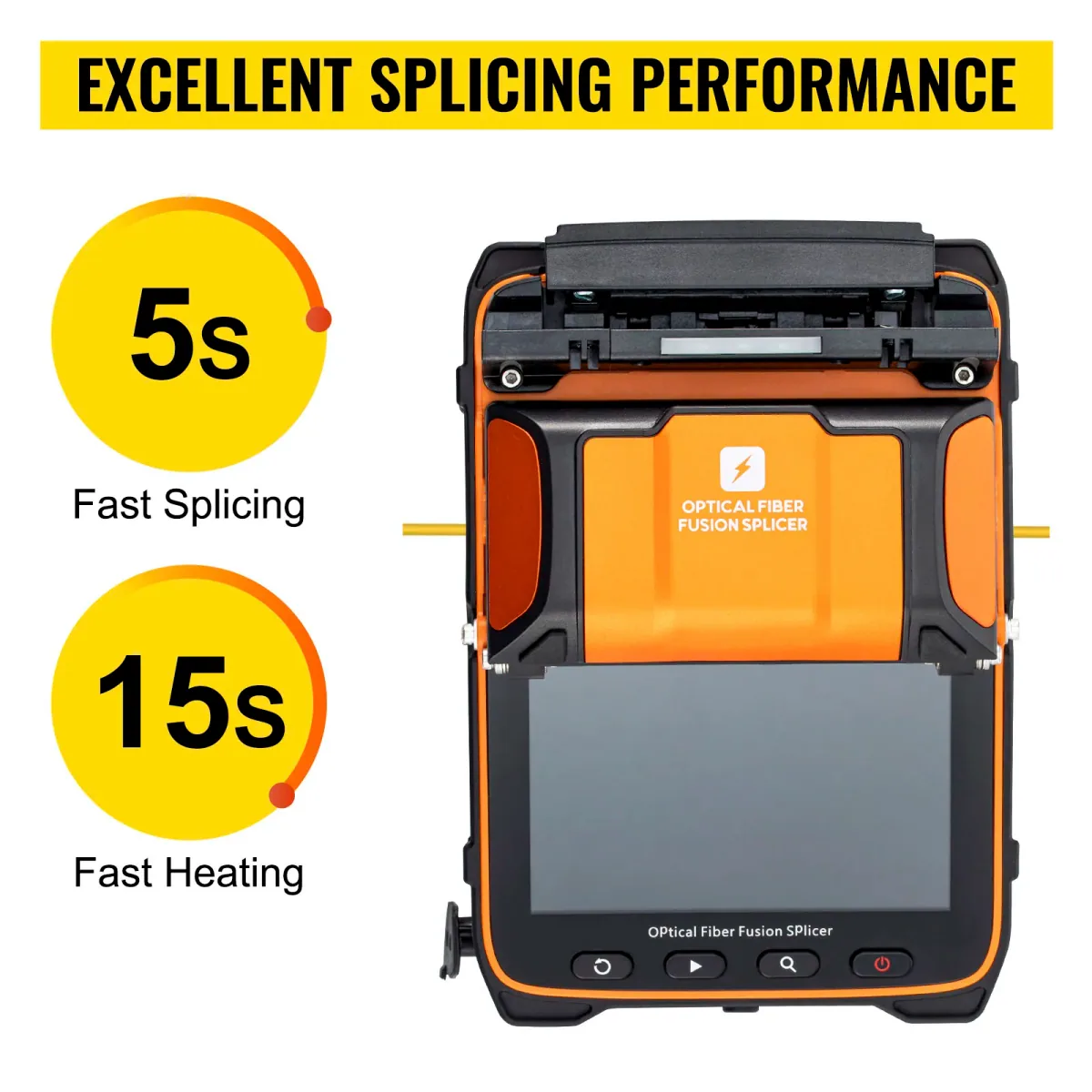

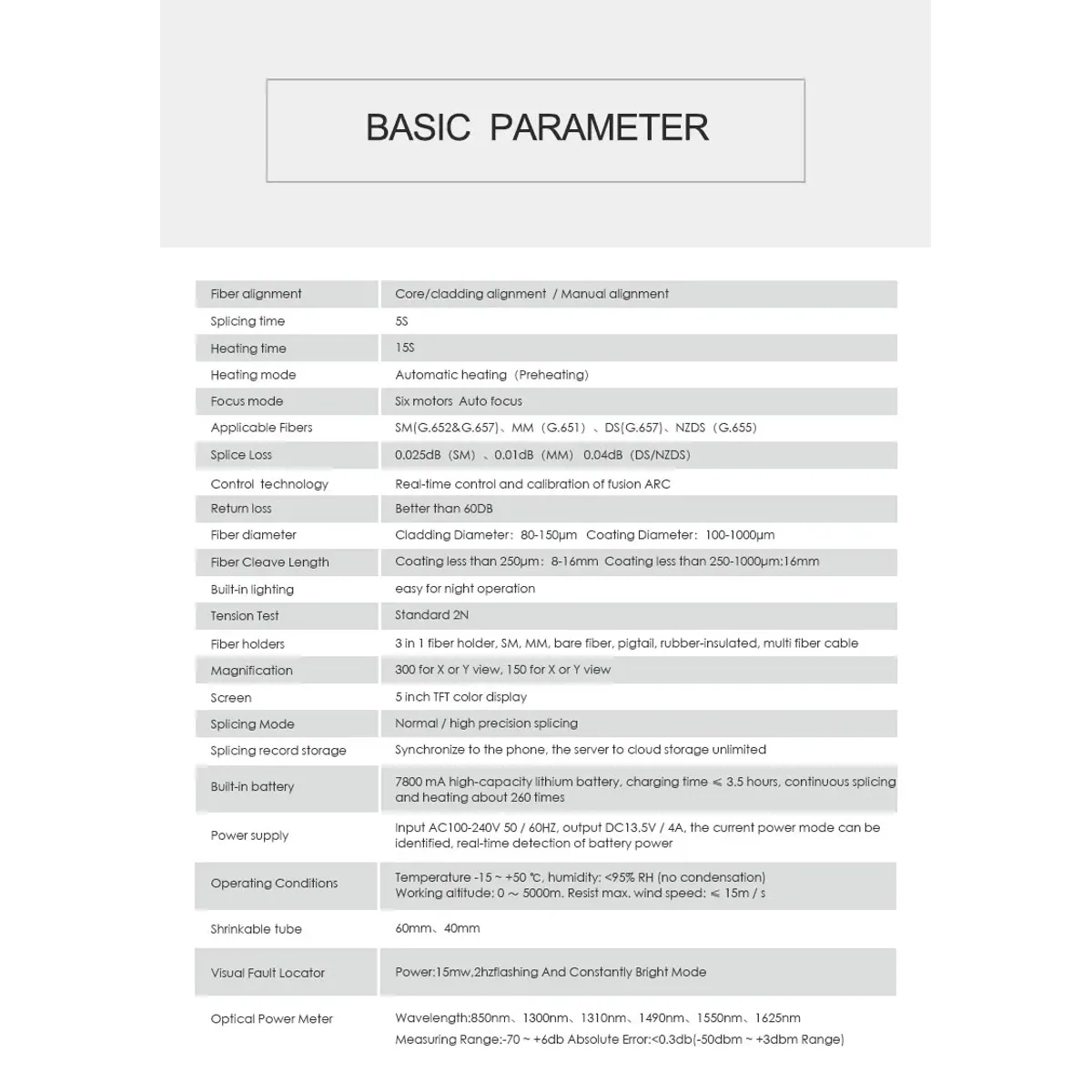

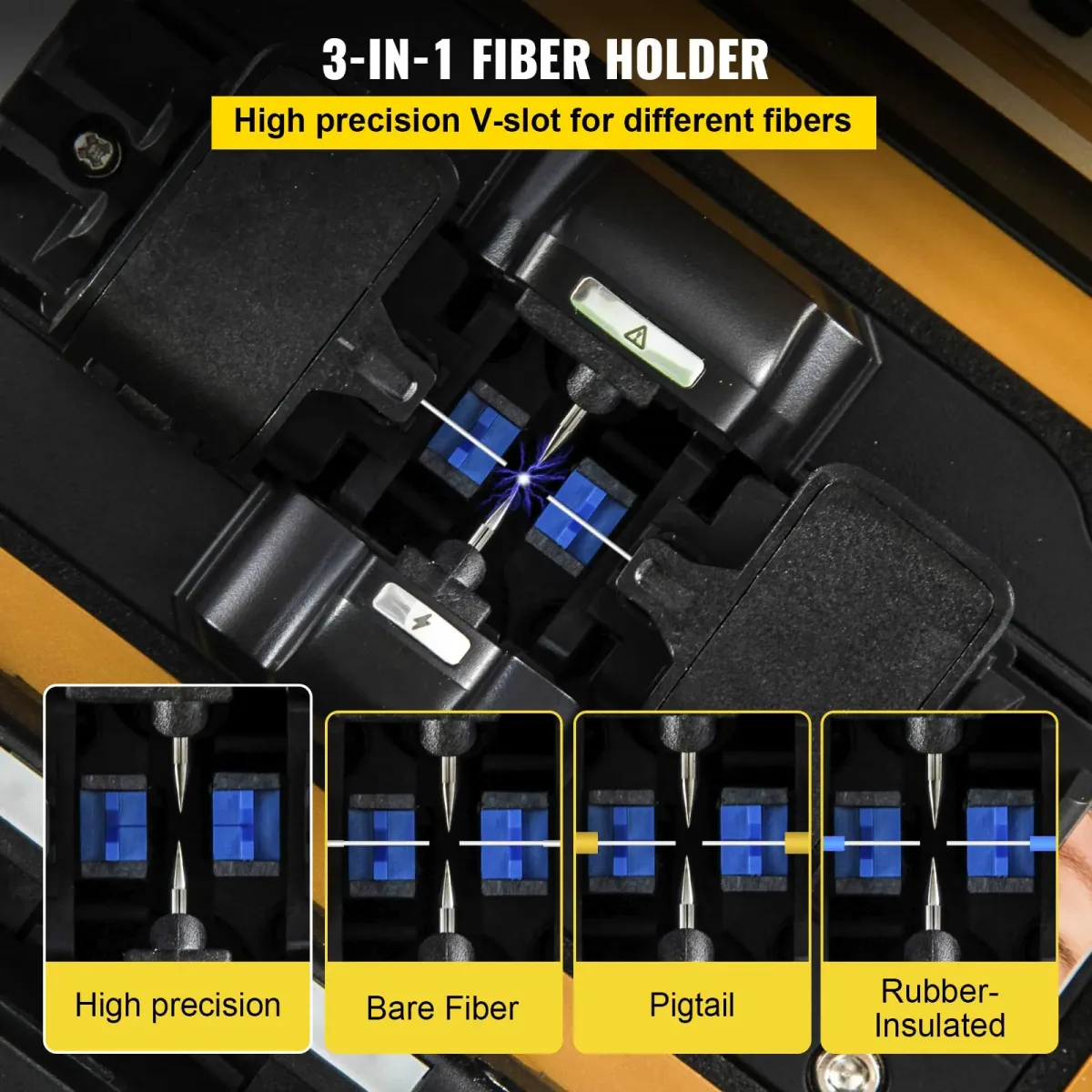

This optical fibre fusion splicer is a six-motor core alignment splicer with a 5 inch colour screen, offered as the AI-5Pro (8s splice, 18s heat, 5200mAh battery) or the AI-9 (5s splice, 15s heat, 7800mAh battery, built-in power meter and 15mW VFL). Both join single-mode and multimode fibre with a published typical splice loss of 0.02dB to 0.025dB on single-mode. Six motors and auto focus align the fibre cores, and the screen shows the X and Y views together with the estimated loss after each splice. The 3-in-1 fibre holder takes bare fibre, pigtails, drop cable and multi-fibre cable without changing clamps, and the heater takes 60mm and 40mm sleeves. Splice records can be synced to a phone app. Features and Benefits - Six-motor core and cladding alignment - consistent low-loss joints on SM, MM, DS and NZDS fibre. - 3-in-1 fibre holder - switch between bare fibre, pigtail and drop cable on site. - Fast cycle - 5s splice and 15s heat on the AI-9, 8s and 18s on the AI-5Pro. - Removable lithium battery - about 260 splice and heat cycles per charge (AI-9) or about 160 (AI-5Pro). - AI-9 built-in OPM and VFL - check power at 6 wavelengths and trace breaks without extra tools. - Built-in LED work light - easier splicing in cabinets, manholes and at night. - Rated for -15 to +50°C, altitude to 5000m and wind up to 15m/s. Applications - FTTH drops and building fibre installs - Trunk and backbone cable jointing and repairs - CCTV and security monitoring fibre links - Patch cord, pigtail and drop cable termination In the box - AI-5Pro: splicer, soft tool bag, S07 fibre cleaver, two strippers, alcohol bottle, belt, strap, power adapter, arc test fibre, manual, quality certificate and warranty card. - AI-9: splicer in an orange hard carry case with tool drawer and stool, cleaver, strippers, alcohol bottle, brush, strap and power adapter (as pictured). Note: Never look into the laser output or a live fibre end, and keep your eyes and fingers clear of the electrodes while the arc fires. The seller states the plug type for neither model; the pictured mains leads are non-UK.
