Fibre Inspection Microscope | 200x or 400x | 2.5mm and 1.25mm Adapters

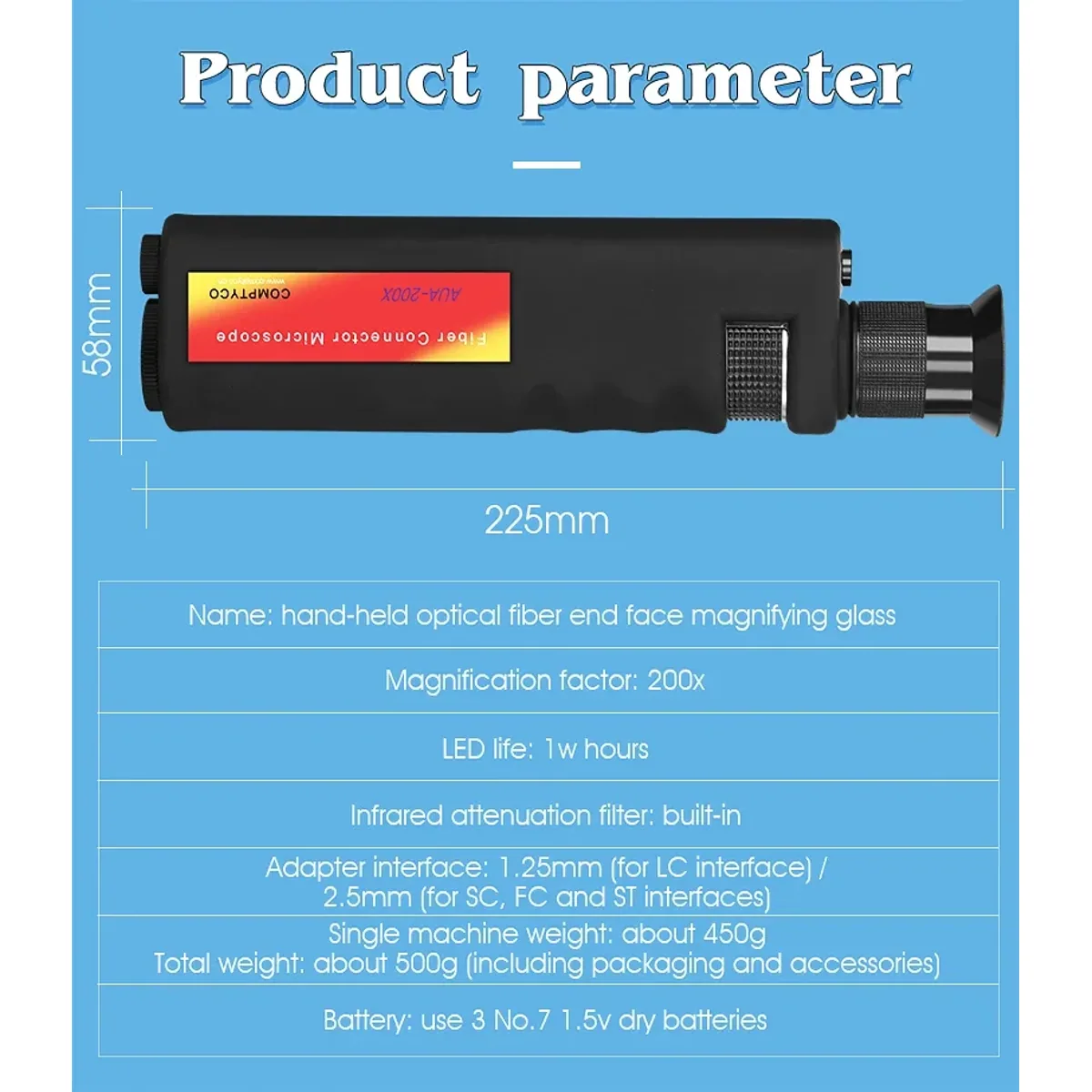

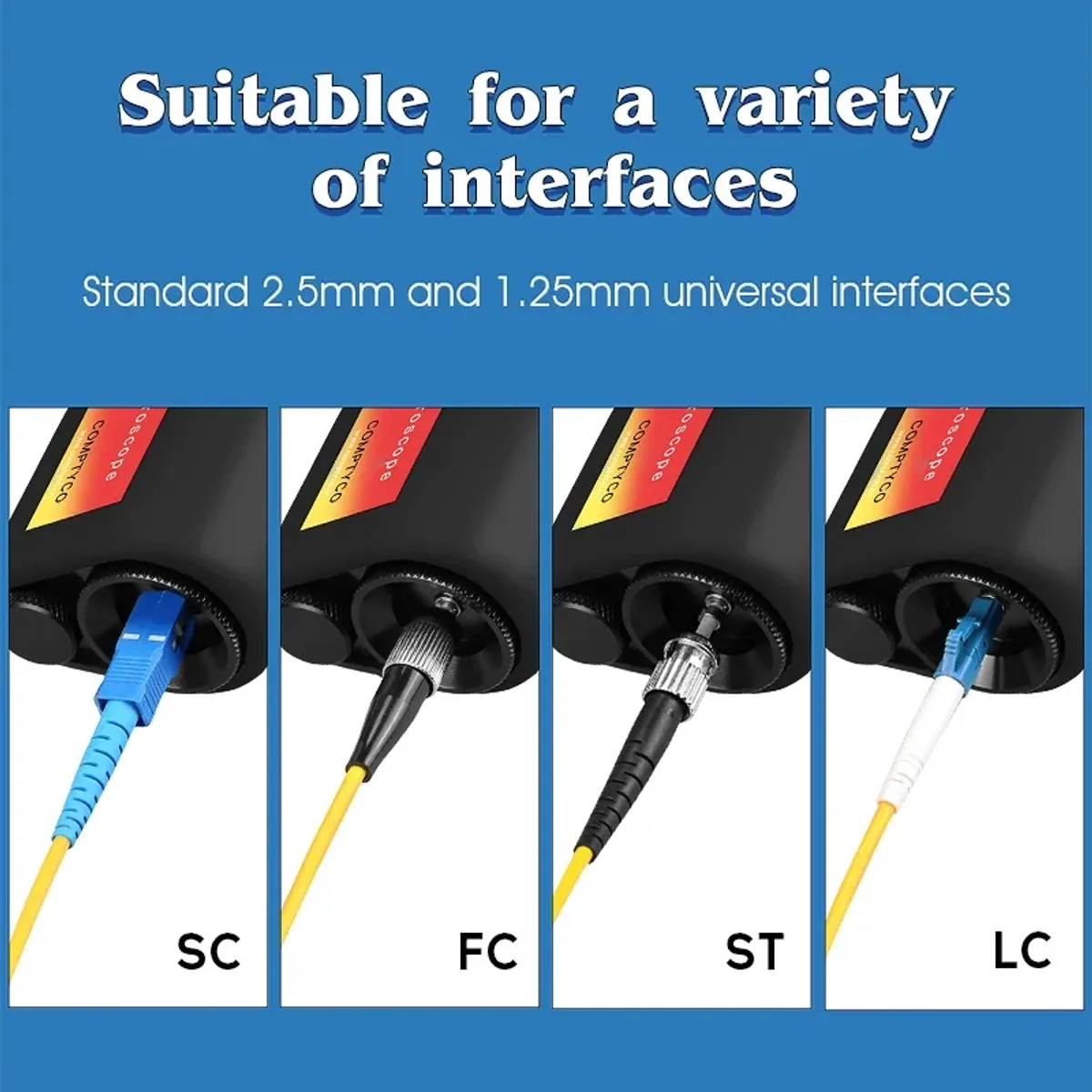

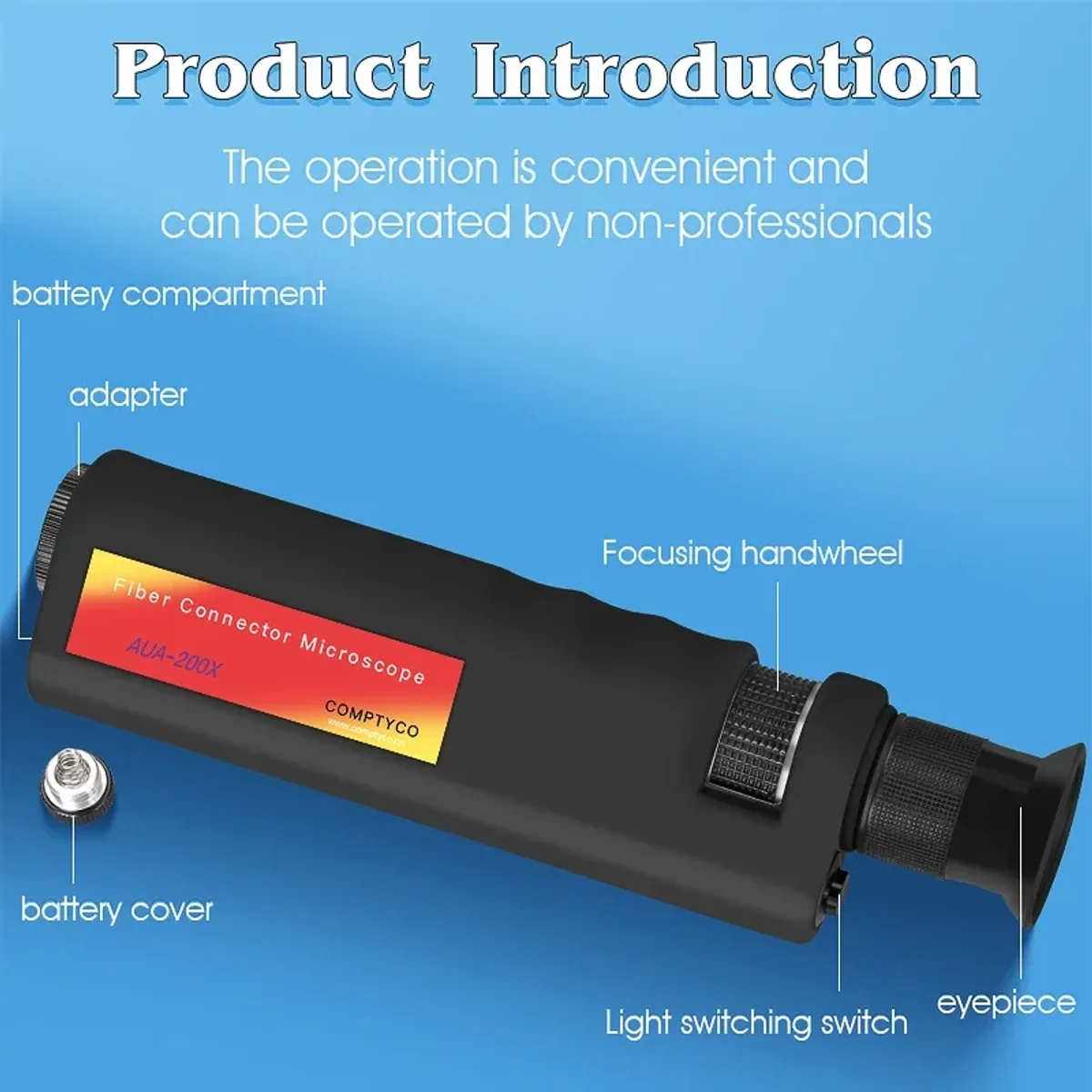

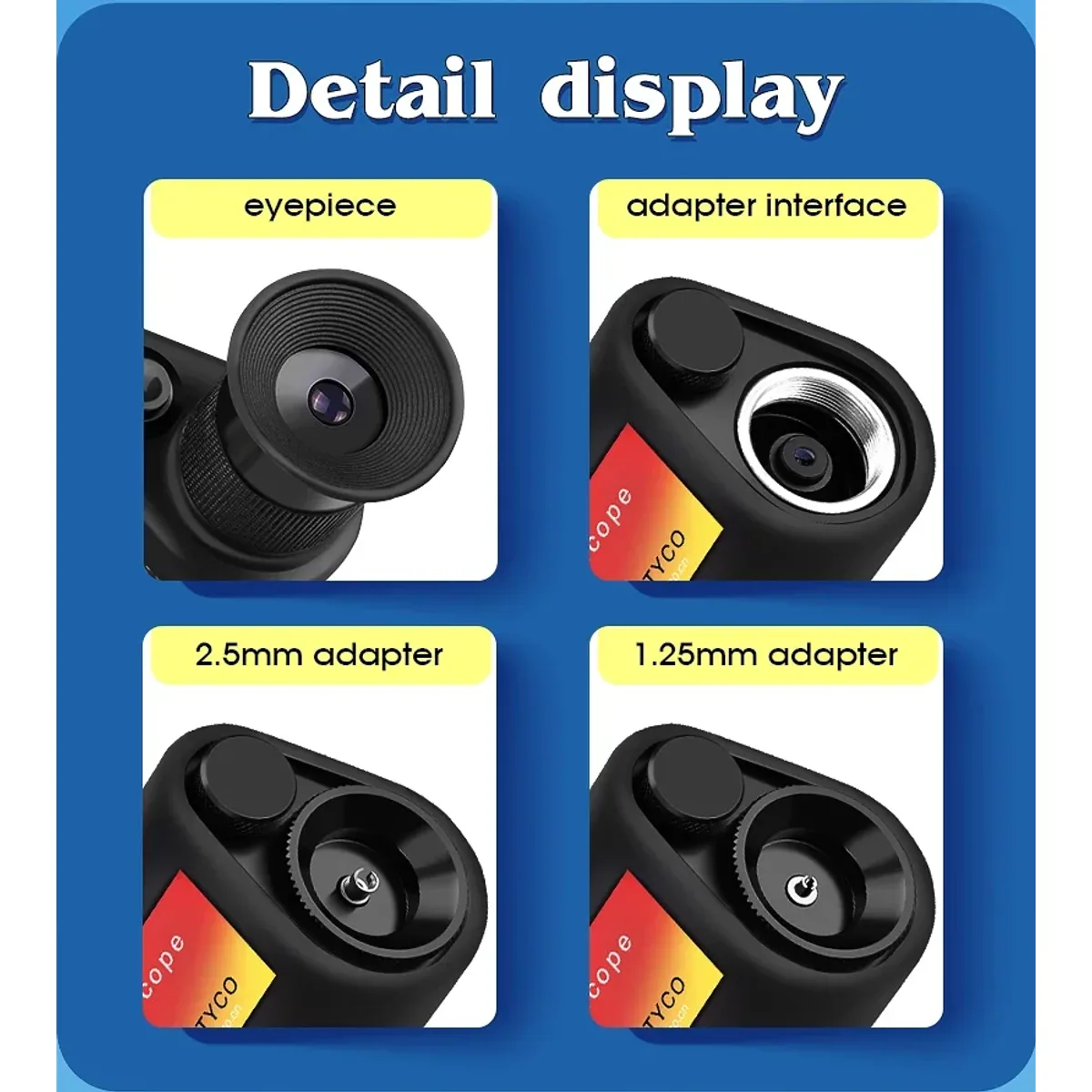

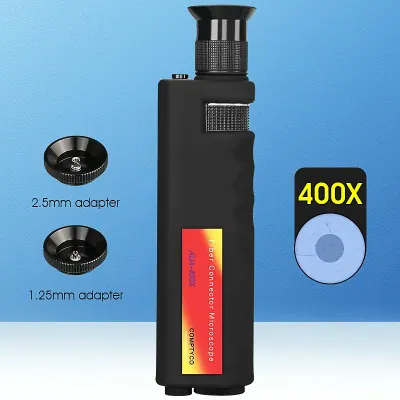

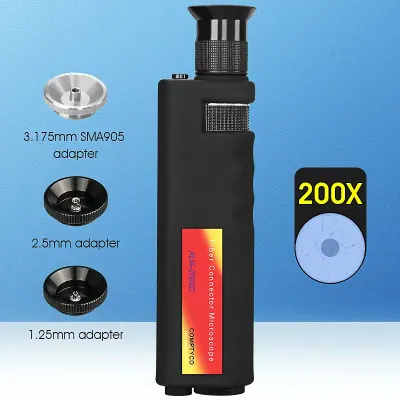

This handheld fibre inspection microscope (AUA-200X, AUA-400X or AUA-200XD) magnifies a connector end face 200x or 400x under LED illumination, so you can see scratches, pits and dirt before mating or splicing. It takes SC, FC and ST connectors on the 2.5mm adapter and LC on the 1.25mm adapter, has a built-in infrared attenuation filter and runs on three No.7 (AAA) 1.5V dry batteries. Features and Benefits - 200x or 400x magnification - choose 200x for routine checks or 400x for a closer look at the end face. - 2.5mm and 1.25mm adapters supplied - SC, FC, ST and LC connectors; the AUA-200XD adds a 3.175mm SMA905 adapter. - Built-in infrared attenuation filter - an added layer of eye protection. - LED illumination with light switch and focusing handwheel - a lit, sharp view of the ferrule. - Rubber-covered anti-slip body and soft eyecup - comfortable one-handed use in the field. - Battery powered, 225mm long - no mains supply or laptop needed on site. Applications - Checking patch cord and pigtail end faces before connection. - Verifying cleaning results at ODFs and patch panels. - FTTH installation and acceptance work. - Training and quality checks in fibre termination. In the box Microscope, adapters, instruction manual, carry bag and packing box. Note: Never look at a connector that may be carrying live light. Disconnect the far end or confirm the fibre is dark before inspecting, even with the built-in infrared filter.
