Fibre Inspection Scope AUA-400 | 3.5 Inch LCD, 200x/400x | Video Recording

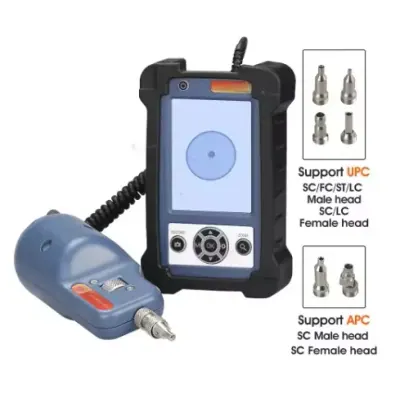

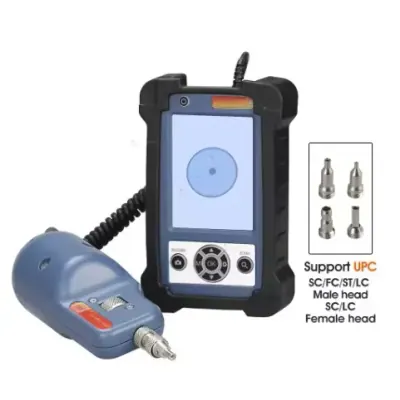

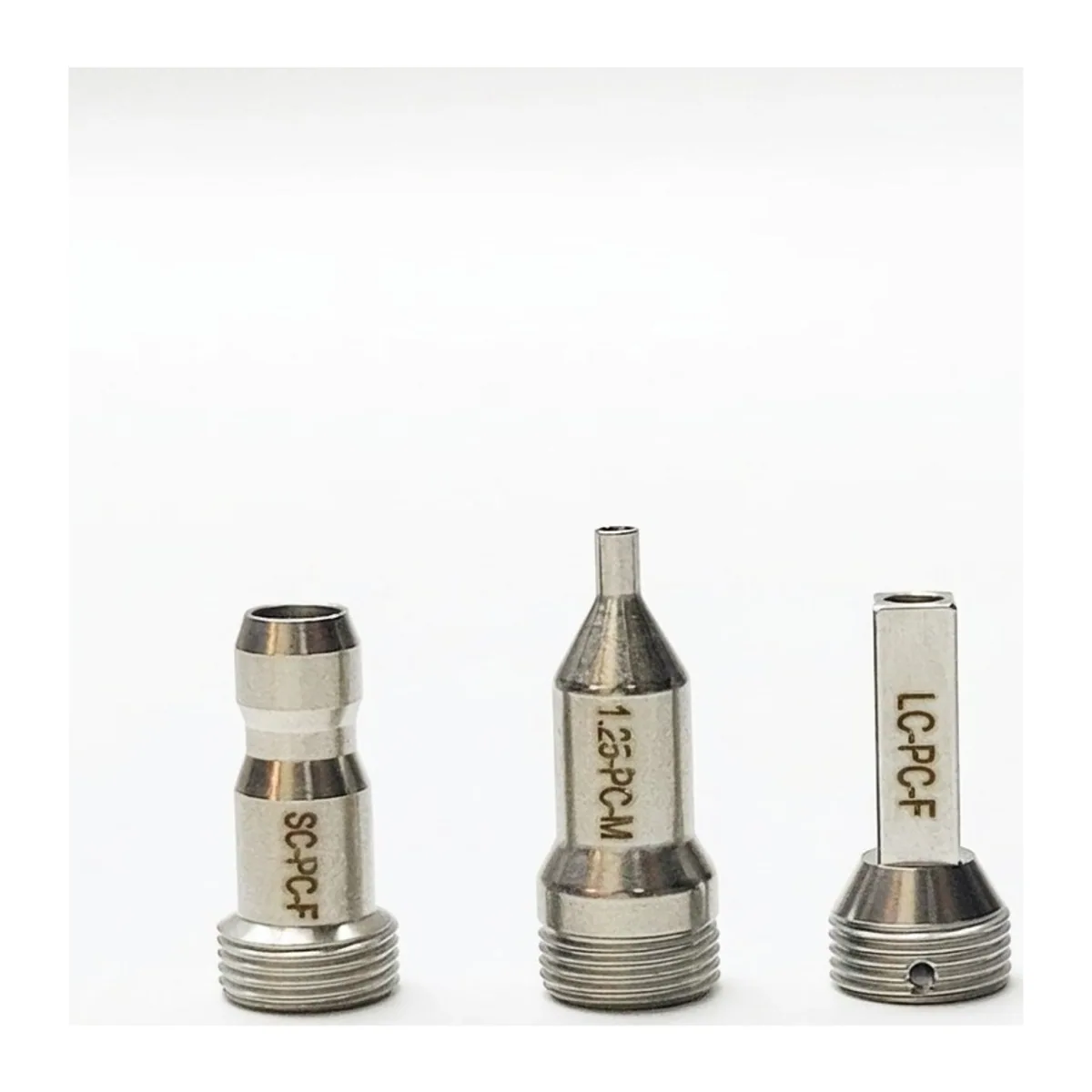

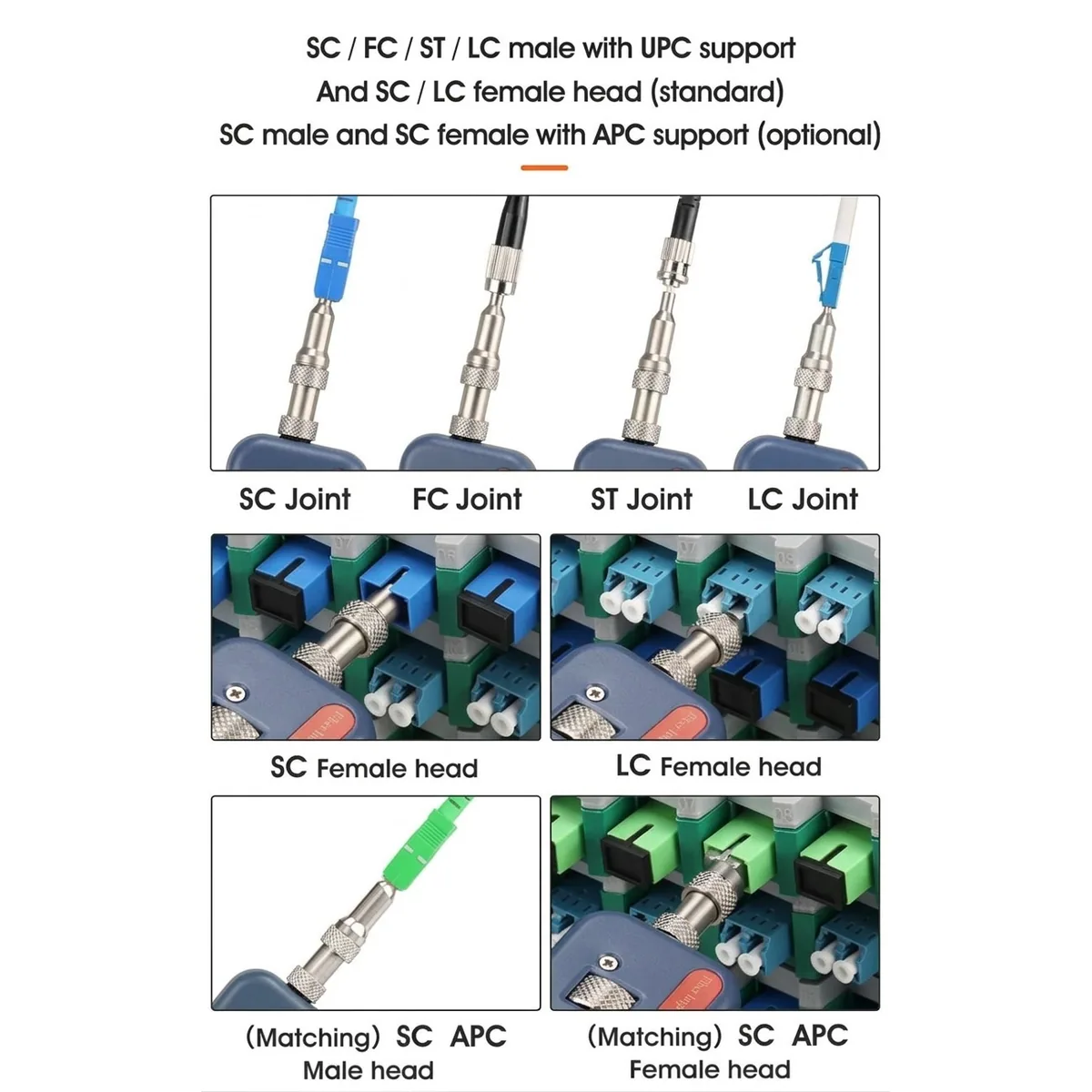

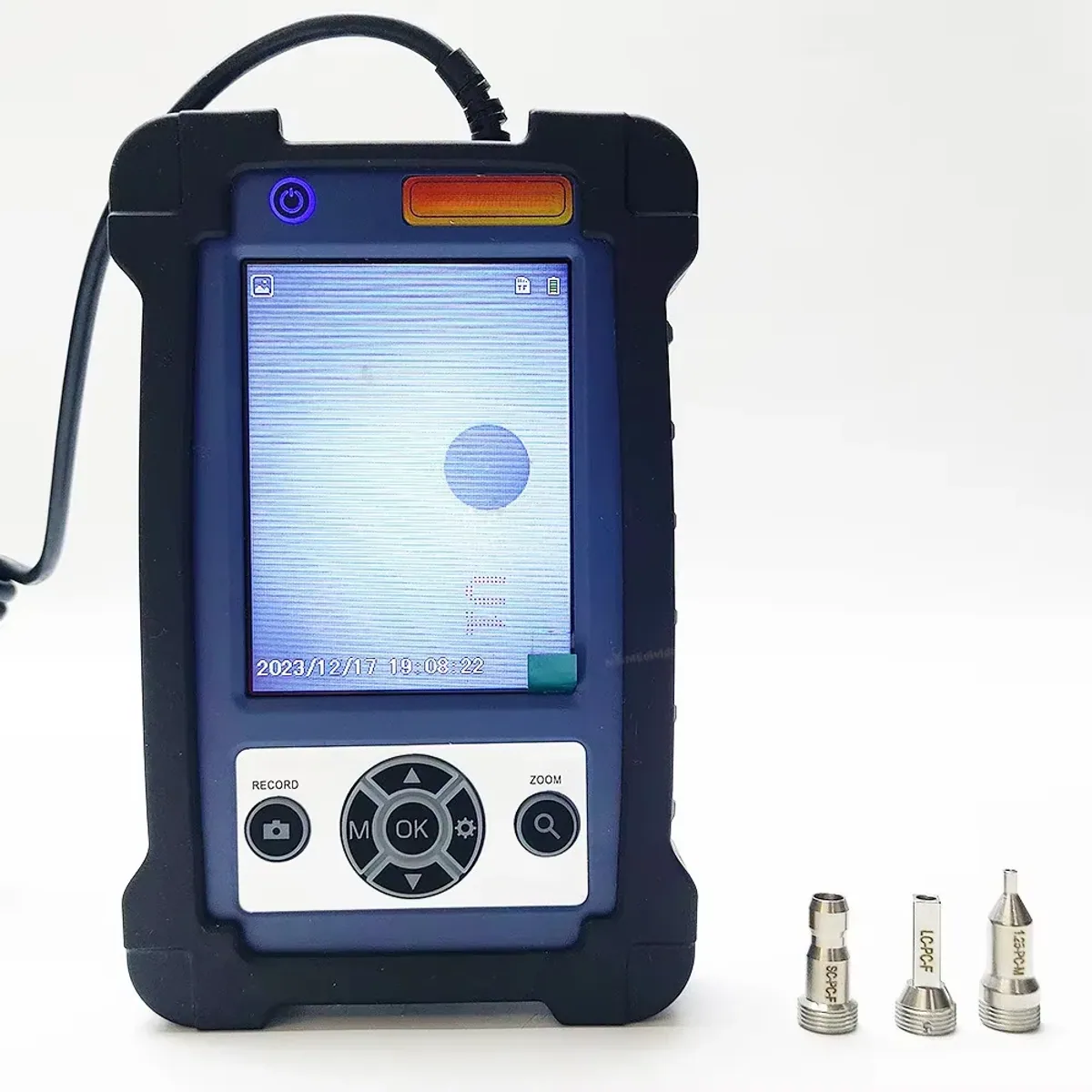

The AUA-400 is a digital fibre inspection scope: a handheld probe with blue-light illumination at 200x and 400x feeds a 3.5 inch TFT LCD monitor, so you can check a connector end face for dirt and damage, zoom in and save stills or video to a TF card. The monitor runs from a 4000mAh lithium battery for more than 7 hours of continuous use and charges over USB in 4 hours. Features and Benefits - 200x and 400x magnification - field of view 606 x 454µm at 200x and 432 x 324µm at 400x, with recognition accuracy under 1µm. - Male and female probe tips - check patch cord ends and connectors seated in panel adapters. - APC option - adds SC APC male and female tips for angled connectors. - Record key and TF card slot - 640 x 480 JPEG stills and MPEG video on cards up to 32GB, with playback. - 4000mAh lithium battery - more than 7 hours of continuous use from a full charge. - Removable silicone bumper - protects the monitor from knocks and drops. Applications - Inspecting connector end faces before mating, testing or splicing. - Recording before and after cleaning images for job reports. - Checking connectors in patch panels and ODFs without unplugging the adapter. - FTTH, data centre and telecoms acceptance work. In the box Monitor, inspection probe, tool bag, hanging strap, accessory box, USB data cable, TF card, card reader and probe tips: SC female, LC female, SC/FC/ST (UPC) universal male and LC (UPC) male. The UPC and APC option adds SC (APC) male and SC (APC) female tips. Note: Only inspect connectors that are dark. Confirm the far end is disconnected and never look into a fibre end or probe tip that may carry light.
