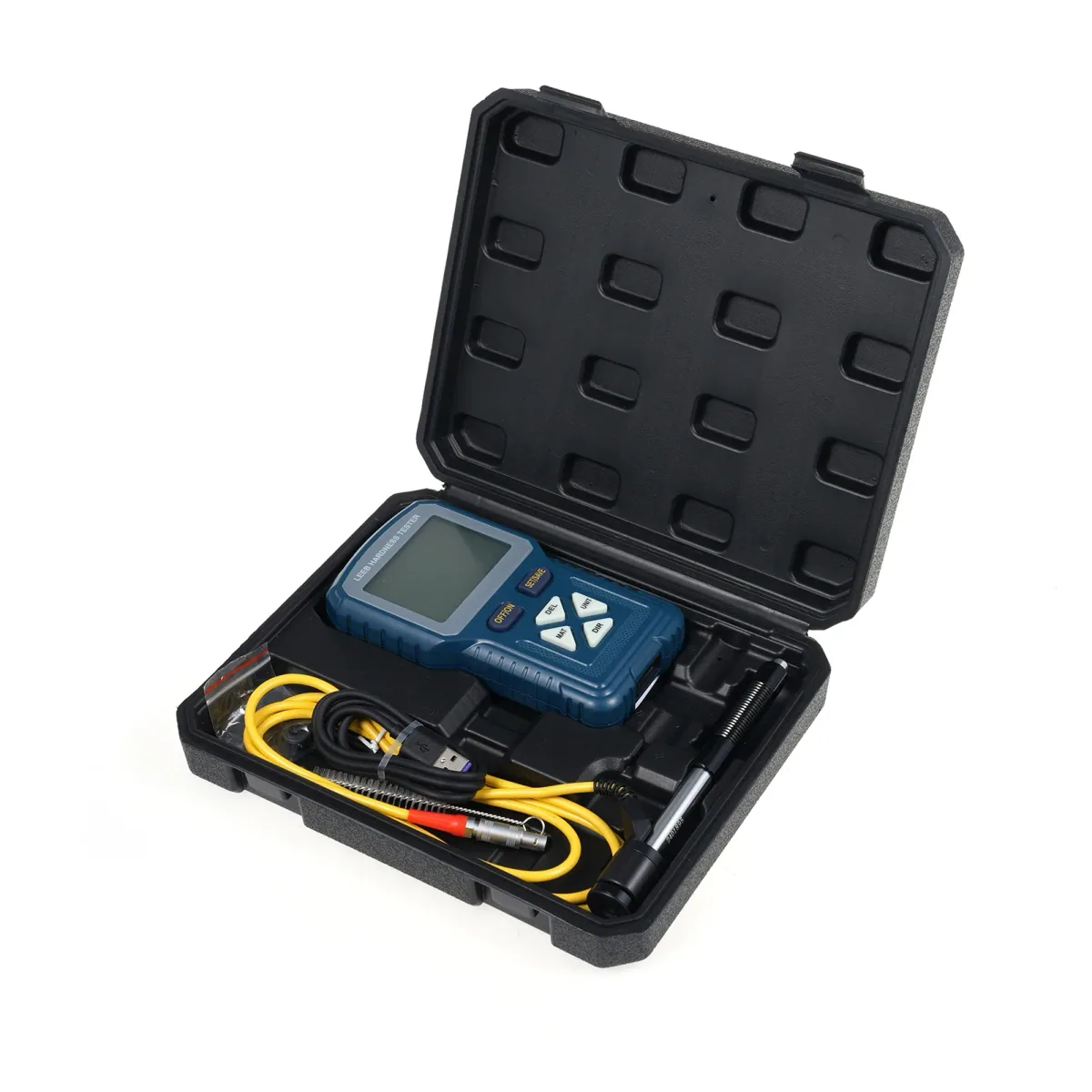

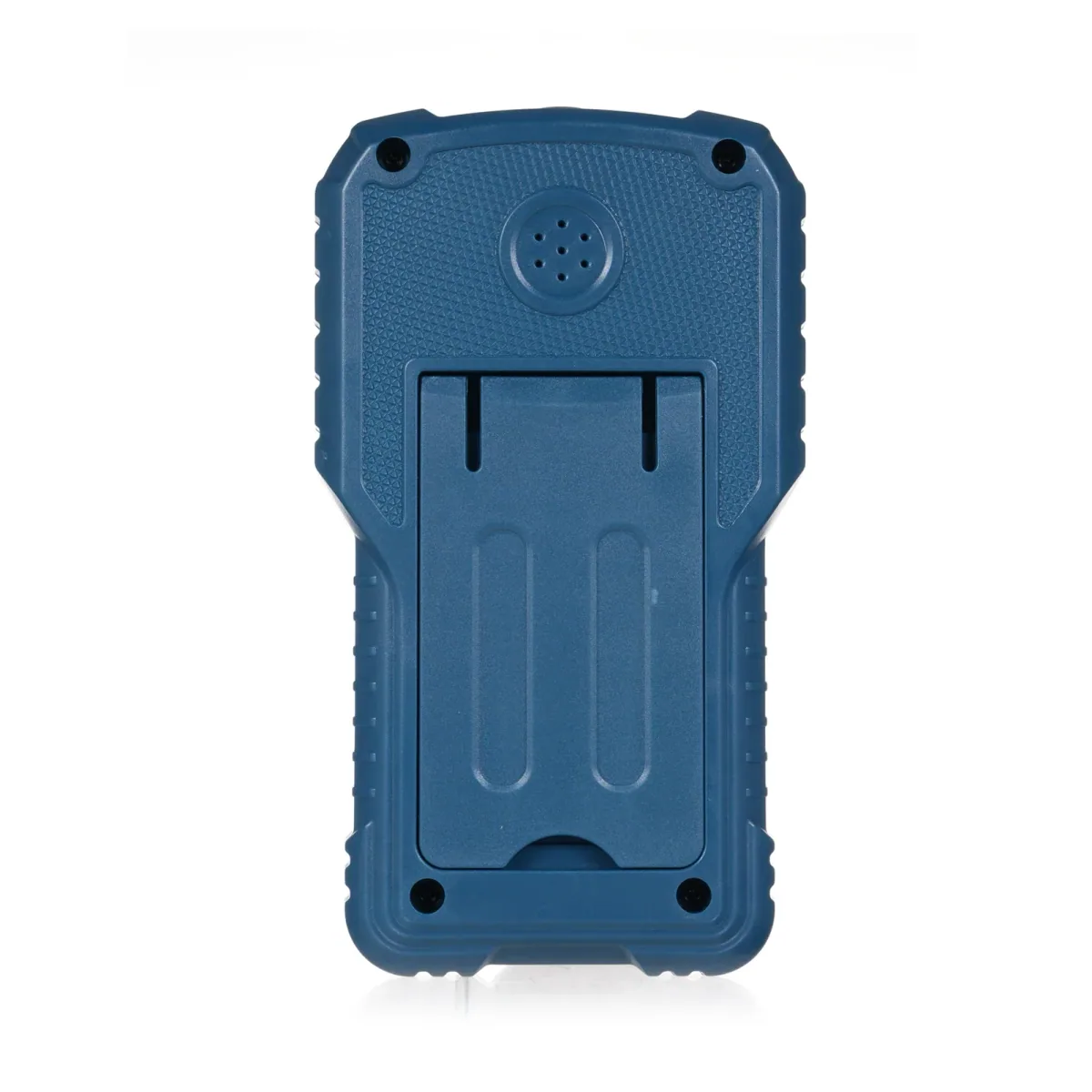

Leeb Hardness Tester | 170 to 960 HLD | 7 Hardness Scales

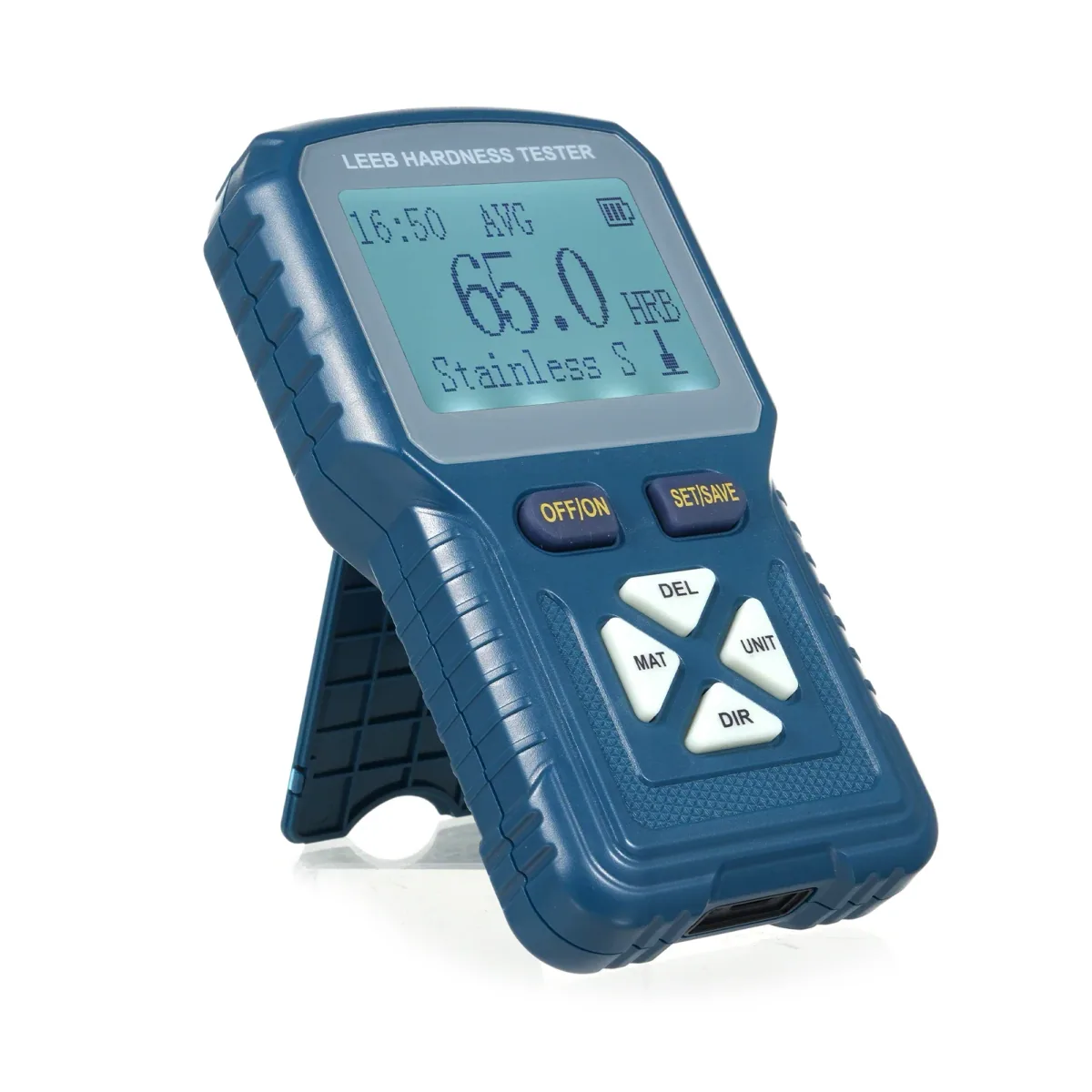

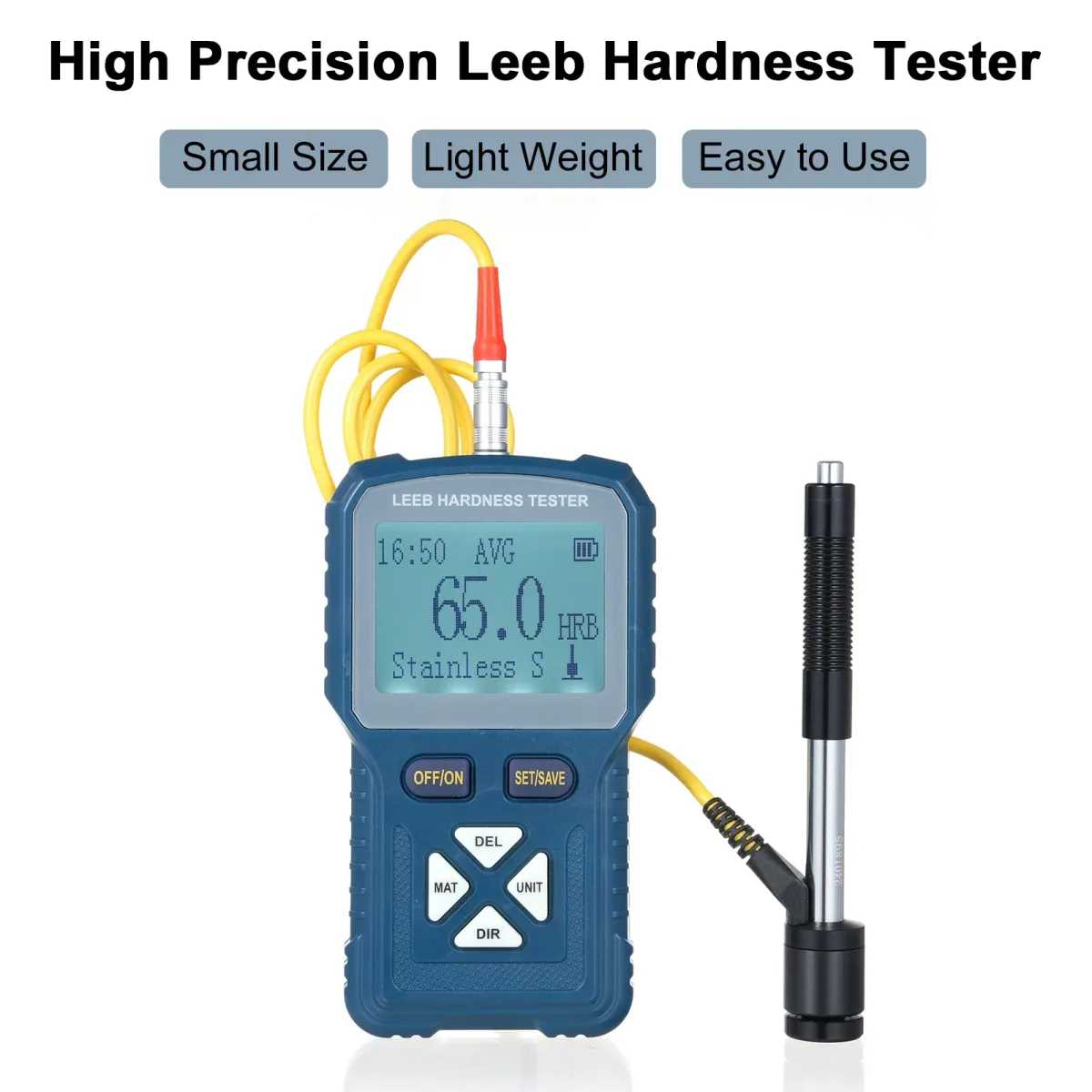

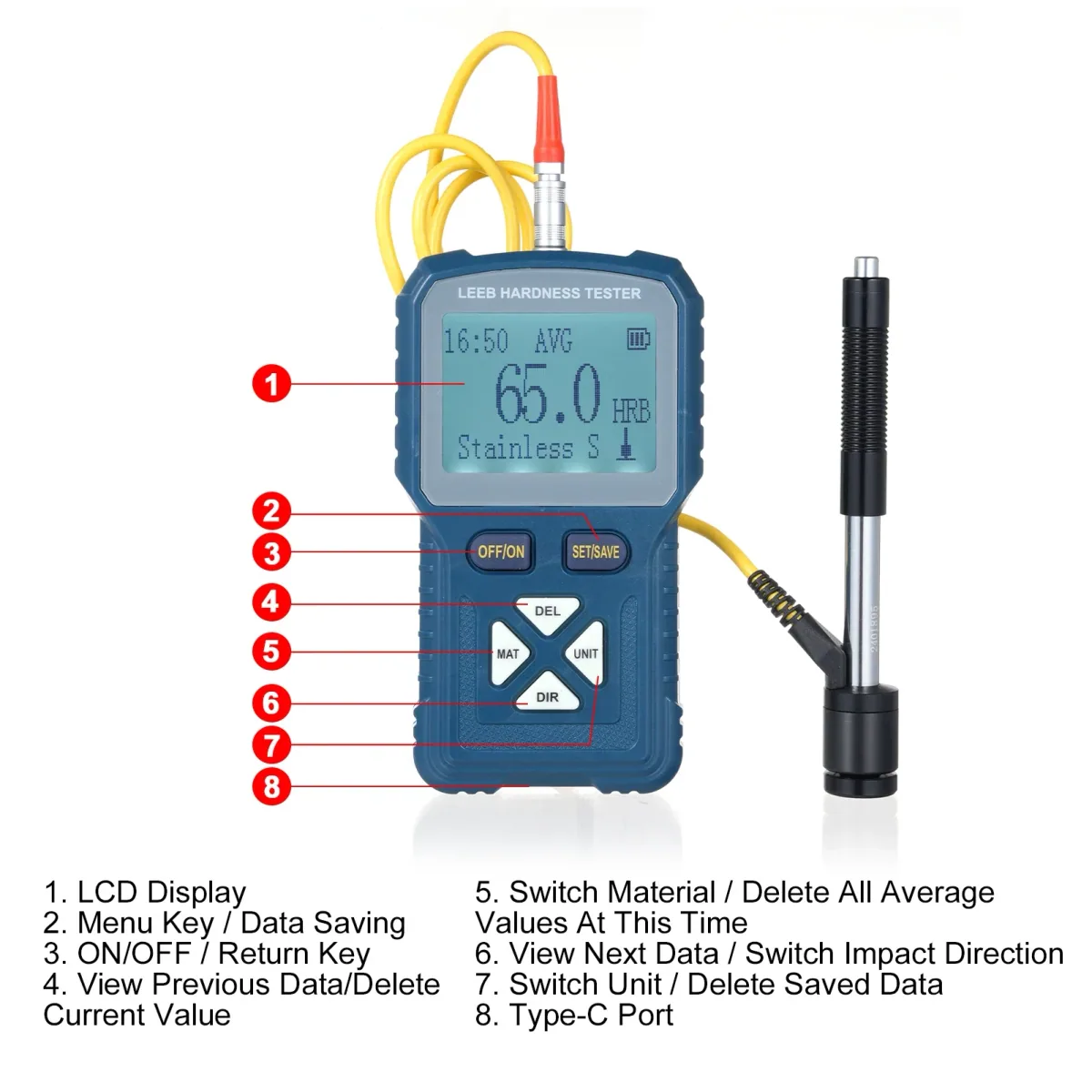

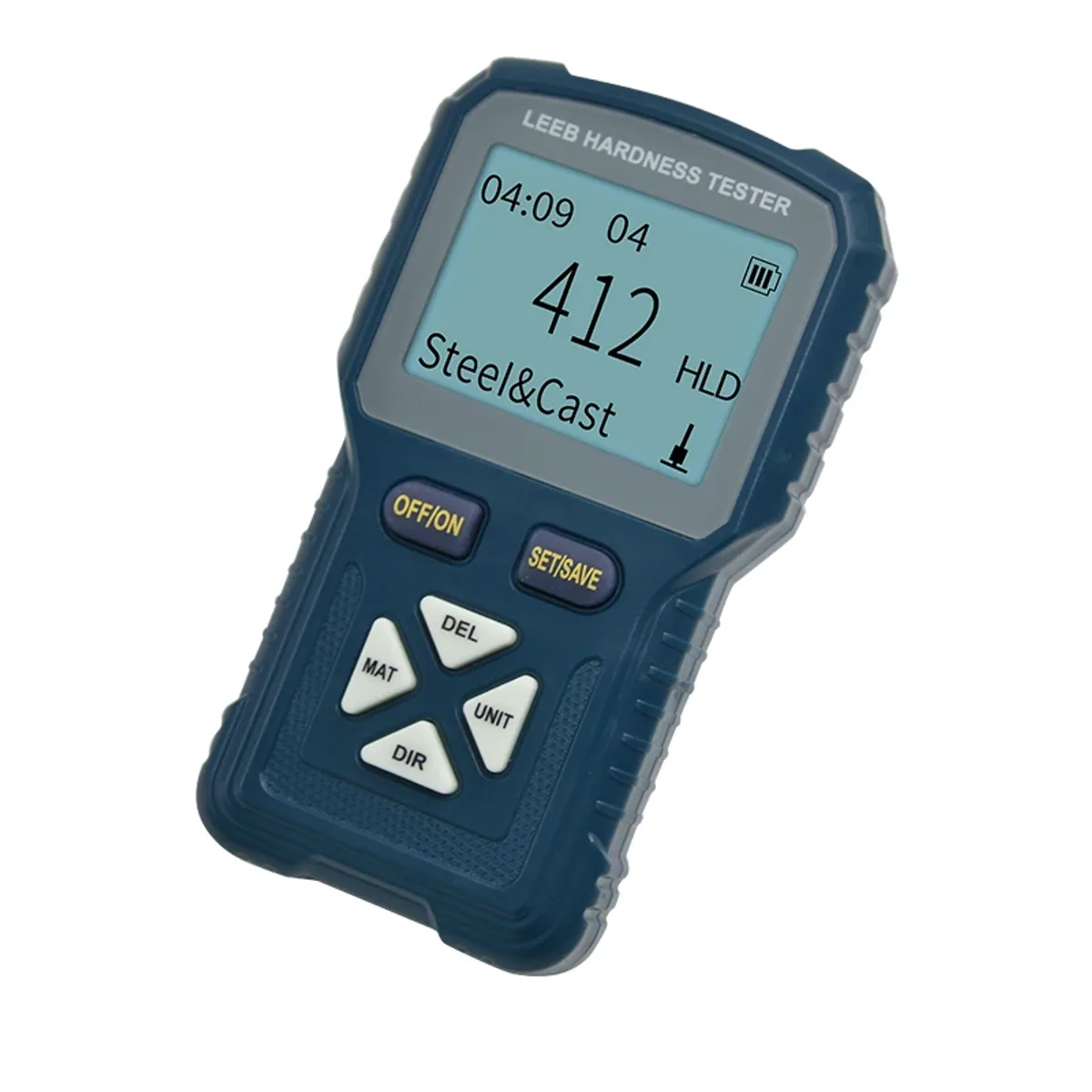

This portable Leeb hardness tester is made for non-destructive testing of metals. It uses a D-type impact device and shows each result in 7 hardness scales: HLD, HB, HV, HS, HRA, HRB and HRC. It reads 170 to 960 HLD, supports measuring at any angle through 360°, and runs from a built-in 1800mAh rechargeable lithium battery. Features and benefits: - 7 scales from one measurement - HLD, HB, HV, HS, HRA, HRB and HRC are shown by the tester. - 360° measuring direction - vertical down, slant down, horizontal, slant up and vertical up are all supported. - Display value error ±6% and repeatability of 0.8%, both stated at HLD = 800. - Material setting - the display shows the material being tested, and with forged steel and the D-type impact device the HB value reads directly with no manual tabulation. - Data saving and average hardness calculation - readings can be saved and viewed later, and the tester works out the average hardness value. - 128 x 64 graphic dot matrix LCD with a keypad of OFF/ON, SET/SAVE, DEL, MAT, UNIT and DIR keys. - 1800mAh rechargeable lithium battery giving about 20 hours of continuous working time, with a 10 minute automatic shutdown. - PC online connection for real-time data transmission and analysis, plus a Type-C port and a built-in folding stand on the back. Applications: - Metal processing and manufacturing checks - Chemical industry and commodity inspection testing - Non-destructive hardness testing of steel, cast iron, aluminium alloy, brass, bronze and copper parts In the box: - 1 x digital hardness tester - 1 x D-type impact device - 1 x support ring - 1 x cleaning brush - 1 x USB cable - 1 x user manual in English - 1 x carrying case Note: Make sure the material and impact direction set on the tester match the part being measured.
