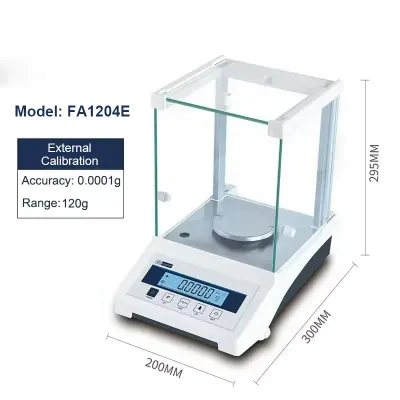

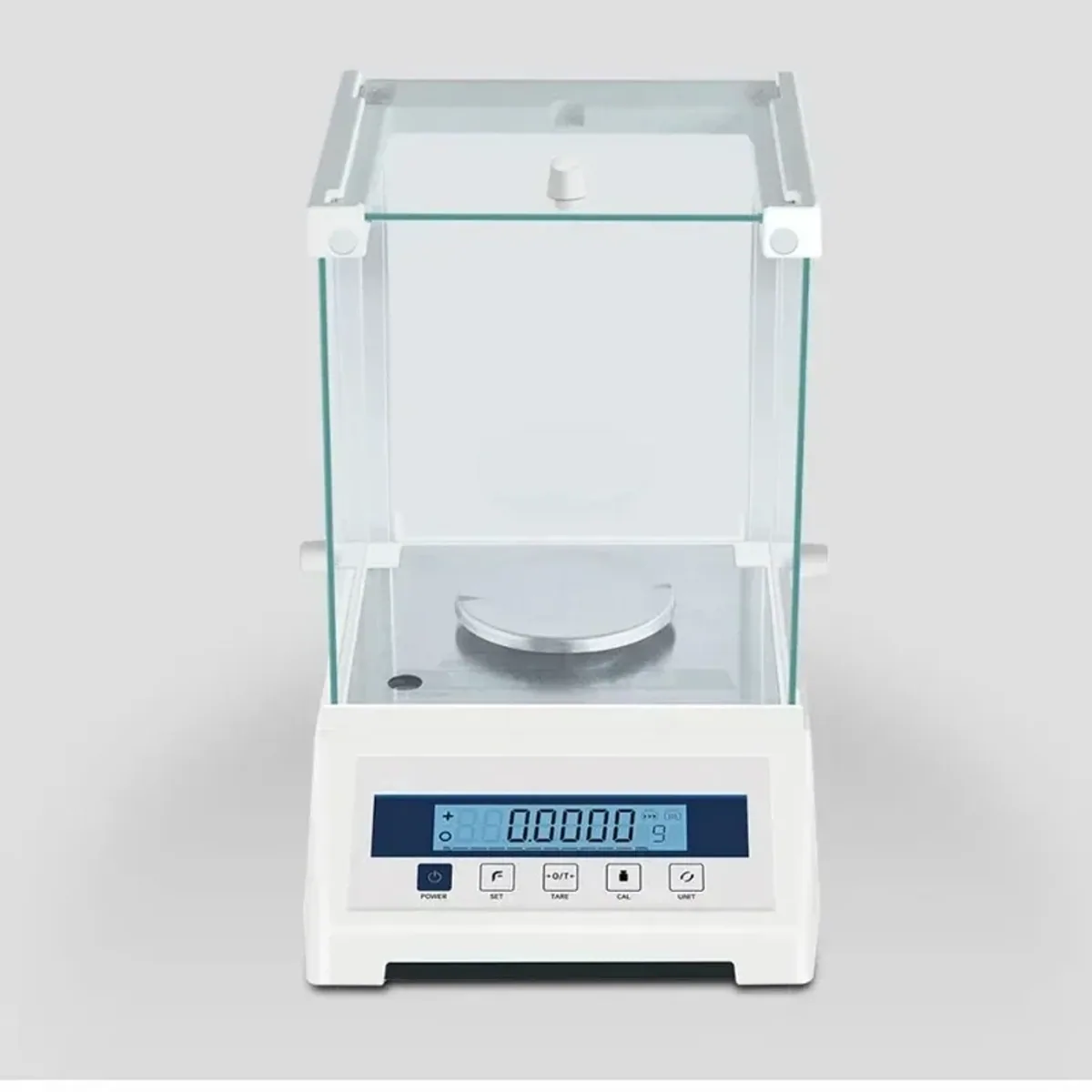

This analytical balance weighs to 0.0001g (0.1mg) readability and comes in 120g and 220g capacity models, with an electromagnetic force sensor, an 80mm stainless steel pan and a glass draft shield. A white backlit LCD shows the reading, and a standard RS232C port sends results to a computer or printer. It is made for laboratory, school, workshop, cosmetics and brewing benches where small masses need a steady, repeatable reading.
Features and benefits:
- 0.0001g resolution with 0.0002g repeatability - small samples and reagent quantities read to the fourth decimal place

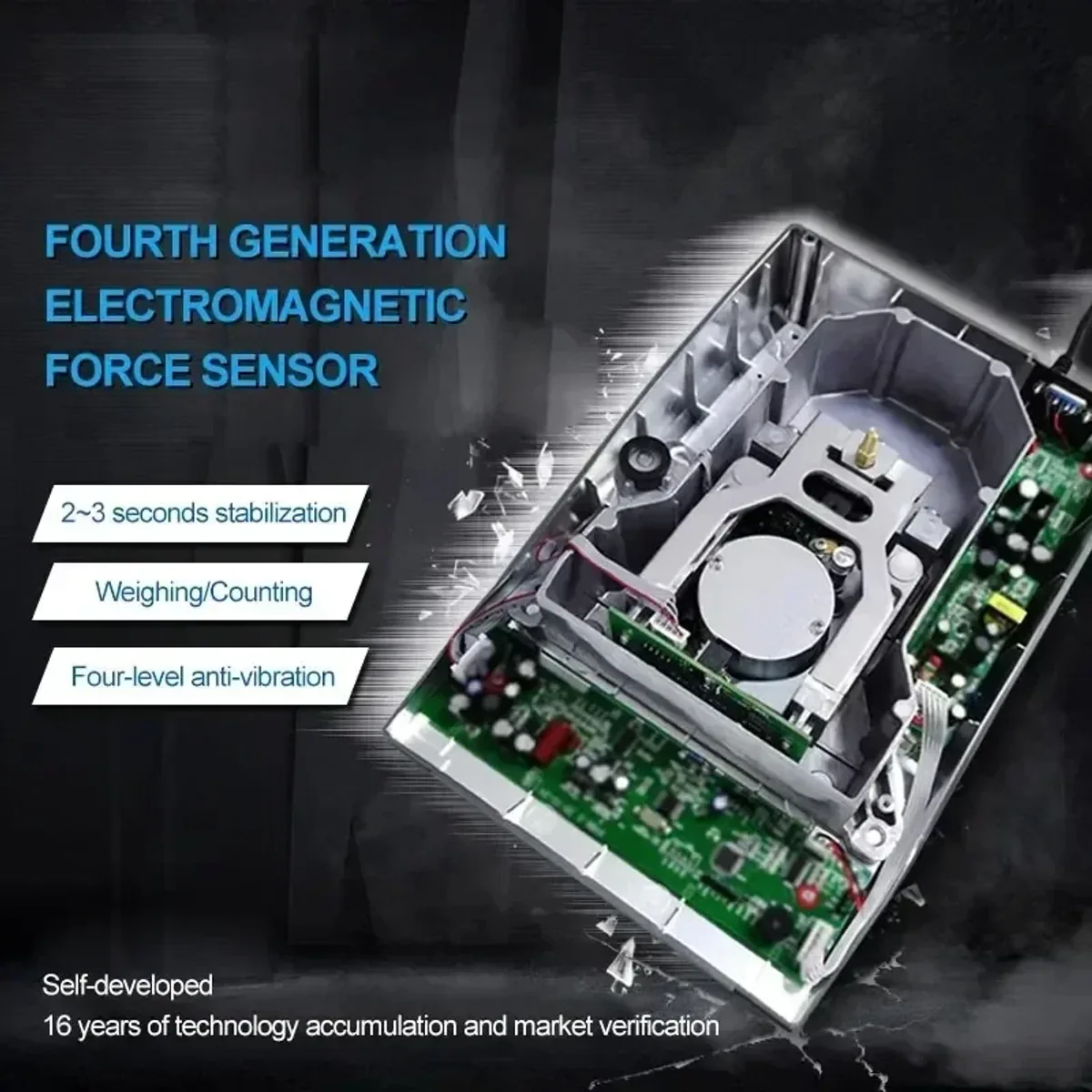

- Electromagnetic force sensor, fourth generation - the seller states a stabilisation time of 2 to 3 seconds
- Glass draft shield with triple doors and a glass track extension - keeps air movement off the pan and stops the door slipping
- Units key for g, ct, oz and mg, plus counting, percentage, density, full range tare and overload warning
- Four-level anti-vibration design, non-slip feet with adjustable height and a levelling bubble - set it level on the bench before use
- 304 stainless steel pan, 80mm as standard with a 90mm pan listed as an option
- Four models to choose from: FA1204E, FA2204E, FA1204EN and FA2204EN
Applications:
- Laboratory sample and reagent weighing
- School and college practical work
- Cosmetics and food formulation batches
- Brewing and workshop small-parts counting
- Recording weights to a computer or printer over RS232C
In the box:
The supplier does not list the contents. Pick the model in the options: FA1204E, FA2204E, FA1204EN or FA2204EN.
Note: Use on a firm, level bench away from draughts and vibration, within 5 to 35°C. Mains plug type is not stated by the seller, so check the plug and power supply before ordering.

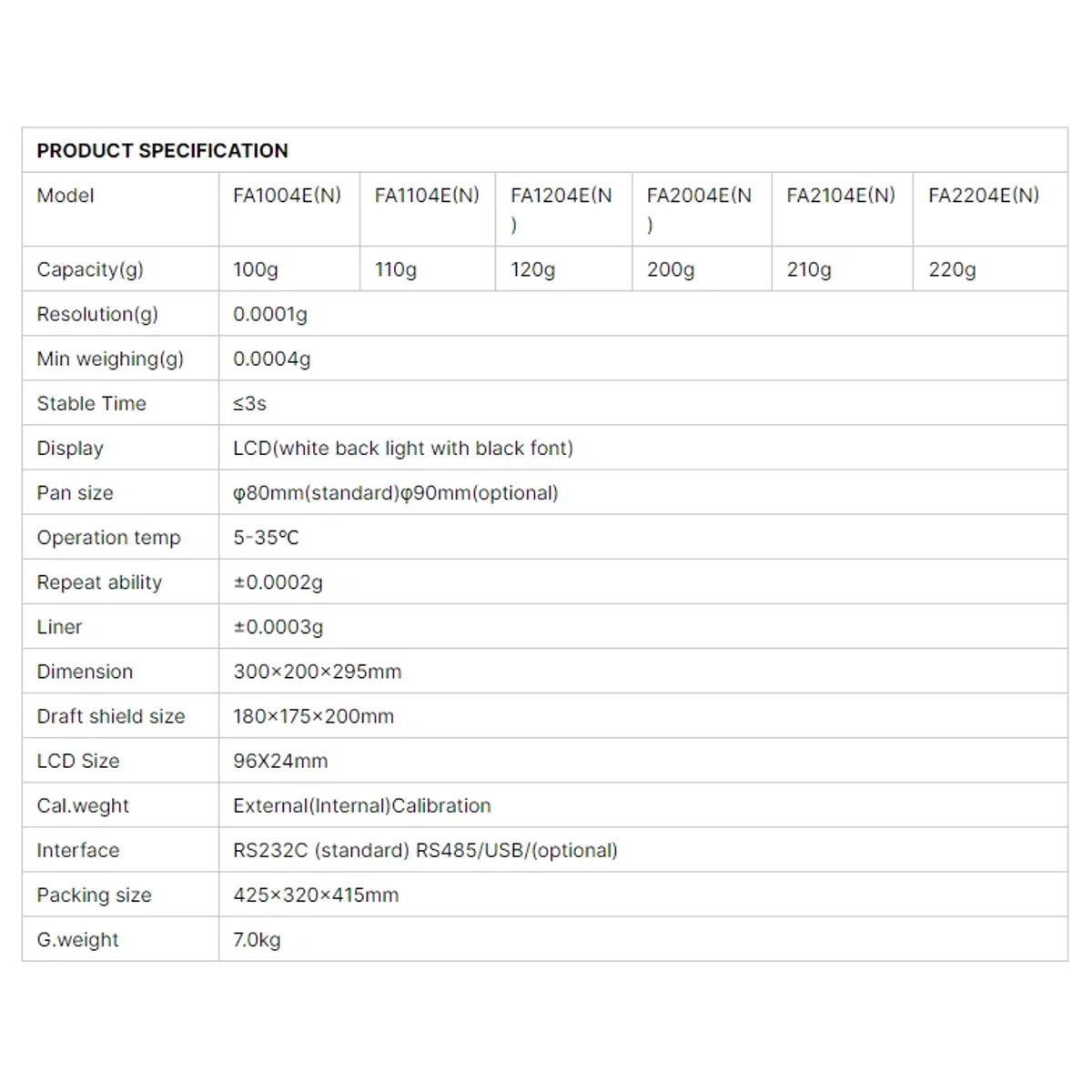

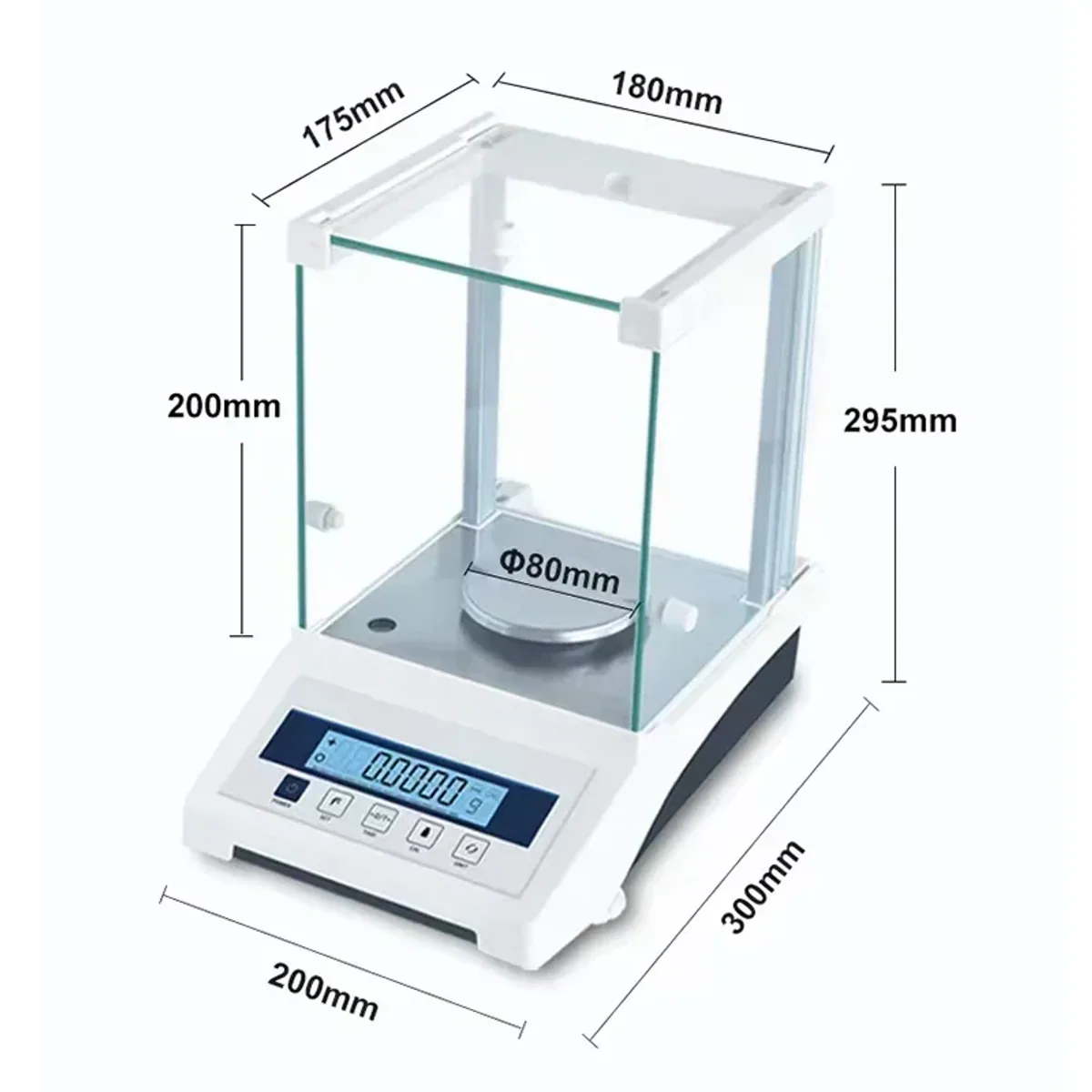

Readability: 0.0001g (0.1mg). Capacity: 120g (FA1204E) or 220g (FA2204E), N versions match. Models: FA1204E, FA2204E, FA1204EN, FA2204EN. Repeatability: 0.0002g. Linearity: 0.0003g. Minimum weighing: 0.0004g. Stabilisation time: 2 to 3 seconds (3s or less). Sensor: Electromagnetic force sensor. Units: g, ct, oz, mg. Pan: 80mm 304 stainless steel (90mm optional). Draft shield: Glass, triple door. Interface: RS232C standard; RS485, USB and printer optional. Display: LCD, white backlight, black font. Balance dimensions: 300 x 200 x 295mm. Draft shield size: 180 x 175 x 200mm. LCD size: 96 x 24mm. Shell: ABS. Operating temperature: 5 to 35°C. Packed size: 425 x 320 x 415mm. Gross weight: 7.0kg packed. Power: 12V supply; power cord socket on the rear. Mains plug: Not stated by the seller; check before ordering. Levelling: Adjustable feet and levelling bubble. Q: What is an analytical balance? A: An analytical balance is a laboratory scale that reads very small masses, here to 0.0001g (0.1mg), inside a glass draft shield. This model has 120g or 220g capacity depending on the version.. Q: How does an analytical balance work? A: This one uses an electromagnetic force sensor that balances the load on the pan with an electromagnetic force and turns that into the displayed weight. The glass doors keep air movement from disturbing the reading.. Q: What is the difference between the E and EN models? A: Capacity is set by the number in the model code: 1204 is 120g and 2204 is 220g. The E and EN versions are listed as separate model options, so pick the one that matches your order.. Q: Can I connect it to a computer or printer? A: Yes, it has a standard RS232C connector for computers and printers. RS485, USB and printer interfaces are listed as options.. Q: Can it count parts or show percentages? A: Yes, the functions include counting and percentage weighing, as well as density, tare across the full range and overload warning..
