Air Compressor Pressure Switch | 26A 240V | Single Port | 3 Pressure Ranges

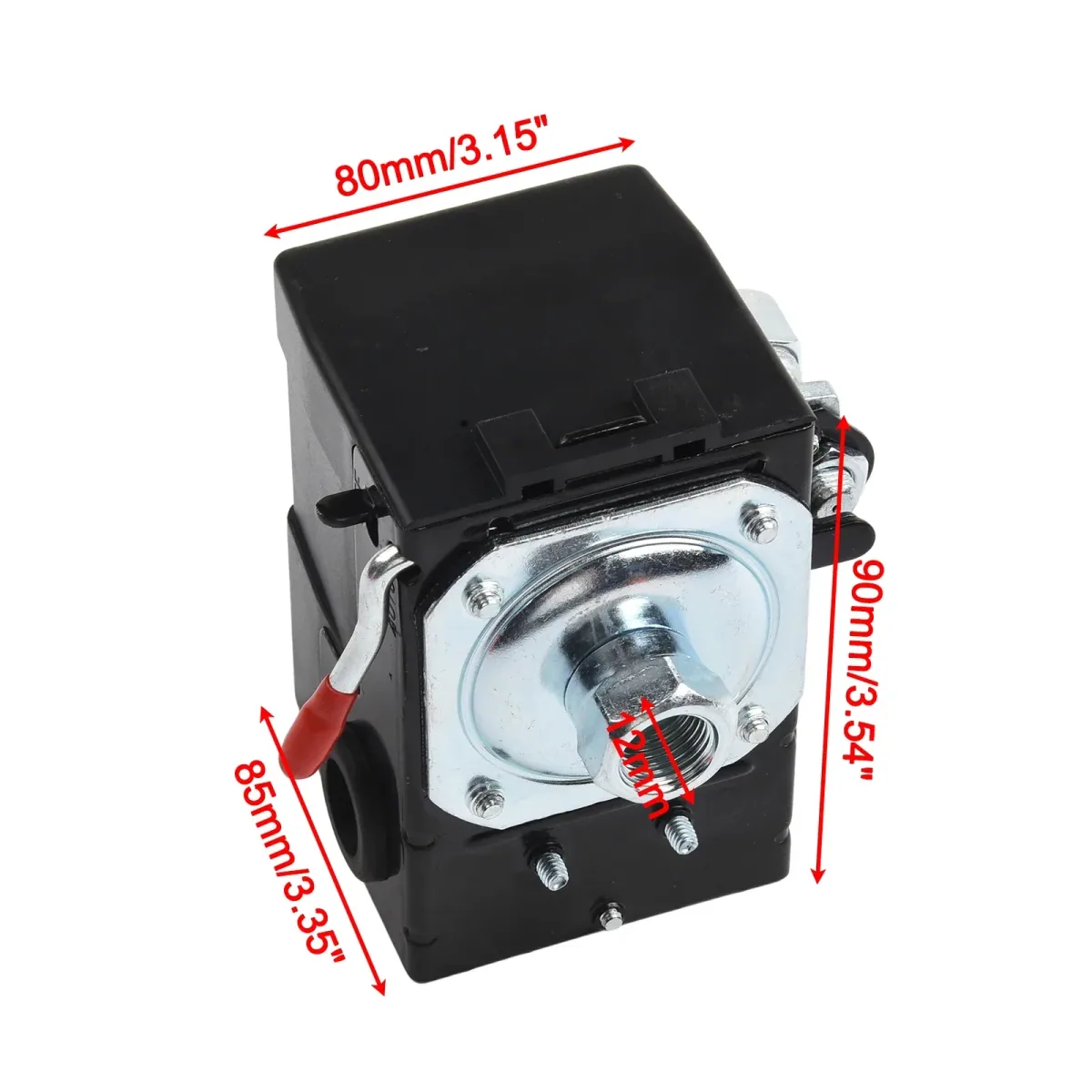

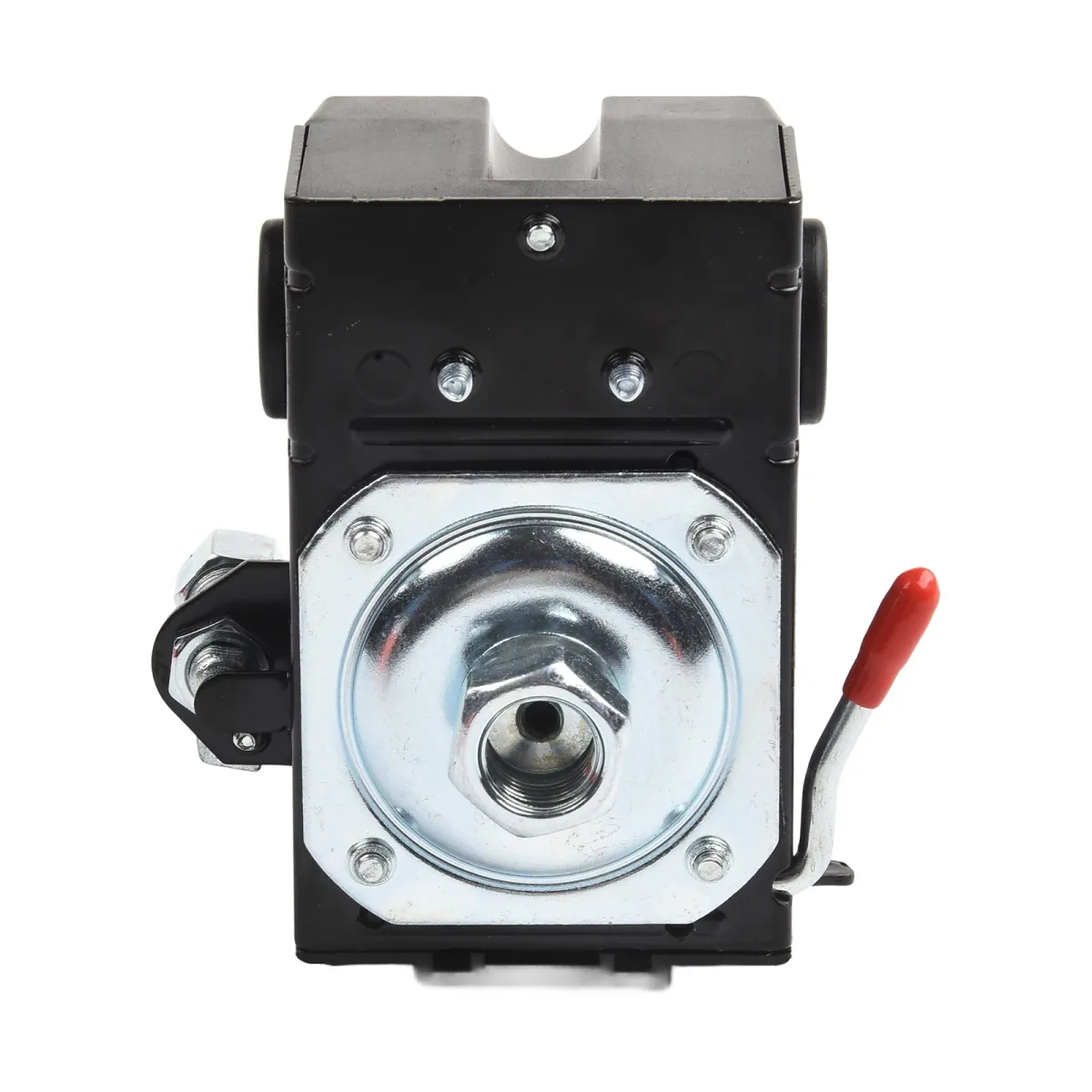

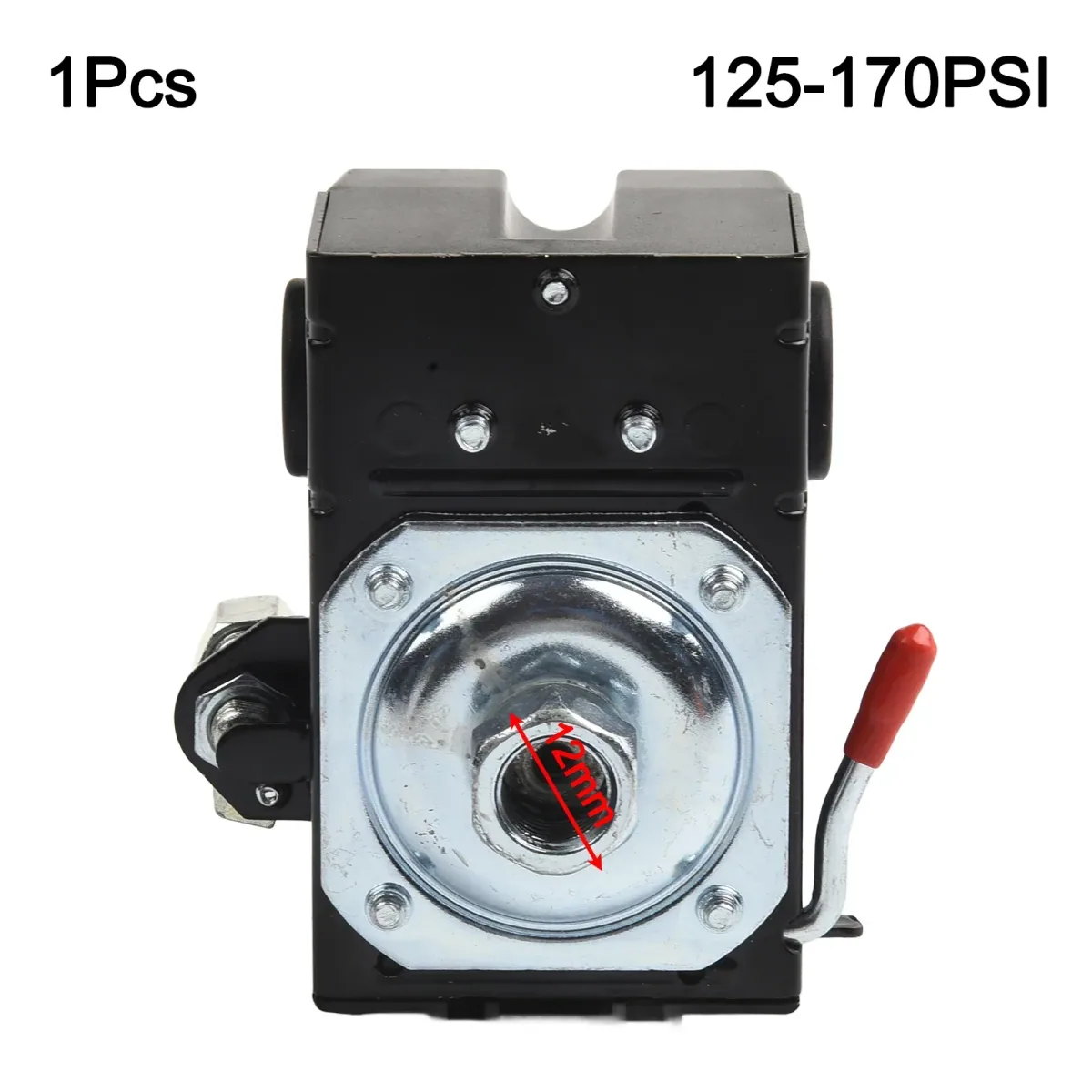

This air compressor pressure switch is a single port replacement control switch that starts and stops an air compressor or air pump as tank pressure falls and rises. It is rated at 240V and 26A, and is sold in three pressure ranges: 70 to 110PSI (5 to 8KG), 100 to 140PSI (7 to 10KG) and 125 to 170PSI (9 to 12KG). Features and benefits: - Three pressure ranges to choose from - match the cut-in and cut-out window to your compressor, from 70 to 110PSI up to 125 to 170PSI - Single port connection manifold - a regular single port layout that suits a straight swap for a failed switch - Heavy duty 26A contacts - made for longer life than a standard switch in demanding duty - 240V maximum voltage - suited to mains powered compressors and air pumps - Red switch handle with an OFF position marked on the housing - clear manual isolation when working at the compressor - Metal and plastic construction with a 12mm threaded port - a compact body of 8.5 x 9.5 x 8cm Applications: - Replacing a worn or broken pressure switch on a workshop air compressor - Repairing air pumps that cycle on a tank pressure signal - Spares stock for maintenance engineers and garage workshops - Compressor repair and refurbishment jobs In the box: 1 x pressure switch (the range you select in the options). Note: Isolate the compressor from the mains and release tank pressure before removing or fitting a switch, and have wiring done by a competent person. Choose a range that stays below the maximum working pressure of your tank and compressor. Dimensions are manual measurements and may vary slightly.
