Air Compressor Pressure Switch SNS-C103 to C130X | 3 to 30kg | 7/16 Thread

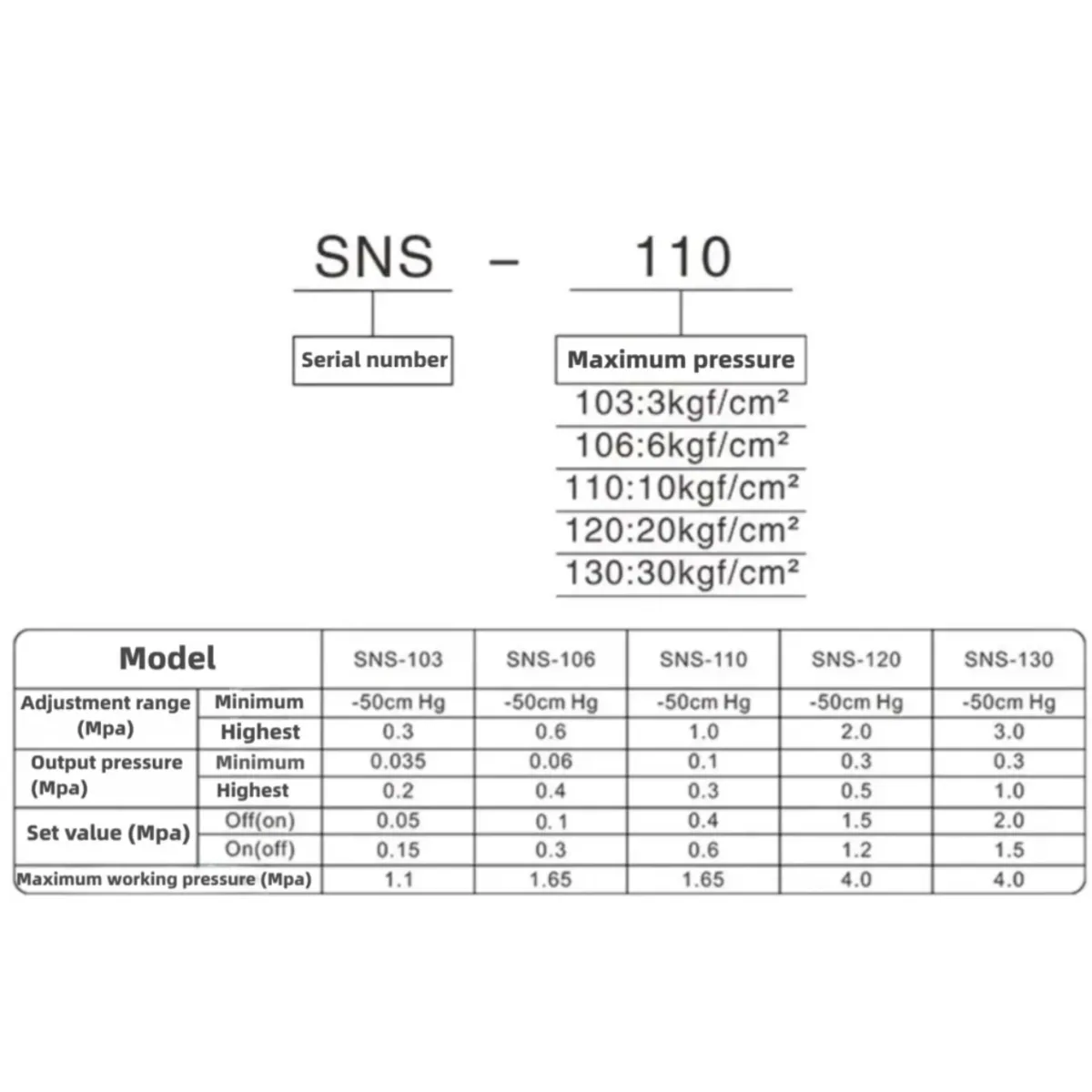

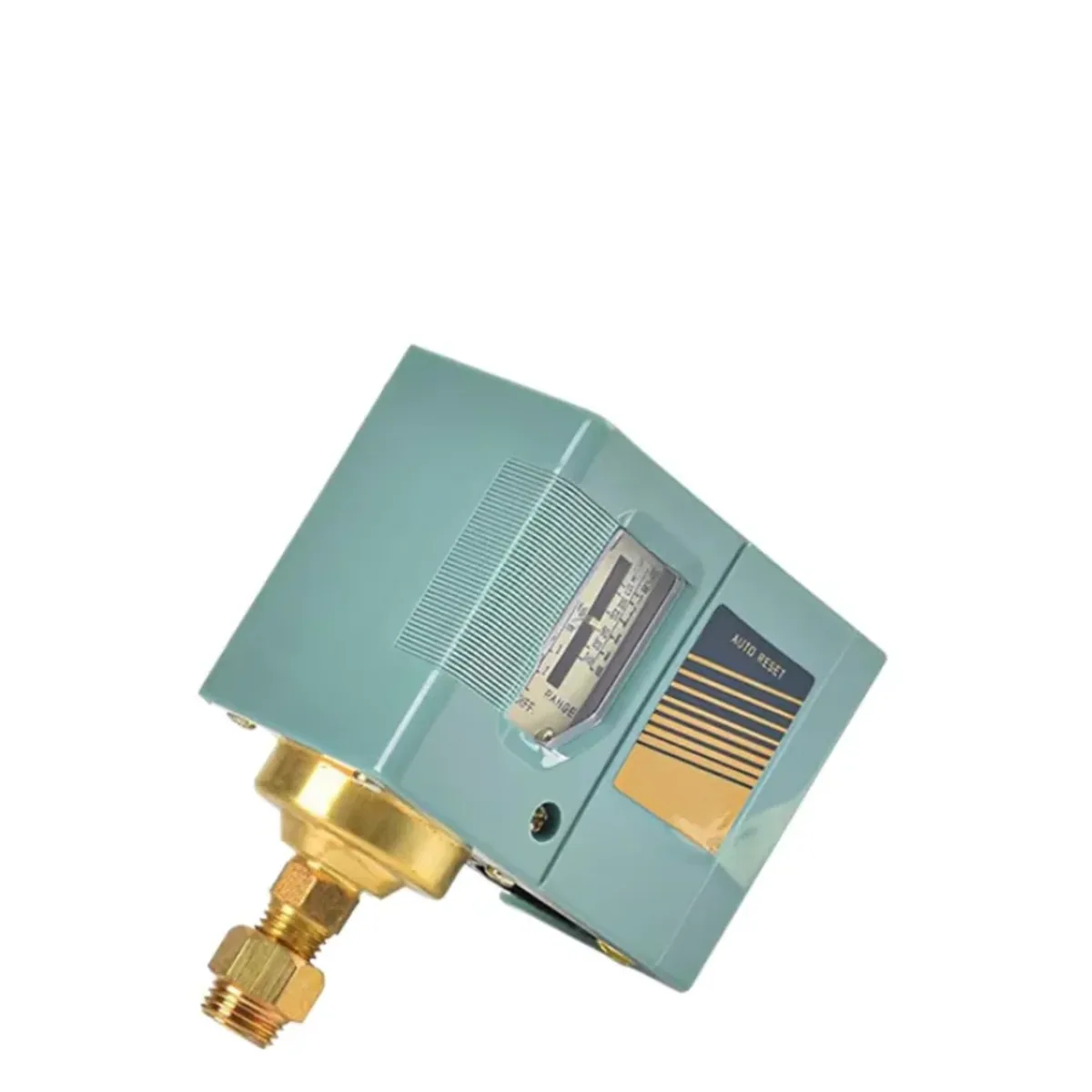

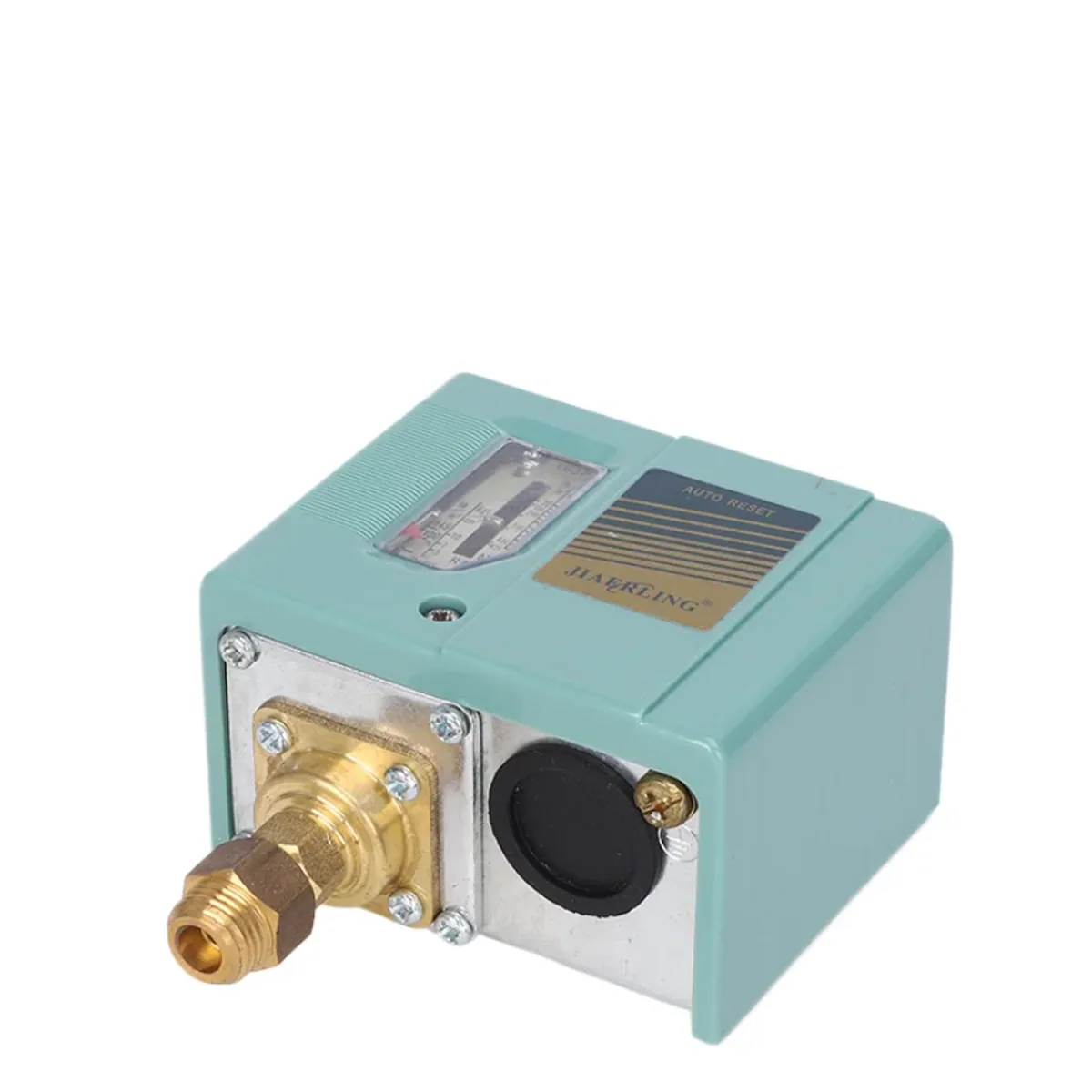

This pneumatic air compressor pressure switch is a range and differential controller that opens or closes a circuit when pressure goes above or below the values you set. It comes as SNS-C103, C106, C110, C120 or C130X, rated 3kg, 6kg, 10kg, 20kg and 30kg, with a 7/16 special thread (adapter) and a 1/4 external thread, for air, oil, water and steam lines. Features and benefits: - Five pressure ratings from 3kg to 30kg - pick the model that matches the pressure of your tank or line - Adjustable high and low set points - the gap between them is the minimum starting pressure, so you decide how often the compressor cycles - Pure copper terminals - suited to AC220V and below - Range and DIFF. indicators on the scale - see the two settings you are adjusting - AUTO RESET marked on the label - the switch resets itself as pressure returns to the set band - Suitable for air, oil, water and steam - one switch type across several fluid lines - 80mm wide and 49mm high body - check these dimensions against the space in your control housing Applications: - Starting and stopping an air compressor from tank pressure - Pressure control on pneumatic, hydraulic and water lines - Replacing a worn pressure controller in a workshop - Over and low pressure cut-out in machine control circuits Note: Isolate the supply and release all pressure before fitting or adjusting. The switch is for AC220V and below only. Stay under the maximum working pressure of your chosen model, and match the model rating to your system before you order.
