Air Compressor Pressure Switch NF-4B-1-4 | 4 Port | 90-120 PSI 240V

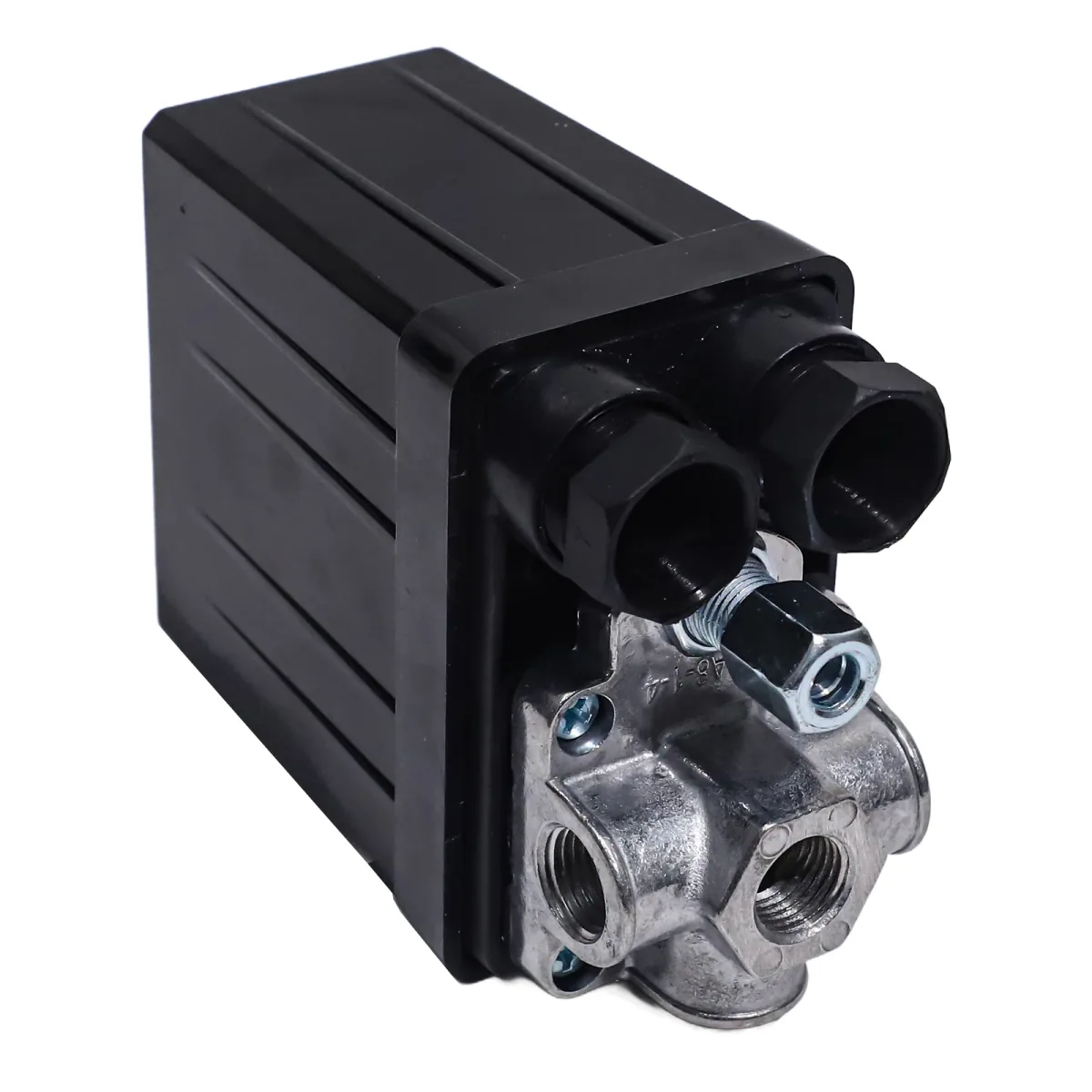

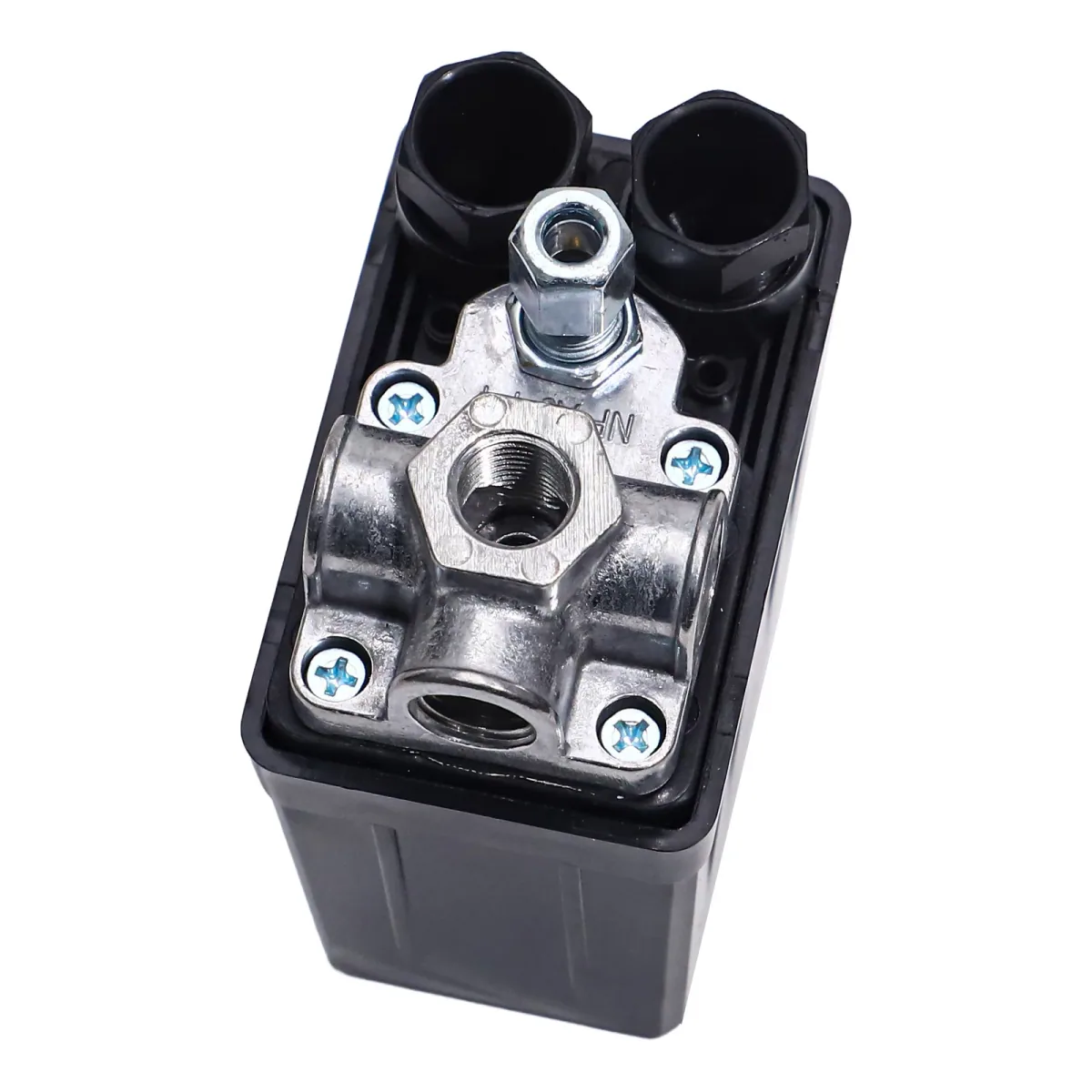

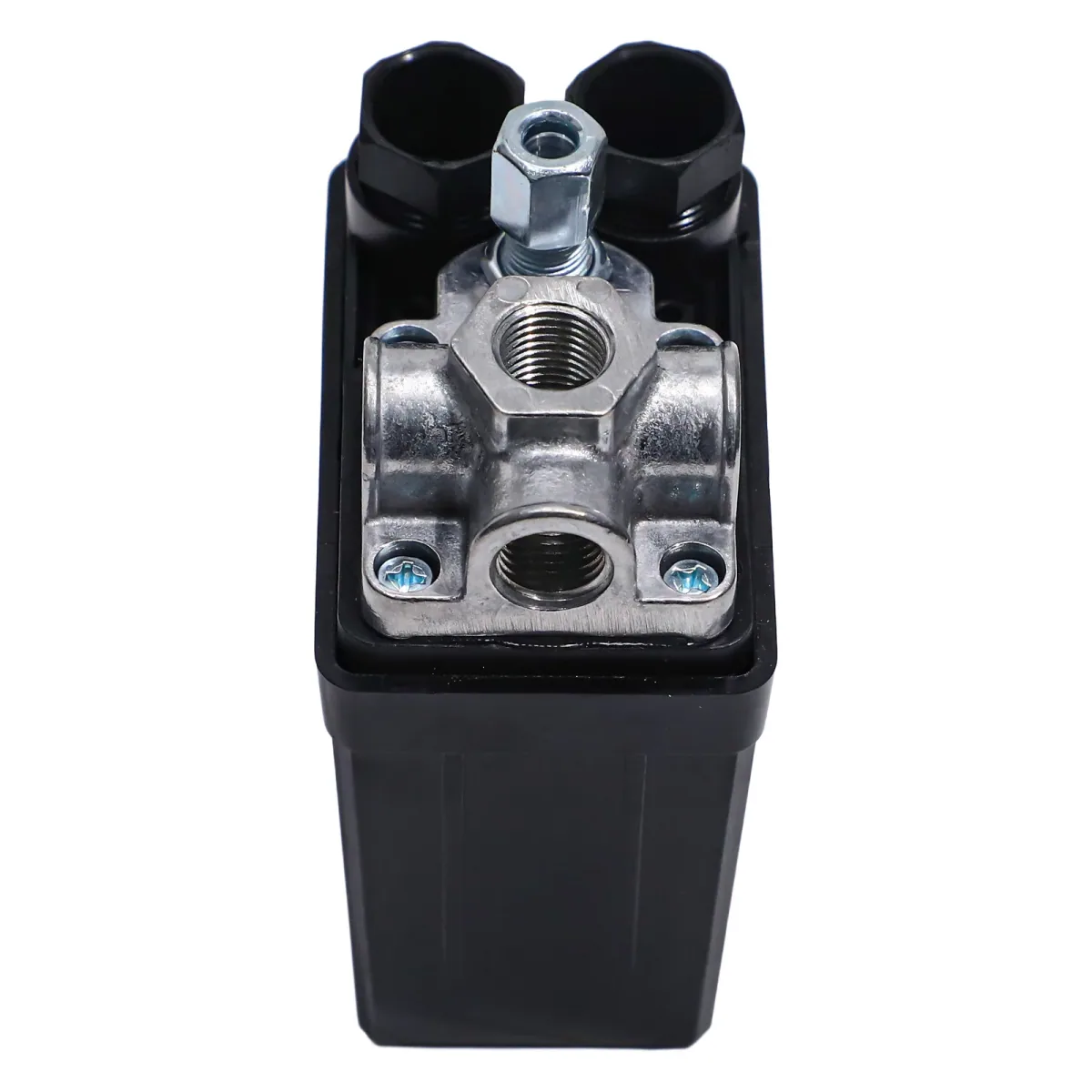

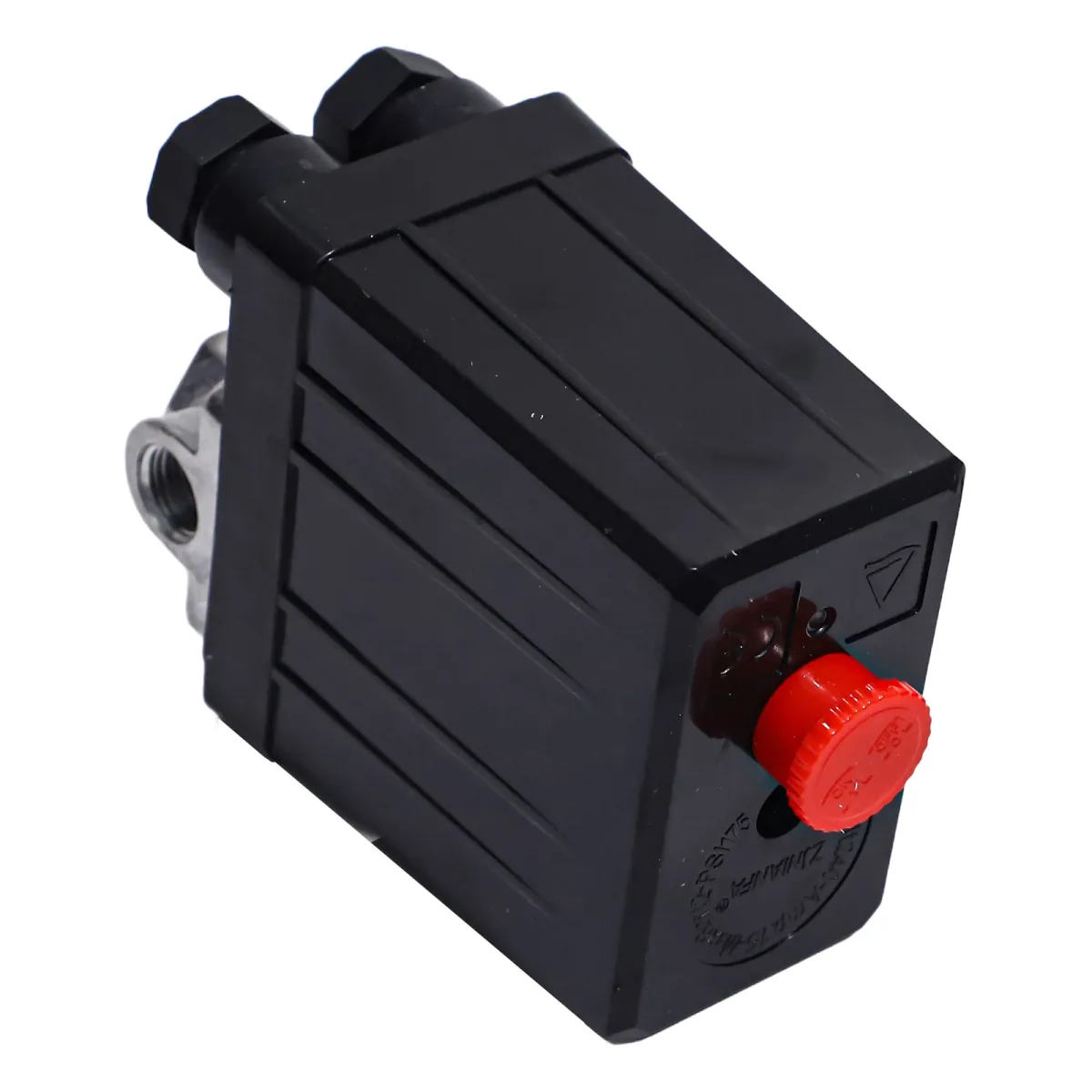

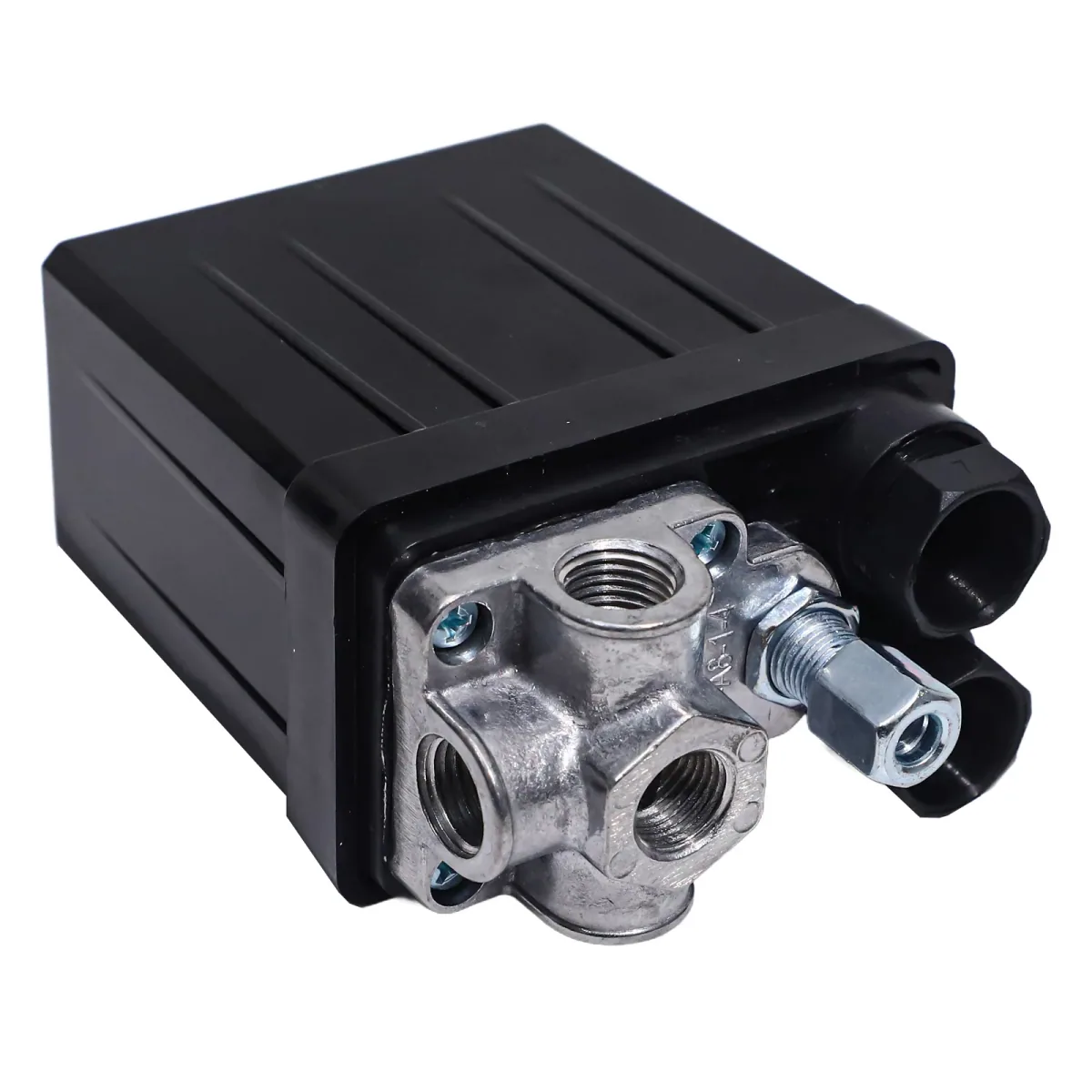

This air compressor pressure switch with a 4 port manifold regulates tank pressure between two pre-set values on standard electric air compressors, with a pressure regulation range of 90 to 120psi and a mains rating of 220 to 240V. The black plastic housing sits on a metal manifold with four female threaded air ports, and the unit carries the model code NF-4B-1-4 on its label. Features and benefits: - Regulates tank pressure between two pre-set values: switches the motor on and off automatically on a standard electric compressor - 4 port manifold: four female air ports of 1/4 BSP, approx. 12mm thread diameter, for easy installation - Auto on/off button: lets you shut the compressor off by hand when needed - Red adjustment knob on the side: lets you adjust the pressure setting - Rated for 220 to 240V with a maximum of 16A - Plastic housing with a metal manifold: compact casing of approx. 82 x 52 x 127mm - Two cable gland fittings on top of the housing: for the electrical wiring Applications: - Replacing a worn or failed pressure switch on a workshop air compressor - Controlling tank pressure on a personal workshop or factory compressor - Compressor repair and spare parts stock for maintenance engineers - Rebuilding a compressor control manifold In the box: 1 x air compressor pressure switch Note: This is a non-original replacement part for OEM switches. Isolate the compressor from the mains and release tank pressure before removing the old switch, and have the wiring done by a competent person. Do not exceed the 8 bar maximum pressure or the 240V and 16A ratings.
