What size pipe does this fit? Is it a standard BSP thread?

This valve is designed for a standard 1/2 inch pipe fitting. It should connect directly to your existing pipework for a water butt or tank.

How does it shut the water off automatically? Does it need wiring in?

No electricity is needed, it's a purely mechanical float valve. As the water level rises, it lifts an internal float which closes the valve, stopping the flow.

What's it made of? Can it handle hot water or high pressure?

The valve body is made entirely of nylon, which resists corrosion and wear. It is designed for standard water systems and is suitable for cold or ambient temperature water.

Hydraulic Valve | 1/2 Float for Tank Water Level Control

Name: Hydraulic Valve | 1/2 Float for Tank Water Level Control
Brand: Compel
SKU: HYDR-00355
Price: 10.99 USD
Availability: InStock
Rating: 4.9 (631 reviews)

Stock #:CMP-04554

SKU:HYDR-00355

Hydraulic Valve | 1/2 Float for Tank Water Level Control - Image 1

1 / 6

$10.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

SpecificationSelect an option

Quantity

Hydraulic Valve | 1/2 Float for Tank Water Level Control

$10.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What size pipe does this fit? Is it a standard BSP thread?: This valve is designed for a standard 1/2 inch pipe fitting. It should connect directly to your existing pipework for a water butt or tank.
How does it shut the water off automatically? Does it need wiring in?: No electricity is needed, it's a purely mechanical float valve. As the water level rises, it lifts an internal float which closes the valve, stopping the flow.
What's it made of? Can it handle hot water or high pressure?: The valve body is made entirely of nylon, which resists corrosion and wear. It is designed for standard water systems and is suitable for cold or ambient temperature water.

Hydraulic Valves spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

4.9

$45.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

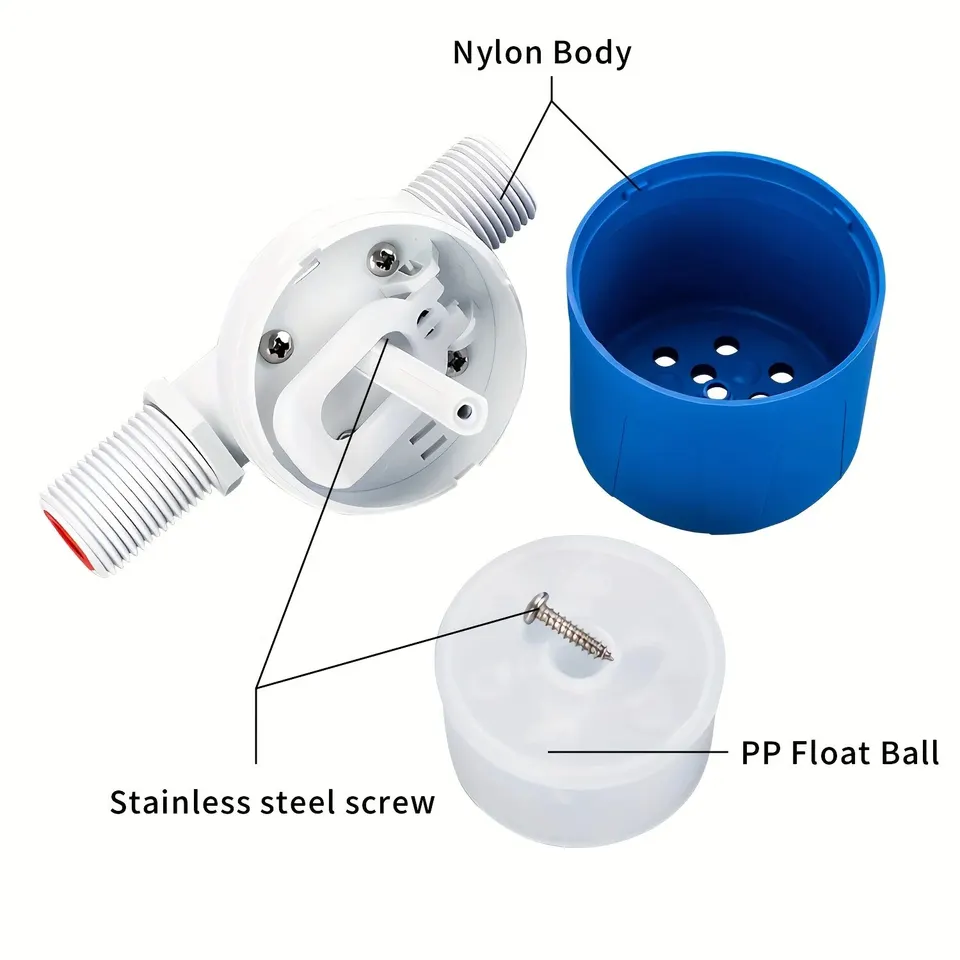

This automatic float valve is a simple hydraulic valve. It keeps your water tanks and troughs full. It uses water pressure and buoyancy to work. It stops the flow when the water reaches the right level. It refills when the level drops. No electricity is needed. Features and Benefits - Fully automatic operation - It opens to fill and closes when full. You don't have to check water levels by hand. - Standard 1/2" NPT fitting - It connects to common plumbing pipes and hoses. You don't need special adapters for installation. - Mechanical operation - It works without electricity. This makes it safe for outdoor troughs, remote tanks, and places without power. - Nylon and stainless steel parts - The body and inside parts resist rust and wear. This happens even with constant water contact. Applications - Keeping a steady water level in livestock water troughs. - Automatically refilling a home water storage tank or cistern. - Topping off water in hydroponic systems, ponds, or large aquariums.

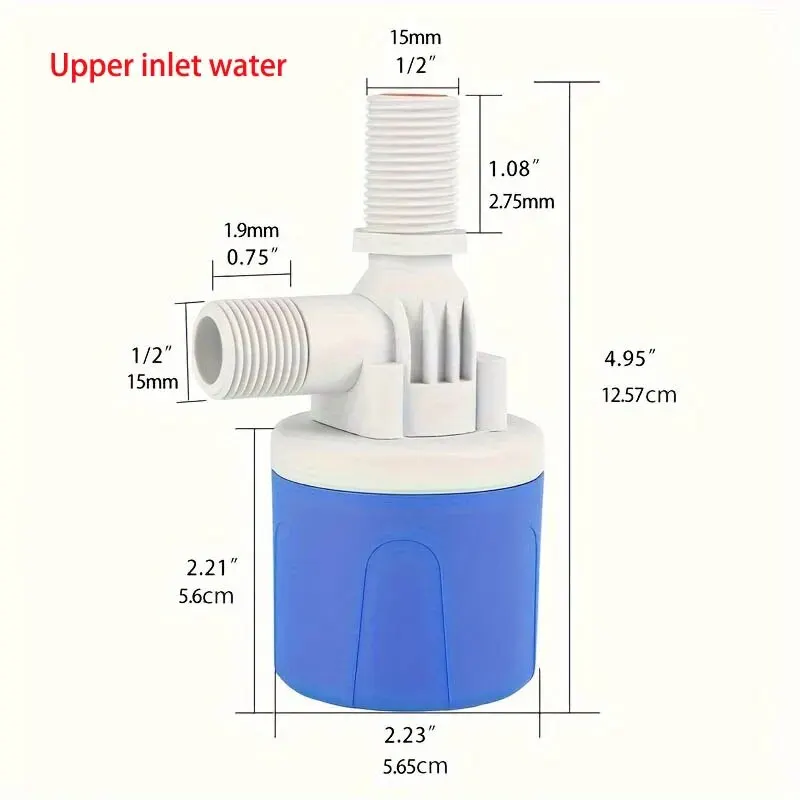

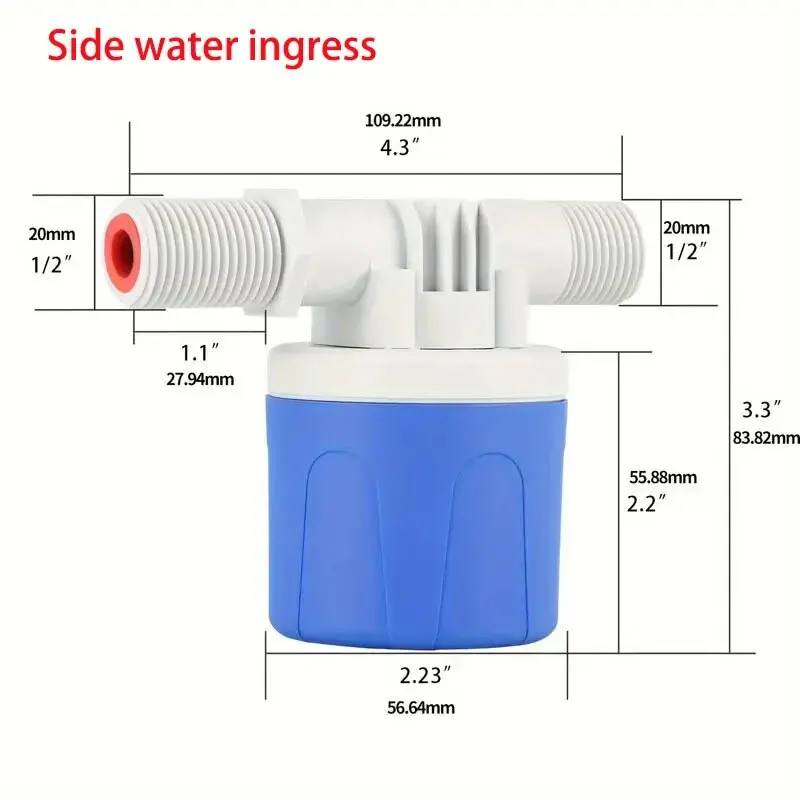

Connection Size: 1/2 inch. Material: Nylon. Function: Automatic Shut-off. Media: Water. Structure: Regulating. Valve Type: Float Valve. Nominal Size: 1/2 inch. Float Material: Polypropylene. Material: Nylon. Working Pressure Range: 0.2-10 bar. Working Temperature Range: 0-70 °C. Connection Type: Threaded. Flow Rate: Up to 50 L/min (at 3 bar). Function: Auto Shut Off, Automatic Water Stop, Automatic Water Make-up. Installation: Horizontal or Vertical. Media: Water. Model Number: G. Operation: Fully Automatic. Product Type: Hydraulic Valve. Structure: Regulating. Valve Type: Float Valve. Q: What is the connection size and the operating pressure range for this valve? A: This valve uses a standard 1/2 inch pipe thread for the inlet. It's designed to operate within a water pressure range of 0.2 to 10 bar, which is about 3 to 145 PSI.. Q: What is the connection size and the operating pressure range for this valve? A: This valve uses a standard 1/2 inch pipe thread for the inlet. It's designed to operate within a water pressure range of 0.2 to 10 bar, which is about 3 to 145 PSI.. Q: What is the connection size and the operating pressure range for this valve? A: This valve uses a standard 1/2 inch pipe thread for the inlet. It's designed to operate within a water pressure range of 0.2 to 10 bar, which is about 3 to 145 PSI.. Q: What material is the valve body made from? A: The main body is made from food-grade nylon, and the internal screws are stainless steel. This construction prevents rust and makes it safe for use in tanks for drinking water or livestock.. Q: What material is the valve body made from? A: The main body is made from food-grade nylon, and the internal screws are stainless steel. This construction prevents rust and makes it safe for use in tanks for drinking water or livestock.. Q: What material is the valve body made from? A: The main body is made from food-grade nylon, and the internal screws are stainless steel. This construction prevents rust and makes it safe for use in tanks for drinking water or livestock.. Q: Can I install this valve in any orientation, or does it have to be mounted a certain way? A: This float valve can be installed either horizontally or vertically inside your tank. As long as the float mechanism has room to move freely up and down, it will function correctly.. Q: Can I install this valve in any orientation, or does it have to be mounted a certain way? A: This float valve can be installed either horizontally or vertically inside your tank. As long as the float mechanism has room to move freely up and down, it will function correctly.. Q: Can I install this valve in any orientation, or does it have to be mounted a certain way? A: This float valve can be installed either horizontally or vertically inside your tank. As long as the float mechanism has room to move freely up and down, it will function correctly.. Q: Does this hydraulic valve have a filter that needs to be cleaned? A: Yes, there's a small stainless steel filter screen at the inlet to stop debris from entering the valve. You can easily unscrew the fitting to access and rinse the filter if you notice reduced flow.. Q: Does this hydraulic valve have a filter that needs to be cleaned? A: Yes, there's a small stainless steel filter screen at the inlet to stop debris from entering the valve. You can easily unscrew the fitting to access and rinse the filter if you notice reduced flow.. Q: Does this hydraulic valve have a filter that needs to be cleaned? A: Yes, there's a small stainless steel filter screen at the inlet to stop debris from entering the valve. You can easily unscrew the fitting to access and rinse the filter if you notice reduced flow.. Q: How does this automatically stop the water without any power? A: It's a purely mechanical design. As the water level rises, it lifts the internal float, which then uses leverage to push a seal against the inlet and stop the flow.. Q: How does this automatically stop the water without any power? A: It's a purely mechanical design. As the water level rises, it lifts the internal float, which then uses leverage to push a seal against the inlet and stop the flow.. Q: How does this automatically stop the water without any power? A: It's a purely mechanical design. As the water level rises, it lifts the internal float, which then uses leverage to push a seal against the inlet and stop the flow..
