Take control of your electrical system with the TUYA WiFi/ZigBee MCB Smart Circuit Breaker. This intelligent 1-63A device provides reliable over-current and under-voltage protection while offering real-time power metering. Remotely monitor and manage your circuits via smartphone, ensuring safety and optimizing energy consumption from anywhere. Features and Benefits
- Dual WiFi/ZigBee Connectivity - Offers flexible integration with your preferred smart home ecosystem for reliable remote control and automation.
- 1-63A Adjustable Current Rating - Provides precise protection for a wide range of circuits, from lighting to high-power appliances, ensuring optimal safety.

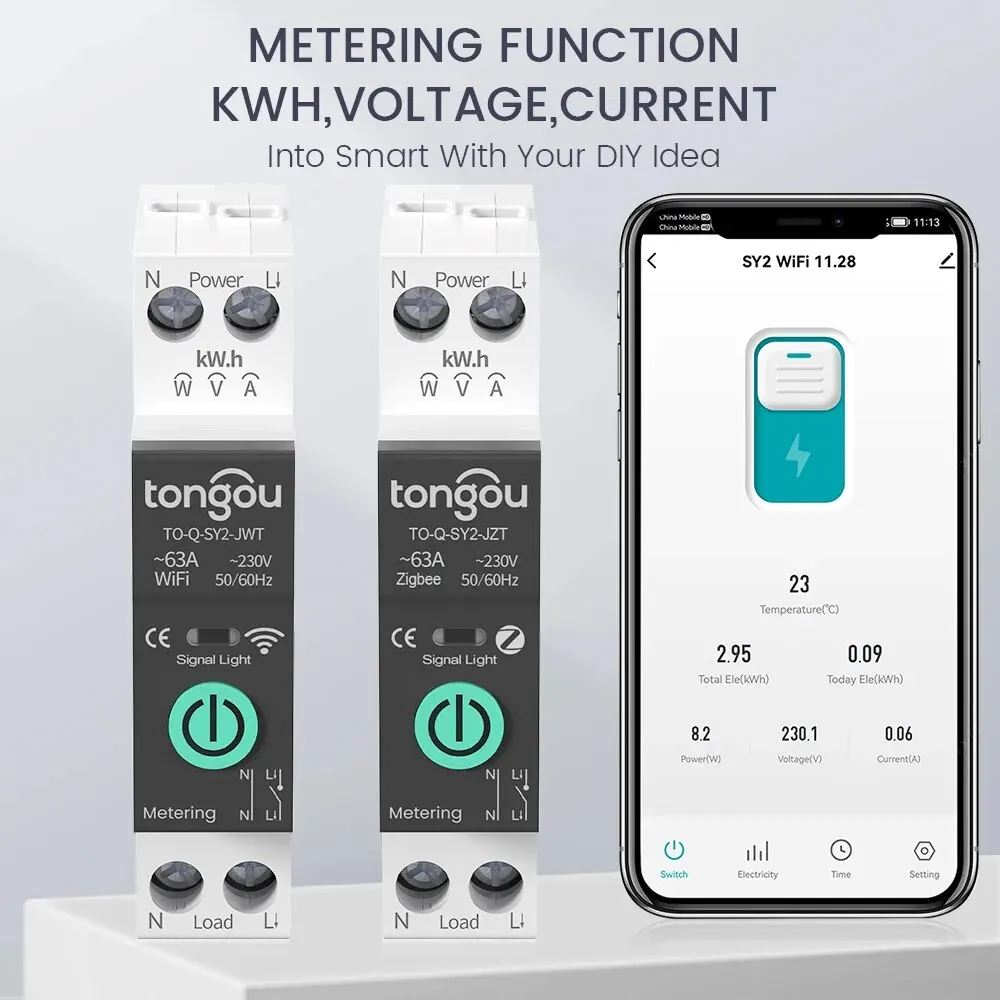

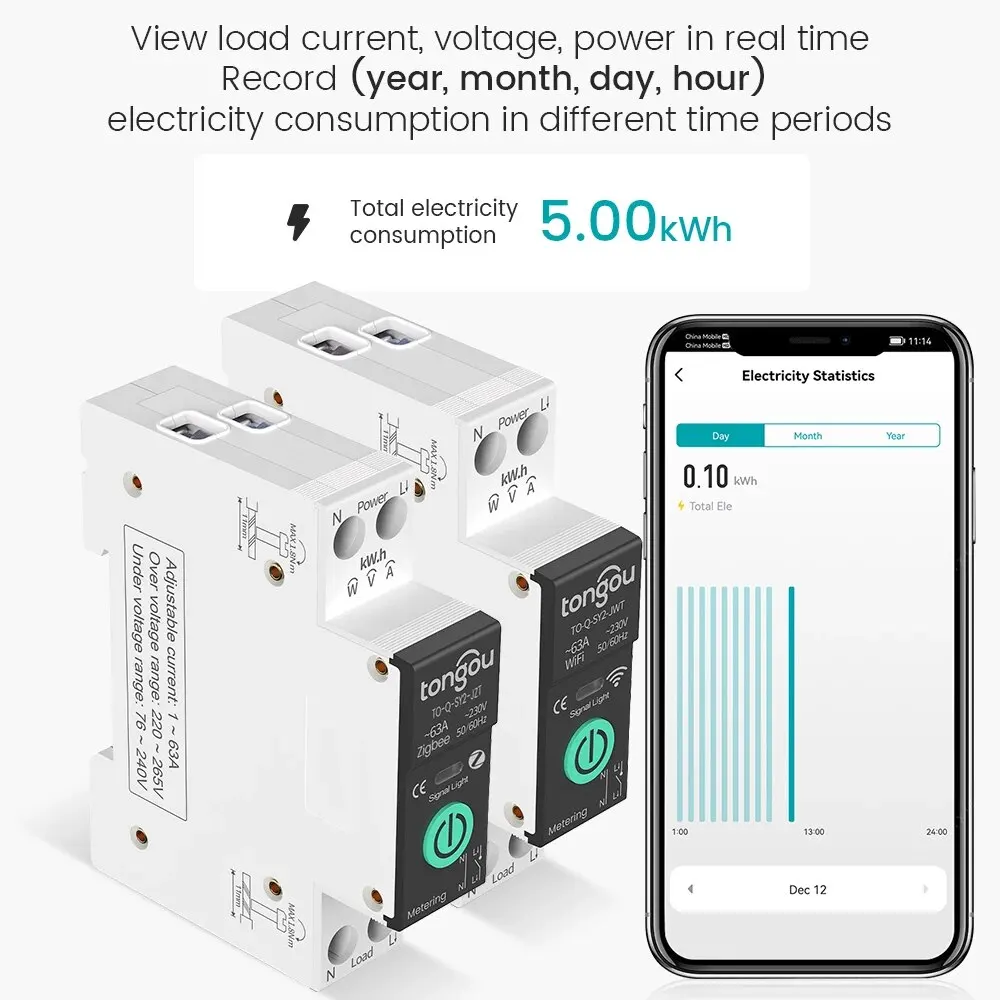

- Real-Time Power Metering - Monitor voltage, current, and power consumption directly from the app to identify energy drains and reduce utility costs.

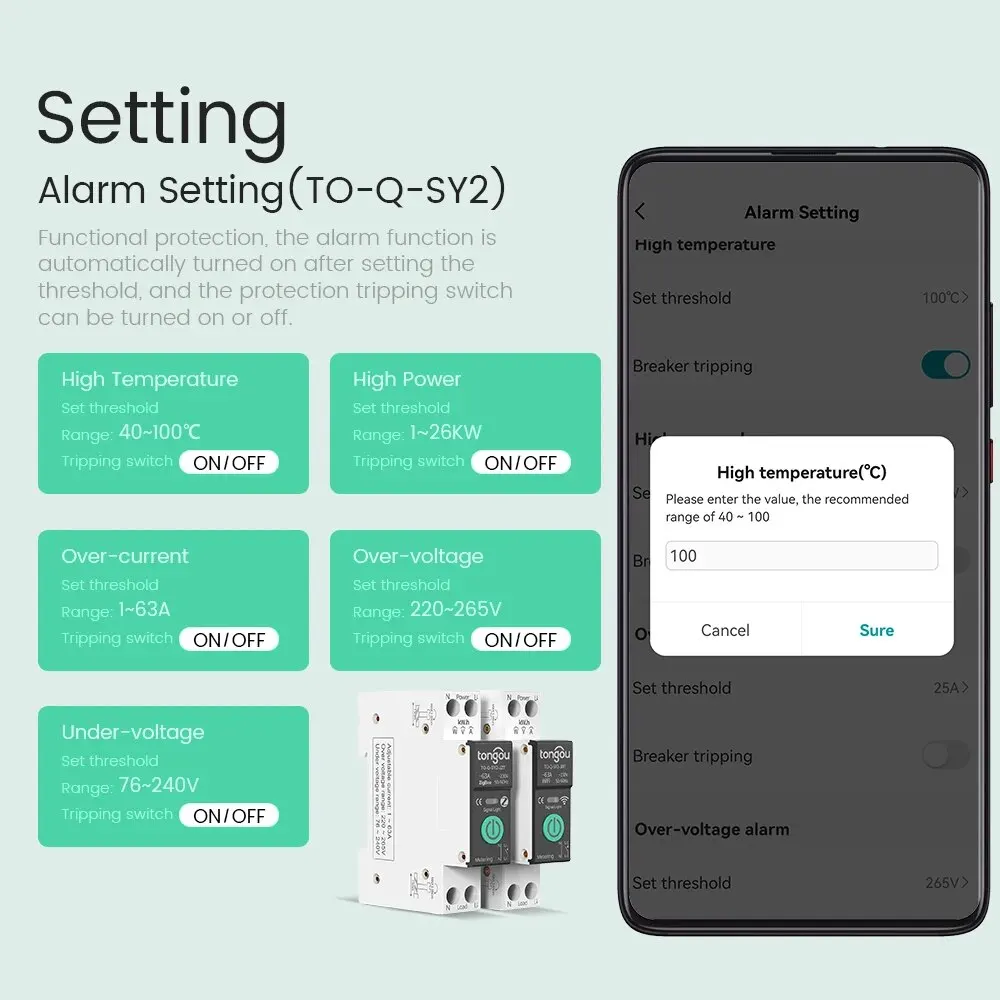

- Over-Current & Under-Voltage Protection - Automatically cuts power during dangerous electrical faults to protect your connected devices and wiring from damage.

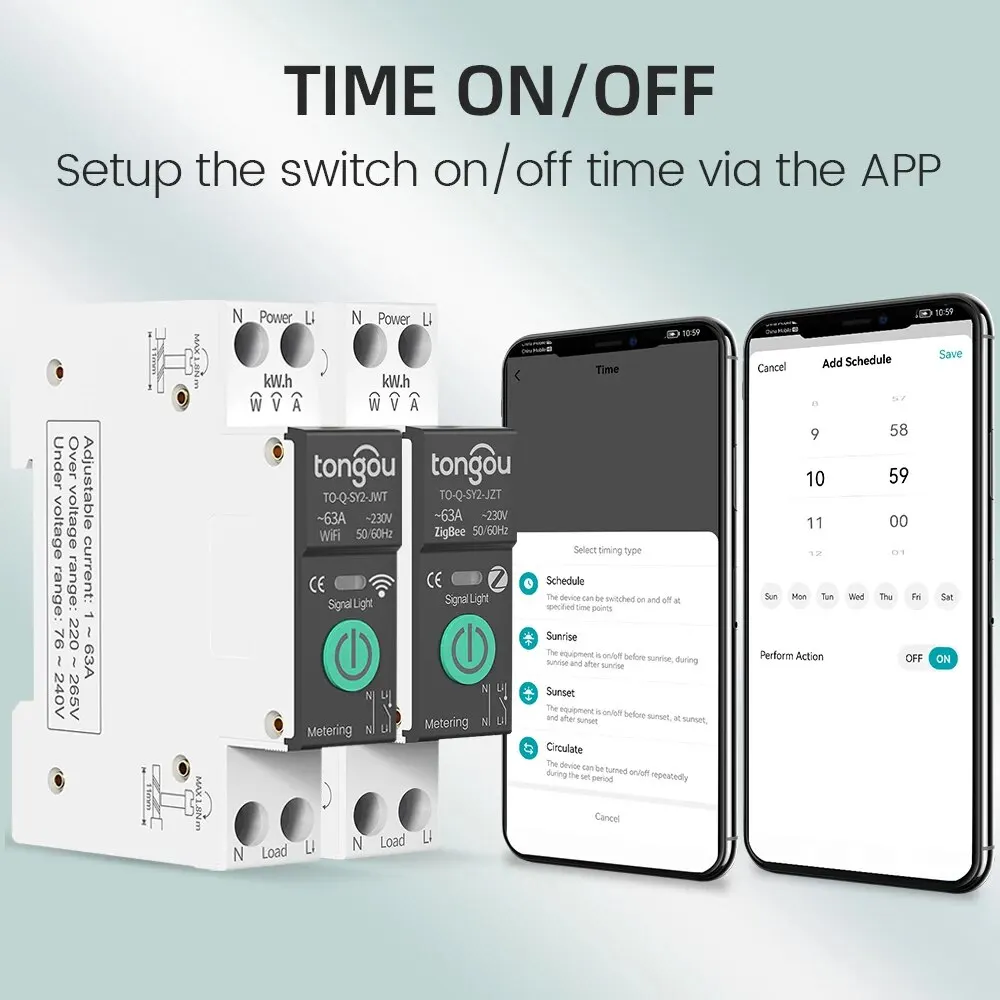

- Remote Control & Scheduling - Turn circuits on/off remotely or set automated schedules for lighting, appliances, and equipment, enhancing convenience and security. Applications
- Home Energy Management - Monitor and control high-consumption circuits for appliances like HVAC or water heaters to achieve significant energy savings.
- Smart Home Automation - Integrate lighting and outlet circuits into scenes and routines, enabling automated control based on time, presence, or other triggers.
- Workshop & Garage Safety - Remotely power down tools and machinery after use and receive alerts for any abnormal electrical activity, preventing potential hazards.
- Vacation & Property Management - Ensure all non-essential circuits are off while away, or schedule lights to simulate occupancy, enhancing security for your property. Note
Professional installation by a qualified electrician is required. This device is designed to work within standard residential electrical systems. Always verify compatibility with your local electrical standards and smart home hub before purchase.
Breaking Capacity: 6 kA. Standby Power: ≤2 W. Rated Voltage: 230 V AC. Storage Temperature: -40°C to +70°C. Accuracy Class: 1. Communication Protocol: WiFi, ZigBee. Electrical Life: 4000 cycles. Frequency: 50/60 Hz. Function: Power Metering, Remote Control. Installation: DIN Rail Mounting. Mechanical Life: 10000 cycles. Mounting Width: 18 mm. Operating Temperature: -25°C to +55°C. Pole Configuration: 1P. Product Type: Smart Miniature Circuit Breaker. Protection Type: Over Current, Under Voltage. Rated Current: 1-63 A. Relative Humidity: ≤93%. Terminal Torque: 2.0 N·m. Wire Connection: Screw Terminal. Wire Gauge: 1-25 mm². Height: 90mm (Approximate, standard DIN rail device height). Width: 18mm (Standard single-pole MCB module width). Enclosure Material: Flame Retardant Polycarbonate (PC). Rated Operational Voltage: 230V AC, 50/60Hz. Breaking Capacity: 6kA (Inferred standard for residential MCB). Protection Functions: Over-current protection, Under-voltage protection. Operating Temperature: -25°C to +55°C. Relative Humidity: ≤ 95% (non-condensing). Storage Temperature: -40°C to +70°C. Mounting Standard: DIN Rail EN 60715 (35mm). Communication Protocols: WiFi (IEEE 802.11 b/g/n), ZigBee 3.0. Connection Type: Screw Clamp Terminals. Depth: 70mm (Approximate, including communication module). Electrical Endurance: ≥ 4000 cycles. Insulation Resistance: > 100 MΩ. Mechanical Life: ≥ 10,000 cycles. Metering Capability: Real-time power (W), voltage (V), current (A), and energy consumption (kWh). Pole Configuration: 1-Pole (Single Phase). Product Type: DIN Rail Mountable Smart Miniature Circuit Breaker (MCB). Rated Current: 1-63A (Adjustable/Configurable). Remote Control: Yes, via smartphone app and voice assistants. Trip Characteristic: Type C (Standard for residential inductive loads). Q: What are the key specifications and dimensions of this TUYA smart circuit breaker? A: This TUYA WiFi/ZigBee MCB is rated for 1-63A current, providing over-current and under-voltage protection. It includes power metering capabilities and remote control via its smart features, though specific dimensions should be confirmed with the seller for your electrical panel fit.. Q: How durable is this smart circuit breaker for regular use in an industrial setting? A: This smart circuit breaker is built with reliable components designed for consistent performance. It offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing, delivering reliable performance for regular use.. Q: Can this TUYA smart circuit breaker integrate with my existing smart home system? A: Yes, this smart circuit breaker uses the TUYA platform, which is compatible with many major smart home ecosystems like Google Home and Amazon Alexa via WiFi or ZigBee hubs. This allows for seamless integration into your existing setup for remote monitoring and control.. Q: Does this product come with a warranty or guarantee? A: Warranty details for this smart circuit breaker should be confirmed directly with the seller at the time of purchase. It is standard practice for electronic components to have a coverage period, so we recommend checking the product listing for specific guarantee information.. Q: Is this TUYA smart MCB a good value compared to traditional circuit breakers? A: Yes, it offers excellent value by adding smart features like remote control, power metering, and protection alerts to a standard breaker's function. For the price, it provides significant utility for energy monitoring and automated electrical safety management..
