Air Compressor Pressure Switch | 4 Port 1/4 BSP | 90-120 PSI | 240V

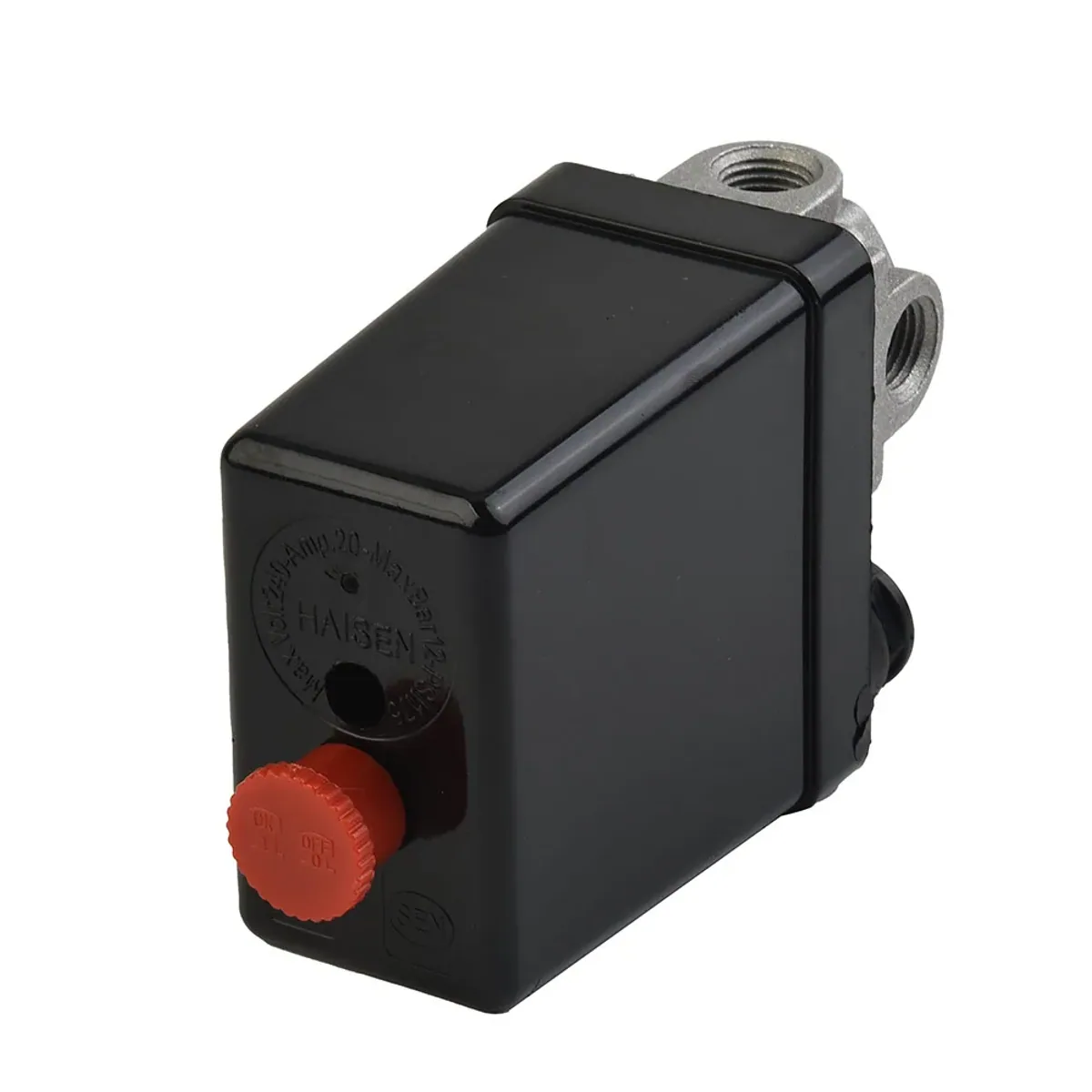

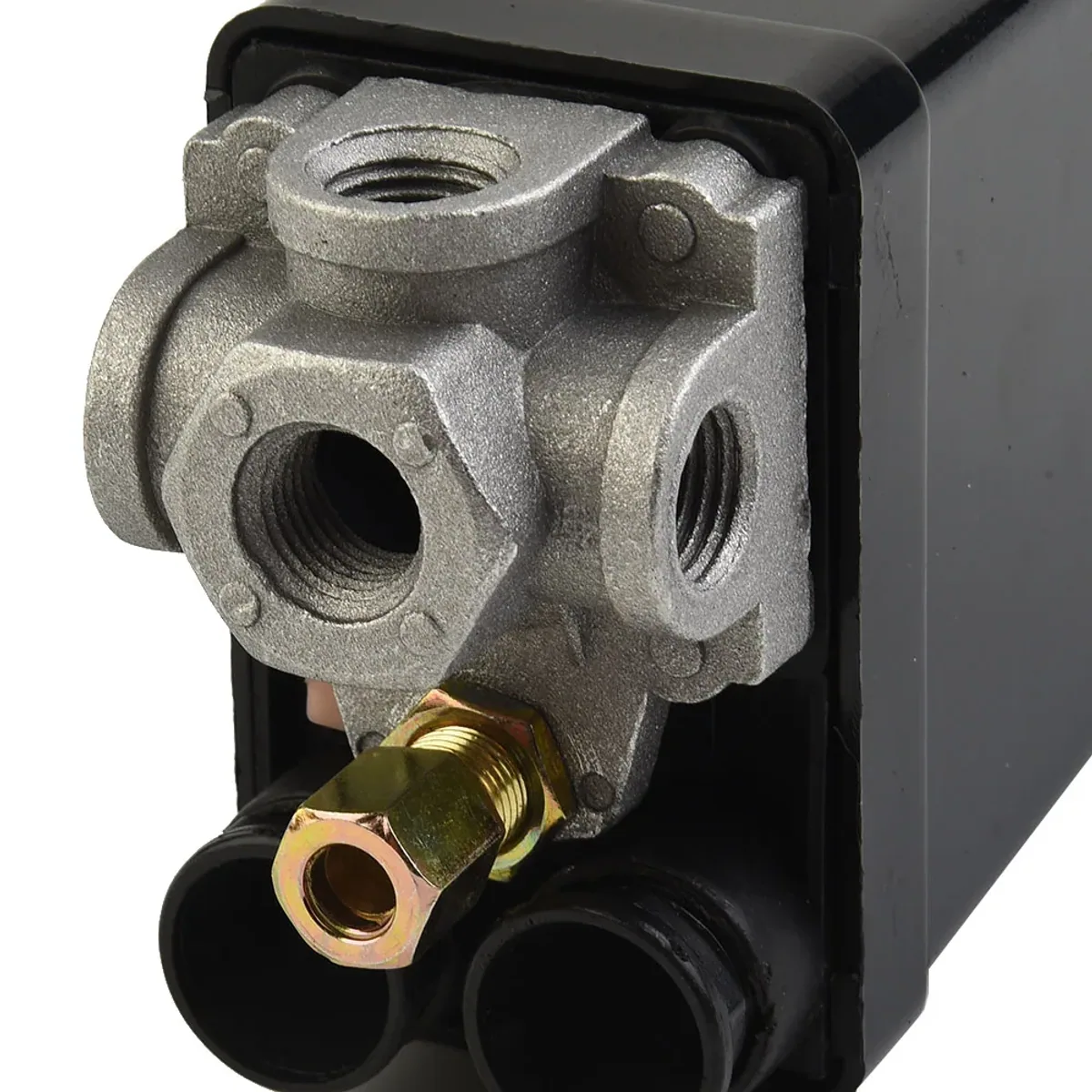

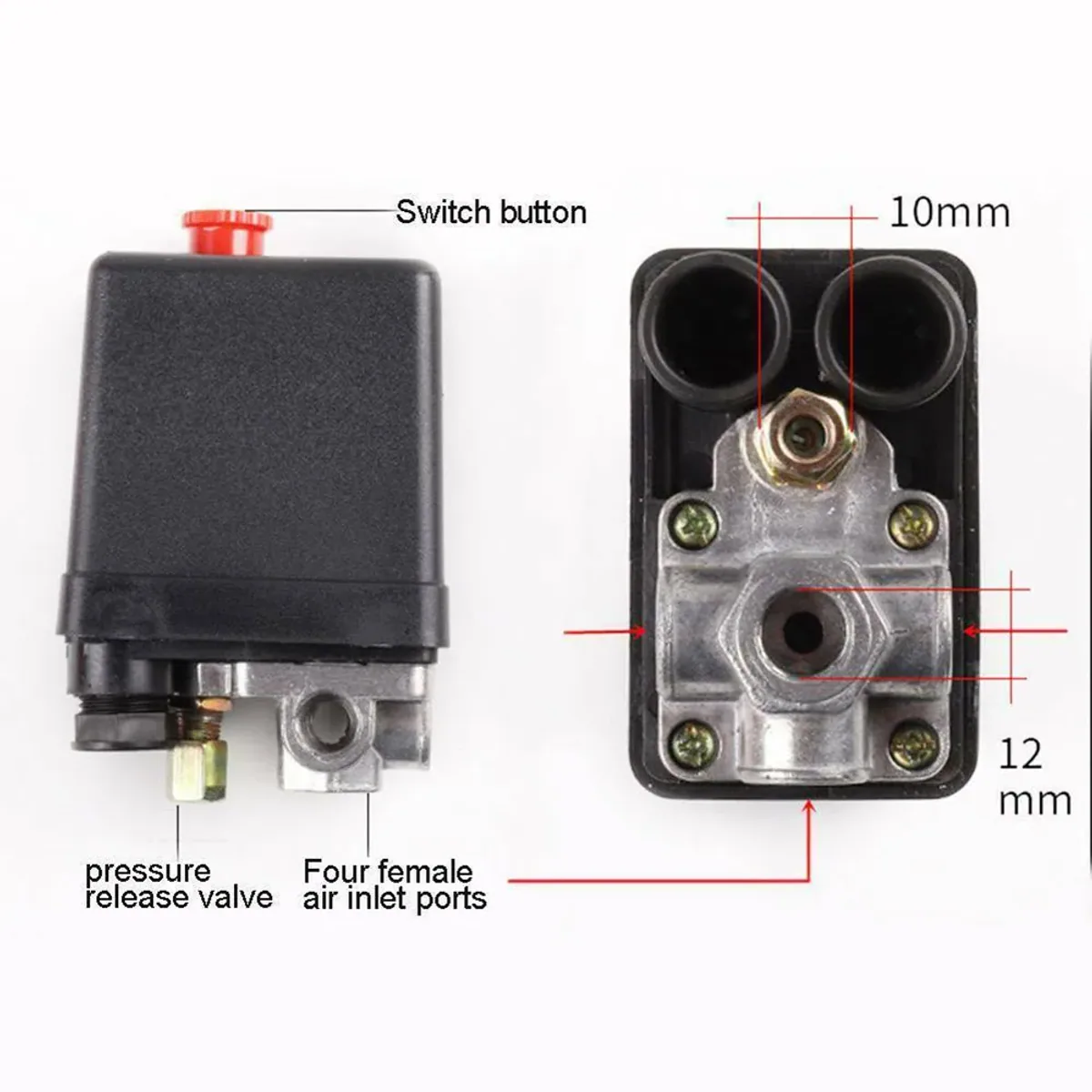

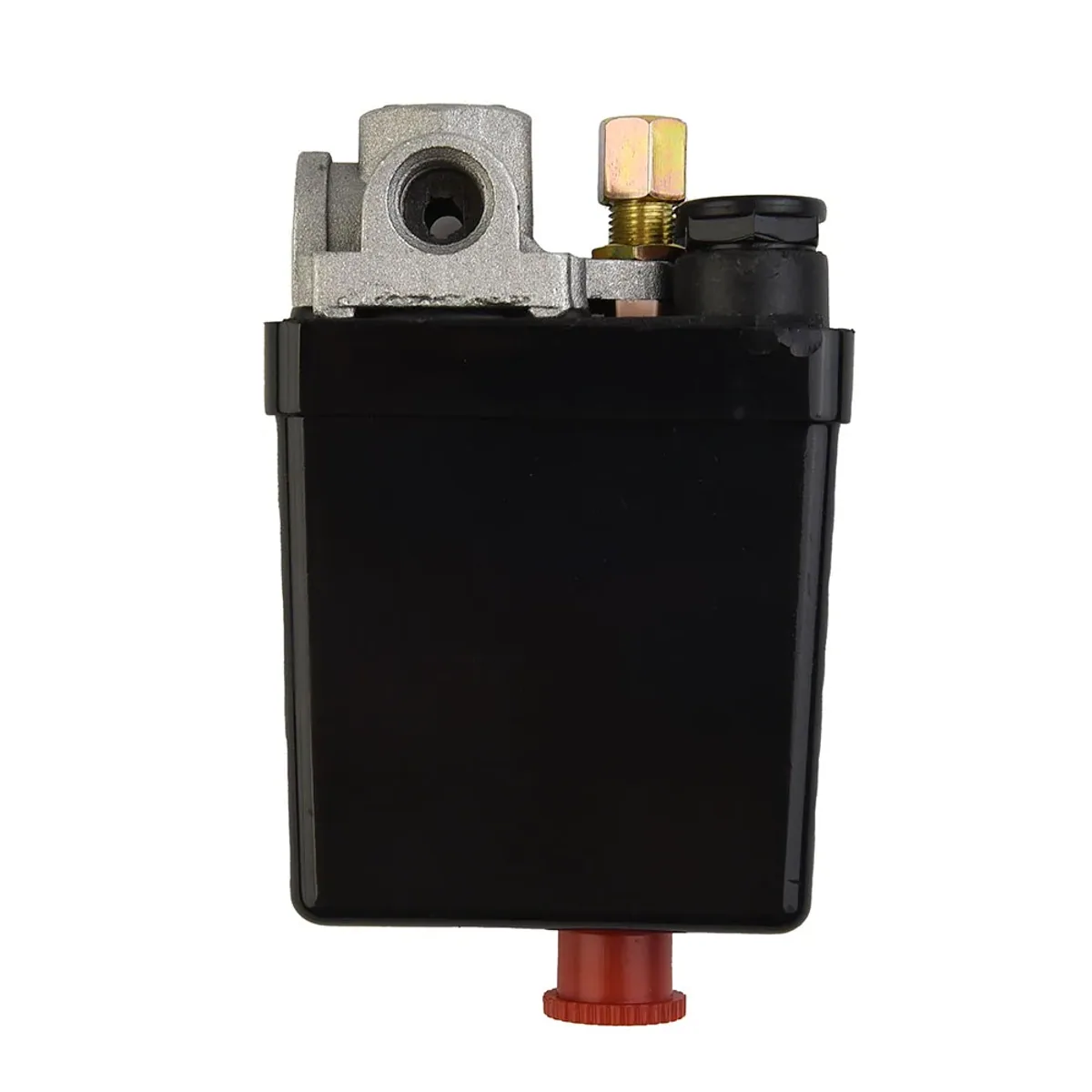

This air compressor pressure switch is a 4 port control switch that regulates tank pressure between two preset values on standard electric air compressors, with a regulation range of 90 to 120psi. It is rated 220-240V at up to 16A, has four female 1/4 inch BSP ports and a black plastic housing on a metal manifold, so it suits a like for like swap on a workshop compressor. Features and benefits: - 90 to 120psi pressure regulation - switches the motor on and off between two preset tank pressures, with a maximum working pressure of 8 bar - 4 port manifold with four female 1/4 inch BSP ports (about 12mm thread diameter) - easy to install as a like for like replacement - Rated 220-240V, maximum 240V and 16A - suits standard electric air compressors - Auto On/Off button - lets you shut the compressor off by hand - Red adjustment knob - used to set the pressure on the switch - Plastic housing on a metal manifold with brass coloured fittings - weighs 0.27kg - 10mm wiring hole - for the electrical connection Applications: - Replacing a worn or faulty pressure switch on a workshop air compressor - Garage, home workshop and small factory compressors - Maintenance and repair of standard electric compressors - Spare part stock for compressor servicing In the box: 1 x air compressor pressure switch Note: This is a non-original replacement part, so check the port layout, thread and voltage against your old switch before fitting. Isolate the compressor from the mains and release all air from the tank before removing the old switch, and have the wiring done by a competent person. The maximum pressure is 8 bar; do not set the switch above the tank rating.
